Tripp Lite SRW26USDP 26U Wall-Mount Rack Enclosure Cabinet

26U Wall-Mount Rack Cabinet

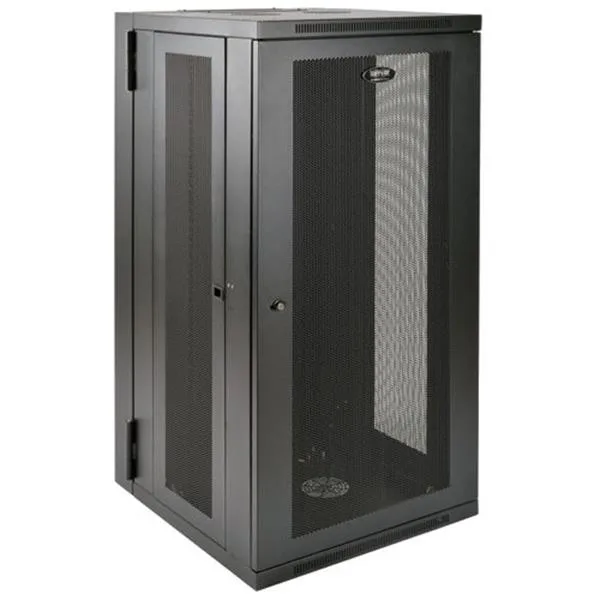

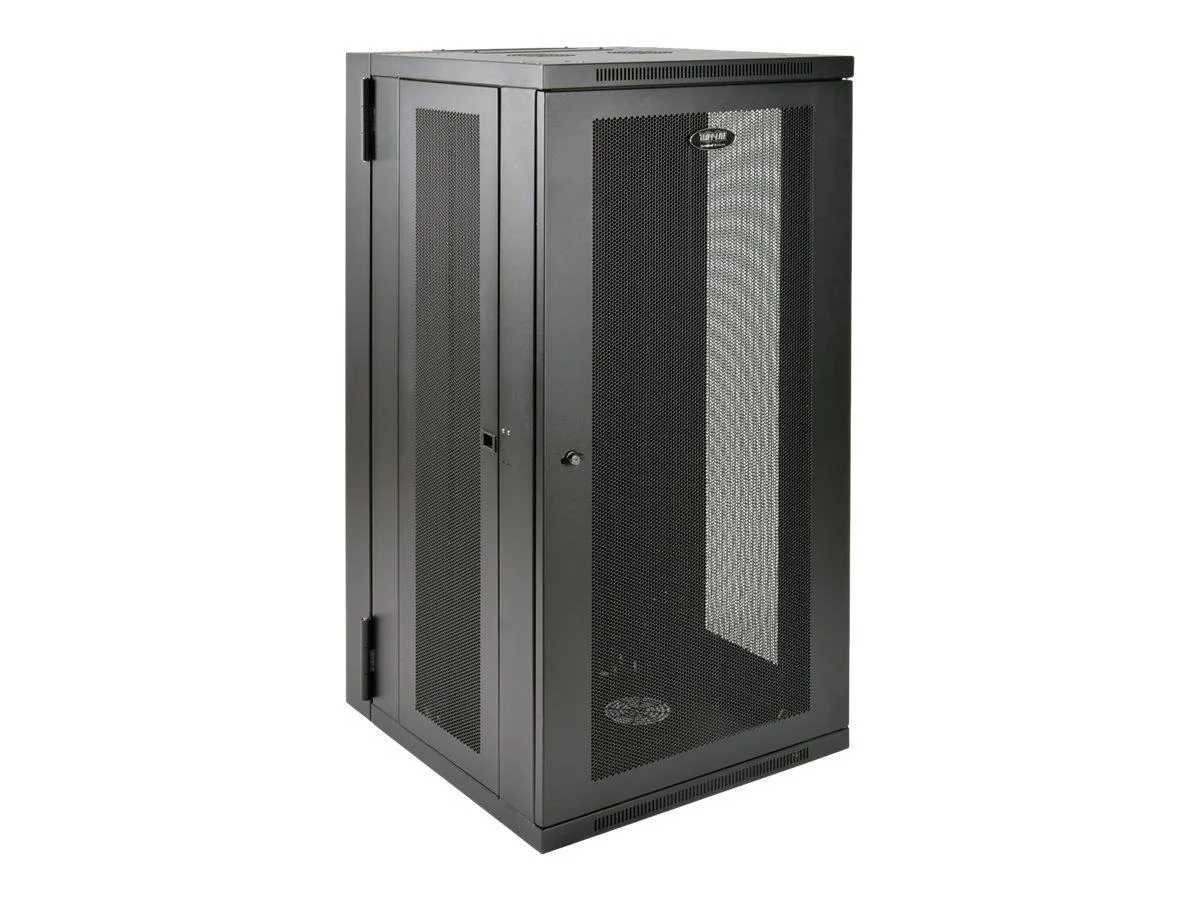

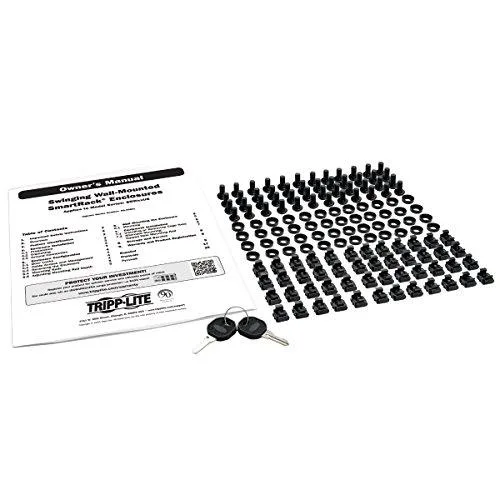

The Tripp Lite SRW26USDP is a 26U wall-mount rack enclosure cabinet built from heavy-duty steel with a black powder-coated finish. It secures standard 19-inch rack equipment up to 24.5 inches deep in wiring closets, classrooms, or back offices where floor space is limited. The unit arrives fully assembled and includes 48 M6 screws, 48 M6 cage nuts, 48 M6 washers, 48 12-24 screws, and two keys.

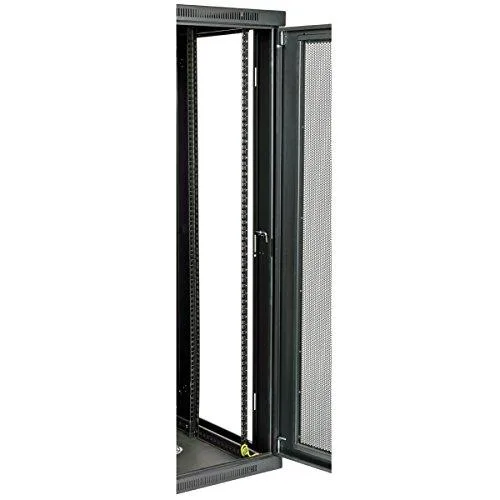

Hinged Back for Rear Access

This cabinet suits installers who need rear equipment access without floor-standing racks; the hinged back swings away from the wall for cabling and maintenance. Locking doors and side panels protect against tampering, while vented panels on the front, top, bottom, and sides promote airflow. Reversible doors open left or right by rotating the cabinet 180 degrees before mounting. It is not for sites that cannot support a 124.90 lb unit or lack the wall structure for a 250 lb load capacity.

250 lb Maximum Load Capacity

The single specification that decides fit is the 250 lb maximum load capacity, which must cover the combined weight of all mounted gear including any UPS batteries. The cabinet measures 49.6 inches high, 23.6 inches wide, and 25.5 inches deep, with numbered rack spaces and both square and threaded mounting holes for easy installation. Optional SRCASTER rolling caster kit converts it to a mobile rack if required.
