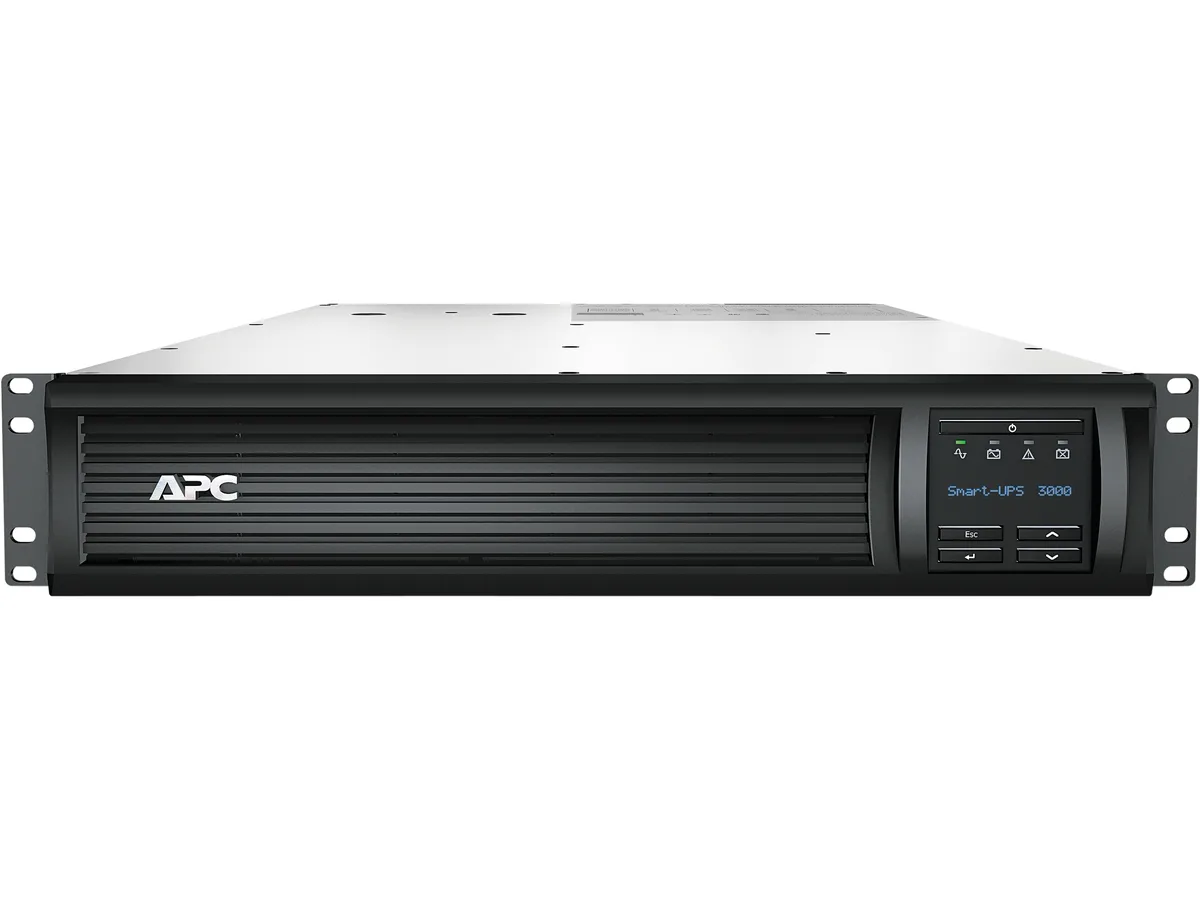

APC SMT3000RM2UC 2U rackmount UPS with LCD display, eight NEMA outlets, front panel controls

APC

APC SMT3000RM2UC UPS 3000 VA 120 V 2U rackmount 6×5-15R 2×5-20R

SKU CH-HJKN-1GM80 MPN SMT3000RM2UC

A 3000 VA line-interactive UPS in a 2U rackmount chassis delivers 2700 W of battery-backed power through six NEMA 5-15R and two NEMA 5-20R outlets with an LCD status screen

  • International Version120V
  • Input Voltage Range82 - 144V
  • Input Frequency50/60 Hz +/- 3 Hz
  • Input ConnectionNEMA L5-30P
  • VA Rating3000 VA
  • Watts2700 Watts

Options SMT3000RM2UC

عرض 2 تكوينات إضافية

الإصدارات المشطوبة موجودة، لكنها غير متوفرة هنا.

  • 2700 W output powers dense server racks
  • 3000 VA line-interactive topology with AVR
  • 2U rackmount form fits standard cabinets

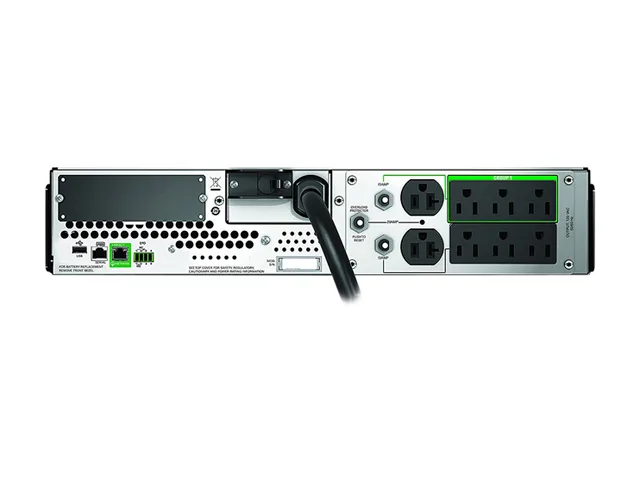

  • 8 mixed NEMA outlets serve varied loads
  • LCD shows runtime, load and battery status

3000 VA 2U rackmount UPS

The APC SMT3000RM2UC is a line-interactive battery backup rated at 3000 VA and 2700 W. It occupies 2U of rack space and operates from a 120 V supply with a NEMA L5-30P input plug. Eight outlets are provided: six NEMA 5-15R and two NEMA 5-20R receptacles. An LCD screen shows operating mode, load, runtime and battery capacity.

Suits 120 V rack environments.

This unit fits server rooms and network closets that run on 120 V power and need rackmount protection for servers, switches, routers or point-of-sale gear. It is not for sites that require a different input voltage. The 3-minute runtime at full load means it will not sustain extended outages without additional battery packs. Buyers needing longer autonomy should look at models that support external battery modules.

2700 W output capacity

The 2700 W rating is the single figure that decides whether this UPS can carry your connected equipment. Add the power draw of every device you plan to protect; if the total exceeds 2700 W, this model cannot support the load.

أبرز المميزات

  • 2700 W output powers dense server racks
  • 3000 VA line-interactive topology with AVR
  • 2U rackmount form fits standard cabinets
  • 8 mixed NEMA outlets serve varied loads
  • LCD shows runtime, load and battery status

المواصفات

BrandAPC
ModelSMT3000RM2UC
International Version120V
Input Voltage Range82 - 144V
Input Frequency50/60 Hz +/- 3 Hz
Input ConnectionNEMA L5-30P
VA Rating3000 VA
Watts2700 Watts
Output Voltage120V
Output Frequency47 - 53 Hz
Outlets8
Outlet Type6 x NEMA 5-15R
2 x NEMA 5-20R
Battery TypeSealed Lead Acid
Battery Run TimeAt Full load: 3 Minutes
Battery ReplaceableRBC43
Interface PortRJ-45, USB, Smart-Slot
ApprovalsUL 1778, CSA
FeaturesLCD Display Screen - Clear, Consistent, and detailed information in your choice of basic or advanced menus
Power Status- Operating mode, efficiency, load, input / output frequency, battery capacity, runtime and more
Configuration - Easily configure: language, power quality, alarms, delay and threshold settings
Test and Diagnostics - Initiate battery and runtime calibration tests
Control - UPS and outlet group settings
Quick Status Indicators - Online, on battery, fault, and replace battery LEDs for quick status identification
Escape, Return and navigation buttons - Intuitive navigati
Dimensions3.50" x 19.00" x 17.00"
Weight97.00 lbs.
وزن الشحنة51.71 kg
أبعاد الطرد980 × 600 × 254 mm

إصدارات أخرى من هذا الطراز

5 أخرى من الفئة نفسها

نفس الفئة، بذاكرة أو مبرّد أو تردد مختلف — قارن قبل أن تقرر.

أسئلة حول هذا المنتج

Should I choose the 5-15R or the 5-20R outlets for my equipment?

Use the six NEMA 5-15R outlets for standard 15 A plugs and the two NEMA 5-20R outlets for devices with 20 A plugs; both types deliver 120 V from the same UPS.

What does the 3000 VA rating mean for actual server loads?

The unit supplies up to 2700 W of real power; at full 2700 W load the battery lasts three minutes, so size your connected gear below that wattage for longer runtime.

What does the NEMA L5-30P input plug require on my circuit?

The L5-30P connector needs a dedicated 30 A, 120 V branch circuit; the UPS accepts 82 to 144 V input and passes 120 V to the eight output receptacles.
