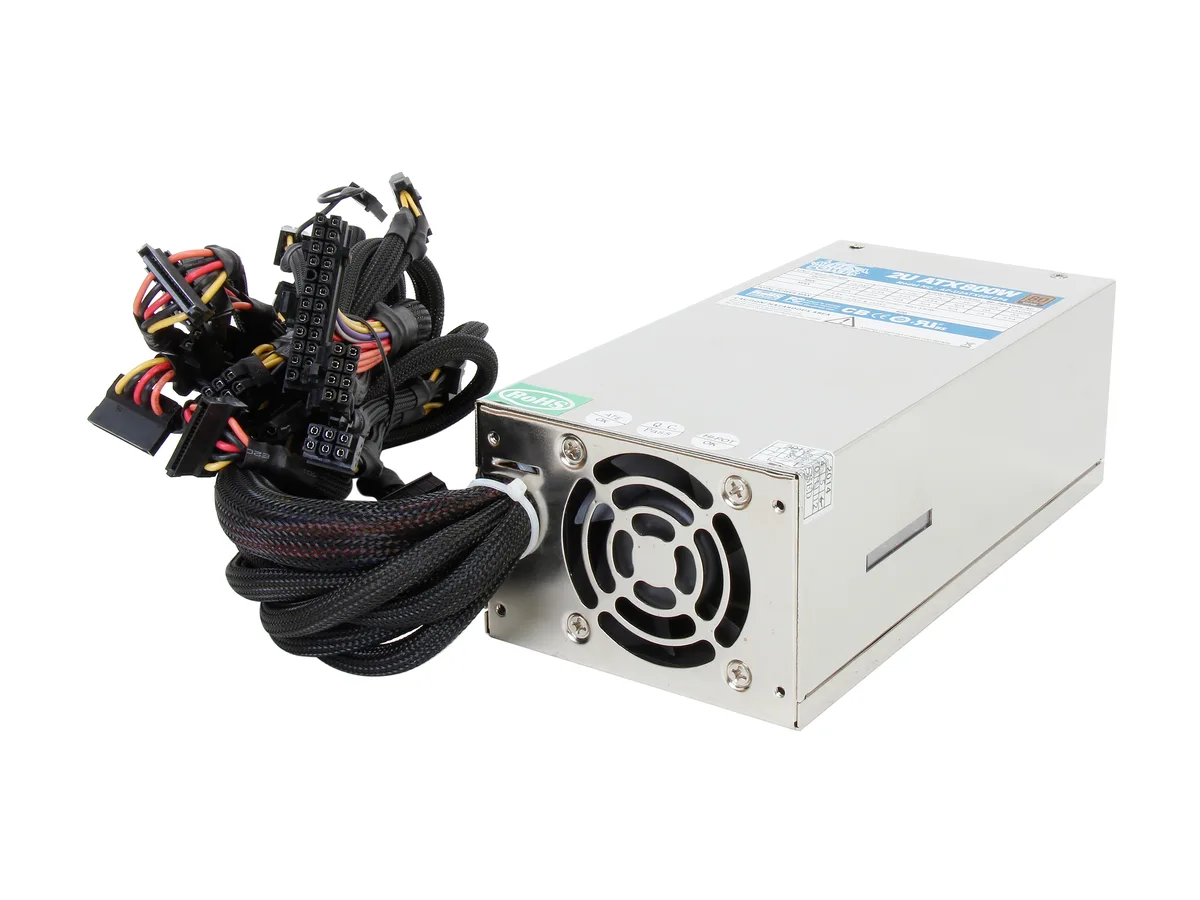

Silver metal 2U server power supply with two 40mm fans and rear cable connectors

Athena Power

Athena Power AP-U2ATX80FEP8 800W 2U server power supply

SKU CH-5ZV5-Z1THB MPN AP-U2ATX80FEP8

Single 800W 2U server power supply with 80 PLUS Bronze efficiency, dual 40mm fans, and full EPS-12V plus PCIe connector support

  • Single/RedundantSingle
  • Maximum Power800W
  • Main Connector20+4Pin
  • Output+3.3V@20A, +5V@22A, +12V1@32A, +12V2@32A, -12V@1A, [email pr
  • Input Voltage88 - 264 V
  • Input Frequency Range47 - 63 Hz
  • 800W single-output power for demanding server builds
  • 80 PLUS Bronze efficiency reduces energy waste
  • Dual 40mm ball-bearing fans with smart auto speed control
  • Comprehensive connector set including dual EPS-12V 8-pin and PCIe 6+2 pin
  • MTBF rated at 100,000 hours at 25°C full load

2U server power supply

The Athena Power AP-U2ATX80FEP8 is an 800W single unit built for 2U rackmount and mini-server chassis. It supports ATX V2.3 and EPS-12V motherboards including Xeon and i7 platforms. Dual 40mm ball-bearing fans with a smart auto fan speed controller move heat from the rear toward the front exhaust. The package includes the power supply and a power cord.

800W continuous output

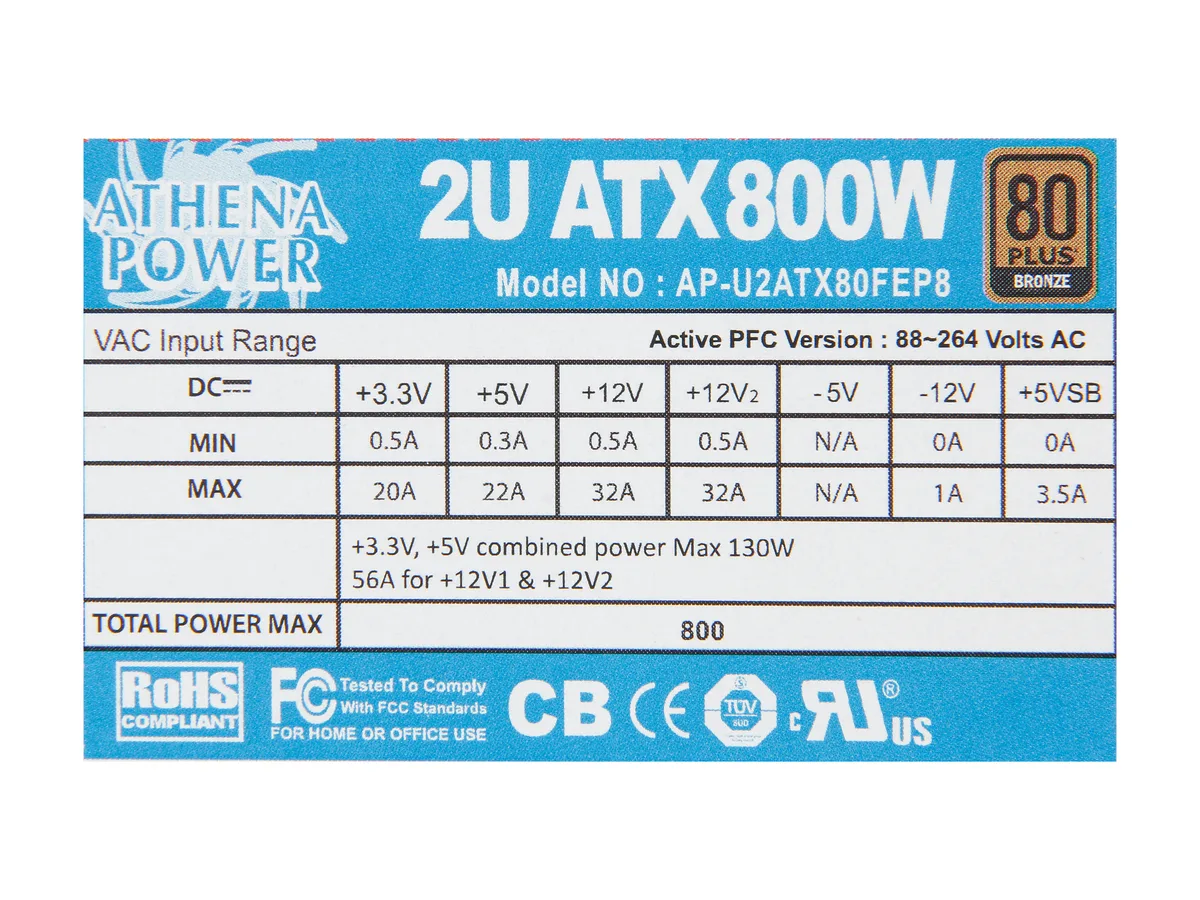

The supply delivers 800W across +3.3V@20A, +5V@22A, dual +12V rails at 32A each, -12V@1A and 5VSB@2.3A. Active PFC corrects the power factor across a universal 88-264V input range at 47-63Hz. Protections include over-voltage, short-circuit and overload. Hold-up time is 17ms minimum at nominal input. MTBF is rated at 100000 hours at full load and 25°C.

Connector complement and headroom

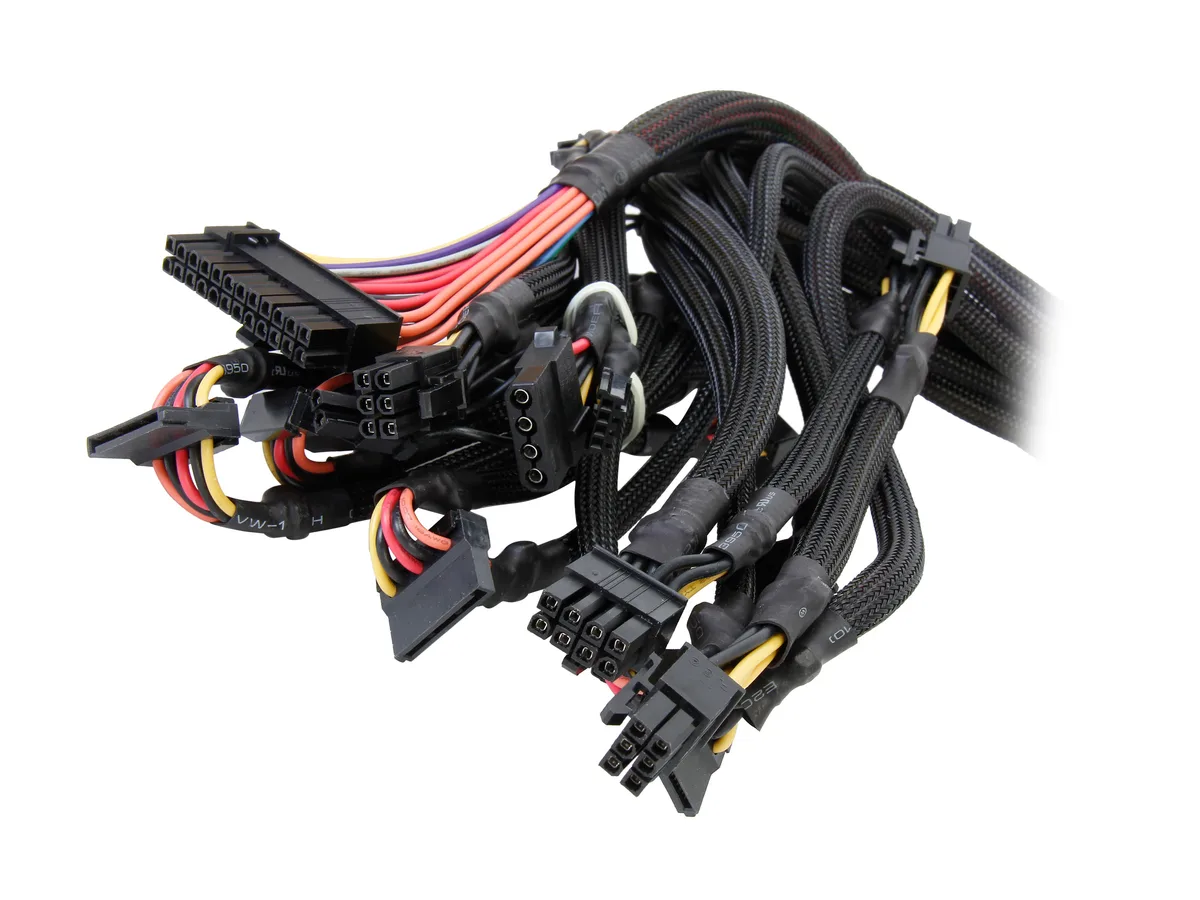

One 24-pin ATX, one P4 4-pin, two EPS 8-pin, two PCIe 6-pin, two PCIe 6+2-pin, eight SATA, two Molex and one floppy connector are provided. This covers dual-processor server boards and up to two auxiliary graphics cards. It does not suit builds needing redundant supplies or more than two EPS 8-pin connections. Operating temperature range is 0-50°C at full load.

أبرز المميزات

  • 800W single-output power for demanding server builds
  • 80 PLUS Bronze efficiency reduces energy waste
  • Dual 40mm ball-bearing fans with smart auto speed control
  • Comprehensive connector set including dual EPS-12V 8-pin and PCIe 6+2 pin
  • MTBF rated at 100,000 hours at 25°C full load

المواصفات

BrandAthena Power
ModelAP-U2ATX80FEP8
Single/RedundantSingle
Maximum Power800W
Main Connector20+4Pin
Output+3.3V@20A, +5V@22A, +12V1@32A, +12V2@32A, -12V@1A, [email protected]
Input Voltage88 - 264 V
Input Frequency Range47 - 63 Hz
Fans2
MTBF100,000 Hours on Full Load at +25 °C
Hold-up Time17 ms Minimum at Nominal Input Voltage
ProtectionOver voltage, short circuit and overload protection.
FeaturesConnectors:
ATX Connector 24 (20+4) Pin x 1
P4-12V 4 Pin x 1
EPS-12V 8 Pin x 2
PCIE 6 Pin x 2
PCIE 6 + 2 Pin x 2
SATA 15 Pin x 8
Molex x 4 Pin x 2
Floppy 4 Pin x 1
Dimensions2.74" x 7.87" x 3.93"
Weight5.00 lbs.
TemperatureOperating: 0°C ~ +50°C on Full Load
Storage & Shipping: -20°C ~ +80°C

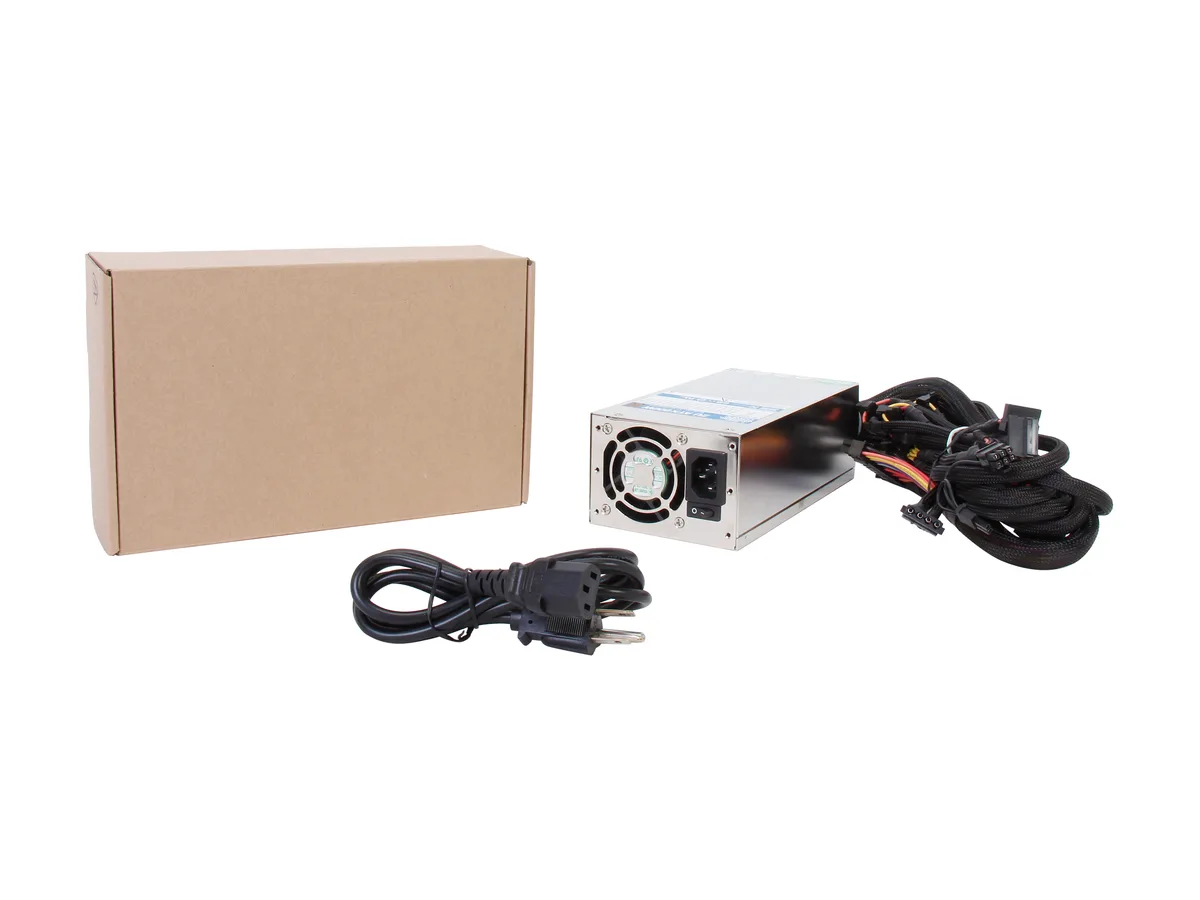

Package Contents1 x AP-U2ATX80FEP8
1 x Power Cord
وزن الشحنة2.16 kg
أبعاد الطرد254 × 206 × 99 mm

أسئلة حول هذا المنتج

What does the 800W rating mean for a server build?

The unit delivers up to 800W total across its rails, with +12V1 and +12V2 each rated at 32A, +5V at 22A and +3.3V at 20A, supporting multi-CPU and multi-GPU configurations.

What does the 80 PLUS Bronze and Active PFC mean for daily operation?

80 PLUS Bronze certification indicates verified efficiency at typical loads, and Active PFC maintains a high power factor across the 88–264V input range, reducing wasted energy and heat.

Will this 2U supply fit my rackmount chassis?

The PSU measures 2.74" high, 7.87" wide and 3.93" deep, matching the standard 2U form factor, and weighs 5.00 lbs with dual 40mm fans in a front-to-rear airflow layout.
