Green PCIe card with four USB-C ports on a metal bracket

ESTONE

ESTONE PCIE24C 4 Port USB-C PCIe Expansion Card

SKU CH-ZV32-2WBQN

Adds four 10Gbps USB-C ports via a PCIe x4 slot with optional SATA power

  • TypePCI to USB Card
  • External USB Ports4x USB Ports
  • StandardUSB 3.1
  • Data Transfer RateUp to 10 Gbps
  • Operating Systems SupportedWindows 7/8/10/11
  • CompatibilityWidely Compatibility: The card is compatible with Windows 7/
  • Adds four USB-C ports at 10 Gbps via PCIe x4
  • ASM3142 controller delivers USB 3.2 speeds up to 10 Gbps
  • Optional SATA power provides up to 15 W per Type-C port
  • Works with Windows 7/8/10/11, macOS 10.8.2+, and Linux
  • Fits PCIe x4, x8 or x16 slots on Intel, AMD or Apple Silicon platforms

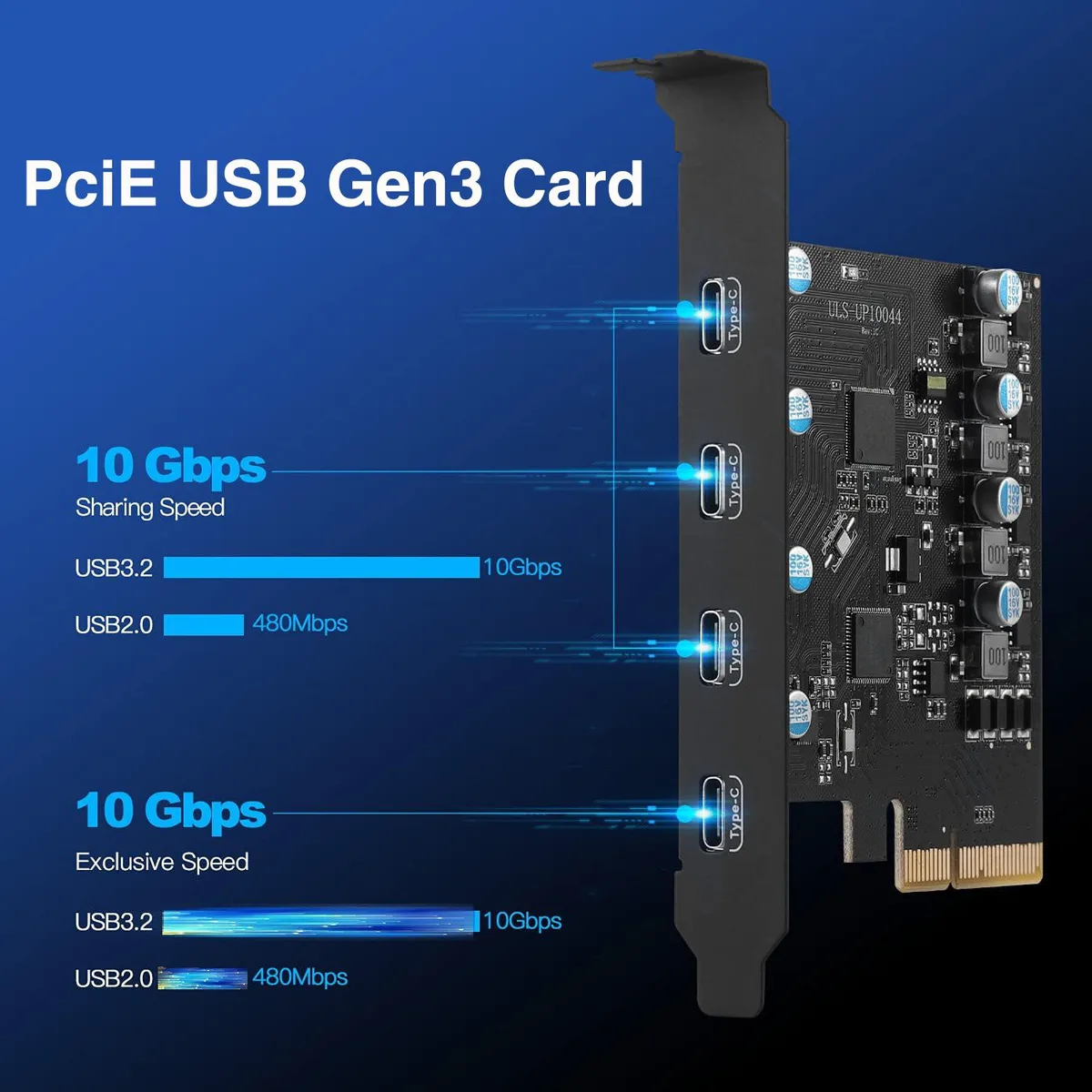

Four USB-C ports via PCIe x4

The ESTONE PCIE24C adds four external USB Type-C ports to a desktop or server through a single PCI Express x4 slot. It uses an ASM3142 controller to deliver USB 3.2 transfer rates of up to 10Gbps. The card fits x4, x8 or x16 slots and works with Windows 7 through 11, macOS 10.8.2 and later, and Linux.

Sustained throughput with optional SATA power

Under continuous load the ASM3142 maintains 10Gbps signalling across all four ports when the host slot provides enough bandwidth. A SATA power connector is included to supply up to 5V 3A (15W) per Type-C port if motherboard power is insufficient, preventing throttling during large file transfers or video editing sessions.

Driver install required on older Windows

The card seats in any PCIe x4, x8 or x16 slot and secures with the supplied screws. Windows 8, 10, 11, macOS and Linux load drivers automatically; Windows 7 and XP need the driver from the included CD. No DP-Alt Mode or USB Power Delivery is supported, so monitors or high-power charging will not work.

أبرز المميزات

  • Adds four USB-C ports at 10 Gbps via PCIe x4
  • ASM3142 controller delivers USB 3.2 speeds up to 10 Gbps
  • Optional SATA power provides up to 15 W per Type-C port
  • Works with Windows 7/8/10/11, macOS 10.8.2+, and Linux
  • Fits PCIe x4, x8 or x16 slots on Intel, AMD or Apple Silicon platforms

المواصفات

BrandESTONE
SeriesPCIE24C
ModelPCIE24C
TypePCI to USB Card
External USB Ports4x USB Ports
StandardUSB 3.1
Data Transfer RateUp to 10 Gbps
Operating Systems SupportedWindows 7/8/10/11
CompatibilityWidely Compatibility: The card is compatible with Windows 7/8/10/11 (32/64 bit) and Mac OS 10.8.2 and above. The card only requires installing a driver which you can download from our CD driver, when operating on Windows 7. Note: Windows XP,/Vista/7, Server,requires driver installation, Windows 10/11 and Mac OS and Linux don't need drivers.
Specifications4 Ports PCI-E to USB 3.2 HUB PCI Express Expansion Card Adapter 10Gbps for Motherboard
You need to install the RENESAS/VLI USB3.0 driver for your computer first.
Supports PCI Express 2.0 X4 lane, can transferring up to 10Gbps.
PCI Express x1 slot card for usb expansion 5 Ports USB interface Card (4X USB-C)
Power Input: no need extral Power Connector
Power output: +/-5V / 900mA (each port)
Compatible: USB1.1/2.0/3.0/3.2
Operating Systems: Windows7/8/10(32/64bit)
FeaturesPCI Express x4 slot card for usb expansion 4 Ports USB interface Card (4X USB-C)
USB3.0 Backwards compatible older USB 2.0 and 1.1 devices; Comply with PCI-e 3.0 PCIe 2.0 motherboards, Fits PCI Express x1, x4, x8 or x16 socket .Operating System Supports Windows XP/Vista/2008 Server/7/8/10,and Mac 0s (10.8.2 above) . Note: Windows XP,/Vista/7, Server,requires driver installation, Windows 10 and Mac OS 10.8.2 above don't need drivers.
transfer rates of up to 10Gbps copying HD videos, music, photos,data files between USB devices and the computer at blazing fast speeds.Note:The actual tr
Dimensions4.92 x 4.06 x 1.06 inches
Weight3.2 ounces
Package Contents1x USB 3.2 PCI-E expansion card, 1x CD driver, 1 x installation screws, and 1x user manual.

أسئلة حول هذا المنتج

Does the card need a SATA power cable to run four USB-C ports all day?

The card includes an optional SATA power connector that can supply up to 5V 3A (15W) per USB-C port when the motherboard slot cannot deliver enough current.

What slot type must the motherboard provide for this x4 card to work?

It requires a PCI Express x4, x8 or x16 slot compliant with PCIe 2.0 or 3.0; PCIe 1.0 slots are not supported.

Will USB 2.0 devices plugged into these USB-C ports still function at their normal speed?

Yes, the controller is backward compatible with USB 2.0 and 1.1 devices, so older peripherals operate at their rated speeds.
