Black 4U rackmount server chassis with 14 expansion slots and seven 5.25 inch drive bays

iStarUSA Inc.

iStarUSA Inc. D-414L-7 4U 14-slot rackmount server chassis

SKU CH-R3HY-G18FK MPN D-414L-7

4U rackmount chassis with 14 expansion slots, seven 5.25-inch bays and three 120 mm fans

  • Chassis TypeRackmount
  • Form Factor4U
  • ColorBlack
  • Case MaterialAluminum / Steel
  • External 5.25" Drive Bays7
  • External 3.5" Drive Bays1
  • 14 expansion slots support full-length add-in cards
  • Three 120 mm fans provide high-volume airflow
  • Seven 5.25-inch external bays offer flexible storage options
  • Lockable front bezel secures drives and controls
  • 4U rackmount design fits standard 19-inch cabinets

4U 14-slot industrial rackmount chassis

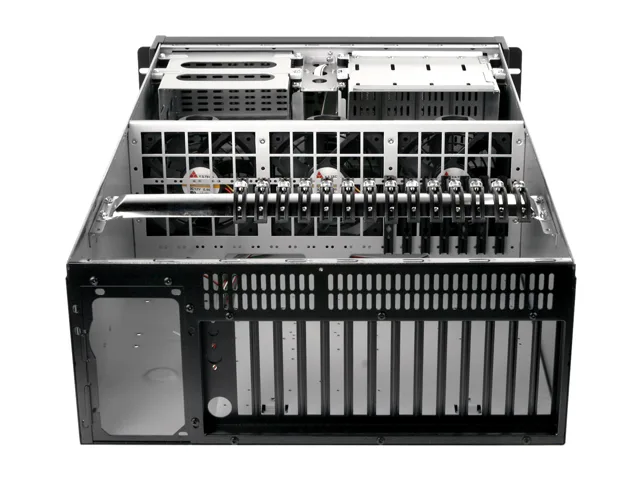

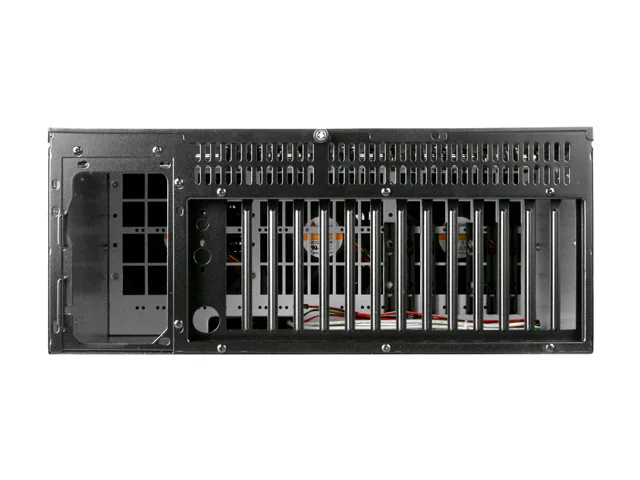

The iStarUSA D-414L-7 is a 4U rackmount server chassis built around a 14-slot passive backplane for full-size add-in cards. It targets telecommunication, industrial automation and data-acquisition systems that need dense card populations in a standard 19-inch rack.

Aluminium and steel frame with seven 5.25-inch bays

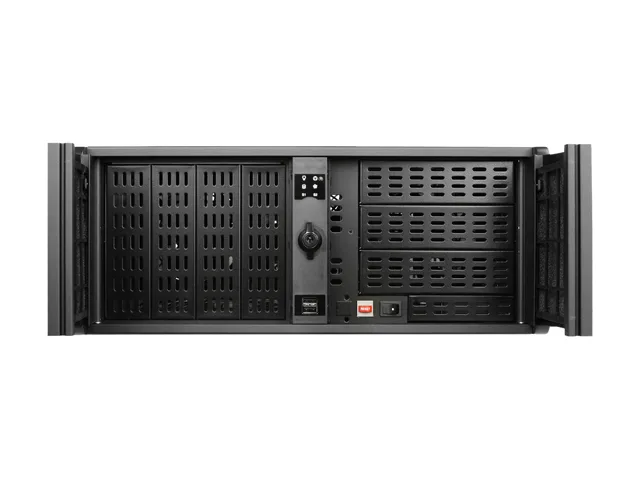

The chassis combines aluminium and steel construction in a black finish and provides seven external 5.25-inch drive bays plus one external and one internal 3.5-inch bay. A lockable front bezel secures access while two front USB 2.0 ports allow quick peripheral connection without reaching the rear panel.

Three hot-swappable 120 mm fans for directed airflow

Three 120 mm hot-swappable fans deliver front-to-rear cooling across the backplane and drive bays. Front-panel LEDs report power, drive activity, temperature and fan status when the optional sensor board is fitted, enabling operators to verify thermal performance at a glance.

أبرز المميزات

  • 14 expansion slots support full-length add-in cards
  • Three 120 mm fans provide high-volume airflow
  • Seven 5.25-inch external bays offer flexible storage options
  • Lockable front bezel secures drives and controls
  • 4U rackmount design fits standard 19-inch cabinets

المواصفات

BrandiStarUSA
ModelD-414L-7
Chassis TypeRackmount
Form Factor4U
ColorBlack
Case MaterialAluminum / Steel
External 5.25" Drive Bays7
External 3.5" Drive Bays1
Internal 3.5" Drive Bays1
Expansion Slots14
Front Ports2 x USB 2.0
120mm Fans3
FeaturesColor of Front Bezel: Black
Motherboard Size: Passive backplane/ Single board
Indicators: Power, HDD, Temperature, Fan (Fan/Temp require sensor board TC-ISF08)
Switches: Power, Reset
Security: Front Bezel Key Lock
Material:
Material of Front Bezel: Aluminum alloy
Material of Handle: SECC Zinc-Coated Steel
Material of Main Chassis: 1.2mm SECC Zinc-Coated Steel ( Japan Made )
Air Filter: Removable & Washable
Dimensions19.00" x 7.00" x 27.90"
وزن الشحنة15.42 kg
أبعاد الطرد686 × 483 × 178 mm

أسئلة حول هذا المنتج

What backplane interface does the D-414L-7 use and how many expansion cards can it hold?

The chassis accepts a passive backplane with 14 slots, so it can hold up to 14 full-size add-on cards.

What are the exact rack dimensions and drive-bay counts for the D-414L-7?

It measures 19.00" x 7.00" x 27.90" and provides 7 external 5.25" bays, 1 external 3.5" bay and 1 internal 3.5" bay.

How are the three 120 mm fans installed and which step is often missed?

The fans mount in the hot-swap fan tray at the front; the step people miss is connecting the fan-sensor board TC-ISF08 so the temperature and fan indicators work.
