Gray 17 inch fanless all-in-one PC with flat IP65 touchscreen

partaker

Partaker A21 17" IP65 All-in-One PC i5-8265U 8GB DDR4 128GB SSD

SKU CH-83E1-1VJF2

17-inch fanless all-in-one PC with IP65 front protection, Intel Core i5-8265U, 8GB DDR4, 128GB SSD and Windows 11 Pro

  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 8th Gen
  • CPU NameIntel Core i5-8265U
  • GPU/VGA TypeIntel UHD Graphics 620

Memory 8GB DDR4

SSD 128GB

  • IP65 front protection resists dust and water jets
  • Fanless aluminium alloy chassis runs silently 24/7
  • Intel Core i5-8265U with 8GB DDR4 handles industrial workloads
  • 1280x1024 17" resistive multi-touch screen works with gloves
  • 9-36V Phoenix input plus 2×COM, HDMI, 2×LAN, 4×USB 3.0

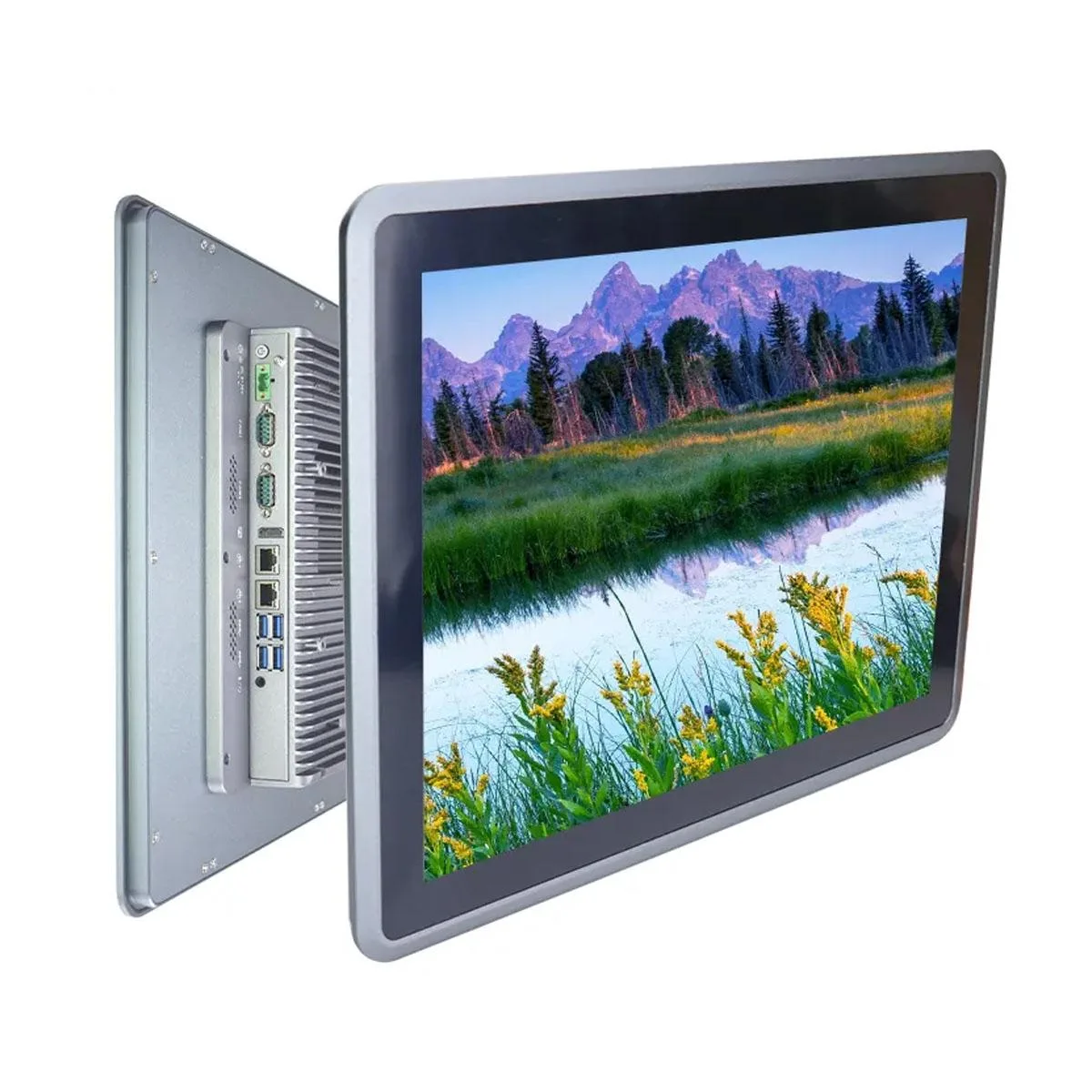

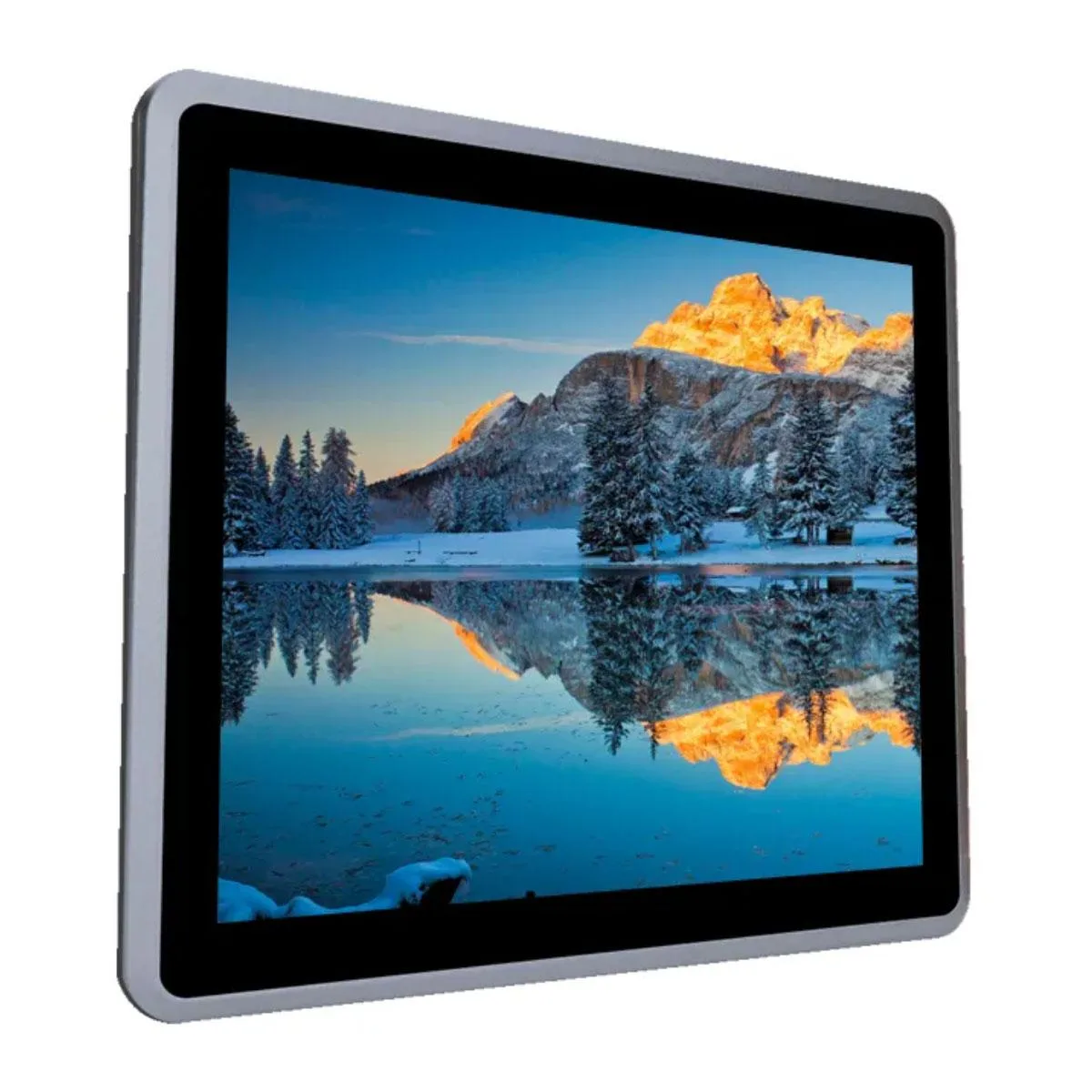

Industrial 17-inch all-in-one panel PC

The Partaker A21 is a fanless 17-inch all-in-one computer built around an Intel Core i5-8265U processor with 8 GB DDR4 memory and a 128 GB SATA SSD. Its IP65-rated front panel and 9–36 V Phoenix power input target factory automation, kiosk and machine-interface deployments that need continuous operation in dusty or wet environments.

Embedded mounting with wide-voltage Phoenix power

Installation uses the supplied embedded brackets for a 389 x 321 mm cut-out; the unit also accepts wall, desktop or cantilever mounts. The 2-pin Phoenix connector handles 9–36 V DC directly, so wiring errors occur when installers feed AC mains or exceed 36 V. Two serial ports support RS232/422/485 — incorrect jumper selection is the typical cause of communication failure.

Verify cut-out, voltage and expansion needs

Confirm the panel cut-out matches 389 x 321 mm and that your supply delivers 9–36 V DC to the Phoenix plug. Check whether the single Mini PCIe slot with SIM holder satisfies wireless or 4G requirements, and note the M.2 2280 SATA plus 2.5-inch SATA bays if additional storage or RAID 0/1 is planned.

أبرز المميزات

  • IP65 front protection resists dust and water jets
  • Fanless aluminium alloy chassis runs silently 24/7
  • Intel Core i5-8265U with 8GB DDR4 handles industrial workloads
  • 1280x1024 17" resistive multi-touch screen works with gloves
  • 9-36V Phoenix input plus 2×COM, HDMI, 2×LAN, 4×USB 3.0

المواصفات

ModelA21-I5 8260U-N-8G128G
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 8th Gen
CPU NameIntel Core i5-8265U
GPU/VGA TypeIntel UHD Graphics 620
Memory Capacity8GB DDR4
SSD128GB
HDDNo
Screen Size17"
TouchscreenYes

إصدارات أخرى من هذا الطراز

5 أخرى من الفئة نفسها

نفس الفئة، بذاكرة أو مبرّد أو تردد مختلف — قارن قبل أن تقرر.

أسئلة حول هذا المنتج

How can I verify the fanless cooling is keeping the i5-8265U within safe temperatures after installation?

The aluminium-alloy chassis acts as a passive heatsink; under normal 0–50 °C ambient conditions the system will run silently and Windows 11 Pro will report stable CPU temperatures in Task Manager or BIOS.

What accessories are included and which items such as Wi-Fi or 4G modules must be purchased separately?

The box contains the A21 panel PC, embedded mounting brackets and a 12 V 5 A AC-DC adapter; a Mini-PCIe Wi-Fi/4G card and SIM are not included and must be sourced separately.

Should I choose the 8 GB DDR4 / 128 GB SSD configuration or plan to upgrade to the 32 GB maximum and add a 2.5" SATA drive?

The 8 GB / 128 GB build suits lightweight HMI or edge tasks; if your application runs databases or local analytics, order the 32 GB SODIMM DDR4-2400 kit and a second 2.5" SATA SSD/HDD for RAID 0/1.
