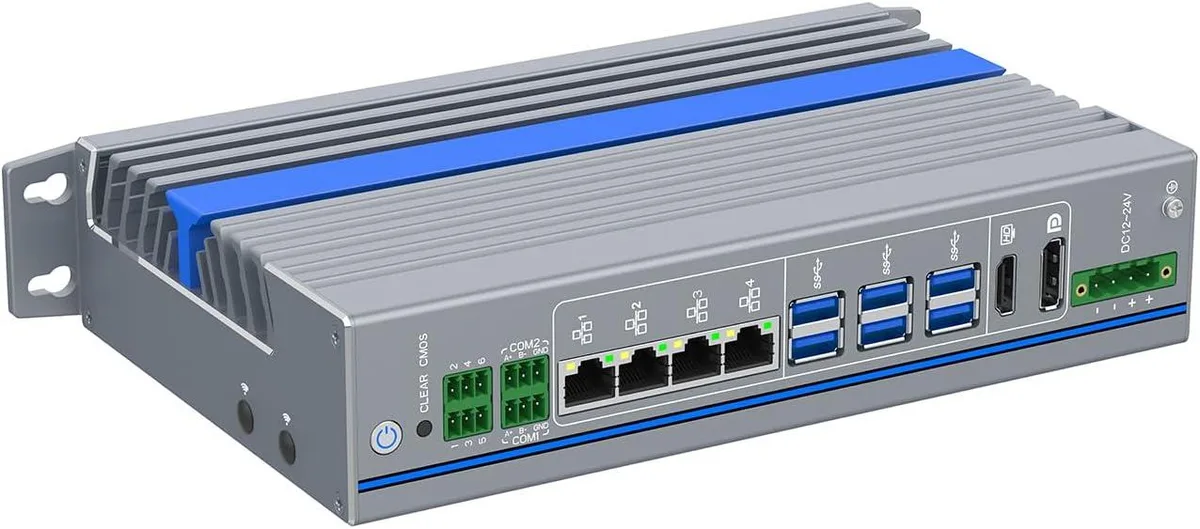

Gray fanless aluminum mini PC, book-style, 265 x 146 x 50mm

partaker

Partaker I24 i5-12500T 16GB 512GB barebone mini PC

SKU CH-0JEA-57ERF

Fanless industrial mini PC with a six-core 4.40 GHz Intel Core i5, 16 GB DDR5, 512 GB storage, quad Gigabit LAN, dual 4K video outputs and six USB 3.0 ports

  • ColorGray
  • CPU TypeIntel Core i5 12th Gen

I24 CPU I5 12500T 16GB RAM / 512GB SSD

  • Fanless aluminium chassis runs silently from -20 °C to 50 °C
  • Six-core i5-12500T reaches 4.40 GHz with 18 MB cache
  • Dual DDR5 4800 MHz slots support up to 64 GB RAM
  • Four Gigabit LAN ports plus six USB 3.0 connectors
  • Dual 4K 3840 x 2160 @60 Hz outputs via HDMI and DP

Industrial fanless barebone

The Partaker I24 is a fanless mini PC built around a six-core Intel Core i5 12500T processor with 18MB cache and a 4.40GHz boost. It ships with 16GB of DDR5 4800 memory and a 512GB SSD, housed in an all-aluminum chassis rated for -20°C to 50°C operation. Designed for 24/7 industrial automation, medical, and logistics deployments, it has no moving parts and supports flexible DC 12V-24V input via a Phoenix terminal.

Connectivity and display limits

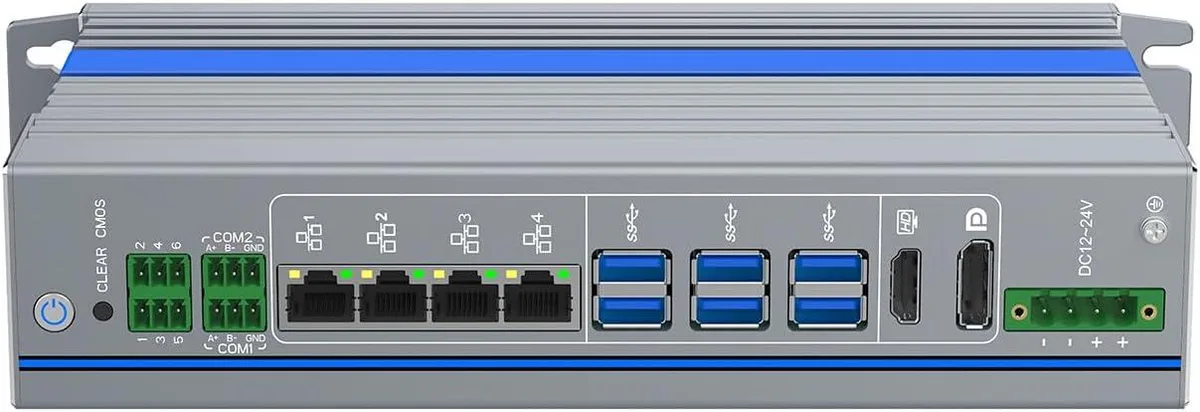

Four Gigabit Ethernet ports provide three high-performance I210-AT links plus one I219-LM management interface, while six USB 3.0 ports handle peripheral density. Dual video outputs drive two 3840x2160 displays at 60Hz over HDMI and DP. Internal expansion includes an M.2 2280 slot supporting SATA or NVME, an mSATA socket, a full-length Mini PCIe slot with a Nano SIM tray, and two optically isolated RS485 serial ports.

Upgrade path and fit

The two SODIMM slots accept up to 64GB of DDR5 4800, so memory can be quadrupled for heavier edge workloads. Storage can be expanded through the M.2 and mSATA bays without replacing the original drive. The 35-69W TDP range means the passive cooler handles sustained loads within the rated temperature envelope. Buyers who need active cooling, more than four network interfaces, or a smaller footprint should look elsewhere.

أبرز المميزات

  • Fanless aluminium chassis runs silently from -20 °C to 50 °C
  • Six-core i5-12500T reaches 4.40 GHz with 18 MB cache
  • Dual DDR5 4800 MHz slots support up to 64 GB RAM
  • Four Gigabit LAN ports plus six USB 3.0 connectors
  • Dual 4K 3840 x 2160 @60 Hz outputs via HDMI and DP

المواصفات

ColorGray
CPU TypeIntel Core i5 12th Gen

إصدارات أخرى من هذا الطراز

5 أخرى من الفئة نفسها

نفس الفئة، بذاكرة أو مبرّد أو تردد مختلف — قارن قبل أن تقرر.

أسئلة حول هذا المنتج

Should I pick the 16 GB 512 GB model or plan to add more memory and storage later?

The unit ships with 16 GB DDR5 4800 MT/s and a 512 GB M.2 2280 NVME/SATA SSD. Two SODIMM slots support up to 64 GB total, and an mSATA slot provides a second internal drive bay.

What does the 4.40 GHz boost clock deliver in a fanless chassis?

The six-core 12500T runs at up to 4.40 GHz within a 35-69 W TDP envelope. Passive aluminum cooling sustains that performance from -20 °C to 50 °C ambient without throttling in typical industrial workloads.

How fast are the four LAN ports and what limits real-world throughput?

Three I210-AT and one I219-LM controllers each provide a Gigabit Ethernet link. Practical throughput caps at 1 Gbps per port, with the H610 chipset and PCIe lanes handling simultaneous traffic across all four interfaces.
