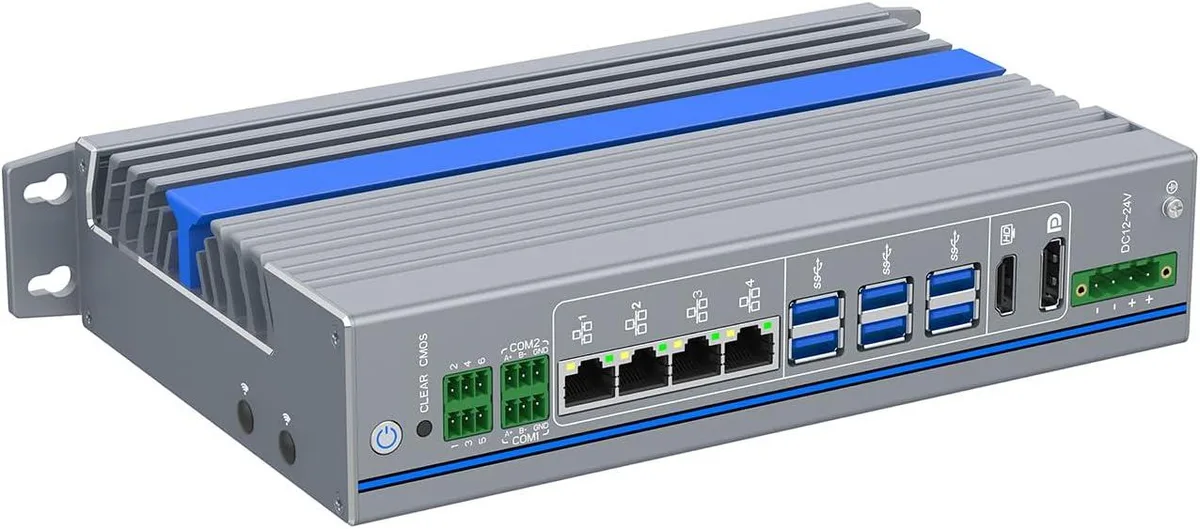

Gray aluminum fanless mini PC, book-style vertical form, 265 x 146 x 50mm, Phoenix power terminal, four LAN ports, six USB 3.0

partaker

Partaker I24 i5-12500T 32GB 1TB barebone mini PC

SKU CH-VHV7-AP3FP

Fanless aluminum mini PC with a six-core i5-12500T, 32 GB DDR5, 1 TB NVME, four Gigabit LAN ports and dual 4K video outputs for industrial automation

  • ColorGray
  • CPU TypeIntel Core i5 12th Gen

I24 CPU I5 12500T 32GB RAM / 1TB SSD

  • Fanless all-aluminium chassis runs silently from -20 °C to 50 °C
  • Six-core i5-12500T up to 4.40 GHz with 18 MB cache handles heavy workloads
  • Dual DDR5 4800 MT/s slots support up to 64 GB memory
  • Four Gigabit LAN ports plus six USB 3.0 and two optically isolated RS485
  • Dual 4K 60 Hz outputs via HDMI and DP drive multiple displays

Industrial-grade barebone for automation

The Partaker I24 is a fanless mini PC built around a six-core Intel Core i5 12500T processor with 18MB cache and up to 4.40GHz boost. It ships with 32GB of DDR5 4800 memory and a 1TB NVME/SATA SSD installed. The all-aluminum chassis operates silently from -20°C to 50°C, making it suitable for 24/7 edge computing, medical imaging or logistics deployments.

Four Gigabit LAN ports and dual 4K outputs

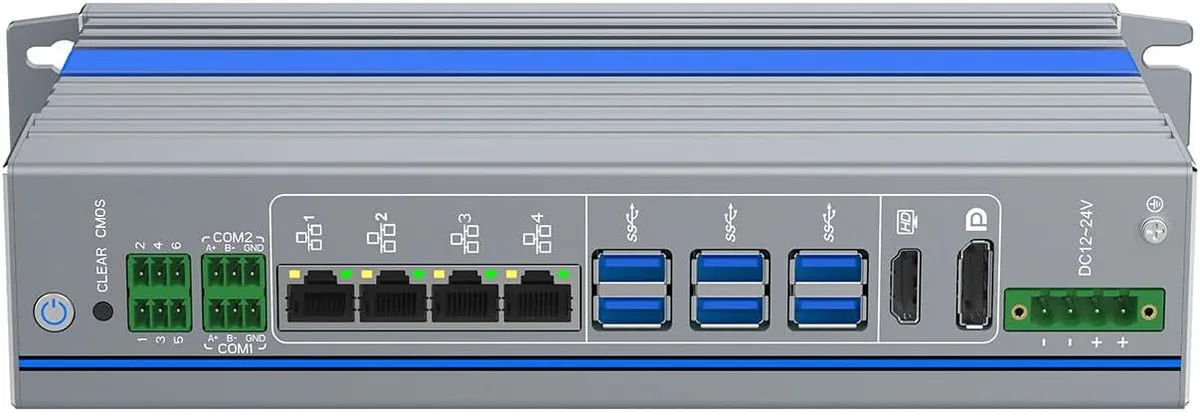

Quad Ethernet uses three I210-AT controllers plus one I219-LM for managed traffic, while HDMI and DP both drive 3840x2160 at 60Hz. Six USB 3.0 ports, two optically isolated RS485 COM ports, a Mini PCIe slot with Nano SIM and an M.2 2280 bay support 4G, WiFi or additional storage. A 12V-24V Phoenix terminal accepts wide-range DC input for unstable power environments.

Suits integrators needing rugged I/O density

This unit fits builders who require serial isolation, multiple network interfaces and passive cooling in a compact 265x146x50mm frame. Buyers who want more storage bays, active cooling for higher sustained loads or consumer-oriented features such as audio jacks should look at something else.

أبرز المميزات

  • Fanless all-aluminium chassis runs silently from -20 °C to 50 °C
  • Six-core i5-12500T up to 4.40 GHz with 18 MB cache handles heavy workloads
  • Dual DDR5 4800 MT/s slots support up to 64 GB memory
  • Four Gigabit LAN ports plus six USB 3.0 and two optically isolated RS485
  • Dual 4K 60 Hz outputs via HDMI and DP drive multiple displays

المواصفات

ColorGray
CPU TypeIntel Core i5 12th Gen

إصدارات أخرى من هذا الطراز

5 أخرى من الفئة نفسها

نفس الفئة، بذاكرة أو مبرّد أو تردد مختلف — قارن قبل أن تقرر.

أسئلة حول هذا المنتج

How long will the passive aluminium chassis last before it needs attention in a dusty 24/7 plant?

The fanless all-aluminium body has no moving parts and is rated for continuous operation from -20°C to 50°C at up to 95 % humidity, so the chassis itself requires no scheduled replacement.

What thermal limit appears first when the i5-12500T runs at full load for hours?

The processor TDP spans 35-69 W; sustained heavy workloads will hit the passive cooling capacity before any active throttle point is reached.

How much heat and noise does the system produce when left on all day?

Zero fan noise; the sealed aluminium case dissipates up to 69 W passively, with surface temperature staying within the -20°C to 50°C operating envelope.
