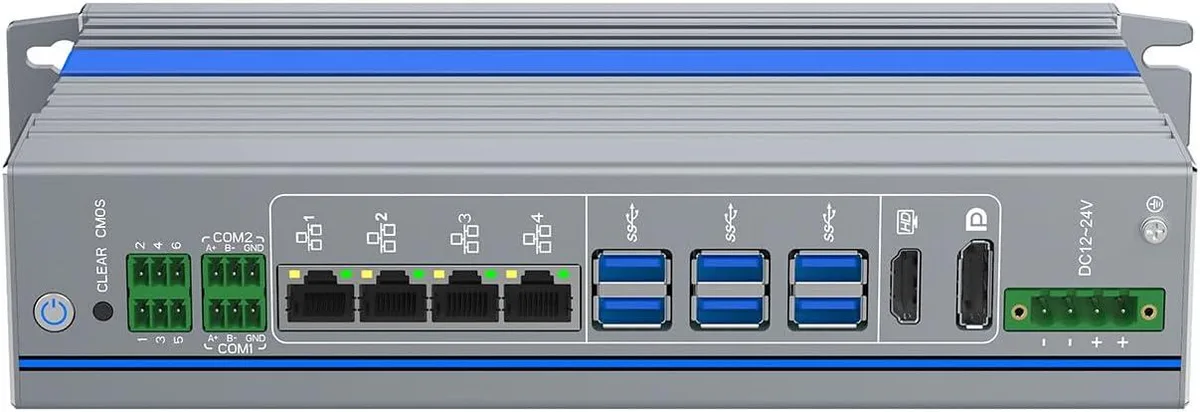

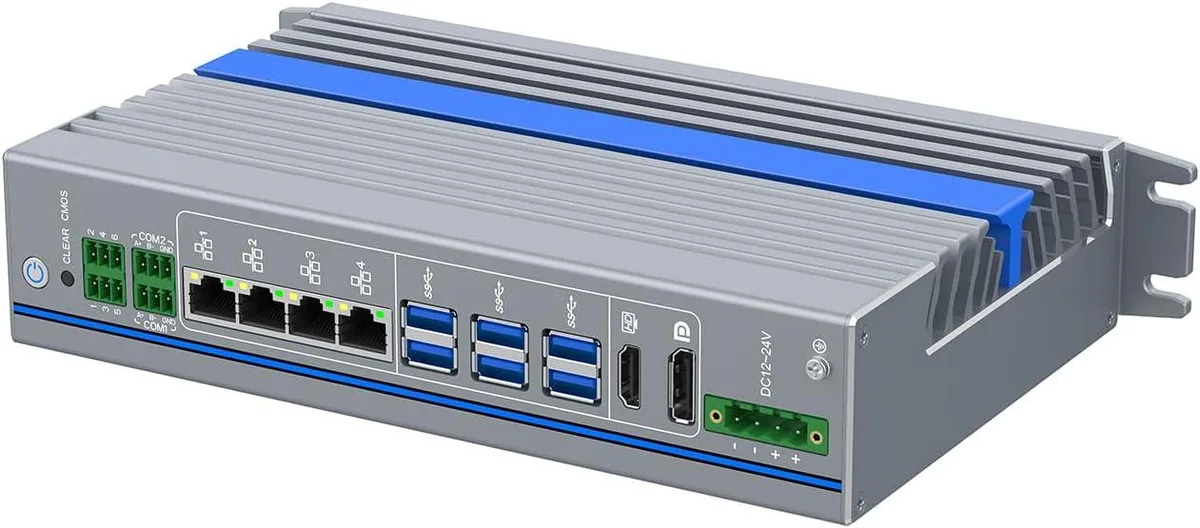

Compact grey aluminium fanless mini PC, book-style vertical form, industrial ports visible

partaker

partaker I24 i7-12700T Q670 16GB 512GB barebone mini PC

SKU CH-BDPR-880FY

Fanless aluminum mini PC with a 12-core i7-12700T, 16 GB DDR5, 512 GB storage, four Gigabit LAN ports, dual 4K video outputs and industrial I/O including isolated RS-485

  • ColorGray
  • CPU TypeIntel Core i7 12th Gen

I24 Q670 I7 12700T 16GB RAM / 512GB SSD

  • Fanless aluminium chassis runs silently from -20°C to 50°C
  • Intel Core i7-12700T delivers 12 cores and 20 threads up to 4.70 GHz
  • Dual DDR5 4800 MT/s slots support up to 64 GB memory
  • Quad Gigabit LAN plus six USB 3.0 ports and two isolated RS-485
  • Dual 4K 3840x2160 @60 Hz outputs via HDMI and DP

Industrial Barebone PC for Automation

The Partaker I24 is a fanless mini PC built around an Intel Core i7 12700T processor with 12 cores and 20 threads, the Q670 chipset and 16 GB of DDR5 memory. Its all-aluminium chassis dissipates heat passively across a -20 °C to 50 °C range, making it suited for 24/7 industrial automation, medical or logistics deployments.

Suited for Rugged Edge Workloads

Engineers needing multiple Gigabit links, isolated serial ports and dual 4K video outputs will find the four LAN ports, two optically isolated RS-485 connectors and HDMI plus DisplayPort outputs useful. Buyers who require fibre uplinks or higher-speed networking must look elsewhere, as the platform provides only Gigabit Ethernet.

35 W Base Power Envelope Decides Fit

The CPU carries a 35 W base TDP that can rise to 69 W under load, and the unit ships with a 12 V 10 A Phoenix-terminal supply accepting 12 V to 24 V DC input. That thermal ceiling determines whether the system can sustain your workload inside a sealed cabinet without active airflow.

أبرز المميزات

  • Fanless aluminium chassis runs silently from -20°C to 50°C
  • Intel Core i7-12700T delivers 12 cores and 20 threads up to 4.70 GHz
  • Dual DDR5 4800 MT/s slots support up to 64 GB memory
  • Quad Gigabit LAN plus six USB 3.0 ports and two isolated RS-485
  • Dual 4K 3840x2160 @60 Hz outputs via HDMI and DP

المواصفات

ColorGray
CPU TypeIntel Core i7 12th Gen

إصدارات أخرى من هذا الطراز

5 أخرى من الفئة نفسها

نفس الفئة، بذاكرة أو مبرّد أو تردد مختلف — قارن قبل أن تقرر.

أسئلة حول هذا المنتج

Will the I24's 4 LAN ports and RS485 ports connect directly to my existing industrial sensors and PLCs?

Yes, the I24 provides 4 Gigabit LAN ports (3 x I210-AT + 1 x I219-LM) and 2 optically isolated RS485 ports for direct industrial device integration.

How can I verify the i7-12700T is running at its 4.70 GHz boost and the DDR5 memory at 4800 MT/s after assembly?

Check CPU clock speeds and memory frequency in BIOS or use system monitoring tools like HWInfo to confirm the processor hits 4.70 GHz boost and DDR5 runs at 4800 MT/s.

Does the box include the 16 GB DDR5 RAM and 512 GB NVMe SSD, or must I buy them separately?

The packing list confirms the I24 barebone, power supply, power cord, book-style mount and warranty card; the 16 GB DDR5 and 512 GB NVMe SSD are pre-installed.
