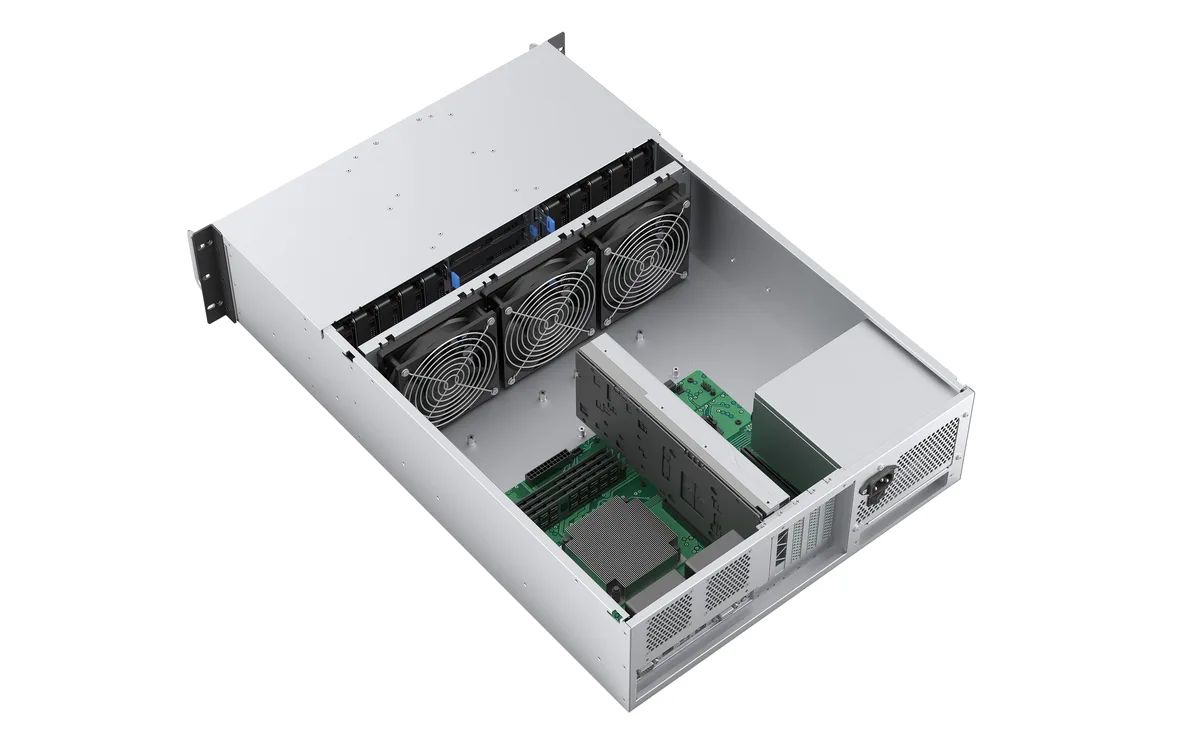

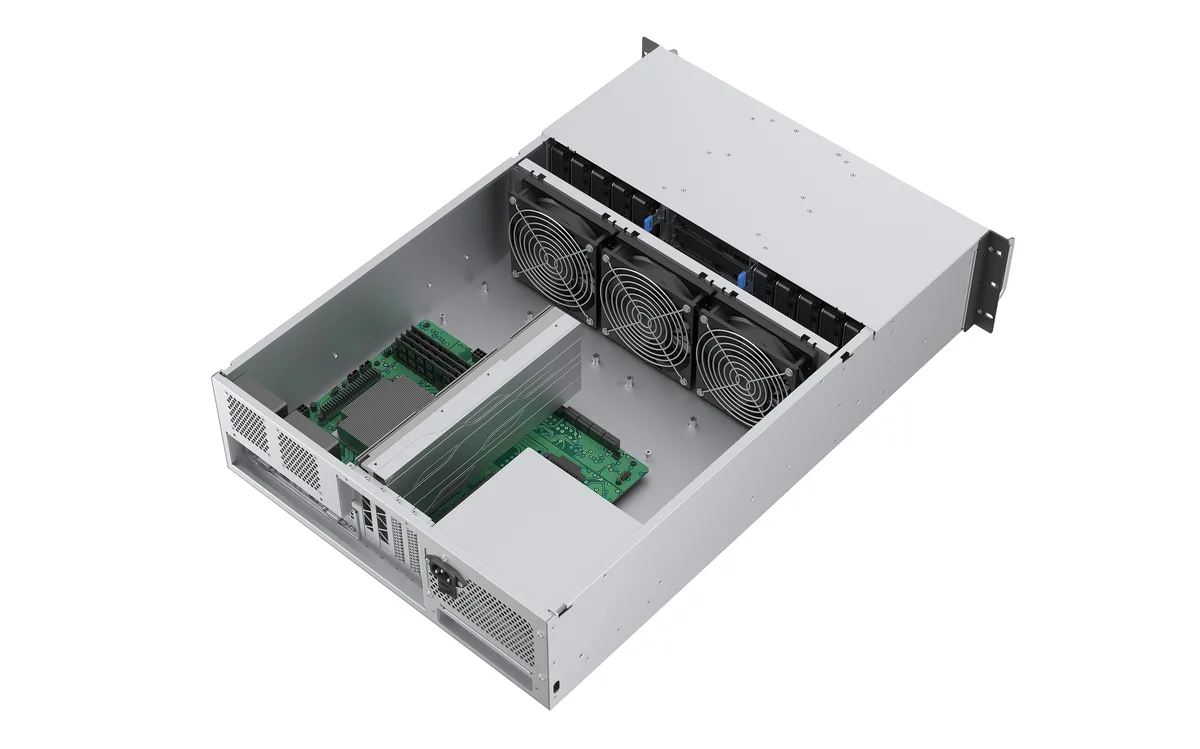

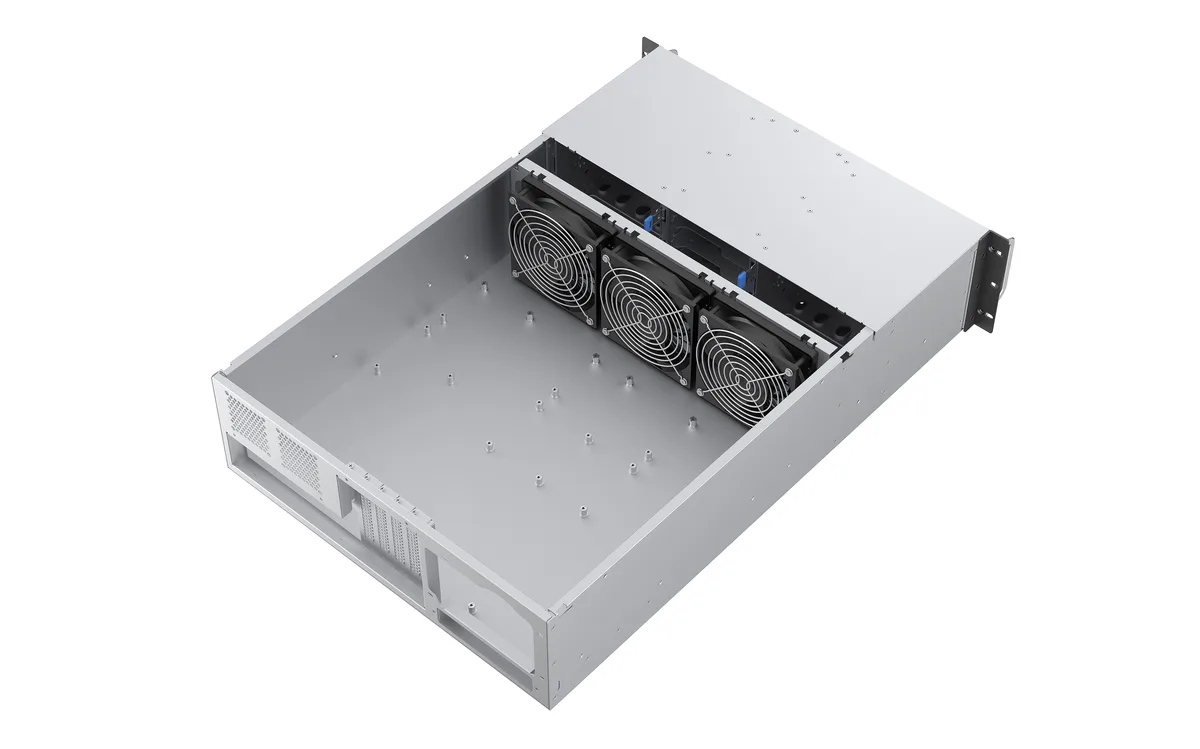

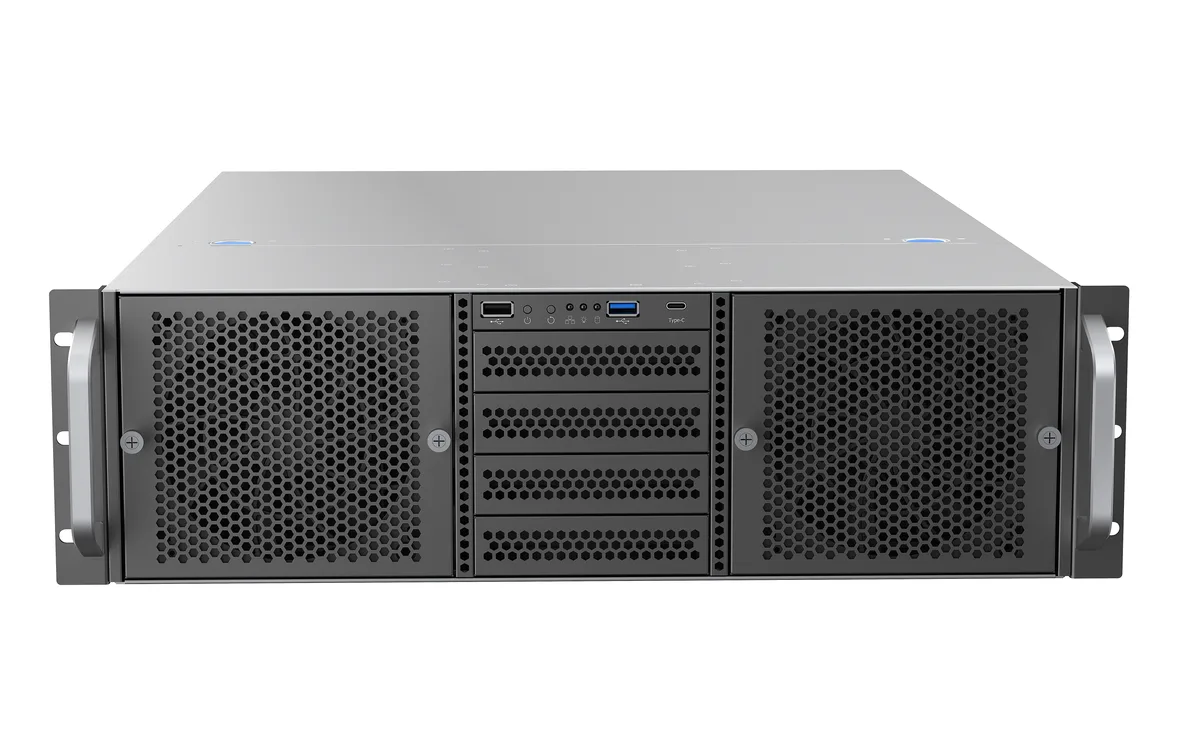

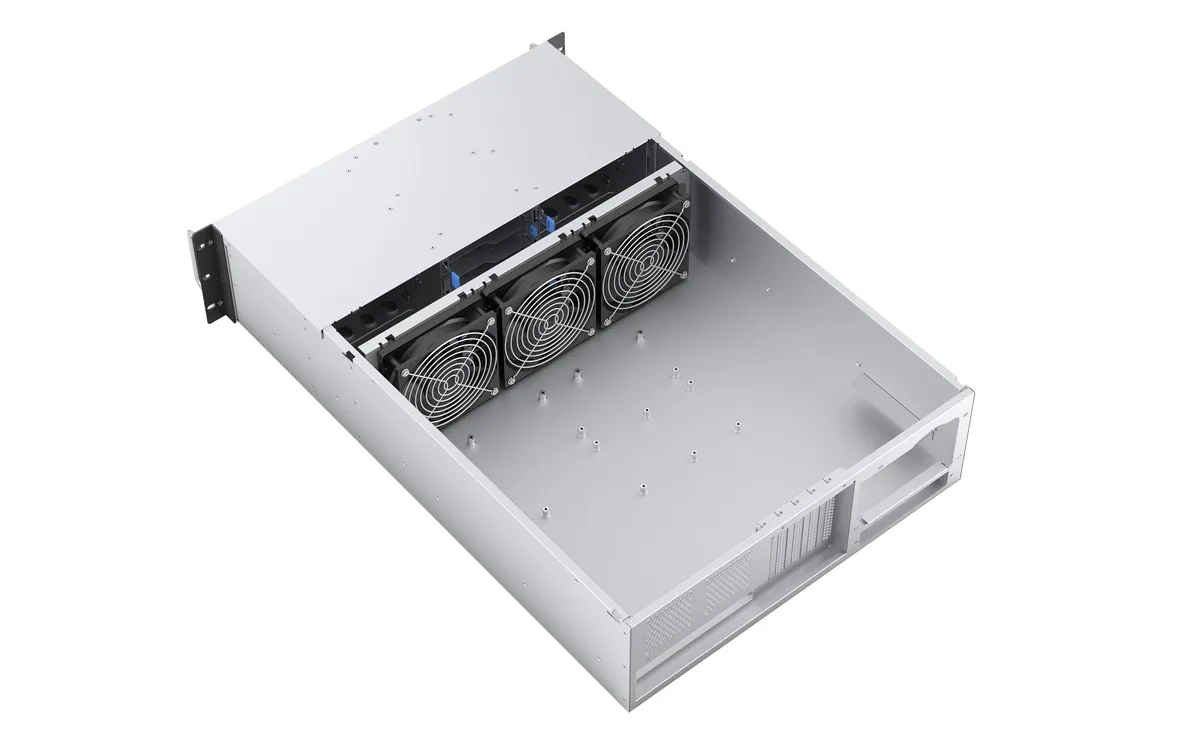

Black and silver 3U rackmount server chassis with fourteen 3.5-inch drive bays

Rosewill

Rosewill RSV-Z3014 3U server chassis 14 x 3.5" bays ATX

SKU CH-F8ZK-YJG21 MPN RSV-Z3014

A 3U rackmount chassis holding fourteen 3.5" drives with five 120mm PWM fans and front USB 3.2 Type-C

  • Chassis TypeRackmount
  • Form Factor3U
  • ColorBlack / Silver
  • Case MaterialSGCC
  • Motherboard Compatibility12" x 9.6" ATX, 11.2" x 8.2" Mini-ATX and below
  • Power SupplySupports ATX power supply

Chassis Type 3U · 14 Bays · 7 Fans · 25.59" Depth · ATX

الإصدارات المشطوبة موجودة، لكنها غير متوفرة هنا.

  • Massive storage capacity with fourteen 3.5-inch drive bays
  • Fits standard ATX and Mini-ATX motherboards for flexible builds
  • Five 120mm PWM fans plus two 80mm fans deliver strong airflow
  • Front USB 3.2 Type-C port enables fast external transfers
  • Compact 3U rackmount design saves valuable rack space

Storage density and rack fit

The Rosewill RSV-Z3014 is a 3U rackmount server chassis that holds up to 14 x 3.5" drives across four external and eight internal bays. It accepts standard ATX and Mini-ATX motherboards, making it suited for builders who need high-capacity NAS or media servers in a standard rack without moving to proprietary form factors.

Sustained airflow and thermal headroom

Five included 120 mm PWM fans at the front and middle work with two rear 80 mm PWM fans to move air through the full depth of the chassis under continuous load. The layout keeps drive temperatures stable during long rebuilds or streaming sessions, while the 133 mm CPU cooler clearance accommodates tower coolers that maintain low fan speeds at server workloads.

SGCC construction and front access

The black and silver SGCC steel body provides rigid mounting for heavy drive populations and full-length expansion cards up to 280 mm. Front-panel USB 3.0 and USB 3.2 Type-C ports give direct attach storage or console access without reaching the rear, and five expansion slots support add-in controllers or networking cards for storage-heavy deployments.

أبرز المميزات

  • Massive storage capacity with fourteen 3.5-inch drive bays
  • Fits standard ATX and Mini-ATX motherboards for flexible builds
  • Five 120mm PWM fans plus two 80mm fans deliver strong airflow
  • Front USB 3.2 Type-C port enables fast external transfers
  • Compact 3U rackmount design saves valuable rack space

المواصفات

BrandRosewill
ModelRSV-Z3014
Chassis TypeRackmount
Form Factor3U
ColorBlack / Silver
Case MaterialSGCC
Motherboard Compatibility12" x 9.6" ATX, 11.2" x 8.2" Mini-ATX and below
Power SupplySupports ATX power supply
LED IndicatorsPower status, HDD activity, 2 x Lan activity
External 3.5" Drive Bays4
Internal 3.5" Drive Bays8
Expansion Slots5
Max CPU Cooler Height133 mm
Max GPU Length280 mm
Max PSU Length180 mm
Front Ports1 x USB 3.0 / 1 x USB 3.2 Type C
Fan OptionsFront: 2 x 120mm fans (2 x 120mm PWM fan included)
Middle: 3 x 120mm fans (3 x 120mm PWM fan included)
Rear: 2 x 80mm fans
وزن الشحنة15.80 kg
أبعاد الطرد810 × 580 × 240 mm

إصدارات أخرى من هذا الطراز

5 أخرى من الفئة نفسها

نفس الفئة، بذاكرة أو مبرّد أو تردد مختلف — قارن قبل أن تقرر.

أسئلة حول هذا المنتج

How loud are the five 120 mm PWM fans and two 80 mm PWM fans when the chassis runs continuously?

All seven fans are PWM controlled, so speed and noise scale with thermal load rather than running at a fixed maximum.

Do I need to supply my own ATX power supply and motherboard, or are they included?

The chassis supports standard ATX and Mini-ATX boards up to 12 by 9.6 inches and accepts any ATX power supply up to 180 mm long; neither component is included.

Will my existing 133 mm CPU cooler and 280 mm graphics card fit inside the 3U rackmount frame?

Maximum CPU cooler height is 133 mm and maximum GPU length is 280 mm, so both components fit within the stated limits.
