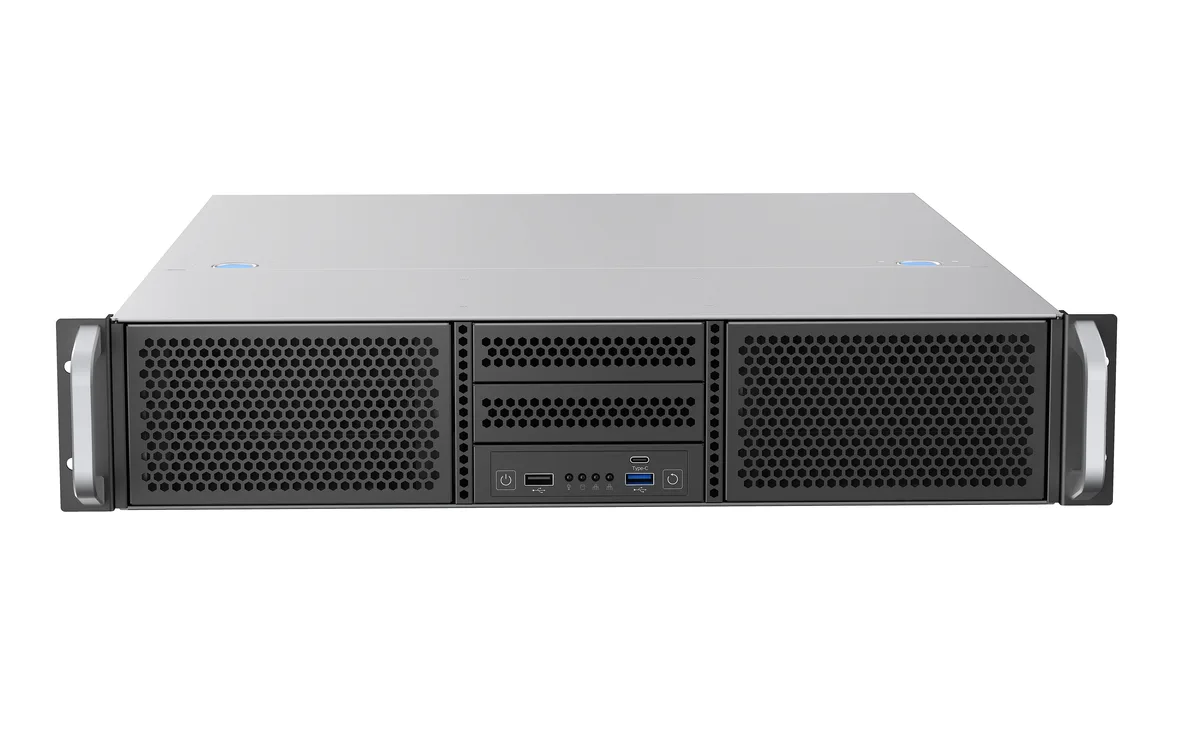

Black silver 2U rackmount server chassis front view

Rosewill

Rosewill RSV-Z2008 2U Rackmount Server Chassis 8 x 3.5" HDD

SKU CH-5PVS-KSY1V MPN RSV-Z2008

Holds eight 3.5" drives in a 2U rackmount frame with ATX motherboard support and front USB 3.2 Type-C

  • Chassis TypeRackmount
  • Form Factor2U
  • ColorBlack / Silver
  • Case MaterialSGCC
  • Motherboard Compatibility12" x 9.6" ATX, 11.2" x 8.2" Mini-ATX and below
  • Power SupplySupports 2U / CRPS PSU only

Chassis Type 2U · 8 Bays · 3 Fans · 21.65" Depth · ATX

الإصدارات المشطوبة موجودة، لكنها غير متوفرة هنا.

  • Supports eight 3.5-inch drives for high-capacity storage
  • Fits standard ATX motherboards up to 12 by 9.6 inches
  • Includes two 80mm PWM fans with room for four total
  • Front USB 3.2 Type-C port enables fast peripheral transfers
  • 2U rackmount design with seven expansion slots for add-in cards

High-Density 2U Rackmount Chassis

The Rosewill RSV-Z2008 is a 2U rackmount server chassis built to hold eight 3.5-inch hard drives. It targets administrators who need dense local storage for NAS appliances, media libraries or backup targets in a standard rack. The black and silver SGCC steel frame fits 12-inch by 9.6-inch ATX and 11.2-inch by 8.2-inch Mini-ATX boards.

CRPS Power Supply and Front USB-C

Power comes from a dedicated 2U or CRPS supply up to 200 millimetres long, so a redundant or high-efficiency unit can be used without adapter brackets. Two 80-millimetre PWM fans are installed in the middle zone and the mount accepts four fans total for directed airflow. Front I/O provides one USB 3.0 port and one USB 3.2 Type-C port for quick attach storage.

Eight-Bay Upgrade for Growing Arrays

Seven full-height expansion slots and a 245-millimetre GPU clearance allow RAID controllers, HBA cards or a GPU for transcoding. The 75-millimetre CPU cooler limit rules out tall tower coolers, so builders needing larger air coolers should look elsewhere. This chassis replaces smaller 4-bay or 6-bay units when drive count and hot-swap access become the priority.

أبرز المميزات

  • Supports eight 3.5-inch drives for high-capacity storage
  • Fits standard ATX motherboards up to 12 by 9.6 inches
  • Includes two 80mm PWM fans with room for four total
  • Front USB 3.2 Type-C port enables fast peripheral transfers
  • 2U rackmount design with seven expansion slots for add-in cards

المواصفات

BrandRosewill
ModelRSV-Z2008
Chassis TypeRackmount
Form Factor2U
ColorBlack / Silver
Case MaterialSGCC
Motherboard Compatibility12" x 9.6" ATX, 11.2" x 8.2" Mini-ATX and below
Power SupplySupports 2U / CRPS PSU only
LED IndicatorsPower status, HDD activity, 2 x Lan activity
External 3.5" Drive Bays2
Internal 3.5" Drive Bays6
Expansion Slots7
Max CPU Cooler Height75 mm
Max GPU Length245 mm
Max PSU Length200 mm
Front Ports1 x USB 3.0 / 1 x USB 3.2 Type C
Fan OptionsMiddle: 4 x 80mm fans (2 x 80mm PWM fan included)
وزن الشحنة11.50 kg
أبعاد الطرد650 × 545 × 190 mm

إصدارات أخرى من هذا الطراز

5 أخرى من الفئة نفسها

نفس الفئة، بذاكرة أو مبرّد أو تردد مختلف — قارن قبل أن تقرر.

أسئلة حول هذا المنتج

What USB standard does the front USB 3.2 Type-C port use and what speed does it cap at?

The front panel provides one USB 3.2 Type-C port running at USB 3.2 Gen 1 speeds, so transfers top out at 5 Gbps.

What motherboard sizes and cooler clearance does the 2U rackmount chassis allow?

It fits ATX boards up to 12 x 9.6 inches and Mini-ATX down to 11.2 x 8.2 inches, with a maximum CPU cooler height of 75 mm.

How are the included PWM fans installed and what is the common wiring mistake?

Two 80 mm PWM fans ship pre-mounted in the middle fan wall; the step often missed is plugging each fan into a PWM header so speed control works.
