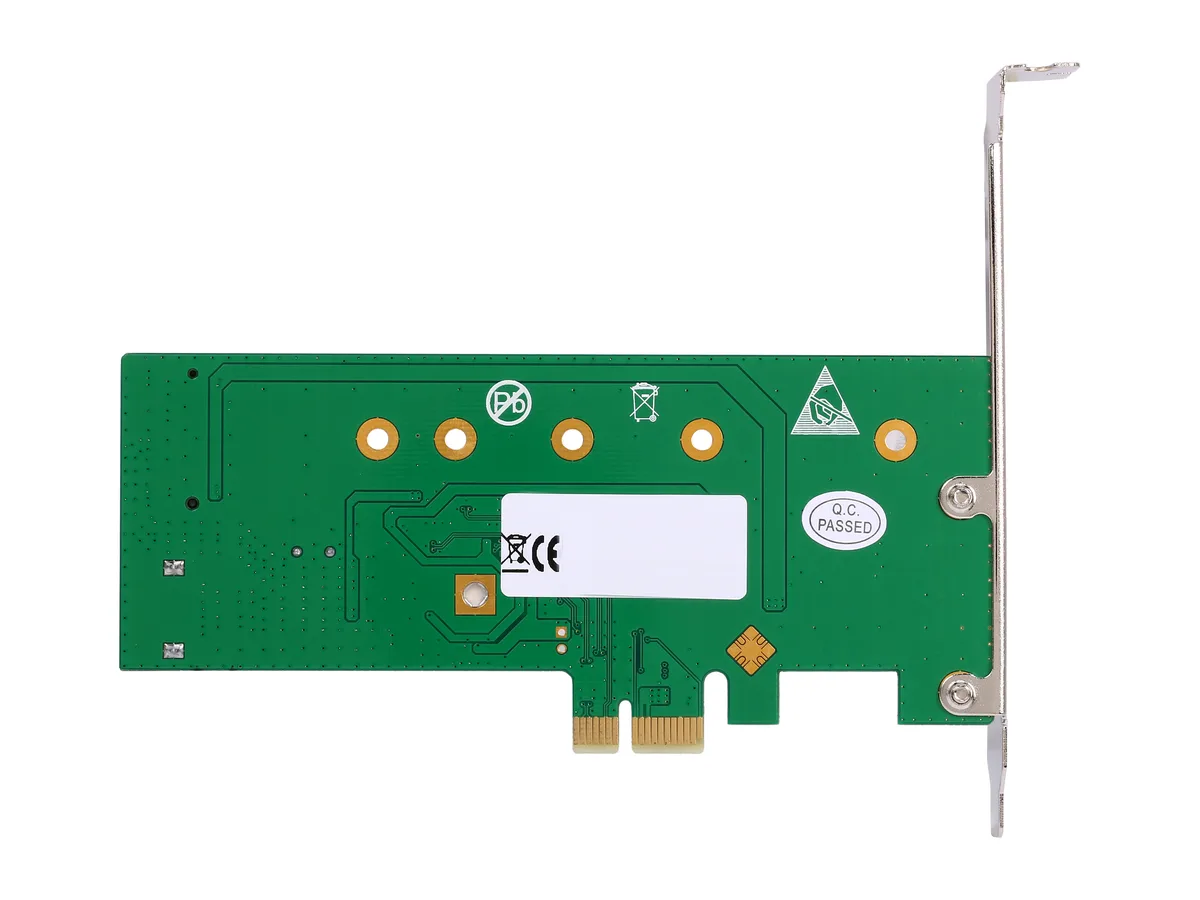

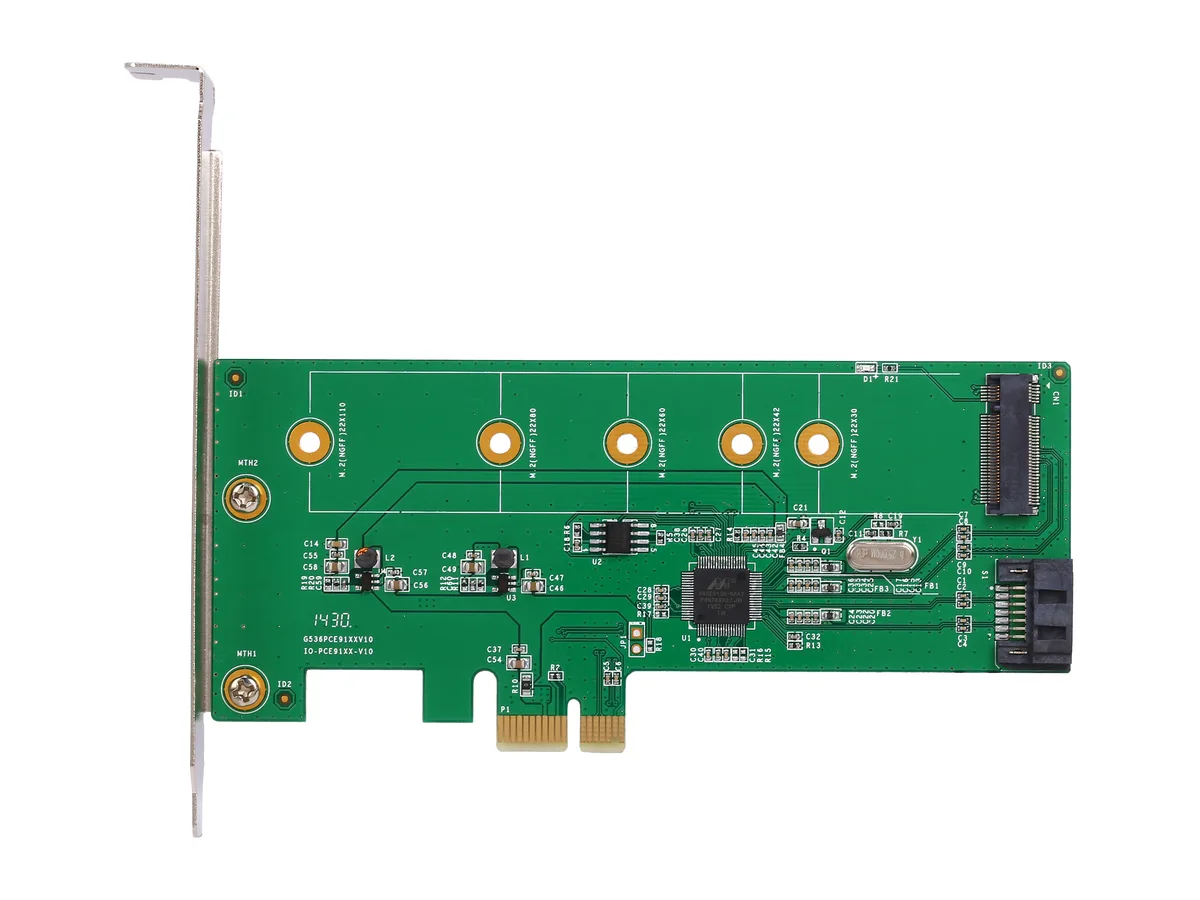

Green circuit board with M.2 slot and SATA port, full-height and low-profile brackets included

Syba

Syba SI-PEX50065 PCIe x1 to M.2 + SATA 6G expansion card

SKU CH-5E59-GXPFV MPN SI-PEX50065

Adds one M.2 B-key slot and one SATA 6.0 Gbps port via PCIe x1 with RAID 0/1 and HyperDuo tiering

  • Data Transfer Rate6.0 Gbps
  • FeaturesMarvell Chipset: 88SE9130 M.2 Specification Revision 0.9 Ser
  • Dimensions1.50" x 5.50" x 7.00" (H x W x L)
  • Weight0.3125
  • Package Contents1 x PCIe to M.2 and SATA 6G card 1 x Driver CD 1 x User Manu
  • Adds M.2 and SATA 6.0 Gbps storage via a single PCIe x1 slot
  • Supports M.2 B-key cards from 22×30 to 22×110 mm
  • Marvell 88SE9130 chipset provides hardware RAID 0/1 and HyperDuo tiering
  • Includes low-profile bracket for small-form-factor builds
  • Driver CD, SATA cable and M.2 screws supplied for immediate installation

PCIe x1 M.2 and SATA 6G adapter

The Syba SI-PEX50065 adds one M.2 slot and one SATA 6G port through a single PCIe x1 lane. It uses a Marvell 88SE9130 chipset to provide hardware RAID 0 and 1 plus HyperDuo tiering between the two drives. A low-profile bracket is included for small-form-factor cases.

Builders who want two 6Gbps drives on a spare x1

This card suits systems that have a free PCIe x1 slot and need both an M.2 SATA SSD and a 2.5-inch SATA drive under hardware RAID. It does not help builders who need more than two drives or who require a PCIe x4 or x8 link for higher throughput.

Supports M.2 B-key sizes 2230 through 22110

The slot accepts B-key modules measuring 22 by 30, 42, 60, 80 or 110 millimetres. SATA 6Gbps is the maximum transfer rate for both the M.2 and the standard SATA connector.

أبرز المميزات

  • Adds M.2 and SATA 6.0 Gbps storage via a single PCIe x1 slot
  • Supports M.2 B-key cards from 22×30 to 22×110 mm
  • Marvell 88SE9130 chipset provides hardware RAID 0/1 and HyperDuo tiering
  • Includes low-profile bracket for small-form-factor builds
  • Driver CD, SATA cable and M.2 screws supplied for immediate installation

المواصفات

BrandSYBA
ModelSI-PEX50065
Data Transfer Rate6.0 Gbps
FeaturesMarvell Chipset: 88SE9130
M.2 Specification Revision 0.9
Serial ATA Specification Revision 3.2
Support M.2 card size:
22*30
22*42
22*60
22*80
22*110
Supports M.2 B Key Card Type
Maximum 6Gbps
Port Multiplier Compatible
Hot Swap
Compatible with SATA I, II, III
NCQ Supported
Dimensions1.50" x 5.50" x 7.00" (H x W x L)
Weight0.3125

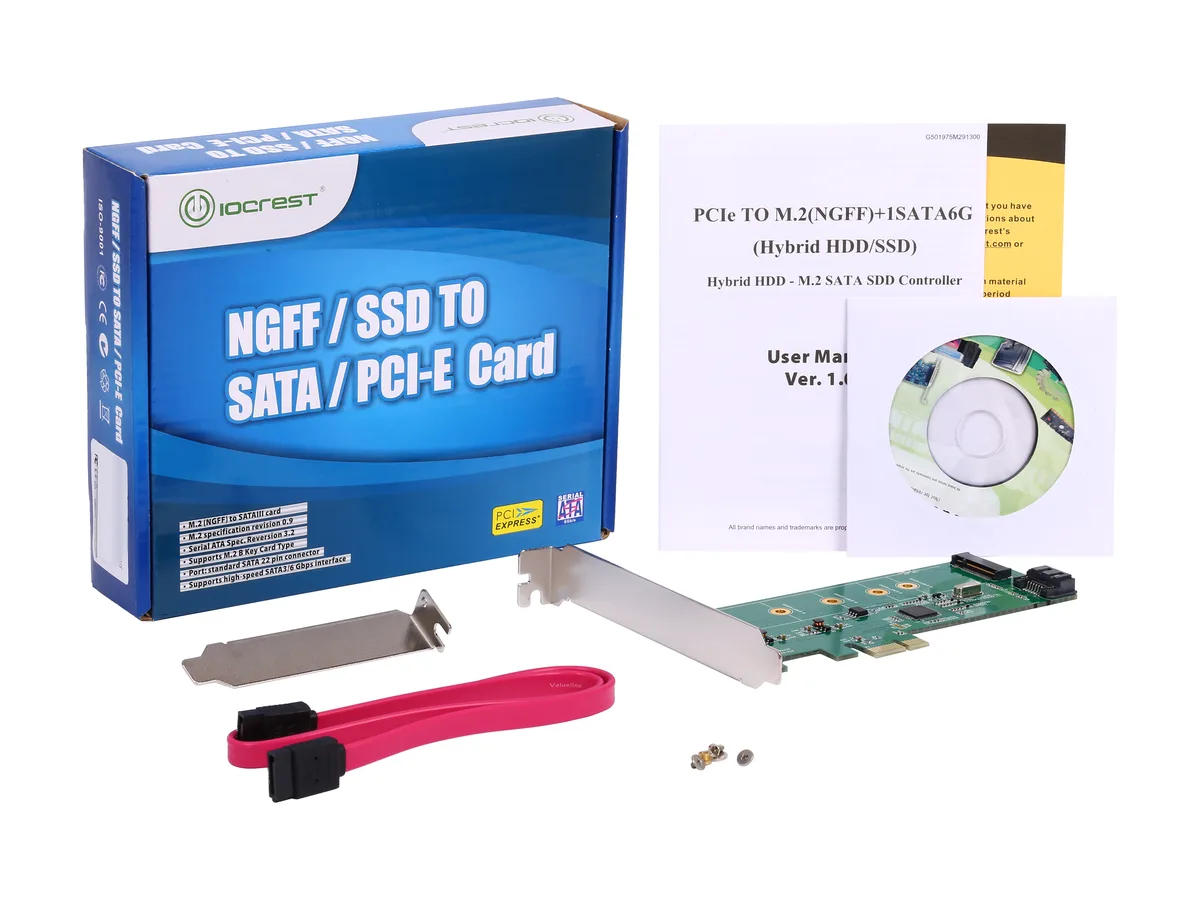

Package Contents1 x PCIe to M.2 and SATA 6G card
1 x Driver CD
1 x User Manual
1 x SATA data cable
1 x M.2 Screw set
1 x Low Profile Bracket
وزن الشحنة0.13 kg
أبعاد الطرد179 × 149 × 39 mm

أسئلة حول هذا المنتج

What throughput does the 6.0 Gbps rating deliver when the card is installed in a PCIe x1 slot?

The Marvell 88SE9130 controller provides two 6.0 Gbps SATA ports, so each connected drive can reach the full SATA III line rate while the PCIe x1 link supplies enough bandwidth for both ports simultaneously.

Which M.2 key and specification revision does the slot support?

The slot accepts B-key M.2 modules per the M.2 Specification Revision 0.9, covering lengths of 22 x 30, 22 x 42, 22 x 60, 22 x 80 and 22 x 110 millimetres.

What brackets and mounting hardware come in the box for fitting the card?

A standard-height bracket is pre-installed, a low-profile bracket is included for slim cases, and an M.2 screw set secures the module in the chosen length position.
