Green circuit board with silver RJ45 port and metal bracket

Wavlink

Wavlink WL-NWP002 2.5G PCIe network card

SKU CH-EABP-FGZSM MPN WL-NWP002

Adds a 2.5 Gbps Ethernet port via PCIe x1, x4, x8 or x16 with Realtek RTL8125B, low-profile bracket and Windows 7 to 11 plus Linux support

  • Speed2500/1000/100Mbps
  • InterfacePCI-Express
  • LEDs1 x Link(Green), 1 x Ethernet (Yellow)
  • Windows VistaCompatible for X1,X4,X8,X16, both a standard and low-profile
  • Features- 2.5Gbps PCle Ethernet controller supports up to 2500Mbps s
  • Package Contents1 x 2.5Gbps PCIe Network Card 1 x Low-Profile Bracket 2 x Sc

Class 2.5G, Single RJ45

الإصدارات المشطوبة موجودة، لكنها غير متوفرة هنا.

Option 2.5G - 1 Port RJ45

الإصدارات المشطوبة موجودة، لكنها غير متوفرة هنا.

  • 5 Gbps speed for faster file transfers and streaming
  • Realtek RTL8125B controller delivers stable 2500/1000/100 Mbps performance

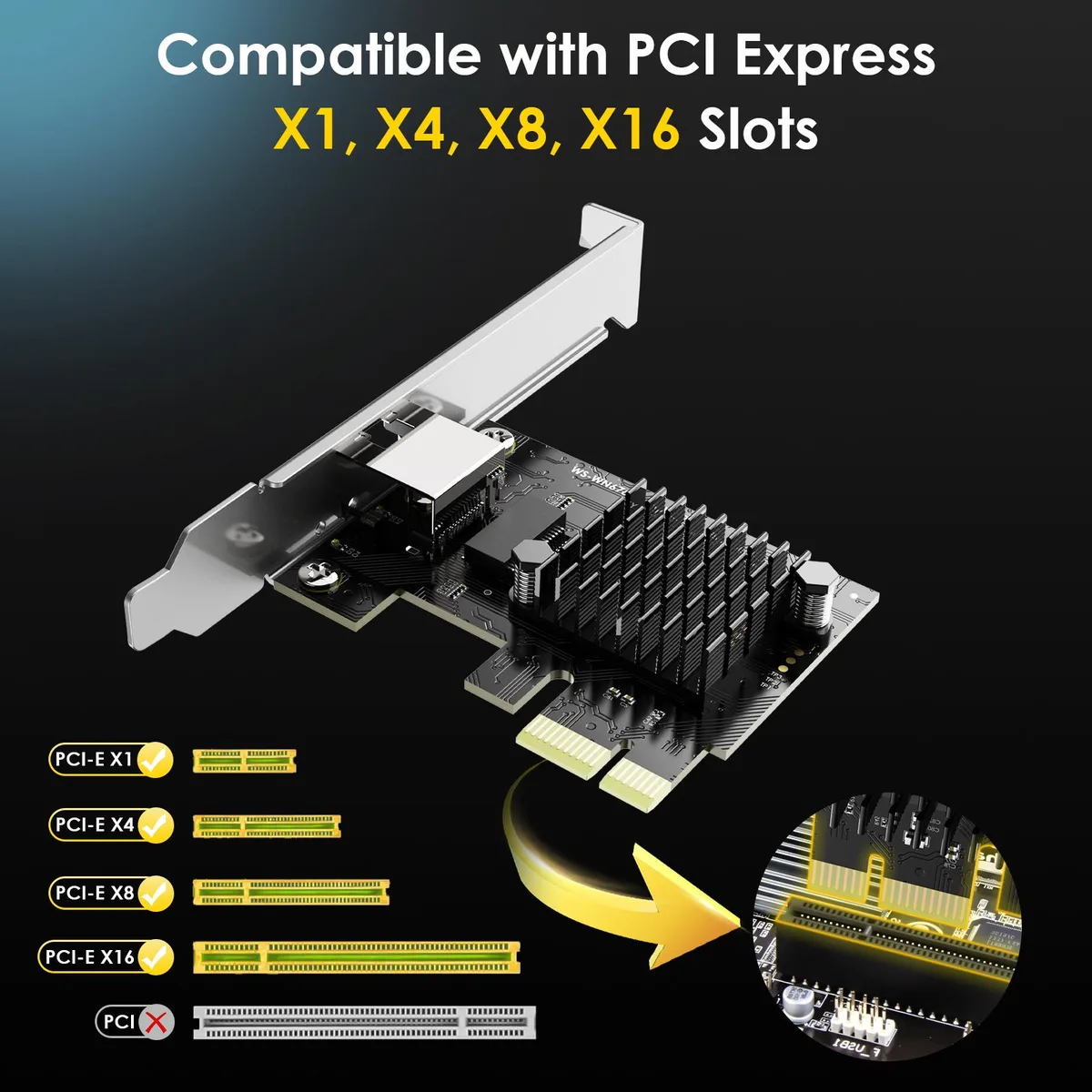

  • Fits PCIe x1, x4, x8 and x16 slots with included low-profile bracket
  • Works with Windows 11, 10, 8.1, 8, 7 and Linux without extra drivers
  • Metal shielding and heatsink reduce interference and keep temperatures low

2.5G PCIe Network Card for desktop PCs

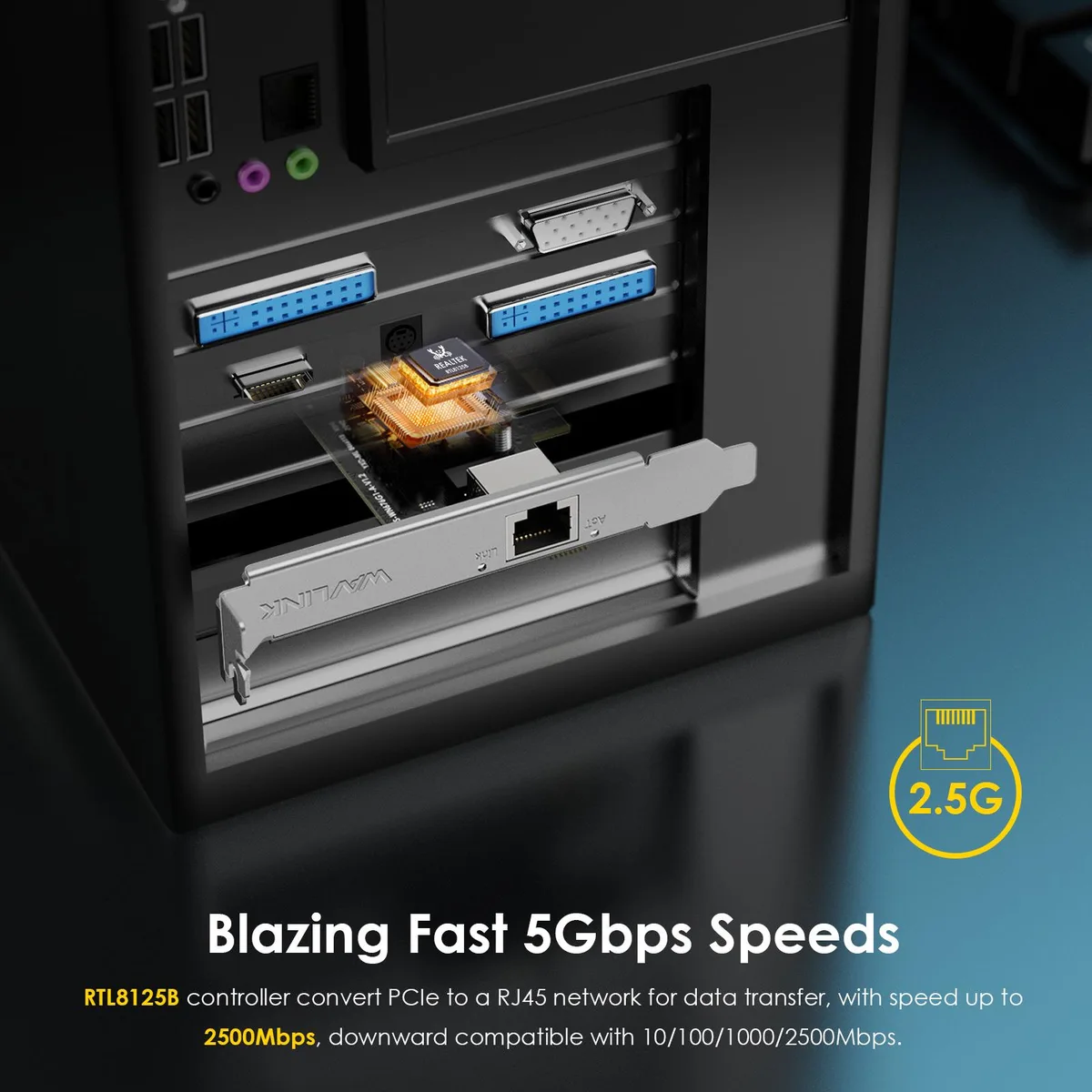

The Wavlink WL-NWP002 adds a single 2.5Gbps RJ45 port through any PCI Express x1, x4, x8 or x16 slot. It targets owners of existing desktop systems who want faster wired throughput without replacing their motherboard. Both a standard bracket and a low-profile bracket are supplied for different case heights.

Thermals noise and power draw

A passive metal heatsink covers the Realtek RTL8125B controller to dissipate heat without a fan, so the card runs silently. Power is drawn entirely from the PCIe slot; no external connectors are required. The adapter negotiates 2500, 1000 or 100Mbps links automatically and supports Wake-on-LAN from S1, S3 and S5 states.

Upgrade from gigabit onboard Ethernet

The card replaces a typical 1Gbps onboard port when the network infrastructure already uses Cat5e or better cabling and a 2.5G switch or router is present. The jump is worthwhile for large file transfers, local streaming or gaming traffic that saturates gigabit bandwidth. It will not increase speed if the rest of the path remains at 1Gbps.

أبرز المميزات

  • 5 Gbps speed for faster file transfers and streaming
  • Realtek RTL8125B controller delivers stable 2500/1000/100 Mbps performance
  • Fits PCIe x1, x4, x8 and x16 slots with included low-profile bracket
  • Works with Windows 11, 10, 8.1, 8, 7 and Linux without extra drivers
  • Metal shielding and heatsink reduce interference and keep temperatures low

المواصفات

BrandWAVLINK
ModelWL-NWP002
Part Number1* RJ45 Ethernet port
Speed2500/1000/100Mbps
InterfacePCI-Express
LEDs1 x Link(Green), 1 x Ethernet (Yellow)
Windows VistaCompatible for X1,X4,X8,X16, both a standard and low-profile bracket are provided
Features- 2.5Gbps PCle Ethernet controller supports up to 2500Mbps speed and compatible with 1000/100/10Mbps Network Standard.
- Support Wake On LAN(SI/S3/S5), PXE Boot and Jumbo Frame up to 16KB.
- Compatible with PCIE x1/x2/x4/x8/x16 interface.
- Support low-profile and full-height brackets for mini and standard tower PC.
- Fully compatible with Windows 11/10/8.1/8/7, Linux.
Package Contents1 x 2.5Gbps PCIe Network Card
1 x Low-Profile Bracket
2 x Screws
1 x Quick Start Guide
Class2.5G, Single RJ45

إصدارات أخرى من هذا الطراز

2 أخرى من الفئة نفسها

نفس الفئة، بذاكرة أو مبرّد أو تردد مختلف — قارن قبل أن تقرر.

أسئلة حول هذا المنتج

How do I install the WL-NWP002 in a mini-tower case, and which bracket step is often missed?

Insert the card into any PCIe x1, x4, x8 or x16 slot, then swap the standard bracket for the included low-profile bracket using the two supplied screws before securing the card.

What maintenance will the RTL8125B controller need over time?

The board has a passive heat sink; just clear dust from its fins with compressed air every few months to keep temperatures stable.

What limit appears first when the 2.5G link runs at full load for hours?

The single RJ45 port caps throughput at 2500 Mbps, so sustained transfers cannot exceed that ceiling regardless of system speed.
