Silver rectangular Flex ATX power supply with single fan and 20+4 pin connector visible

Athena Power

Athena Power AP-MFATX40P8 400W Flex ATX server power supply

SKU CH-BPWQ-6ERPE MPN AP-MFATX40P8

Flex ATX 400 W unit with 80+ Bronze efficiency for 1U and Mini-ITX builds

  • TypeFlex ATX
  • Single/RedundantSingle
  • Maximum Power400W
  • Main Connector20+4Pin
  • Output Current+5V@15A, [email protected] , +12V1@16A, -12V2@16A, [email pr
  • Input Voltage88/264 Volts AC

Option 400W

  • 400W output powers compact 1U servers reliably
  • 80 PLUS Bronze efficiency reduces heat and noise
  • Flex ATX form factor fits Mini-ITX chassis
  • Dual +12V rails at 16A each ensure stable delivery
  • 100,000-hour MTBF at 25°C signals long service life

Flex ATX 400 W server supply

The Athena Power AP-MFATX40P8 is a single 400 W Flex ATX power supply built for 1U rackmounts and Mini-ITX chassis. It carries 80 PLUS Bronze certification and active PFC, delivering up to 400 W across dual +12 V rails rated at 16 A each. A 40 mm fan with smart auto-speed control handles cooling.

Suits compact servers

Installers fitting a 1U or Mini-ITX build that requires PCIe power connectors and an EPS12V 8-pin will find the connectors and form factor matched. Builders who need redundant supplies or higher total wattage for multi-GPU configurations should look at other form factors.

Dual 16 A +12 V rails with two PCIe 6-pin connectors

The two +12V rails each provide 16 A, and the unit includes two PCIe 6-pin connectors for add-in cards. This rail layout and connector set determine whether the supply can support the intended graphics or compute cards.

Přednosti

  • 400W output powers compact 1U servers reliably
  • 80 PLUS Bronze efficiency reduces heat and noise
  • Flex ATX form factor fits Mini-ITX chassis
  • Dual +12V rails at 16A each ensure stable delivery
  • 100,000-hour MTBF at 25°C signals long service life

Specifikace

BrandAthena Power
ModelAP-MFATX40P8
TypeFlex ATX
Single/RedundantSingle
Maximum Power400W
Main Connector20+4Pin

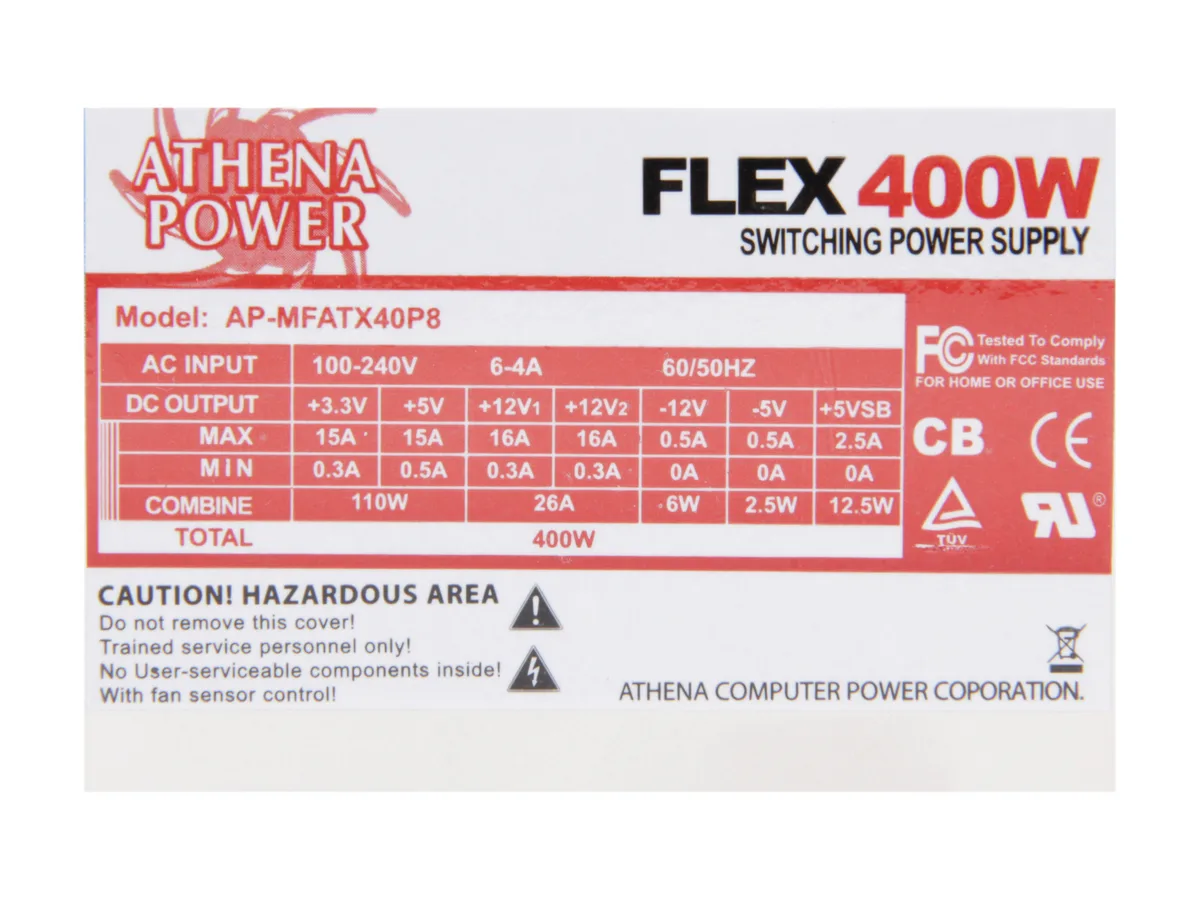

Output Current+5V@15A, [email protected] , +12V1@16A, -12V2@16A, [email protected] , +3.3V@15A, [email protected]
Input Voltage88/264 Volts AC
Input Frequency Range50/60 Hz
Fans1
MTBF100,000 Hours on Maximum Load at +25°C
Features80PLUS Bronze Certification
Smart Auto Fan Speed Controller
Active PFC and the Remote ON/OFF
Designed for 1UITX rackmounts, Mini-ITX chassis

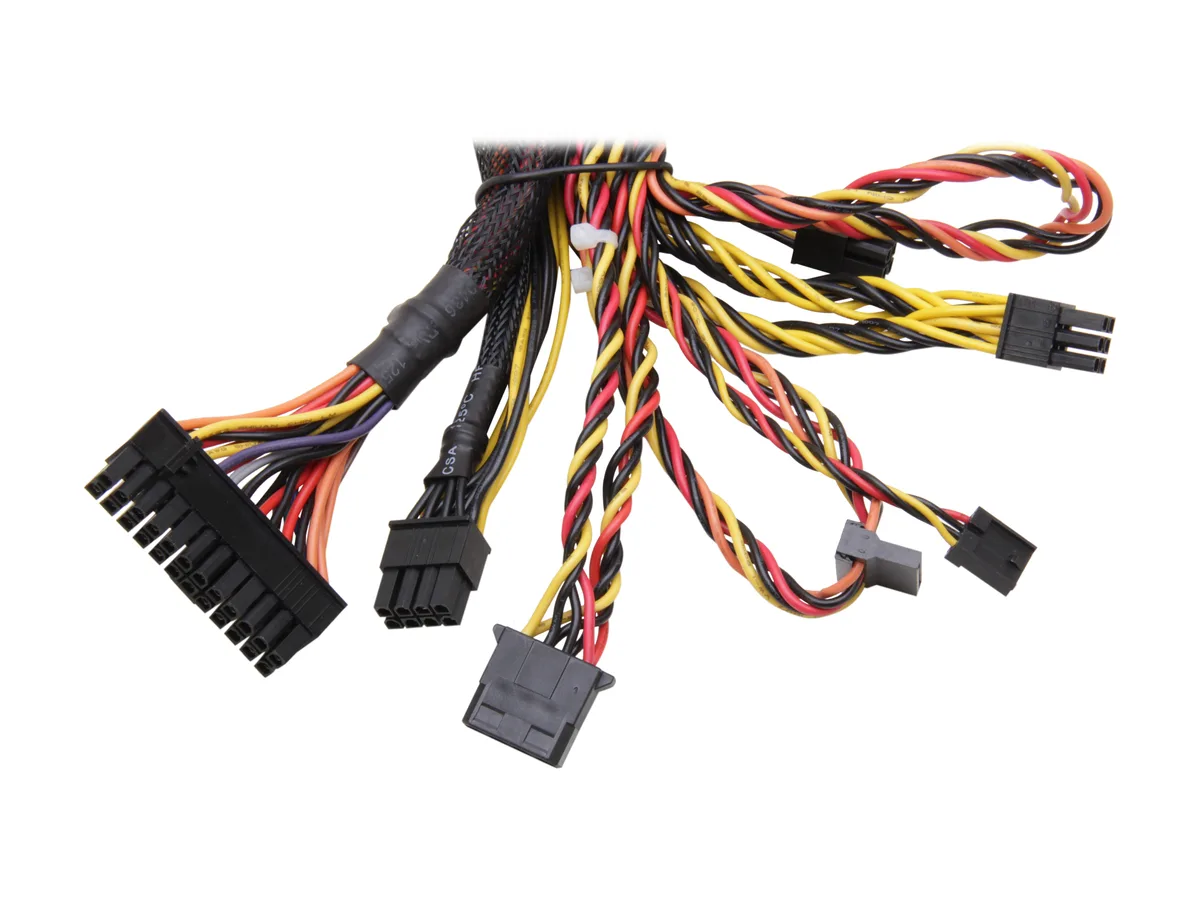

Connectors:
ATX Connector 24(20+4) pin x 1
EPS-12V 8 (P4-12V 4 pin +4) pin x 1
EPS/P4 (P4+4) pin x 1
PCIE 6 pin x 2
SATA 15 pin x 3
Molex 4 pin x 2
Floppy 4 pin x 1
Dimensions3.2" x 1.7" x 6"
Weight2.00 lbs.
Přepravní hmotnost1.21 kg
Rozměry balení251 × 160 × 79 mm

Další verze tohoto modelu

Dalších 1 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

Will the 3.2" x 1.7" x 6" Flex ATX chassis fit my 1U rackmount or Mini-ITX case?

Yes, the 3.2" x 1.7" x 6" Flex ATX form factor is designed for 1U rackmounts and Mini-ITX chassis, matching the standard mounting holes and clearance for those enclosures.

Which power cables must be connected to the motherboard for the 20+4-pin ATX and 8-pin EPS12V connectors?

Connect the 24-pin ATX cable to the main board socket and the 8-pin EPS12V cable to the CPU power header; the 4+4-pin EPS split lets you use either 4-pin or 8-pin motherboard sockets.

When should the single 80 mm fan be cleaned or the unit replaced given the 100,000-hour MTBF rating?

Clean the fan intake every 6–12 months to maintain airflow; the 100,000-hour MTBF at 25 °C indicates the unit should run for many years before a full replacement is needed.
