CyberPower
CyberPower OL1K5RTHD 1500VA 1350W UPS 2U Rack Tower 8 Outlets NEMA 5-15P
Double-conversion sine-wave UPS delivers 1500 VA and 1350 W through eight NEMA 5-15R outlets in a 2U rack-tower form factor
- International Version120V
- Input Voltage Range100 - 125V
- Input Frequency40 - 70 Hz
- Input ConnectionNEMA 5-15P
- VA Rating1500 VA
- Watts1350 Watts
- Double-conversion topology delivers clean sine-wave output
- 9 power factor provides 1350 W from 1500 VA rating
- Eight NEMA 5-15R outlets support multiple devices
- 2U rack-tower form factor fits dense installations
- User-configurable output voltage 100-125 VAC ±2%
Double-Conversion 1500VA UPS
The CyberPower OL1K5RTHD is a new 2U rack-tower battery backup that delivers 1500 VA and 1350 W through double-conversion topology. It accepts 100 to 125 V input at 40 to 70 Hz and provides a pure sine-wave output configurable to 100, 110, 115, 120 or 125 VAC within 2%.

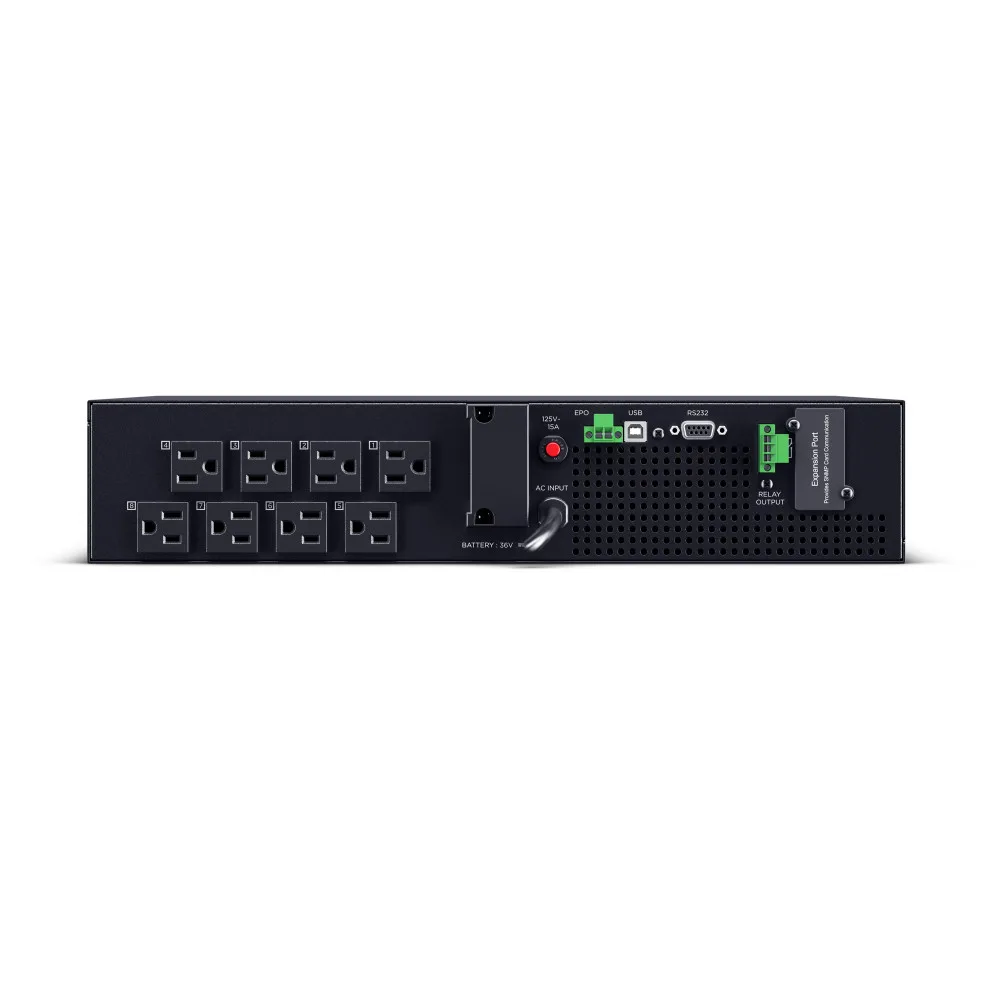

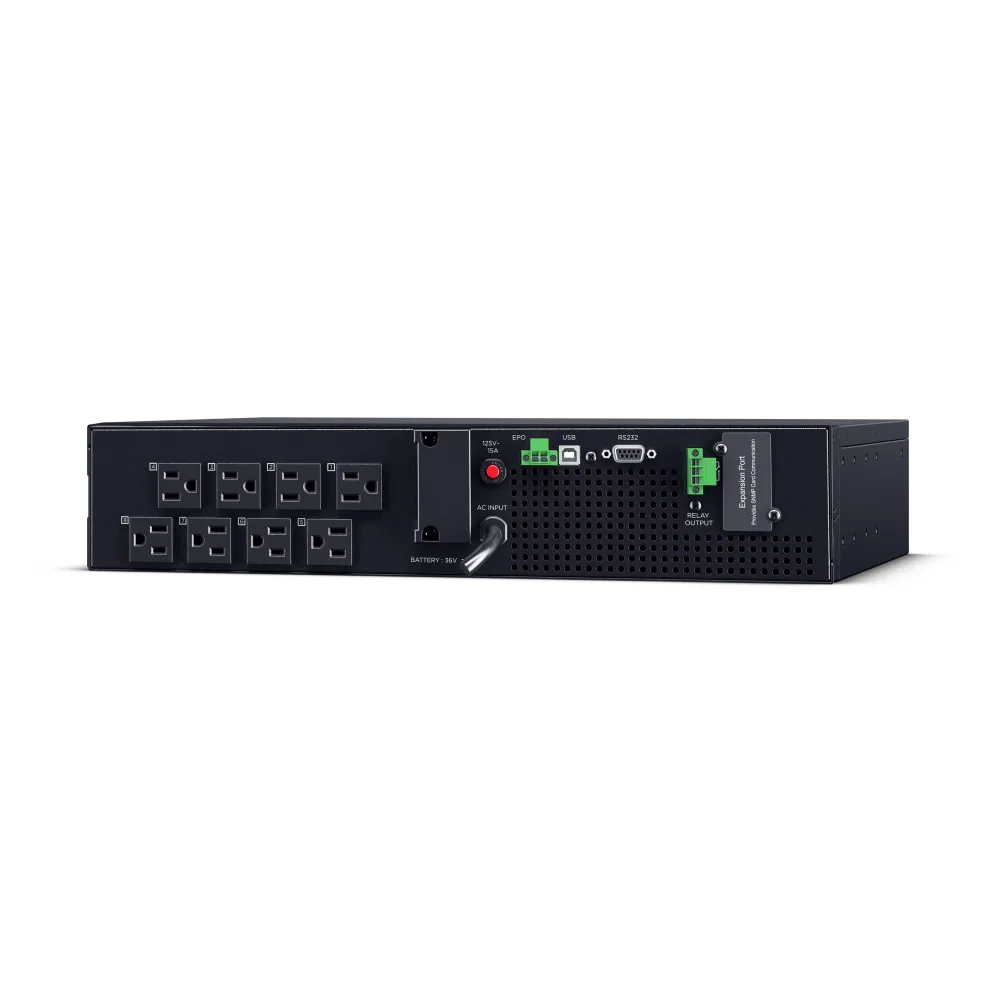

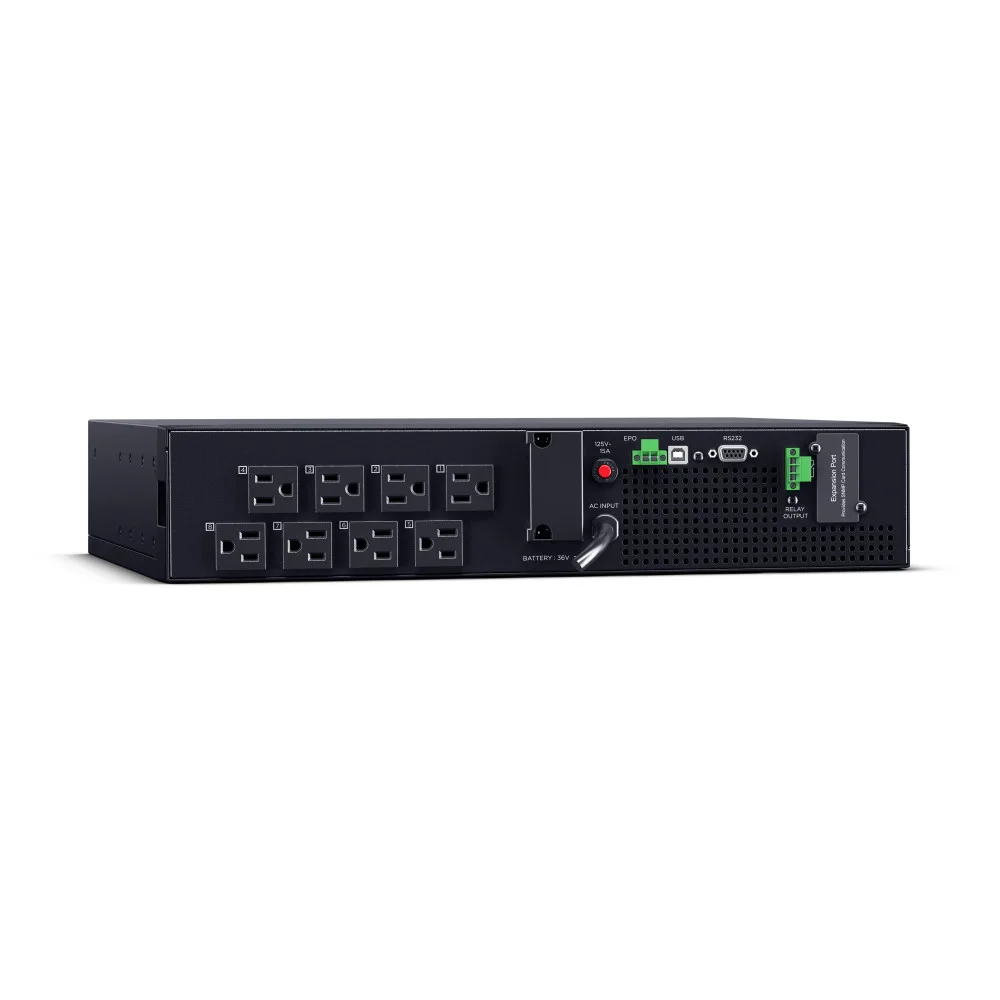

Eight NEMA 5-15R Outlets
Eight NEMA 5-15R receptacles supply protected power to connected equipment. A NEMA 5-15P input cord plugs into standard 120 V circuits. A serial interface port enables basic monitoring and management through compatible software. Surge protection is rated at 710 joules.
12.5-Minute Half-Load Runtime
Sealed lead-acid batteries provide 12.5 minutes of runtime at half load and 4 minutes at full load, then recharge to 90% in 4 hours. Batteries are user-replaceable. The unit operates from 32 to 104 °F and stores from 5 to 113 °F in 0 to 90% non-condensing humidity. It is not suited for loads exceeding 1350 W or for installations requiring extended runtime beyond the rated minutes.
Přednosti
- Double-conversion topology delivers clean sine-wave output
- 9 power factor provides 1350 W from 1500 VA rating
- Eight NEMA 5-15R outlets support multiple devices
- 2U rack-tower form factor fits dense installations
- User-configurable output voltage 100-125 VAC ±2%
Specifikace
| Brand | CyberPower |
|---|---|
| Model | OL1K5RTHD |
| International Version | 120V |
| Input Voltage Range | 100 - 125V |
| Input Frequency | 40 - 70 Hz |
| Input Connection | NEMA 5-15P |
| VA Rating | 1500 VA |
| Watts | 1350 Watts |
| Output Voltage | 100/110/115/120/125 VAC +/- 2% (configurable) |
| Outlets | 8 |
| Outlet Type | 8 x NEMA 5-15R |
| Battery Type | Sealed Lead Acid |
| Battery Run Time | 12.5 minutes / 4 minutes Runtime (half/full) |
| Battery Recharge Time | 4 Hours (0% to 90% charged) |
| Battery Replaceable | Yes |
| Alarms | Battery Mode Low Battery Overload UPS Fault |
| Interface Port | Serial |
| Approvals | UL1778 CSA C22.2 No.107.3 FCC Part 15 Class B |
| Rackmountable | 2U |
| Surge Energy Rating | 710 Joules |
| Protection | UPS Output Cut Off Immediately or Input Fuse / Circuit Breaker Protection |
| Temperature | Operating Temperature: 32 - 104 °F (0 - 40 °C) Storage Temperature: 5 - 113 °F (-15 - 45 °C) |
| Humidity | Operating Relative Humidity: 0 - 90 % (non-condensing) Storage Relative Humidity: 0 - 95% (non-condensing) |
| Dimensions | 3.4" x 17.05" x 14.96" |
| Weight | 37.26 lbs. |
| Přepravní hmotnost | 20.70 kg |
| Rozměry balení | 560 × 480 × 240 mm |
Otázky k tomuto produktu
How often will the sealed lead-acid battery need replacing?
The battery is user-replaceable and recharges from empty to 90 percent in 4 hours; typical sealed lead-acid cells last three to five years before capacity drops below useful runtime.
At full 1350-watt load the unit runs for only 4 minutes — what stops me from drawing more?
The double-conversion inverter is rated for 1500 VA and 1350 W; an overload alarm sounds and the output cuts off immediately if that limit is exceeded.
How much heat and noise does the 2U rack tower produce during all-day operation?
Operating temperature range is 32 to 104 °F with 0 to 90 percent non-condensing humidity; the unit meets UL 1778 and FCC Class B limits for audible noise and emissions.
