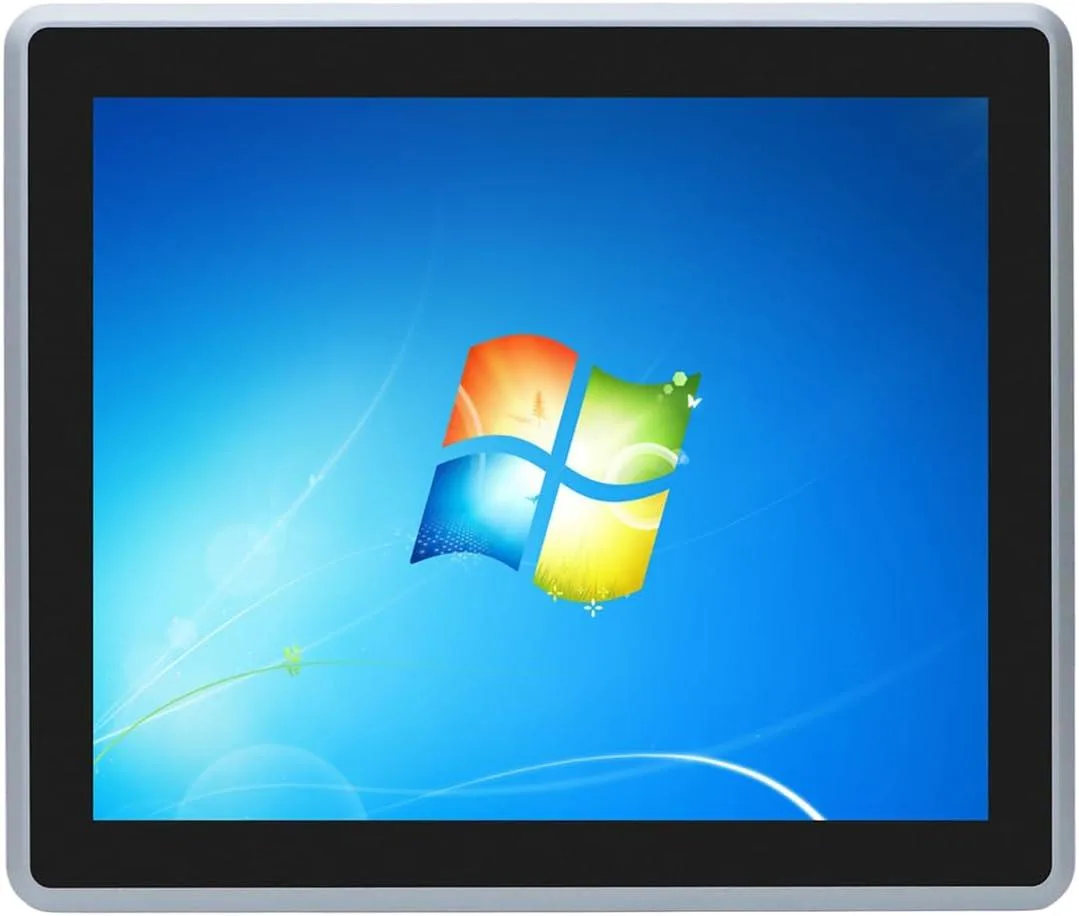

Gray 17 inch industrial all-in-one PC with flat resistive touchscreen and fanless aluminum chassis

partaker

partaker A29 17" All-in-One PC i5-4200U 16GB 256GB SSD

SKU CH-C1V0-3YSGB

17-inch industrial all-in-one PC with IP65-rated resistive touchscreen, fanless cooling, dual LAN, four USB 3.0 ports and Windows 11 Pro

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 4th Gen
  • CPU NameIntel Core i5-4200U

A29 17" Resistive I5 4200U 16GB RAM / 256GB SSD

  • IP65 front panel resists dust and water ingress
  • Resistive touch rated for 50 million touches ensures long HMI life
  • Fanless aluminium cooling enables silent 24/7 operation from -20 °C to 60 °C
  • Dual Gigabit LAN plus 4 USB 3.0 ports provide extensive industrial connectivity
  • Dual storage support with mSATA and 2.5" SATA bays allows flexible capacity upgrades

Industrial All-in-One with Resistive Touch

The Partaker A29 is a 17-inch industrial panel PC built for automation and HMI tasks. Its IP65-rated flat front panel resists dust and water jets, while the resistive touchscreen is rated for over 50 million touches. A fanless aluminium chassis enables silent, maintenance-free operation across a -20°C to +60°C temperature range.

Fanless Build with Extensive I/O

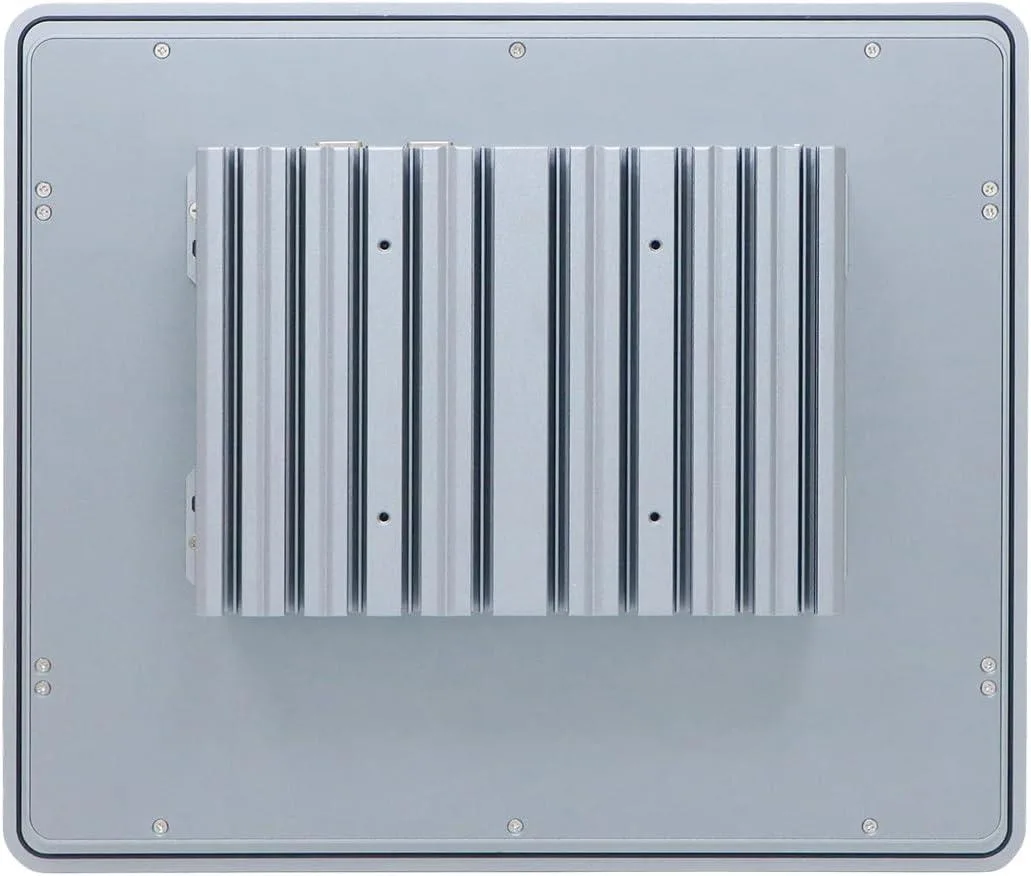

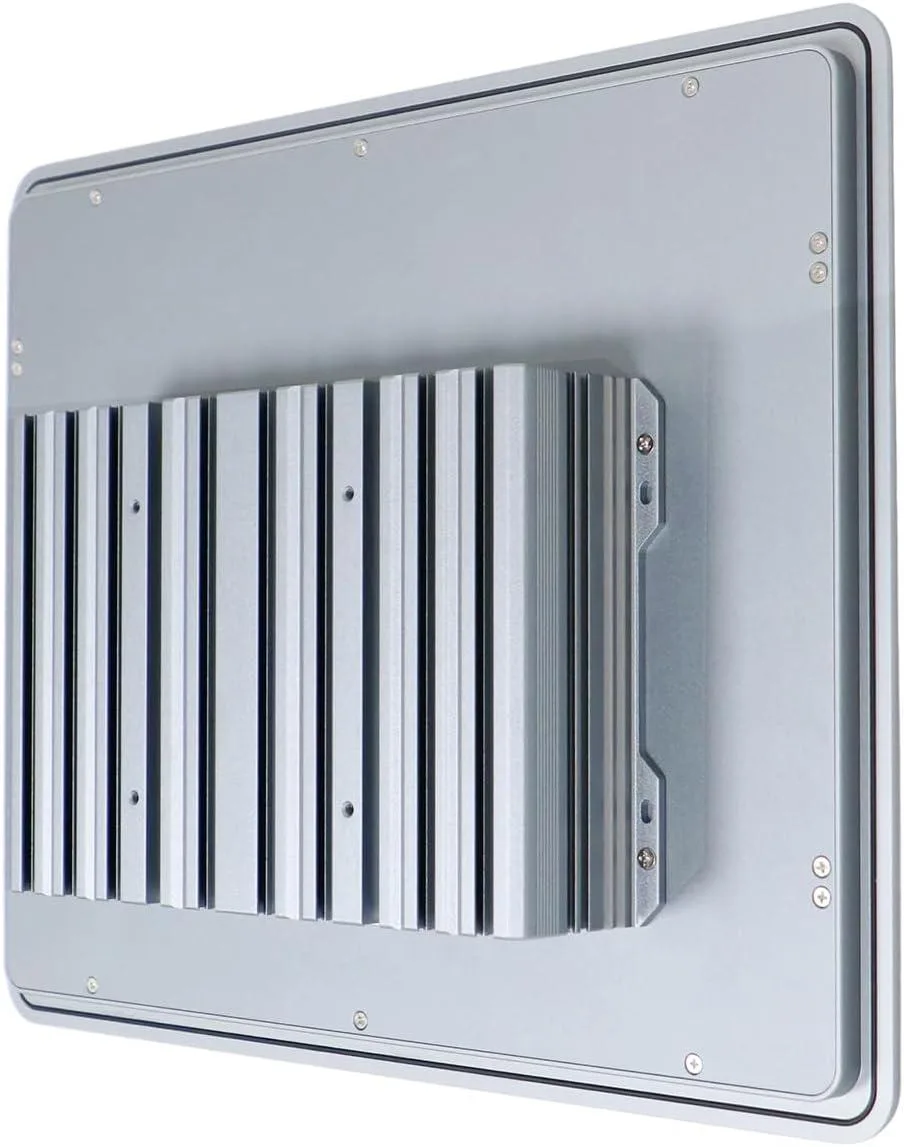

Passive cooling removes moving parts, reducing failure risk in dusty or vibration-prone environments. Connectivity includes dual Gigabit LAN, four USB 3.0 ports, two COM ports supporting RS232 and RS485, and an HDMI output. Two Mini PCIe slots with a SIM slot allow adding Wi-Fi, Bluetooth, or cellular modules without opening the enclosure.

Dual Storage and Flexible Mounting

The system ships with 16GB DDR3L memory and a 256GB mSATA SSD, while a 2.5-inch SATA bay remains available for extra capacity. Four embedded mounting clips support panel, wall, desktop, or cantilever installation. Windows 11 Pro comes pre-installed with auto power-on, Wake-on-LAN, PXE boot, and a watchdog timer for remote management.

Přednosti

  • IP65 front panel resists dust and water ingress
  • Resistive touch rated for 50 million touches ensures long HMI life
  • Fanless aluminium cooling enables silent 24/7 operation from -20 °C to 60 °C
  • Dual Gigabit LAN plus 4 USB 3.0 ports provide extensive industrial connectivity
  • Dual storage support with mSATA and 2.5" SATA bays allows flexible capacity upgrades

Specifikace

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 4th Gen
CPU NameIntel Core i5-4200U
Screen Size17"
Screen TypeMulti-Touch Screen

Další verze tohoto modelu

Dalších 5 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

Does the dual Gigabit LAN limit network throughput to 1 Gbps per port?

Yes, each of the two Realtek ports is rated for 1 Gbps, so total wired bandwidth is capped at 1 Gbps per connection.

What cut-out size is needed for embedded mounting of the 17" panel?

The embedded installation requires a 389 mm by 321 mm opening, matching the panel's mounting dimensions.

How is the resistive touch screen calibrated, and what step is often missed?

Calibration runs through the Windows 11 Pro tablet settings; the step often missed is saving the calibration data before closing the utility.
