17 inch gray industrial all-in-one with resistive touch screen

partaker

partaker A29 17" all-in-one PC i5-4200U 8GB 512GB SSD

SKU CH-MF6P-MK3SH

17" IP65 resistive touch all-in-one with fanless Core i5-4200U, 8 GB DDR3L, 512 GB SATA SSD and dual LAN for industrial HMI use

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 4th Gen
  • CPU NameIntel Core i5-4200U

A29 17" Resistive I5 4200U 8GB RAM / 512GB SSD

  • IP65 front panel resists dust and water in industrial settings
  • Resistive touch rated for 50 million touches ensures long-term HMI reliability
  • Fanless aluminium cooling runs silently from -20 °C to 60 °C
  • Dual Gigabit LAN plus four USB 3.0 ports provide extensive connectivity
  • Dual storage slots (mSATA and 2.5" SATA) allow flexible capacity upgrades

Industrial All-in-One for Automation

The Partaker A29 is a 17 inch panel PC built for factory and embedded use. Its IP65 rated flat front panel resists dust and water jets while the resistive touch screen handles gloved operation. An Intel Core i5-4200U processor with 8 GB of DDR3L memory and a 512 GB SSD runs Windows 11 Pro out of the box.

Fanless Thermal Design and Power

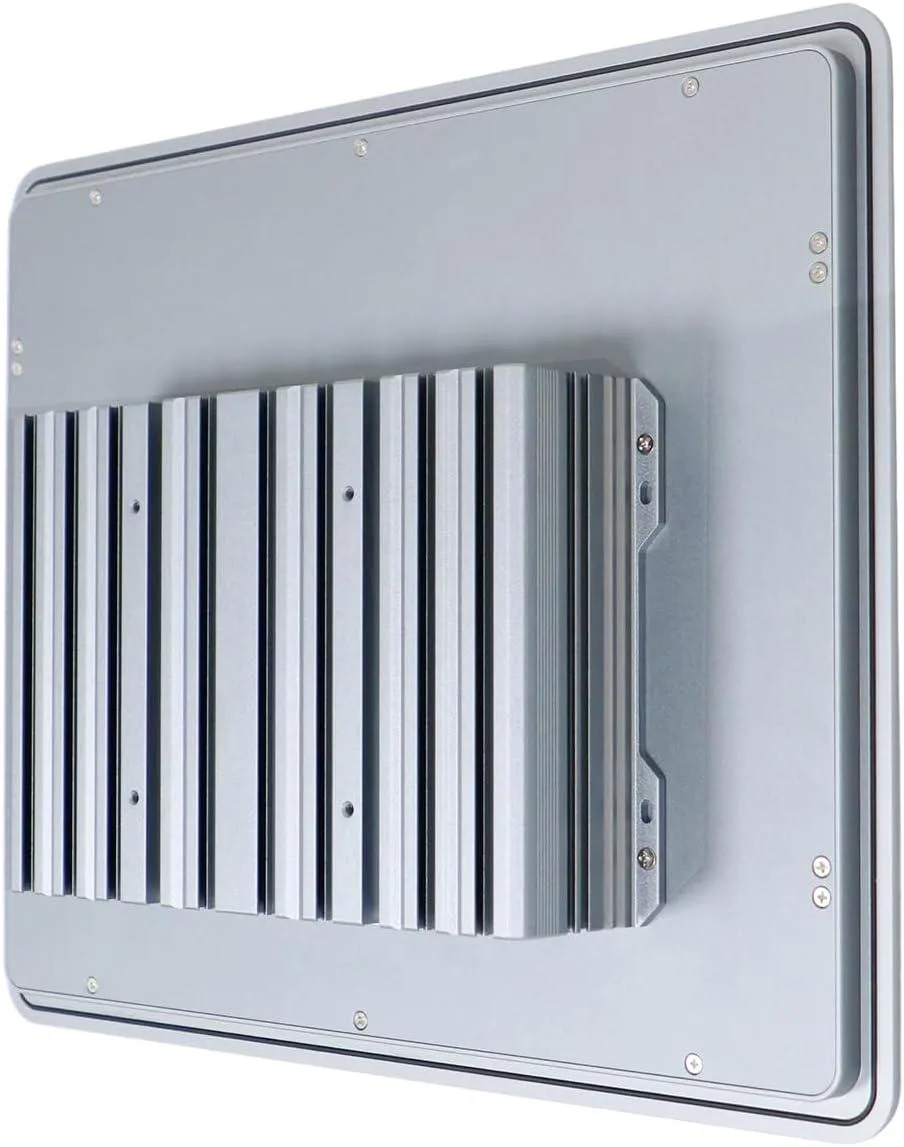

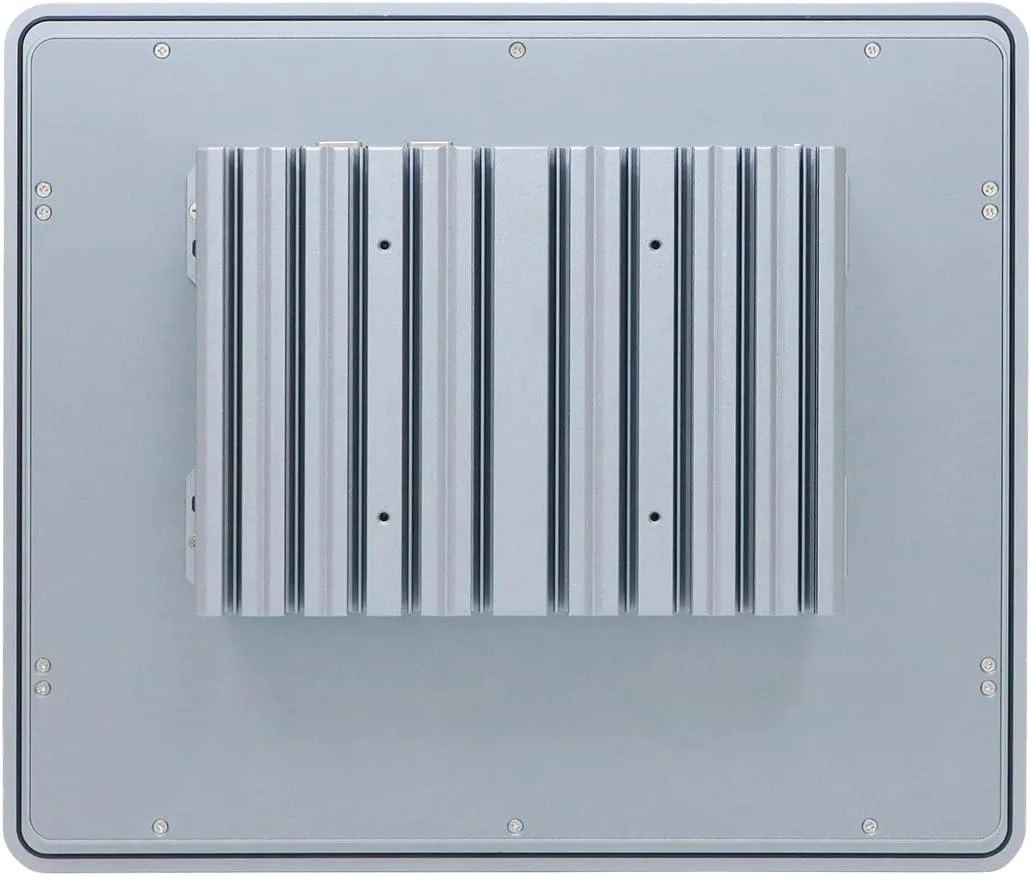

Passive aluminum alloy cooling removes moving parts for silent, dust free operation across a -20 °C to 60 °C range. The system draws power from a 12 V DC input that accepts 100 to 240 V AC, with an optional 9 to 36 V wide voltage mode for unstable supplies. No fan noise or filter maintenance is required for continuous 24/7 deployment.

Expansion Slots and Mounting Hardware

Two Mini PCIe slots with a SIM socket allow field installation of Wi Fi, Bluetooth, 3G or 4G modules without opening the chassis. The package includes four embedded mounting clips for panel cutouts of 389 by 321 mm, plus a power supply, power cord and warranty card. Dual COM ports, dual Gigabit LAN, four USB 3.0 ports and HDMI provide immediate connectivity for PLCs, HMIs and peripheral devices.

Přednosti

  • IP65 front panel resists dust and water in industrial settings
  • Resistive touch rated for 50 million touches ensures long-term HMI reliability
  • Fanless aluminium cooling runs silently from -20 °C to 60 °C
  • Dual Gigabit LAN plus four USB 3.0 ports provide extensive connectivity
  • Dual storage slots (mSATA and 2.5" SATA) allow flexible capacity upgrades

Specifikace

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 4th Gen
CPU NameIntel Core i5-4200U
Screen Size17"
Screen TypeMulti-Touch Screen

Další verze tohoto modelu

Dalších 5 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

How do I mount the A29 for embedded installation, and which step is often missed?

Cut a 389 x 321 mm opening, insert the unit from the front, and secure all four embedded mounting clips; the step often missed is fitting every clip so the IP65 front seal stays uniform.

Which components may need replacement after years of 24/7 operation?

The resistive touch layer is rated for over 50 million touches; the 2.5" SATA drive and mSATA SSD are the only field-replaceable storage parts, and the two Mini PCIe modules can be swapped if wireless needs change.

What thermal limit appears first during continuous full-load use in a hot enclosure?

Fanless aluminium cooling is specified to 60 °C ambient with SSD; sustained loads above that temperature will trigger throttling or shutdown before any other component limit is reached.
