13.3 inch industrial all-in-one panel PC with resistive touchscreen, aluminium fanless chassis, embedded mounting holes

partaker

partaker A3 all-in-one PC 13.3" i7 6500U 8GB DDR4 512GB SSD 1TB HDD

SKU CH-SG79-V2B40

13.3" industrial all-in-one with IP65 front panel, i7-6500U, 8GB DDR4, 512GB SSD and 1TB HDD for 24/7 operation

  • Form FactorAll-in-One
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i7 6th Gen
  • GPU/VGA TypeIntel HD Graphics 520
  • Memory Capacity8GB DDR4
  • SSD512GB

CPU Type Intel Core i7 6th Gen

GPU/VGA Type Intel HD Graphics 520

Memory Capacity 8GB DDR4

SSD 512GB

HDD 1TB

  • IP65 front panel resists dust and water ingress in harsh environments
  • Intel Core i7-6500U up to 3.10 GHz handles 24/7 industrial workloads
  • Fanless aluminium alloy cooling runs silently with no moving parts to fail
  • 512 GB SSD plus 1 TB HDD gives fast boot and large local storage
  • 5-wire resistive touchscreen rated for 35 million touches survives heavy use

Industrial Panel PC for 24/7 Operation

The Partaker A3 is a 13.3-inch all-in-one computer built for continuous industrial use. An Intel Core i7-6500U processor and 8 GB of DDR4 memory drive Windows 11 Pro in a fanless aluminium chassis rated for 0–50 °C with the SSD installed. The IP65-protected front panel resists dust and water jets in harsh environments.

Connectivity and Mounting for Embedded Installations

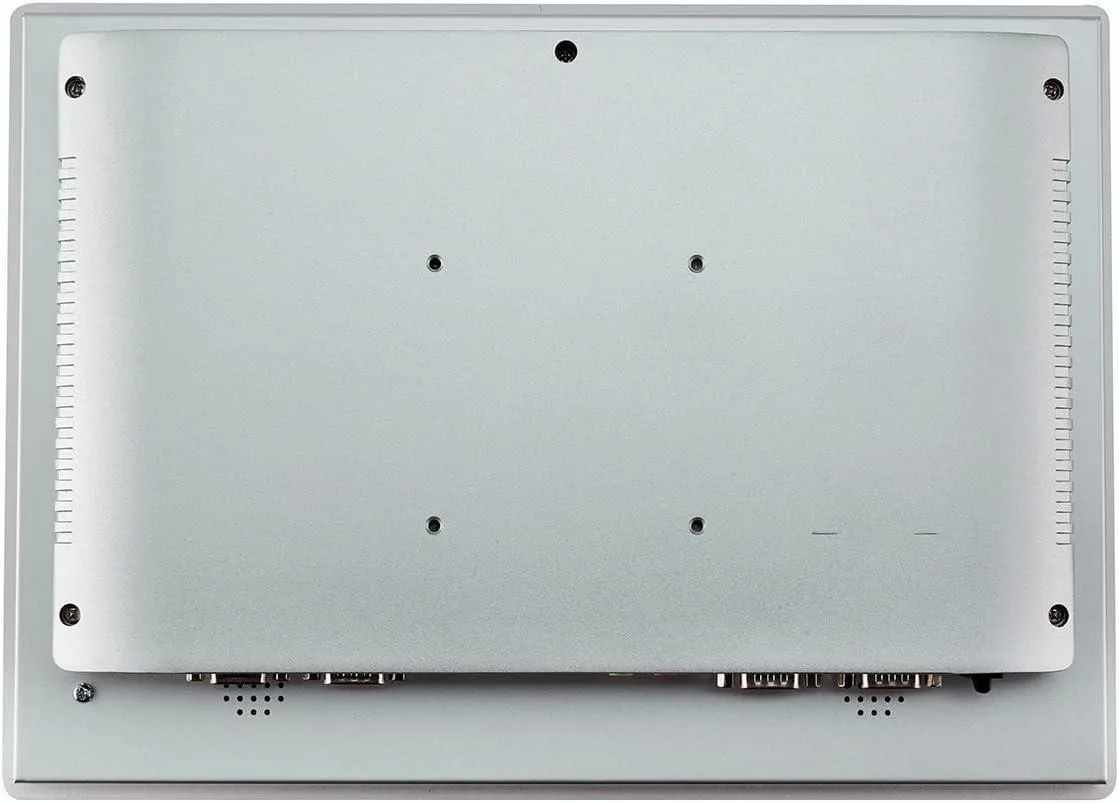

Two Gigabit LAN ports, dual COM ports, HDMI, VGA, four USB ports and audio I/O cover legacy and modern peripherals. A Mini PCIe slot with a SIM holder allows optional 4G or Wi-Fi expansion. The unit measures 334.2 × 229.85 × 52.5 mm with a 326 × 232 mm cut-out, supporting embedded, wall, desktop or cantilever mounting.

Storage Mix Decides Fit

A 512 GB SSD and a 1 TB HDD are factory-fitted; the board also accepts one mSATA SSD, one M.2 2280 NVMe or SATA drive and one 2.5-inch SATA device. Maximum memory is 16 GB across two SODIMM DDR3L slots. Buyers needing more than two LAN ports or a larger display should look elsewhere.

Přednosti

  • IP65 front panel resists dust and water ingress in harsh environments
  • Intel Core i7-6500U up to 3.10 GHz handles 24/7 industrial workloads
  • Fanless aluminium alloy cooling runs silently with no moving parts to fail
  • 512 GB SSD plus 1 TB HDD gives fast boot and large local storage
  • 5-wire resistive touchscreen rated for 35 million touches survives heavy use

Specifikace

ModelA3-PA-133TPC-CE5A(I76)-8G512G1TB
Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 6th Gen
GPU/VGA TypeIntel HD Graphics 520
Memory Capacity8GB DDR4
SSD512GB
HDD1TB
Screen Size13.3"
TouchscreenYes

Další verze tohoto modelu

Dalších 5 v této řadě

Stejná řada, jiná paměť, chladič nebo takt — porovnejte, než se rozhodnete.

Otázky k tomuto produktu

What resolution does the 13.3" panel support over HDMI or VGA?

The 13.3" TFT LED panel has a native resolution of 1280 x 800; external displays connected via HDMI or VGA can run at their own supported resolutions.

What are the exact cut-out dimensions for embedded mounting of the A3 unit?

The embedded installation requires an opening hole of 326 x 232 mm to fit the 334.2 x 229.85 x 52.5 mm chassis.

How do I install an mSATA or M.2 NVMe drive and which screw is commonly missed?

Open the rear cover, insert the mSATA card or M.2 2280 NVMe module at an angle, then secure it with the single retention screw — the step often skipped is fastening that screw before reassembly.
