Tripp Lite SU2200XLCD 1960VA 1770W 120V Double-Conversion UPS Tower
Double-conversion tower UPS delivering 1960 VA and 1770 W with seven NEMA outlets, user-replaceable VRLA batteries and optional network management
- International Version120V
- Input ConnectionNEMA 5-20P
- VA Rating1960 VA
- Watts1770 Watts
- Output Voltage120V
- Output Frequency50 / 60 Hz
VA 2200 VA / LCD
- 1000 VA / LCD Screen
- 1500 VA / LCD Screen
- 2200 VA / LCD
- 3000 VA / LCD
Přeškrtnuté varianty existují, ale zde nejsou skladem.
- Double-conversion topology isolates equipment from power anomalies
- 1770 W output supports high-density server and network loads
- Seven NEMA outlets include one L5-20R for flexible rack wiring
- User-replaceable VRLA batteries extend service life without technician visits

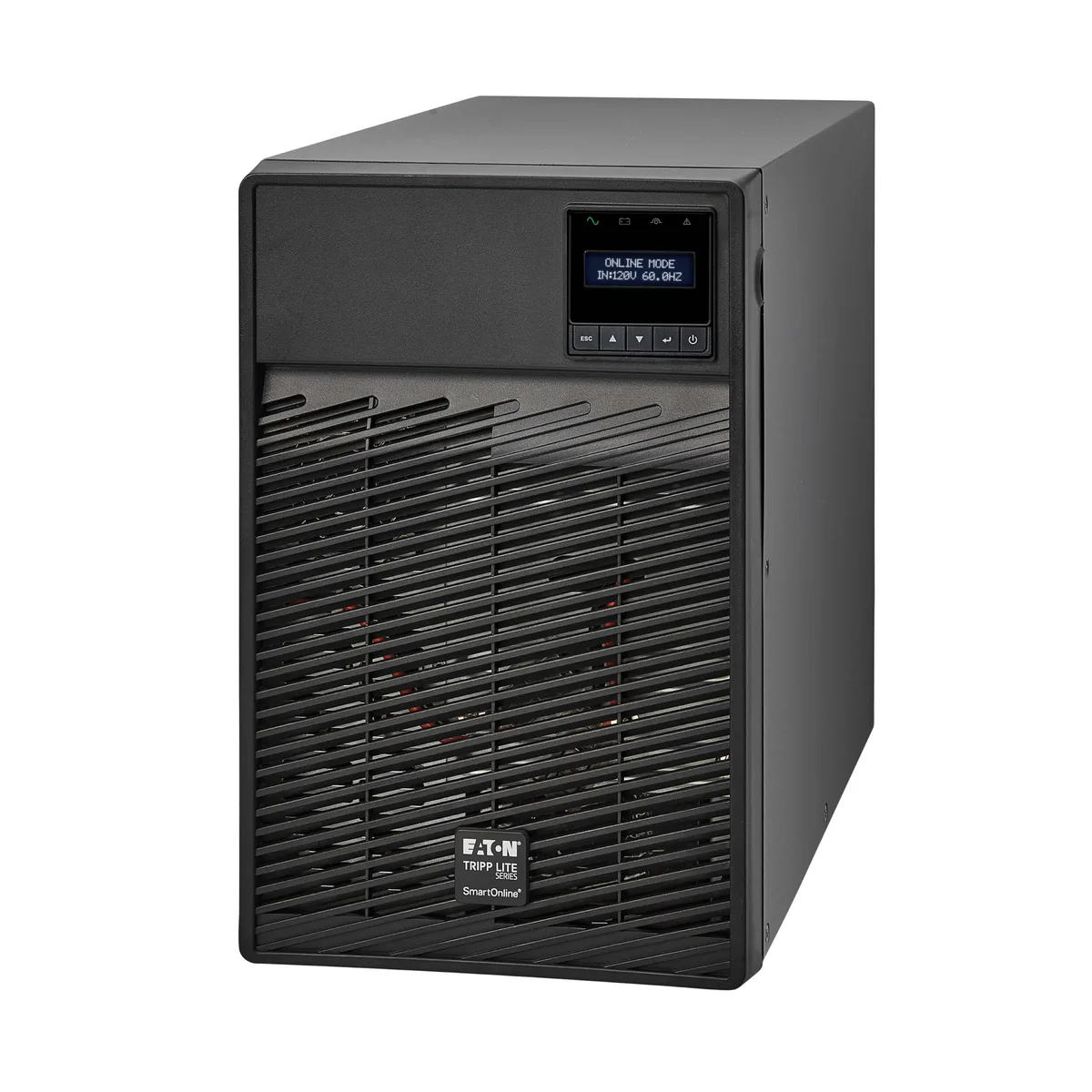

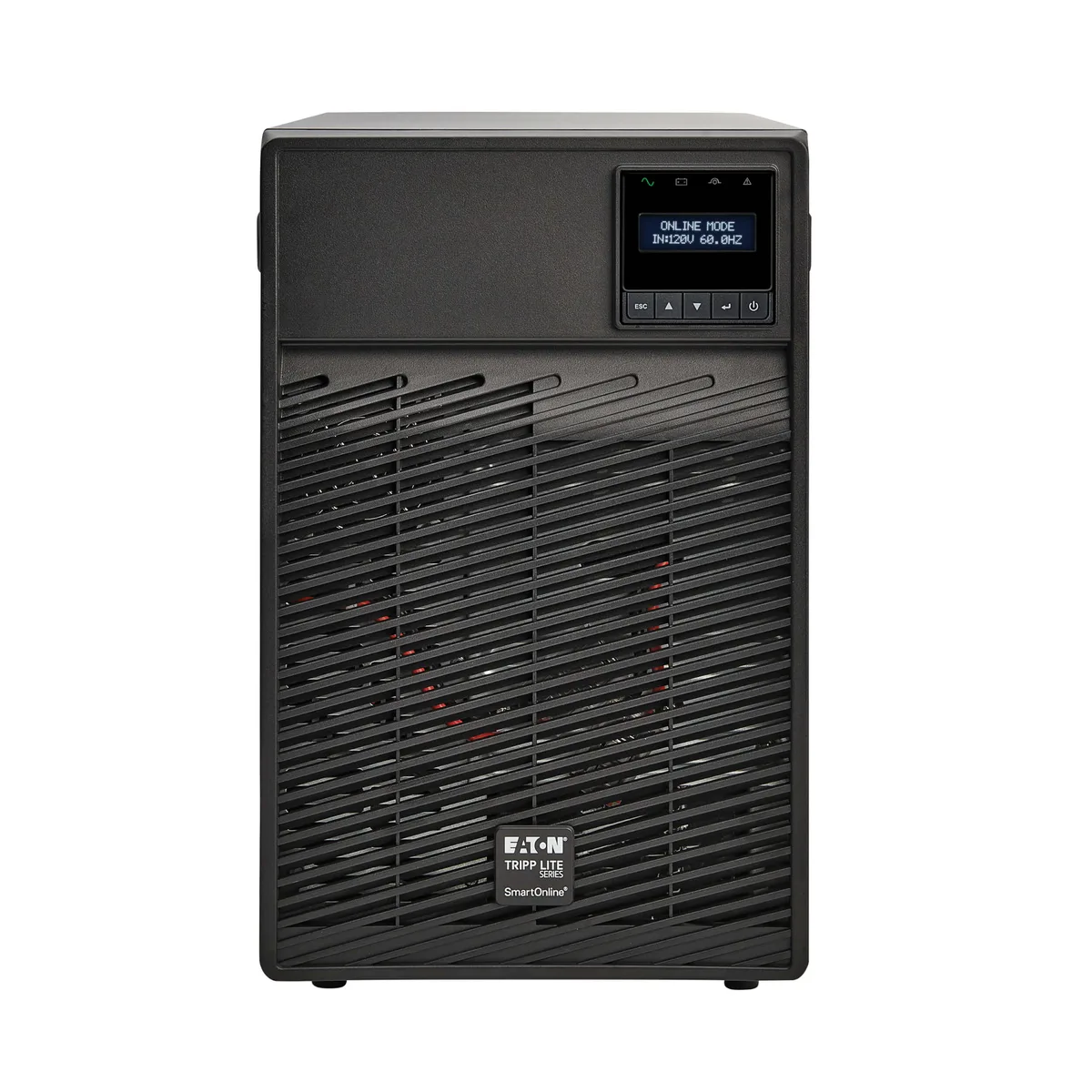

- LCD panel plus USB, RS-232 and SNMP slot enable local and remote monitoring
SmartOnline Double-Conversion UPS
The Tripp Lite SU2200XLCD is a 1960 VA, 1770 watt double-conversion UPS designed for servers, networking gear and sensitive electronics that require continuous, clean 120 V power. It accepts a wide input range from 100 V to 127 V and delivers regulated output at 100 V, 110 V, 120 V or 127 V without using battery capacity.
Thermals Noise and Power Draw
Double-conversion topology isolates connected loads from line noise, voltage distortion and frequency variation, supplying a pure sine wave at 50 or 60 Hz. The unit draws power through a NEMA 5-20P plug and provides surge protection rated at 570 joules plus data-line protection for one telephone or DSL line and one 10/100 Ethernet connection.
Upgrade Path and When It Is Worth It
This UPS replaces standby or line-interactive models when equipment cannot tolerate any transfer time or requires consistent voltage regulation across unstable utility feeds. It is not suited for installations that need longer runtime than 10.4 minutes at full load or 26.2 minutes at half load without adding external battery packs.
Přednosti
- Double-conversion topology isolates equipment from power anomalies
- 1770 W output supports high-density server and network loads
- Seven NEMA outlets include one L5-20R for flexible rack wiring
- User-replaceable VRLA batteries extend service life without technician visits
- LCD panel plus USB, RS-232 and SNMP slot enable local and remote monitoring
Specifikace
| Brand | TRIPP LITE |
|---|---|
| Series | SMARTONLINE |
| Model | SU2200XLCD |
| International Version | 120V |
| Input Connection | NEMA 5-20P |
| VA Rating | 1960 VA |
| Watts | 1770 Watts |
| Output Voltage | 120V |
| Output Frequency | 50 / 60 Hz |
| Outlets | 7 |

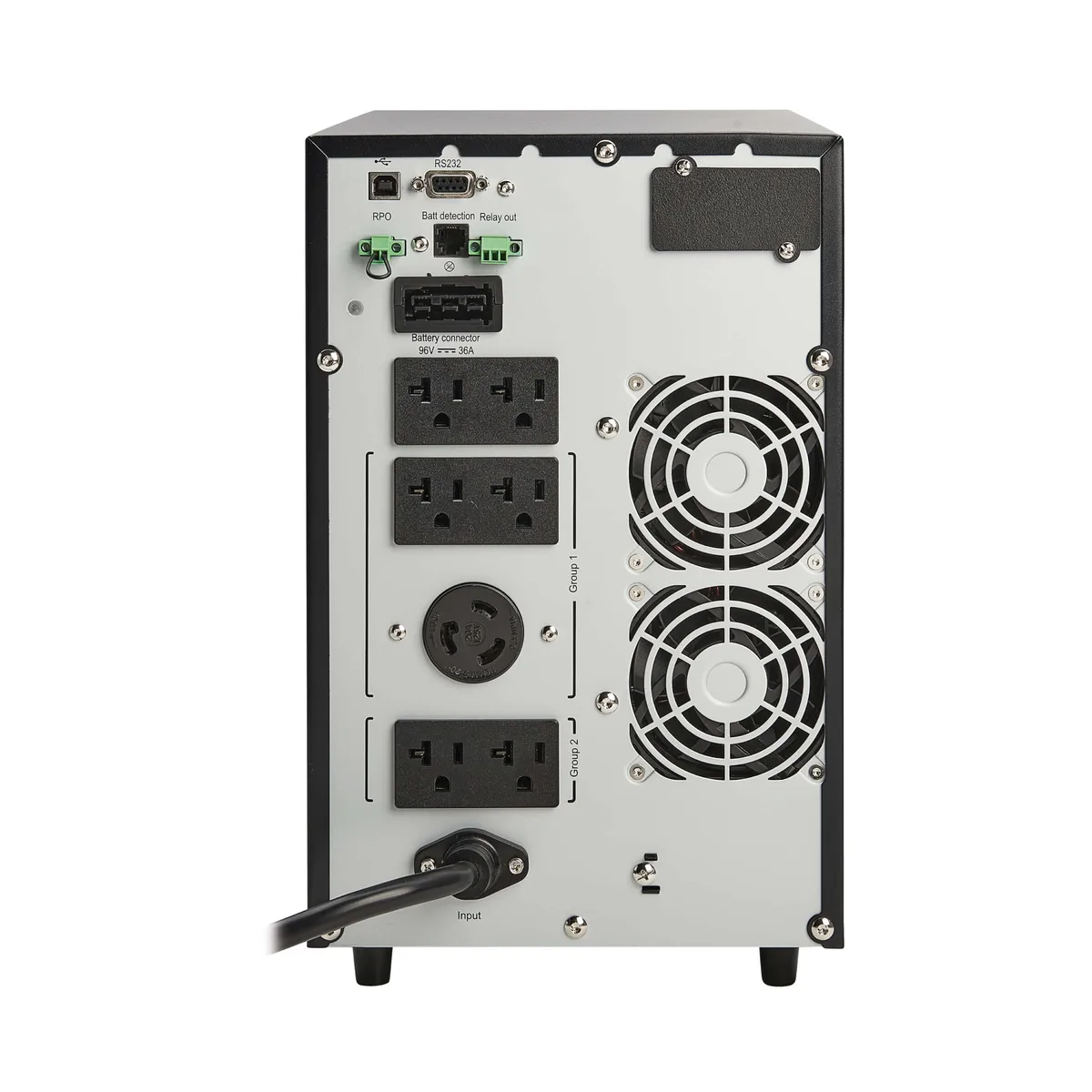

| Outlet Type | (6) NEMA 5-20R; (1) NEMA L5-20R |
| Battery Type | Valve Regulated Lead Acid (VRLA) |
| Battery Run Time | Full Load: 10.4 min (1770W) Half Load: 26.2 min (885W) |
| Battery Replaceable | User replaceable batteries |
| Alarms | Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions |
| Interface Port | (1) Contact closure; (1) RS-232; (1) Slot for SNMP/Web interface; (1) USB |
| Data Line Protection | 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet |
| Surge Energy Rating | 570 Joules |
| Dimensions | 13.63" x 8.43" x 16.23" |
| Weight | 73.42 lbs. |

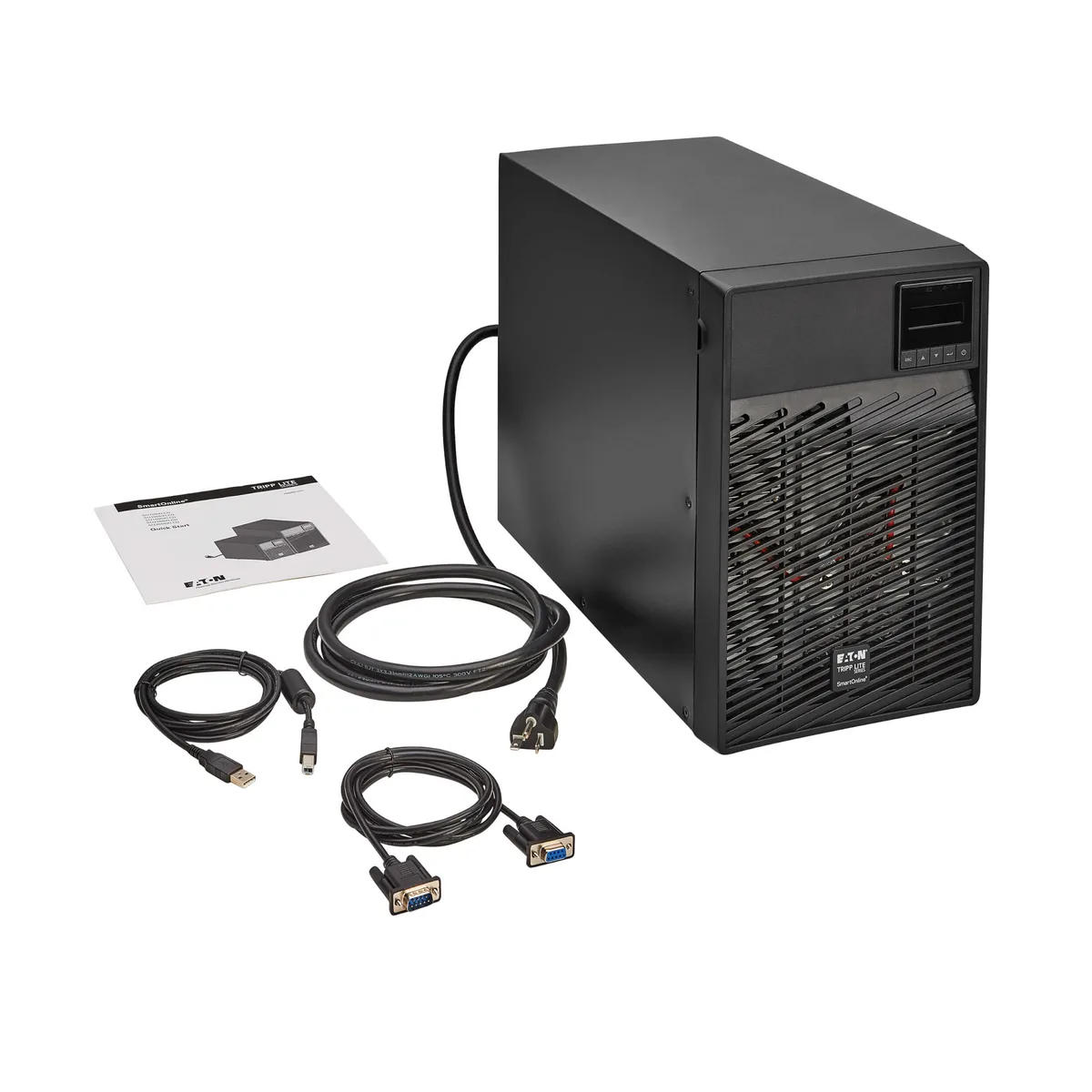

| Package Contents | 1960VA 1770W 120V Double-Conversion UPS USB cable DB9 cable Quick Start Guide |
| Přepravní hmotnost | 26.40 kg |
| Rozměry balení | 595 × 380 × 335 mm |
Otázky k tomuto produktu
How do I install the Tripp Lite SU2200XLCD and what step is often missed?
Connect the NEMA 5-20P input plug to a 20 A branch circuit, then attach equipment to the six NEMA 5-20R and one NEMA L5-20R outlets. The step often missed is inserting the optional SNMP/Web card into the dedicated slot before powering on if remote management is required.
What maintenance or replacement will the SU2200XLCD need later?
The valve-regulated lead-acid batteries are user-replaceable; plan to swap them every three to five years. Keep the 570 J surge rating in mind — after a major surge event the protection circuitry may need service.
What limit appears first during sustained full-load use of the SU2200XLCD?
At 1770 W the internal batteries provide 10.4 minutes of runtime before shutdown begins; this battery endurance is the first constraint reached under continuous full-load operation.
