Zyvpee

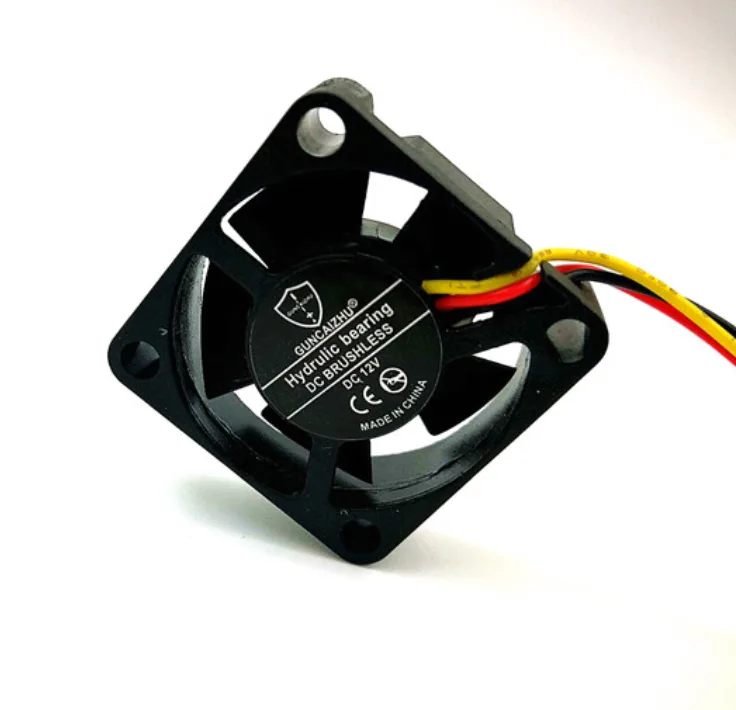

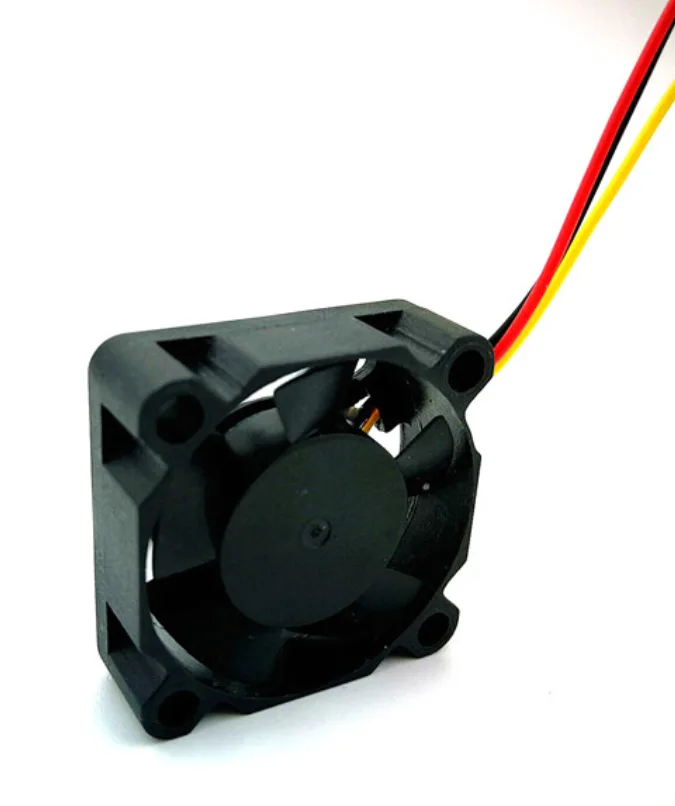

Zyvpee 3510 35mm Hydraulic 3-Wire DC 12V 0.04A Case Fan
A 35 mm hydraulic case fan with a 3-wire 12 V DC motor drawing 0.04 A for compact CPU cooling
- TypeCase Fan
- CompatibilityCPU Cooler
- Fan Size35mm
- Bearing TypeHydraulic
- Power Connector3 Wires
- ColorBlack
- 35 mm square frame fits tight CPU cooler spaces
- Hydraulic bearing runs quietly and lasts longer than sleeve types
- 12 V DC at 0.04 A draws minimal power from the system
- Three-wire connector enables RPM monitoring for fan control
- Slim 10 mm thickness clears low-profile heatsinks and cramped cases
Compact 35 mm CPU cooler fan
The Zyvpee 3510 is a 35 mm square case fan designed for tight CPU cooler mounts where a full-size unit will not fit. It runs on 12 V DC and draws only 0.04 A, making it a low-power choice for small-form-factor builds or replacement cooling on compatible heatsinks. The hydraulic bearing aims to reduce noise and extend service life in continuous operation. Its 3.5 cm footprint suits confined layouts that need targeted airflow.
3-wire hydraulic bearing build
A 3-wire power connector supplies tachometer feedback so the motherboard can monitor speed without PWM control. The hydraulic bearing uses a fluid film to minimise friction, offering quieter running than sleeve alternatives at this scale. The black, non-LED frame keeps the appearance neutral for any build colour scheme. Dimensions of 35 by 35 by 10 mm confirm a slim profile that slides into narrow cooler shrouds or chassis vents.
Limits of the 35 mm DC interface
The fixed 12 V DC input means speed scales with voltage; no 4-pin PWM header is present for automatic curve control. At 0.04 A the maximum airflow is modest, so this fan suits spot cooling or supplemental airflow rather than primary CPU thermal loads. Builders needing variable speed headers or higher static pressure should verify motherboard connector compatibility before purchase.
Přednosti
- 35 mm square frame fits tight CPU cooler spaces
- Hydraulic bearing runs quietly and lasts longer than sleeve types
- 12 V DC at 0.04 A draws minimal power from the system
- Three-wire connector enables RPM monitoring for fan control
- Slim 10 mm thickness clears low-profile heatsinks and cramped cases
Specifikace
| Series | 3510 |
|---|---|
| Model | 3510 |
| Type | Case Fan |
| Compatibility | CPU Cooler |
| Fan Size | 35mm |
| Bearing Type | Hydraulic |
| Power Connector | 3 Wires |
| Color | Black |
| LED | Non-LED |
| Features | DC square Cooler |
| Dimensions | 35*35*10mm |
Otázky k tomuto produktu
What does the 3-wire connector provide on the 3510 fan?
The 3-wire connector supplies 12 V power, ground and a tachometer signal so the motherboard can monitor the 35 mm fan speed.
What clearance does the 35 mm square frame need to mount?
The 3510 measures 35 mm by 35 mm by 10 mm thick, so it fits any 35 mm mounting holes with at least 10 mm depth.
How is the 3510 fan installed and what step is often missed?
Align the four corners with the 35 mm screw holes, secure with screws and plug the 3-wire header into the CPU fan connector so the tach signal is read.
