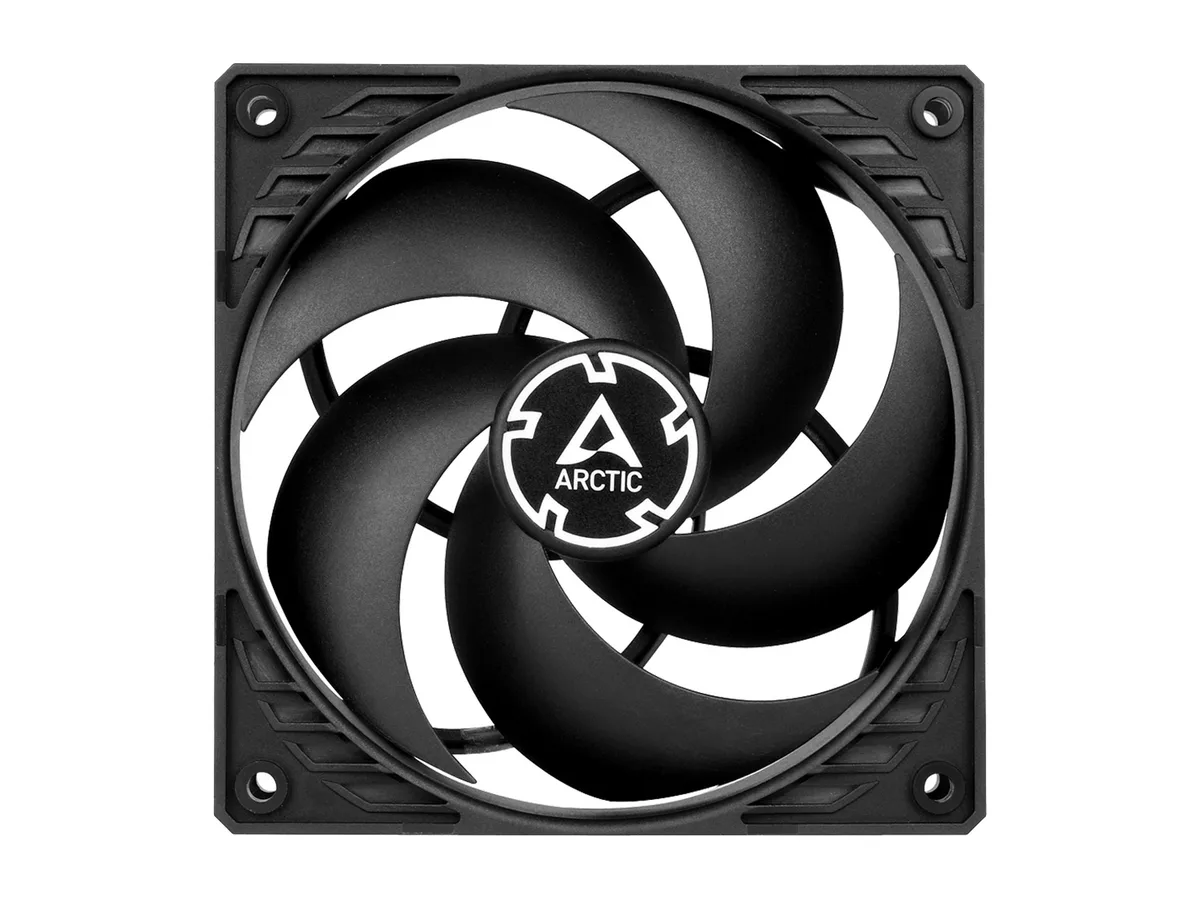

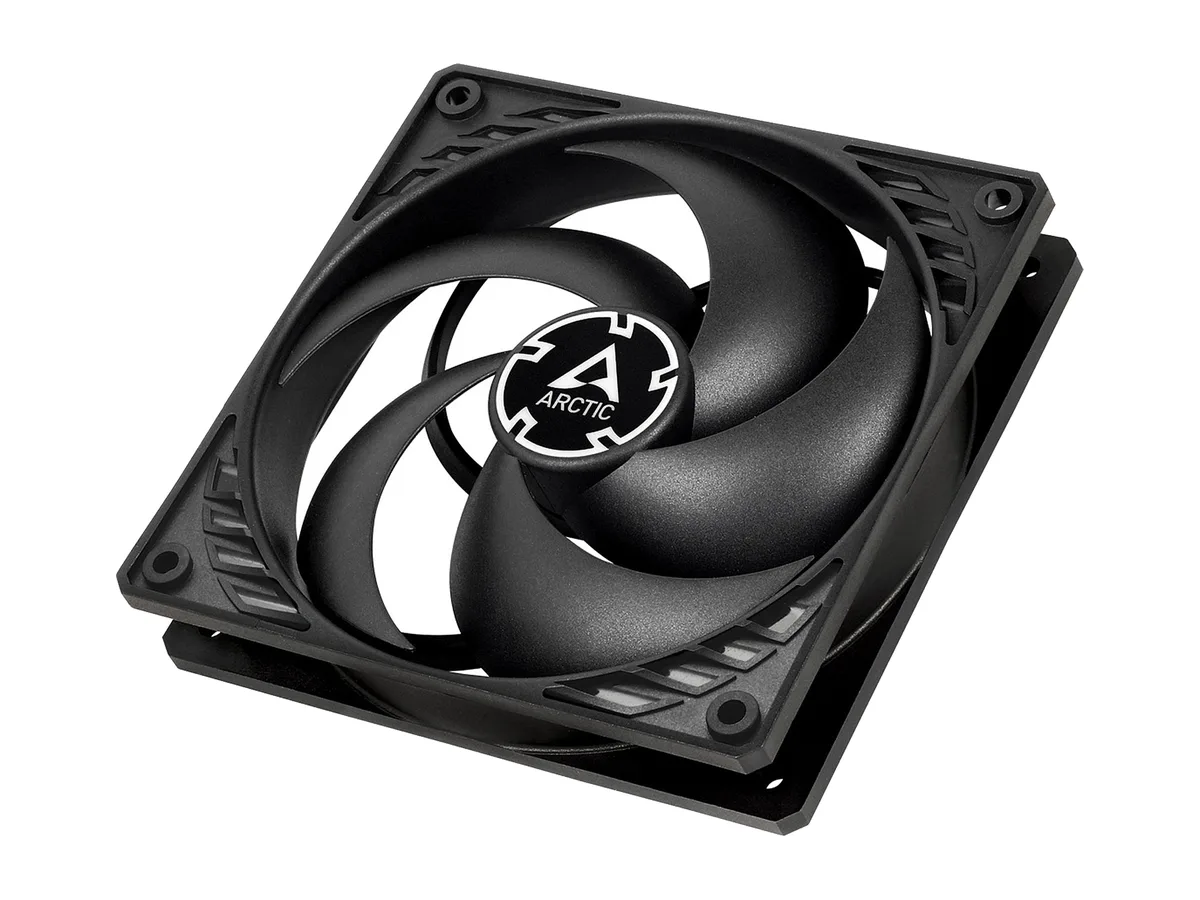

ARCTIC COOLING P12 Silent ACFAN00130A 120mm case fan 1050 RPM 24.1 CFM 0.08 Sone 3-pin
Pressure-optimised 120 mm case fan runs at 1050 RPM, delivers 24.1 CFM and produces just 0.08 Sone for near-silent heatsink and radiator cooling
- Fan Counts1 Fan
- Fan ControllerNo Controller
- TypeCase Fan
- CompatibilityCase

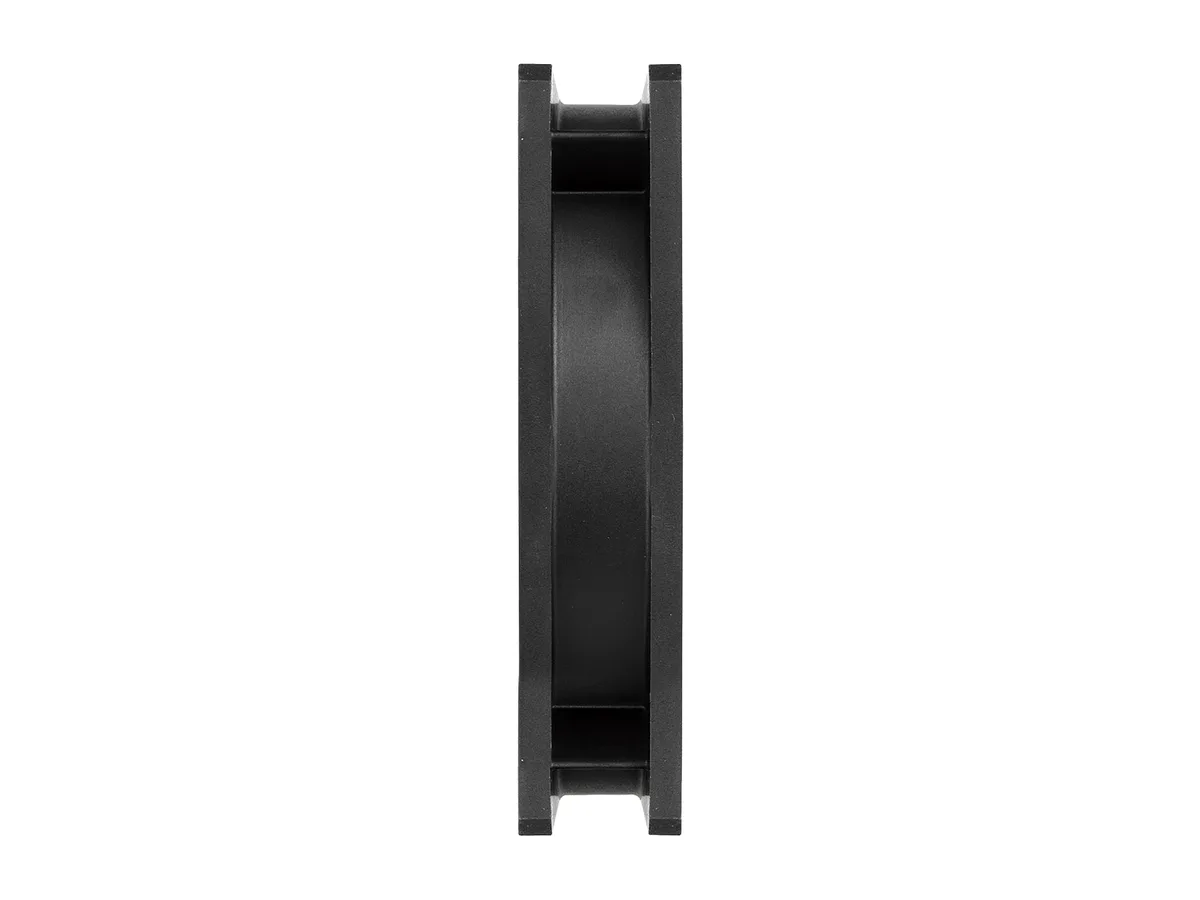

- Fan Thickness25mm
- Bearing TypeFluid Dynamic
- Near-silent operation at 0.08 Sone
- Pressure-optimised blades push 24.1 CFM through radiators
- Fluid-dynamic bearing runs at 1050 RPM
- Standard 120 mm frame fits most cases
- 3-pin connector powers the fan directly
Purpose-built pressure fan
The Arctic P12 Silent is a 120mm case fan optimised for static pressure, making it suited to heatsinks, radiators and partly covered vents. It uses a fluid-dynamic bearing and runs at a fixed 1050 RPM, delivering 24.1 CFM of airflow. The 3-pin power connector provides simple voltage control without a separate controller. The motor is rated at 0.08 Sone, placing it in the virtually silent category.
Upgrade from stock sleeve-bearing fans
Builders replacing noisy stock fans with sleeve bearings will notice lower audible noise and more consistent pressure delivery through restrictive surfaces. The jump is worth it when the chassis has dense fin stacks or radiator mesh that demands directed airflow rather than raw volume. It is not for buyers who need variable-speed PWM control or who want a bundled fan controller.
Sustained-load behaviour
Under continuous operation the fluid-dynamic bearing maintains stable RPM without the rattle that can develop in sleeve designs over time. The low 0.08 Sone rating remains consistent because the motor does not ramp aggressively. The 25mm thickness fits standard mounting points, and the black frame blends into most builds.
Besonderheiten
- Near-silent operation at 0.08 Sone
- Pressure-optimised blades push 24.1 CFM through radiators
- Fluid-dynamic bearing runs at 1050 RPM
- Standard 120 mm frame fits most cases
- 3-pin connector powers the fan directly
Technische Daten
| Brand | ARCTIC COOLING |
|---|---|
| Series | P12 Silent |
| Model | ACFAN00130A |
| Fan Counts | 1 Fan |
| Fan Controller | No Controller |
| Type | Case Fan |
| Compatibility | Case |
| Fan Thickness | 25mm |
| Bearing Type | Fluid Dynamic |
| RPM | 1050 RPM |
| Air Flow | 24.1 CFM |
| Noise Level | 0.08 Sone |
| Power Connector | 3 Pin |
| Color | Black |
| Features | Optimized for static pressure Ideal on heatsinks, radiators, and partly covered vents Virtually silent motor |
| Dimensions | 120.00 x 120.00 x 25.00 mm |
| Package Contents | 1 x Fan 4 x Screw |
| Versandgewicht | 0.17 kg |
| Paketgröße | 127 × 122 × 28 mm |
Fragen zu diesem Artikel
Will the 120 mm square frame and 25 mm thickness fit my standard case fan slots?
Yes, the fan measures 120 mm by 120 mm by 25 mm, matching the common 120 mm mounting pattern used on most cases and radiators.
How do I connect the 3-pin power connector and avoid the common mistake of leaving speed control disabled?
Plug the 3-pin connector into a motherboard chassis fan header, then enable DC voltage control in the BIOS so the 1050 RPM speed can be regulated.
When will the fluid dynamic bearing need replacement, and is it user-serviceable?
The fluid dynamic bearing is sealed and not user-serviceable; it is rated for long-term continuous operation at the specified 0.08 Sone noise level.
