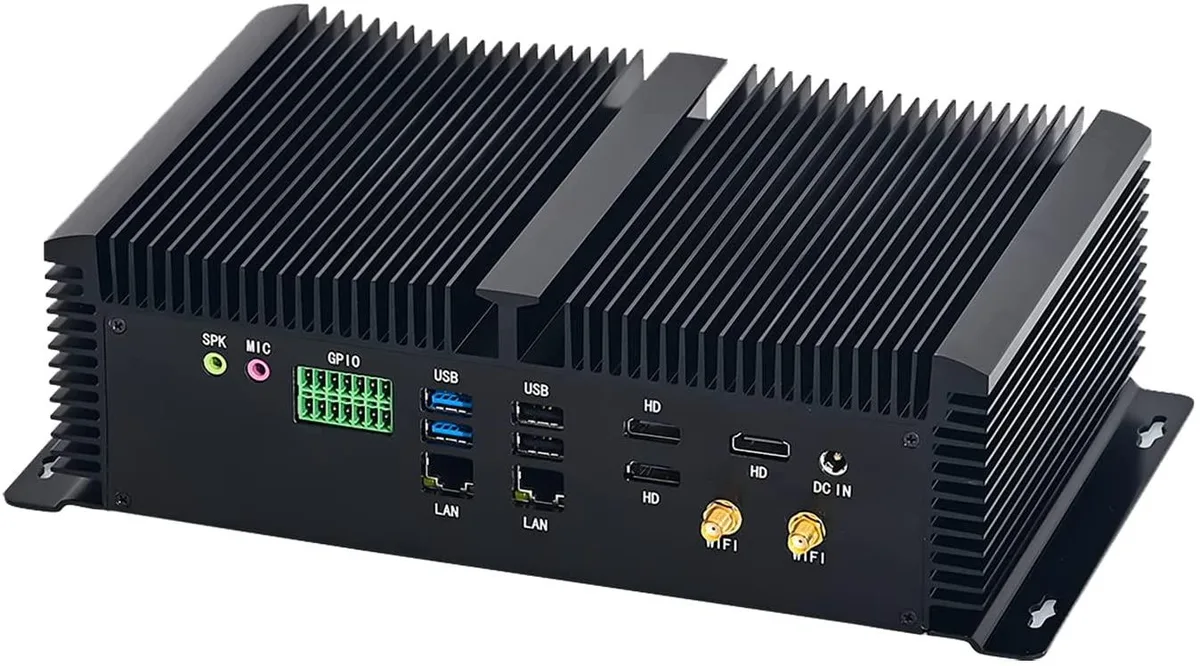

Partaker I6 barebone mini PC i7-10750H 32G 512G
- Black
- Intel Core i7 10th…
751,99 $
0.00958596BTC
Auf Lager
ASRock
ASRock Z390 Taichi LGA 1151 (300 Series) Intel motherboard
Supports 8th and 9th Gen Intel Core CPUs with four DDR4 slots up to 128 GB, three PCIe 3.0 x16 slots, eight SATA 6Gb/s ports, three M.2 sockets, dual Gigabit LAN and 7.1 audio
- CPU Socket TypeLGA 1151 (300 Series)
- CPU TypeCore i7 / i5 / i3 (8th Gen, LGA1151)
- Supported CPU TechnologiesTurbo Boost Technology 2.0
- ChipsetIntel Z390
- Onboard Video ChipsetSupported only by CPU with integrated graphic
- Number of Memory Slots4x288pin (DDR4)
- Supports 9th and 8th Gen Intel Core processors via LGA 1151 socket
- Four DDR4 slots accept up to 128 GB at speeds up to 4200 MHz when overclocked
- Three Ultra M.2 sockets plus eight SATA 6Gb/s ports provide extensive storage expansion
- Dual Gigabit LAN controllers deliver reliable wired network connectivity
- Realtek ALC1220 codec drives 7.1 channel high-definition audio output
Z390 Taichi ATX Motherboard
The ASRock Z390 Taichi is an ATX motherboard built on the Intel Z390 chipset. It accepts 8th and 9th Generation Intel Core i7, i5 and i3 processors in the LGA 1151 socket. The board provides four DDR4 memory slots with dual-channel architecture and a maximum capacity of 128 GB. It also includes dual Gigabit LAN ports and Realtek ALC1220 7.1-channel audio.
Best for 8th and 9th Gen Intel builds
This board suits builders assembling a new system or upgrading an existing LGA 1151 platform with 8th or 9th Generation Core CPUs. It delivers three full-length PCI Express 3.0 x16 slots for multi-GPU configurations, eight SATA 6Gb/s ports and three Ultra M.2 sockets for storage expansion. Users with 10th Generation or newer Intel processors cannot use this socket and must select a different motherboard.
LGA 1151 (300 Series) socket defines compatibility
The single specification that decides fit is the CPU socket: LGA 1151 (300 Series). Only 8th and 9th Generation Intel Core i7, i5 and i3 processors are supported. Memory runs at DDR4 2666 natively with a long list of overclocked speeds up to DDR4 4200+. If your processor is not on that supported list, this motherboard will not work.
Besonderheiten
- Supports 9th and 8th Gen Intel Core processors via LGA 1151 socket
- Four DDR4 slots accept up to 128 GB at speeds up to 4200 MHz when overclocked
- Three Ultra M.2 sockets plus eight SATA 6Gb/s ports provide extensive storage expansion
- Dual Gigabit LAN controllers deliver reliable wired network connectivity
- Realtek ALC1220 codec drives 7.1 channel high-definition audio output
Technische Daten
| Brand | ASRock |
|---|---|
| Model | Z390 Taichi |
| CPU Socket Type | LGA 1151 (300 Series) |
| CPU Type | Core i7 / i5 / i3 (8th Gen, LGA1151) |
| Supported CPU Technologies | Turbo Boost Technology 2.0 |
| Chipset | Intel Z390 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
| Number of Memory Slots | 4x288pin (DDR4) |
| Memory Standard | DDR4 2666 |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 3 x PCI Express 3.0 x16 |
| PCI Express x1 | 2 x PCI Express x1 |
| Other Slots | 1 x Vertical M.2 Socket (Key E) with the bundled Wi-Fi 802.11 ac module (on the rear I/O)15µ Gold Contact in VGA PCIe Slot (PCIE2) |
| Serial ATA (SATA) | 8 x SATA 6Gb/s |
| M.2 | 3 x Ultra M.2 |
| Intel Optane Ready | Yes |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC1220 |
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel I219-V |
| Second LAN Chipset | Intel I211-AT |
| Max LAN Speed | 2 x 1Gbps |
| Wireless LAN | Wi-Fi 802.11 ac |
| Bluetooth | Yes |
| Onboard USB | 5 x USB 3.1 + 3 x USB 2.0 |
| Other Connectors | 1 x TPM Header1 x Power LED and Speaker Header2 x RGB LED Headers*1 x Addressable LED Header**1 x CPU Fan Connector (4-pin)***1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****6 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****1 x Front Panel Audio Connector (15µ Gold Audio Connector)1 x Thunderbolt AIC Connector (5-pin)1 x Performance Mode / Easy OC Header1 x Dr. Debug with LED* Support in total up to 12V/3A, 36W LED Strip** Supports in total up to 5V/3A, 15W LED Strip*** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan |
| Form Factor | ATX |
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 24 Pin |
| Features | Unique Feature:ASRock USB 3.1 Gen2- ASRock Front Panel Type C USB 3.1 Gen2 Header (10Gb/s)- ASRock Rear USB 3.1 Gen2 Type-A Ports (10Gb/s)- ASRock Rear USB 3.1 Gen2 Type-C Port (10Gb/s)ASRock Super Alloy- XXL Aluminum Alloy Heatsink- Premium 60A Power Choke- Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)- Dual-Stack MOSFET (DSM)- Combo Caps (Nichicon 12K Black Caps)- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)- I/O Armor- Matte Black PCB- High Density Glass Fabric PCBIntel 802.11 ac Wi-FiASRock Steel SlotsASRo |
| Package Contents | Accessories:- Quick Installation Guide, Support CD, I/O Shield- 4 x SATA Data Cables- 1 x ASRock SLI_HB_Bridge_2S Card- 2 x ASRock Wi-Fi 2.4/5 GHz Antennas- 3 x Screws for M.2 Sockets |
Fragen zu diesem Artikel
Does the board ship with the Wi-Fi module or do I need to buy it separately?
The bundled Wi-Fi 802.11 ac module is included and installs in the vertical M.2 Key E socket on the rear I/O.
Which DDR4 speeds are supported out of the box versus overclocked?
DDR4 2666 runs at standard voltage; 2933 through 4200+ are listed as overclocked profiles.
What does the 128 GB maximum memory mean for a four-slot build?
Four 32 GB DDR4 modules fill the 288-pin slots and reach the 128 GB limit in dual-channel mode.
