Tower UPS with LCD screen and ten NEMA 5-15R outlets

Eaton

Eaton 5S1500LCD UPS 1500VA 900W 120V 10x NEMA 5-15R

SKU CH-994D-XEN4X MPN 5S1500LCD

Line-interactive battery backup delivers 900 watts through ten NEMA 5-15R outlets with LCD status and USB management

  • International Version120V
  • Input Voltage Range93 - 138 V
  • Input Frequency46 - 70 Hz (50 Hz system); 57 - 70 Hz (60 Hz system)
  • Input ConnectionNEMA 5-15P
  • VA Rating1500 VA
  • Watts900 Watts

VA 1500 VA

  • 1500 VA and 900 W capacity protects workstations and networking gear
  • 10 NEMA 5-15R outlets connect multiple devices without extra strips
  • LCD panel shows real-time voltage, load and battery status at a glance
  • USB port enables automatic safe shutdown via Eaton UPS Companion software
  • 12 minutes runtime at half load keeps systems running through short outages

1500 VA Tower UPS for Sensitive Electronics

The Eaton 5S1500LCD is a line-interactive battery backup rated at 1500 VA and 900 W. It provides surge protection for power and network lines and ships with ten NEMA 5-15R outlets. The LCD panel shows real-time status while the USB port connects to Eaton UPS Companion software for graceful shutdowns. It suits desktop workstations, networking gear and home-office devices that need short runtime during outages.

Check Input Voltage and Outlet Count Before Buying

Verify that your mains supply stays within the 93 to 138 V input window and matches either 50 Hz or 60 Hz frequency ranges listed. The unit uses a NEMA 5-15P plug, so the wall receptacle must accept that connector. Ensure the ten NEMA 5-15R outlets match the plug types of the equipment you intend to protect. This model is not rack-mountable and requires a flat, stable surface with adequate airflow around the tower chassis.

Thermal Limits and Typical Noise Profile

Operating temperature range is 0 to 35 °C (32 to 95 °F) with humidity up to 93 % non-condensing. Under normal line power the inverter remains idle, so audible noise is limited to occasional fan operation and relay clicks during voltage regulation. Battery runtime is 12 minutes at half load and 2 minutes at full load, after which the unit will shut down to protect the sealed lead-acid battery. Power draw in standby is low, with the charger maintaining the single internal battery.

Besonderheiten

  • 1500 VA and 900 W capacity protects workstations and networking gear
  • 10 NEMA 5-15R outlets connect multiple devices without extra strips
  • LCD panel shows real-time voltage, load and battery status at a glance
  • USB port enables automatic safe shutdown via Eaton UPS Companion software
  • 12 minutes runtime at half load keeps systems running through short outages

Technische Daten

BrandEATON
Model5S1500LCD
International Version120V
Input Voltage Range93 - 138 V
Input Frequency46 - 70 Hz (50 Hz system); 57 - 70 Hz (60 Hz system)
Input ConnectionNEMA 5-15P
VA Rating1500 VA
Watts900 Watts
Output Voltage100 - 127V
Outlets10
Outlet TypeNEMA 5-15R
Battery TypeSealed Lead Acid
Battery Run TimeBackup/Run Time (Half Load) 12 Minute
Backup/Run Time (Full Load) 2 Minute
Interface PortUSB
Management SoftwareEaton UPS Companion software
ApprovalsUL 1778, UL497A, CE / cTUVus / NOM
RackmountableNot rack-mountable
Surge ProtectionYes. Line & network line
Temperature0° to 35°C (32° to 95°F)
Humidity0-93% non-condensing

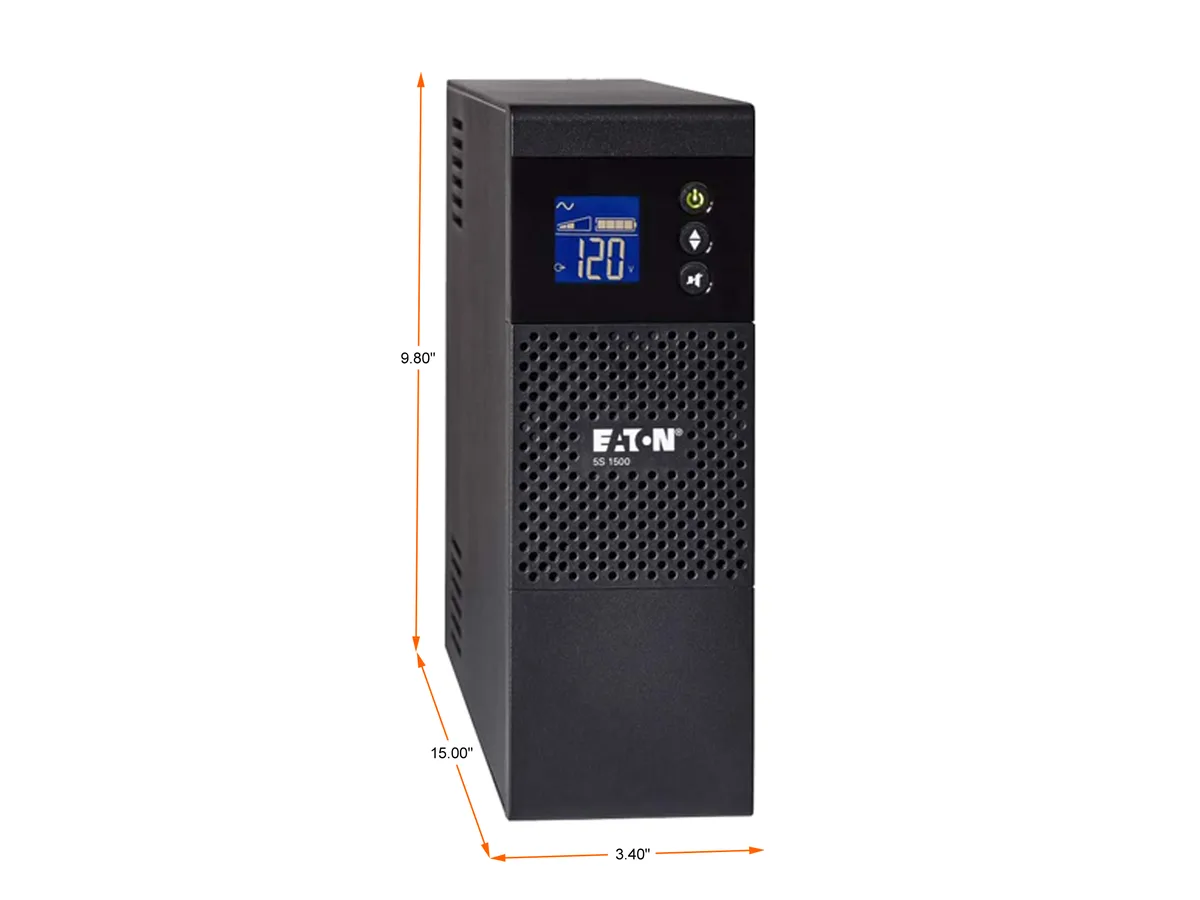

Dimensions9.80" x 3.40" x 15.00"
Weight25.50 lbs.
Package ContentsUPS
USB cable
User manual
Important safety instructions
Versandgewicht12.74 kg
Paketgröße490 × 325 × 160 mm

Andere Versionen dieses Modells

2 weitere aus dieser Serie

Gleiche Familie, unterschiedlicher Speicher, Kühler oder Takt — vergleichen Sie, bevor Sie sich entscheiden.

Fragen zu diesem Artikel

Does the Eaton 5S1500LCD come with everything needed to connect 10 devices, or must I buy extra cables?

The unit provides 10 NEMA 5-15R outlets and includes a NEMA 5-15P input cord. A USB cable for the management software is also supplied. No additional power cables are required for the 10 outlets.

How do I decide whether the 1500 VA / 900 W rating matches my equipment?

Add the wattage of every device you will plug in. If the total stays below 900 W the UPS can support it; the 1500 VA figure is the apparent-power limit for loads with low power factor.

What does the 2-minute full-load runtime mean for a typical workstation?

At the full 900 W rating the battery lasts 2 minutes — enough to save work and shut down. At half load the runtime rises to 12 minutes, giving more time for an orderly shutdown.
