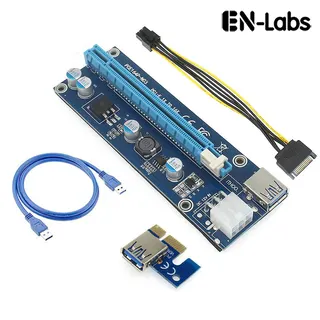

Green PCIe riser board with four solid capacitors, 1x adapter card, 60cm USB 3.0 cable and 6-pin to SATA power cable

EN-Labs

EN-Labs 009S PCIe 1x to 16x expansion card

SKU CH-V1MJ-FFSH4 MPN 009S

PCIe 1x to 16x riser with 4 solid capacitors, 60 cm USB 3.0 cable and 6-pin to SATA power adapter for GPU mining rigs

  • TypePCI Express Controller Card
  • External USB Ports16x USB Ports
  • FeaturesThe perfect solution for setting up Ethereum mining rigs, wh
  • Package Contents1x PCI-E 16X riser board 1x PCI-E 1X adapter card 1x 60cm US

Type PCI Express Controller Card

External USB Ports 16x USB Ports

Model 009S

  • Converts a PCIe 1x slot into a 16x connection for GPU installation
  • Four solid capacitors and voltage regulation components deliver stable power to the graphics card
  • On-board surface-mounted fuse provides overcurrent protection against short circuits
  • 60 cm USB 3.0 cable links the riser and adapter for flexible placement
  • 6-pin to SATA power cable draws supply directly from the PSU to reduce motherboard load

Mining Riser for Ethereum Rigs

The EN-Labs 009S is a PCIe 1x to 16x riser card designed for Ethereum mining rigs. It uses a 60cm USB 3.0 cable to separate the GPU from the motherboard. Four solid capacitors and voltage regulation components deliver stable power to the graphics card. The kit includes a 6-pin PCI-E to 15-pin SATA power cable to reduce motherboard load.

Installation and Common Issues

The adapter plugs into any PCIe 1x, 4x, 8x, or 16x slot without driver installation. The 16x riser board has four mounting holes for securing the graphics card. The 60cm USB 3.0 cable allows flexible GPU placement in open-air frames. Builders must ensure the SATA power connector is fully seated to avoid intermittent power faults.

USB 3.0 Link Limitations

Data transfer runs at up to USB 3.0 5Gbps, which is slower than a native PCIe 16x connection. This bandwidth ceiling limits the card to compute workloads such as mining rather than high-throughput gaming or rendering. The single 1x electrical link also restricts lane-dependent features. Buyers needing full PCIe 16x bandwidth for other workloads should consider a different interconnect.

Besonderheiten

  • Converts a PCIe 1x slot into a 16x connection for GPU installation
  • Four solid capacitors and voltage regulation components deliver stable power to the graphics card
  • On-board surface-mounted fuse provides overcurrent protection against short circuits
  • 60 cm USB 3.0 cable links the riser and adapter for flexible placement
  • 6-pin to SATA power cable draws supply directly from the PSU to reduce motherboard load

Technische Daten

TypePCI Express Controller Card
External USB Ports16x USB Ports
FeaturesThe perfect solution for setting up Ethereum mining rigs, whether small open air rigs or large rack based miners. 4 High Quality Solid Capacitors for stable and safe power delivery. Multiple Voltage Regulation Components (Voltage Regulating Diode and Linear Regulator) Overcurrent Protection (Surface Mounted Fuse) to safeguard your components in the event of a short circuit. Thin and fast USB 3.0 cable available to connect PCI-E 1X and PCI-E 16X sides for more free installation and faster data transfer for graphics card. 6-pin PCI-E power to 15-pin SATA power cable for direct connecti
Package Contents1x PCI-E 16X riser board 1x PCI-E 1X adapter card 1x 60cm USB 3.0 cable 1x 6-pin PCI-E power to 15-pin SATA power cable
Model009S

Andere Versionen dieses Modells

2 weitere aus dieser Serie

Gleiche Familie, unterschiedlicher Speicher, Kühler oder Takt — vergleichen Sie, bevor Sie sich entscheiden.

Fragen zu diesem Artikel

How do I confirm the riser card is functioning after connecting it to a 1x slot?

The gold-plated contacts and solid capacitors ensure reliable contact; the graphics card should be detected by the system immediately with no drivers required.

What items are included and what extra cables or power connections are needed?

The box contains a PCIe 16x riser board, a PCIe 1x adapter card, a 60cm USB 3.0 cable, and a 6-pin PCIe to 15-pin SATA power cable; no additional parts are required for basic operation.

Which version of this riser card should I choose for a standard mining build?

The VER 006C model with 4 solid capacitors, overcurrent protection, and USB 3.0 5Gbps cable is the current revision suited for typical Ethereum mining rigs.
