Green circuit board with two black SATA ports and gold PCIe connector

LORDWORLD

LORDWORLD PCIe to 2-Channel SATA HAT+ for Raspberry Pi 5 development board

SKU CH-6Y9Z-KVM93

Adds two SATA 3.0 ports to Raspberry Pi 5 via 16-pin PCIe for NAS or backup builds

  • Fast 6 Gbps storage via dual SATA 3.0 ports
  • Works instantly on Raspberry Pi 5 with no drivers needed
  • Two LEDs per port show drive activity at a glance
  • Onboard EEPROM enables automatic HAT+ recognition on boot
  • Compact two-channel design fits DIY NAS and backup builds

SATA 3.0 HAT+ for Raspberry Pi 5

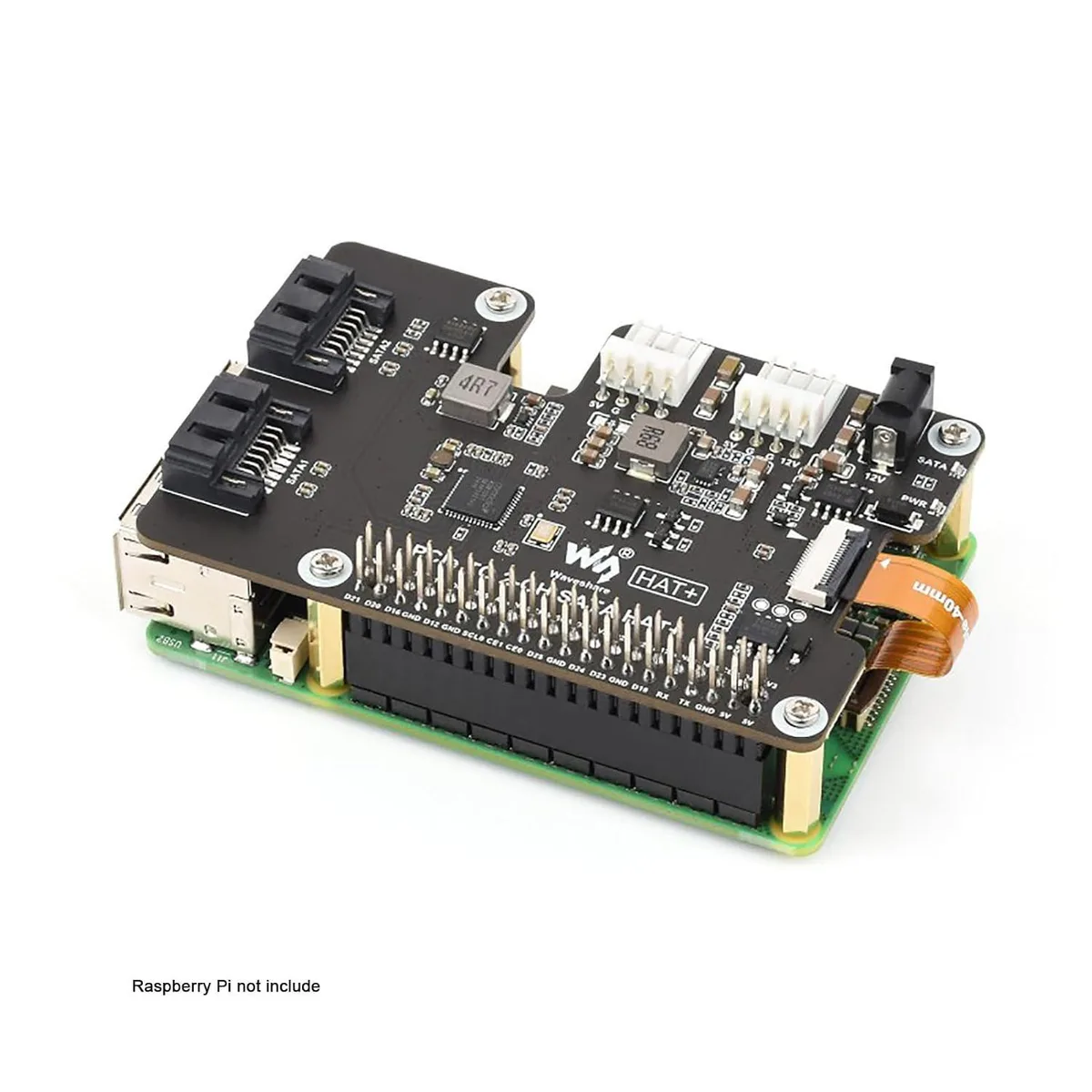

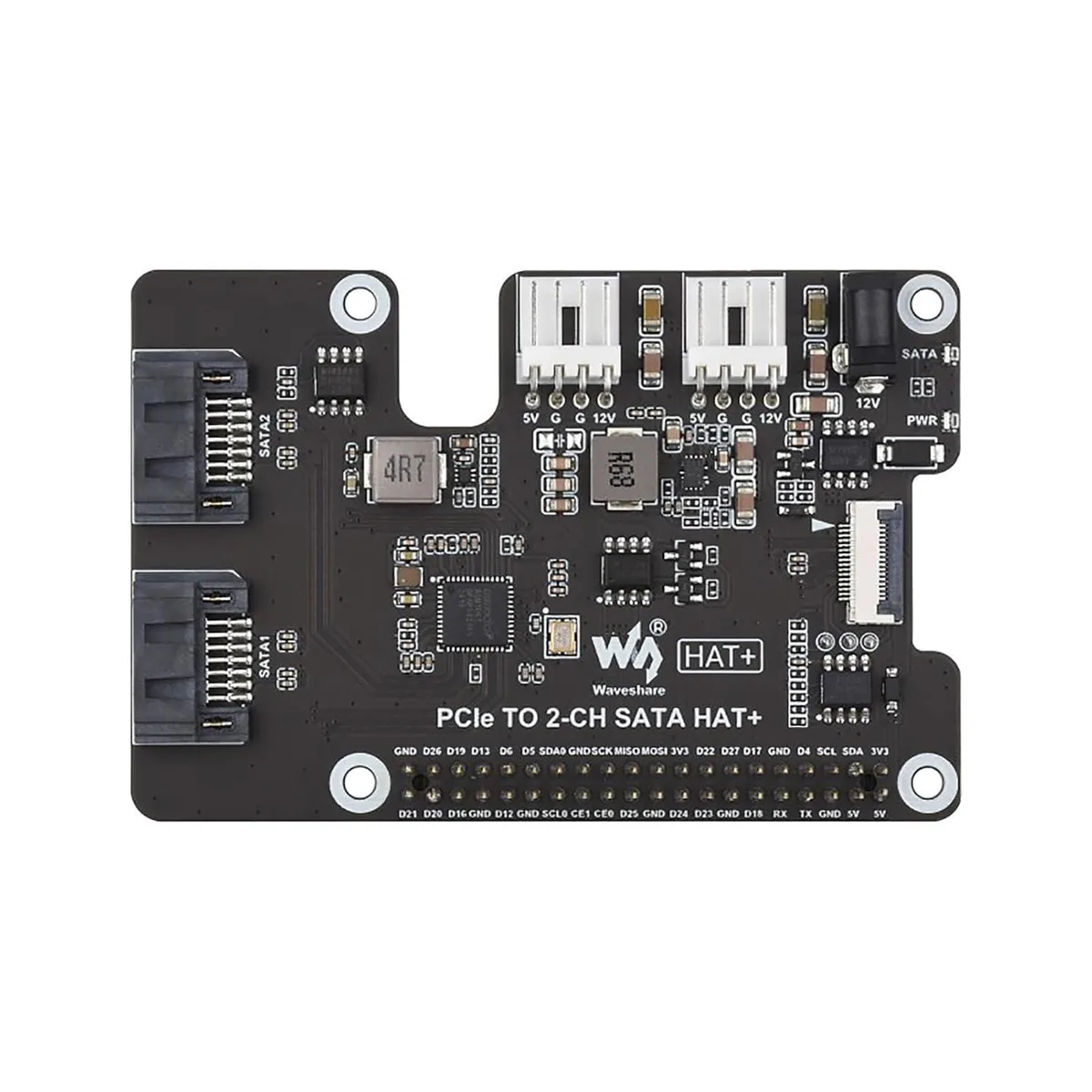

This LORDWORLD HAT+ adds two SATA 3.0 ports to a Raspberry Pi 5 through its 16-pin PCIe interface. The board operates at 6Gbps and requires no driver installation. An onboard EEPROM stores HAT+ identification data for automatic recognition during boot. Two LEDs per port show drive activity at a glance.

Makers building compact NAS or backup servers

The dual-port design suits builders who want redundant or high-capacity storage on a single Pi 5. Projects needing more than two drives cannot use this board. Systems requiring a different storage interface are not supported by this hardware.

Two SATA 3.0 ports via 16-pin PCIe

The single specification that decides fit is the dual-channel SATA 3.0 connection over the Pi 5 PCIe bus. If your project needs exactly two SATA drives and driver-free operation, this HAT+ matches the requirement. Any other port count or interface means this is not the correct part.

Besonderheiten

  • Fast 6 Gbps storage via dual SATA 3.0 ports
  • Works instantly on Raspberry Pi 5 with no drivers needed
  • Two LEDs per port show drive activity at a glance
  • Onboard EEPROM enables automatic HAT+ recognition on boot
  • Compact two-channel design fits DIY NAS and backup builds

Technische Daten

BrandLORDWORLD

Fragen zu diesem Artikel

Will the 16-pin PCIe interface on this HAT+ work with my Raspberry Pi 5 without blocking other HATs?

The board connects through the Pi 5's 16-pin PCIe socket and follows the HAT+ mechanical profile, so it sits flush and leaves the GPIO header free for additional HATs.

How can I confirm the two SATA 3.0 ports are active after I boot the Pi 5?

Each port has a dedicated status LED that lights when a drive is detected and blinks during read or write activity, giving immediate visual confirmation.

Does the package include SATA data cables, power cables or drives, or must I source them separately?

Only the HAT+ board itself is supplied; SATA data cables, drive power cables and the HDDs or SSDs must be purchased separately.
