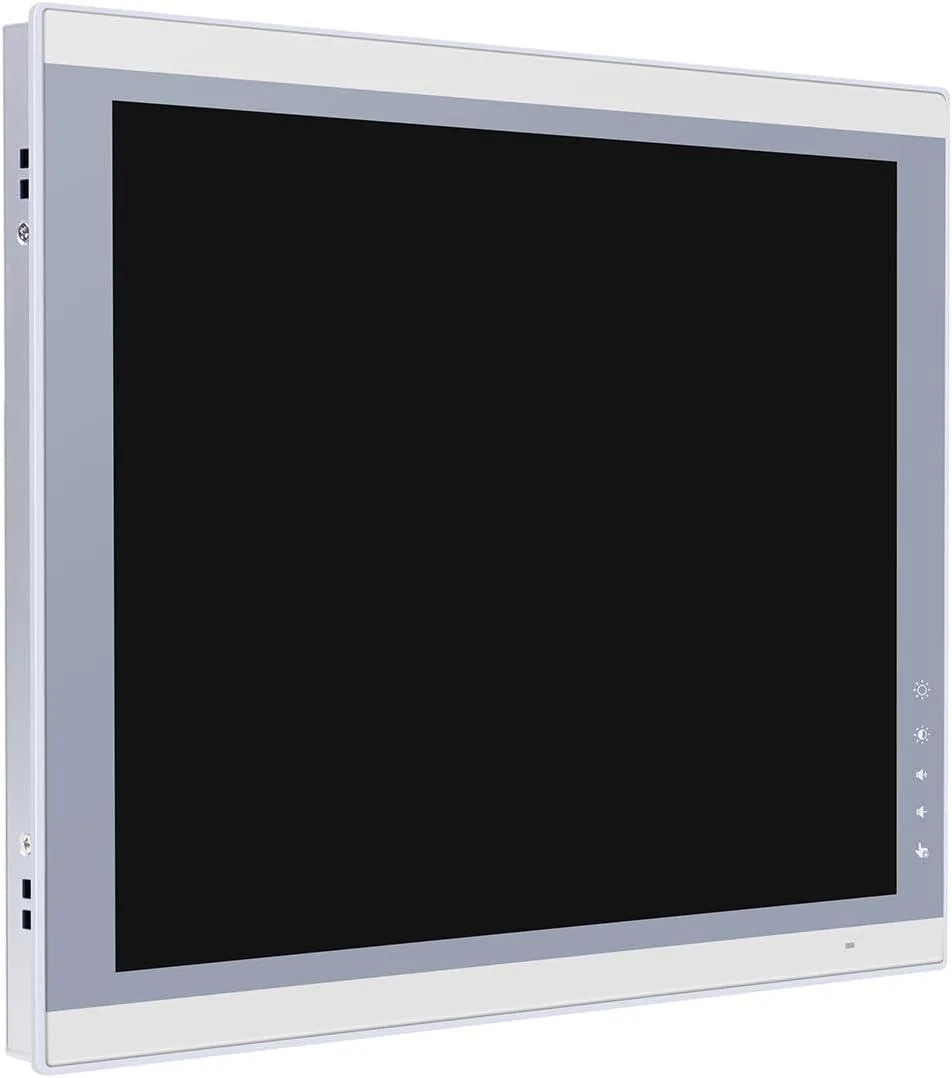

Gray 15-inch industrial all-in-one with IP65 touchscreen and fanless aluminum chassis

partaker

Partaker A23 15" IP65 Touch All-in-One PC i7-8565U 8GB 128GB

SKU CH-9R2A-GYF3X

15-inch IP65 industrial panel PC with 10-point capacitive touch, Core i7-8565U, 8GB DDR4, 128GB SSD and fanless aluminium cooling

  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i7 8th Gen
  • CPU NameIntel Core i7-8565U
  • GPU/VGA TypeIntel UHD Graphics

CPU Type Intel Core i7 8th Gen

CPU Name Intel Core i7-8565U

GPU Intel UHD Graphics

Memory 8GB DDR4

  • 16GB DDR4
  • 32GB DDR4
  • 64GB DDR4
  • 8GB DDR4

SSD 128GB

Durchgestrichene Varianten existieren, sind hier aber nicht vorrätig.

  • IP65 front protection withstands dust and water jets in harsh industrial environments
  • 10-point capacitive touch screen supports precise multi-finger input for operator panels
  • Fanless aluminium cooling runs silently with zero moving parts for 24/7 reliability
  • Intel Core i7-8565U with 8 GB DDR4 and 128 GB SSD delivers responsive Windows 11 Pro performance
  • Compact 354.3 x 278.3 x 54 mm chassis at 3.6 kg fits embedded, wall or desktop mounting

Industrial All-in-One for Harsh Environments

The Partaker A23 is a 15-inch fanless panel PC with an IP65-rated front bezel and 10-point capacitive touchscreen. It runs on an Intel Core i7-8565U processor with 8GB DDR4 memory and a 128GB SSD, pre-installed with Windows 11 Pro for immediate deployment in automation and control tasks.

Suits 24/7 Automation, Not High-End Graphics

This unit suits integrators who need silent, dust-proof operation in temperatures up to 50°C and a compact 354.3 x 278.3 x 54mm footprint for embedded or wall mounting. Buyers who want more storage bays, discrete GPU performance, or consumer-oriented features should look elsewhere.

Fanless Chassis with Flexible I/O and Expansion

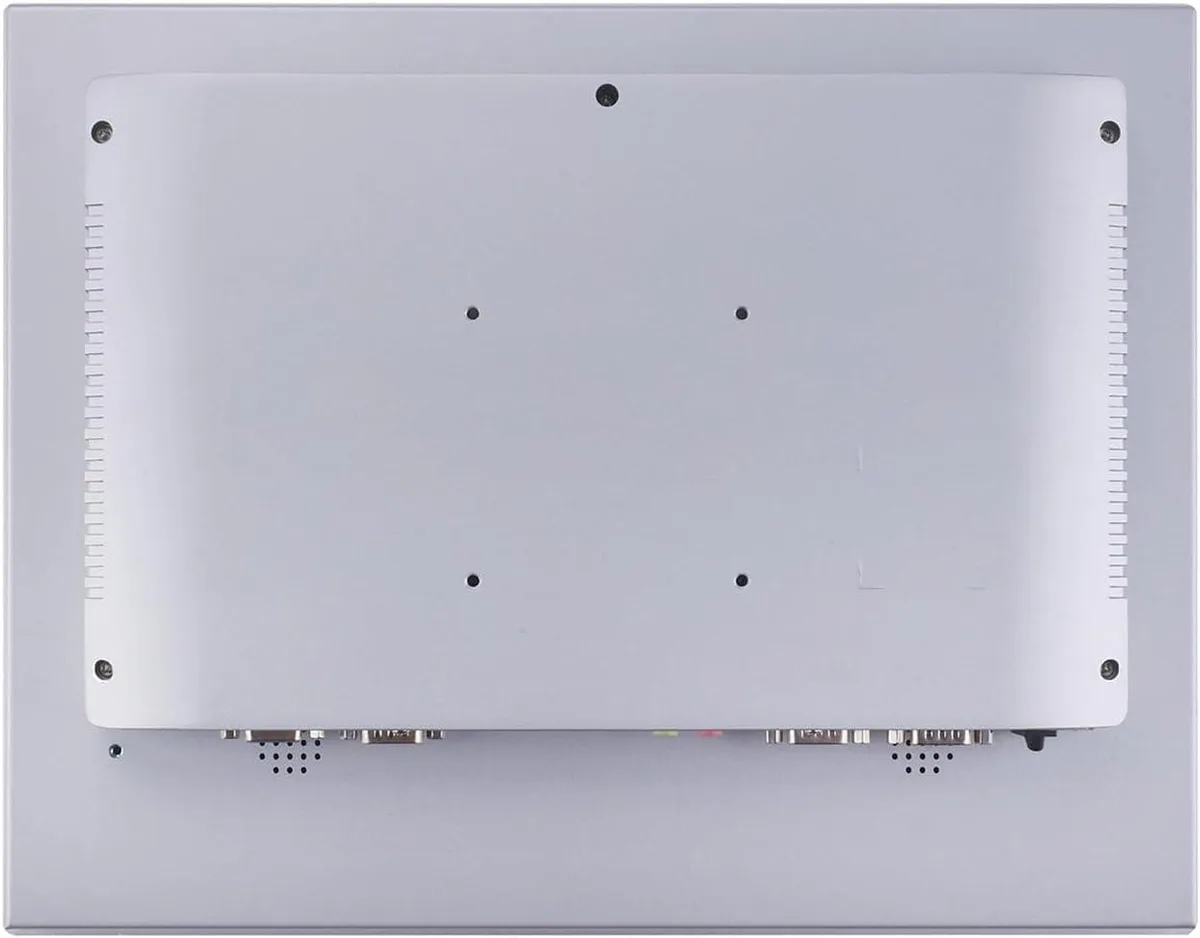

The aluminum alloy body dissipates heat without fans, powered by a 12V DC input from a 100-240V AC adapter. It provides HDMI, VGA, two LAN, two COM, four USB ports, audio, and a Mini PCIe slot with SIM holder for wireless expansion, while the 1024 x 768 panel offers 350cd/m2 brightness and wide viewing angles.

Besonderheiten

  • IP65 front protection withstands dust and water jets in harsh industrial environments
  • 10-point capacitive touch screen supports precise multi-finger input for operator panels
  • Fanless aluminium cooling runs silently with zero moving parts for 24/7 reliability
  • Intel Core i7-8565U with 8 GB DDR4 and 128 GB SSD delivers responsive Windows 11 Pro performance
  • Compact 354.3 x 278.3 x 54 mm chassis at 3.6 kg fits embedded, wall or desktop mounting

Technische Daten

ModelA23-I7 8565U-8G128G
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 8th Gen
CPU NameIntel Core i7-8565U
GPU/VGA TypeIntel UHD Graphics
Memory Capacity8GB DDR4
SSD128GB
HDDNo
Screen Size15"
TouchscreenYes

Andere Versionen dieses Modells

5 weitere aus dieser Serie

Gleiche Familie, unterschiedlicher Speicher, Kühler oder Takt — vergleichen Sie, bevor Sie sich entscheiden.

Fragen zu diesem Artikel

What mounting cut-out must my enclosure provide for the 15-inch panel?

The opening hole measures 348 x 272 mm, so your enclosure cut-out must match those dimensions for embedded installation.

Does the 8 GB of installed DDR4-2400 leave room for more memory?

Yes, the board has two SODIMM slots and supports up to 64 GB, so you can add another module later.

How can I confirm the 10-point capacitive touch is working after power-up?

Open the Windows 11 calibration tool and verify all ten simultaneous touch points register accurately across the 1024 x 768 screen.
