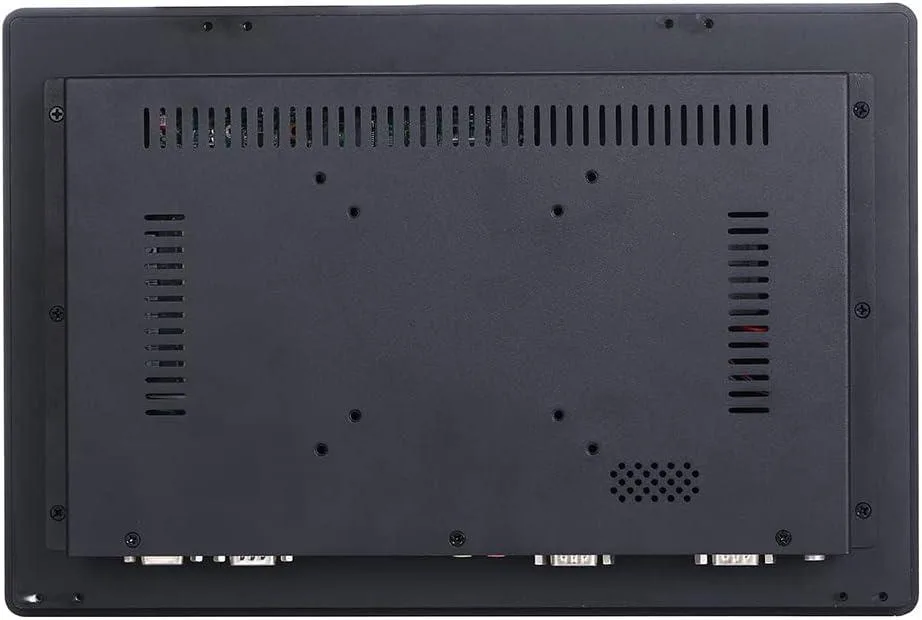

Black 14-inch industrial all-in-one panel PC with IP65 front bezel and 10-point capacitive touchscreen

partaker

Partaker Z10 all-in-one PC 14" i5-1135G7 8GB 512GB

SKU CH-QG5A-W9AVS

14-inch IP65 touch all-in-one with Core i5-1135G7, 8 GB DDR4, 512 GB SSD, dual LAN and fanless aluminium cooling

  • Form FactorAll-in-One
  • ColorBlack
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 11th Gen
  • CPU NameIntel Core i5-1135G7
  • GPU/VGA TypeIntel Iris Xe Graphics

CPU Type Intel Core i5 11th Gen

CPU Name Intel Core i5-1135G7

GPU Intel Iris Xe Graphics

Memory 8GB DDR4

SSD 512GB

Durchgestrichene Varianten existieren, sind hier aber nicht vorrätig.

  • Fanless aluminium cooling runs silently in harsh environments
  • IP65 front panel resists dust and water jets at the screen
  • 10-point capacitive touch rated for 200 million touches
  • Dual LAN plus HDMI and VGA for flexible industrial connectivity
  • Expandable to 64 GB DDR4 with dual M.2 slots for WiFi 6 or 5G

Industrial all-in-one for harsh environments

The Partaker Z10 integrates a 14-inch IP65-rated touchscreen with an Intel Core i5-1135G7 processor, 8GB of DDR4 memory and a 512GB SSD. Its fanless aluminium chassis operates reliably from 0 to 50°C, making it suited for factory floors, kiosks or outdoor cabinets where dust and moisture are concerns.

Embedded mounting with dual LAN and legacy ports

The unit fits a 340.3 x 225.3 mm cut-out for panel or wall installation and runs on a 12V DC supply from the included 100-240V adapter. Two LAN ports, HDMI, VGA, two COM ports and four USB sockets connect PLCs, sensors, barcode scanners and secondary displays without extra adapters.

Expansion slots for wireless and extra storage

One M.2 Key E slot accepts a WiFi 6 module, while a Key B slot with SIM holder supports 5G connectivity. A second M.2 socket plus a 2.5-inch SATA bay allow storage upgrades up to 64GB of RAM, extending service life without replacing the whole system.

Besonderheiten

  • Fanless aluminium cooling runs silently in harsh environments
  • IP65 front panel resists dust and water jets at the screen
  • 10-point capacitive touch rated for 200 million touches
  • Dual LAN plus HDMI and VGA for flexible industrial connectivity
  • Expandable to 64 GB DDR4 with dual M.2 slots for WiFi 6 or 5G

Technische Daten

ModelZ10-I5 1135G7-8G512G
Form FactorAll-in-One
ColorBlack
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 11th Gen
CPU NameIntel Core i5-1135G7
GPU/VGA TypeIntel Iris Xe Graphics
Memory Capacity8GB DDR4
SSD512GB
HDDNo
Screen Size14"
TouchscreenYes

Andere Versionen dieses Modells

5 weitere aus dieser Serie

Gleiche Familie, unterschiedlicher Speicher, Kühler oder Takt — vergleichen Sie, bevor Sie sich entscheiden.

Fragen zu diesem Artikel

How long can the i5-1135G7 sustain 4.2 GHz before the fanless aluminum chassis forces it to throttle?

The fanless aluminium cooling relies on passive heat dissipation; sustained 4.2 GHz operation will be limited by the 0–50 °C operating envelope and the thermal capacity of the chassis, so clocks will drop once the internal temperature approaches that ceiling.

What is the noise level and surface temperature when the system runs continuously at full load?

With no moving parts the unit is silent; the aluminium housing becomes the heatsink, so the exterior surface will rise toward the 50 °C ambient limit during prolonged heavy workloads.

Which power adapter must I already have to operate the Z10?

The PC requires a 12 V DC input supplied by the included 100–240 V AC, 50–60 Hz adapter; no other power source is compatible.
