Black 14-inch industrial all-in-one panel PC with IP65 front touchscreen, fanless aluminium chassis

partaker

Partaker Z10-I7 1165G7-16G512G 14" all-in-one PC

SKU CH-1VVR-TG0F3

A 14-inch fanless industrial all-in-one with an IP65-rated 10-point touchscreen, Core i7-1165G7, 16GB DDR4 and 512GB SSD

  • Form FactorAll-in-One
  • ColorBlack
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i7 11th Gen
  • CPU NameIntel Core i7-1165G7
  • GPU/VGA TypeIntel Iris Xe Graphics

CPU Type Intel Core i7 11th Gen

CPU Name Intel Core i7-1165G7

GPU Intel Iris Xe Graphics

Memory 16GB DDR4

SSD 512GB

Durchgestrichene Varianten existieren, sind hier aber nicht vorrätig.

  • IP65 front panel resists dust and water in harsh environments
  • Fanless aluminium chassis operates silently from 0 to 50 °C
  • Core i7-1165G7 quad-core CPU reaches 4.7 GHz for demanding workloads
  • 16 GB DDR4-3200 memory and 512 GB SSD provide fast, responsive storage
  • 10-point capacitive touchscreen rated for 200 million touches ensures long-term durability

Industrial All-in-One with IP65 Touchscreen

The Partaker Z10-I7 1165G7-16G512G is a 14-inch all-in-one computer built around an Intel Core i7-1165G7 processor, 16GB of DDR4 memory and a 512GB SSD. It ships with Windows 11 Pro and a 10-point projected capacitive touchscreen protected to IP65 at the front panel. The fanless aluminium chassis allows embedded, wall, desktop or cantilever mounting in commercial and industrial settings. Buyers who need a larger display or internal expansion bays beyond the single M.2 and 2.5-inch SATA slot should consider other form factors.

Sustained Load on Fanless Aluminium Chassis

Under continuous workloads the quad-core CPU with 12MB cache and 4.7GHz turbo relies on passive cooling through the aluminium alloy body. The operating range is 0 to 50°C with the installed SSD and 0 to 40°C if a hard drive is added later. Thermal throttling will engage before the chassis exceeds its rated limits, so sustained performance depends on ambient temperature and mounting airflow. The 255-level watchdog timer can reset the system automatically if a task hangs during long unattended runs.

Embedded Installation and Common Pitfalls

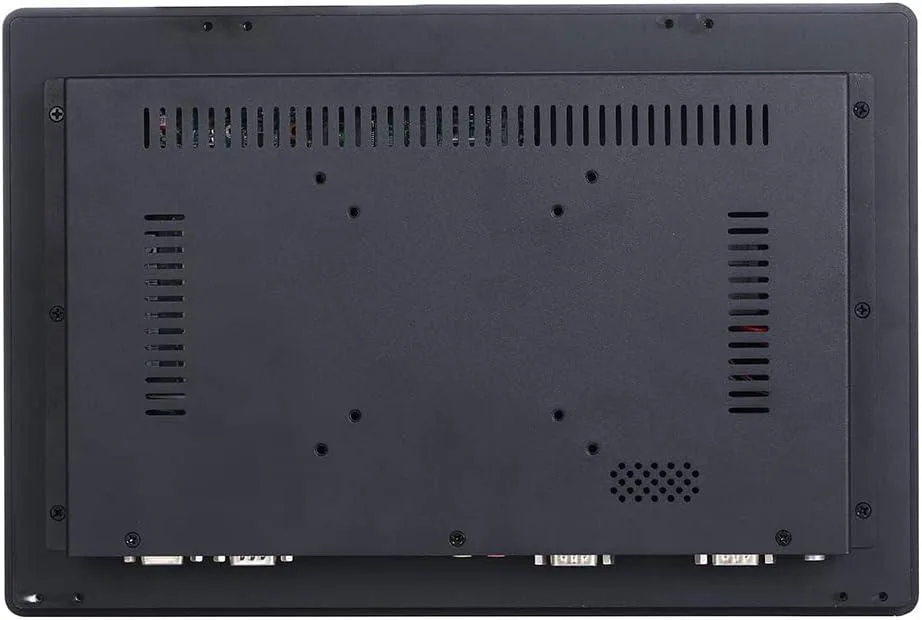

The unit fits a 340.3 by 225.3mm cut-out and includes mounting kits for embedded, wall, desktop or cantilever installation. A 12V DC supply operating from 100-240V AC is provided. The two COM ports use standard pin-outs but require correct voltage levels for legacy industrial equipment. Wireless modules for WiFi 6 or 5G are optional and occupy the Key E and Key B M.2 slots respectively; they are not included. Installers must verify cable routing clearance behind the 42.7mm deep chassis.

Besonderheiten

  • IP65 front panel resists dust and water in harsh environments
  • Fanless aluminium chassis operates silently from 0 to 50 °C
  • Core i7-1165G7 quad-core CPU reaches 4.7 GHz for demanding workloads
  • 16 GB DDR4-3200 memory and 512 GB SSD provide fast, responsive storage
  • 10-point capacitive touchscreen rated for 200 million touches ensures long-term durability

Technische Daten

ModelZ10-I7 1165G7-16G512G
Form FactorAll-in-One
ColorBlack
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 11th Gen
CPU NameIntel Core i7-1165G7
GPU/VGA TypeIntel Iris Xe Graphics
Memory Capacity16GB DDR4
SSD512GB
HDDNo
Screen Size14"
TouchscreenYes

Andere Versionen dieses Modells

5 weitere aus dieser Serie

Gleiche Familie, unterschiedlicher Speicher, Kühler oder Takt — vergleichen Sie, bevor Sie sich entscheiden.

Fragen zu diesem Artikel

How hot does the fanless aluminium chassis get when the Core i7-1165G7 runs at 4.7 GHz all day?

The system is rated for continuous operation from 0 to 50 °C with the installed SSD, so the chassis stays within that range under full load.

Which cables and peripherals must I already have to start using the HDMI, VGA, dual LAN and COM ports?

You need an HDMI or VGA cable for a second display, two Ethernet cables for the LAN ports, and serial cables for the two COM ports.

Will my existing DDR4-3200 SODIMM modules work alongside the 16 GB already installed?

Yes, the board has two SODIMM slots supporting DDR4-3200 up to 64 GB total, so your current modules can be added or swapped.
