Syba SY-TDB40179 4-bay USB4 40Gbps NVMe drive enclosure
Four-bay USB4 40 Gbps NVMe docking station clones one drive to three offline and holds up to 32 TB across 2230 to 22110 form factors
- ColorBlack
- MaterialAluminum alloy
- Thunderbolt 3Yes
- Internal InterfaceM.2 NVME B+M-Key
- Number of Bay4 Bay

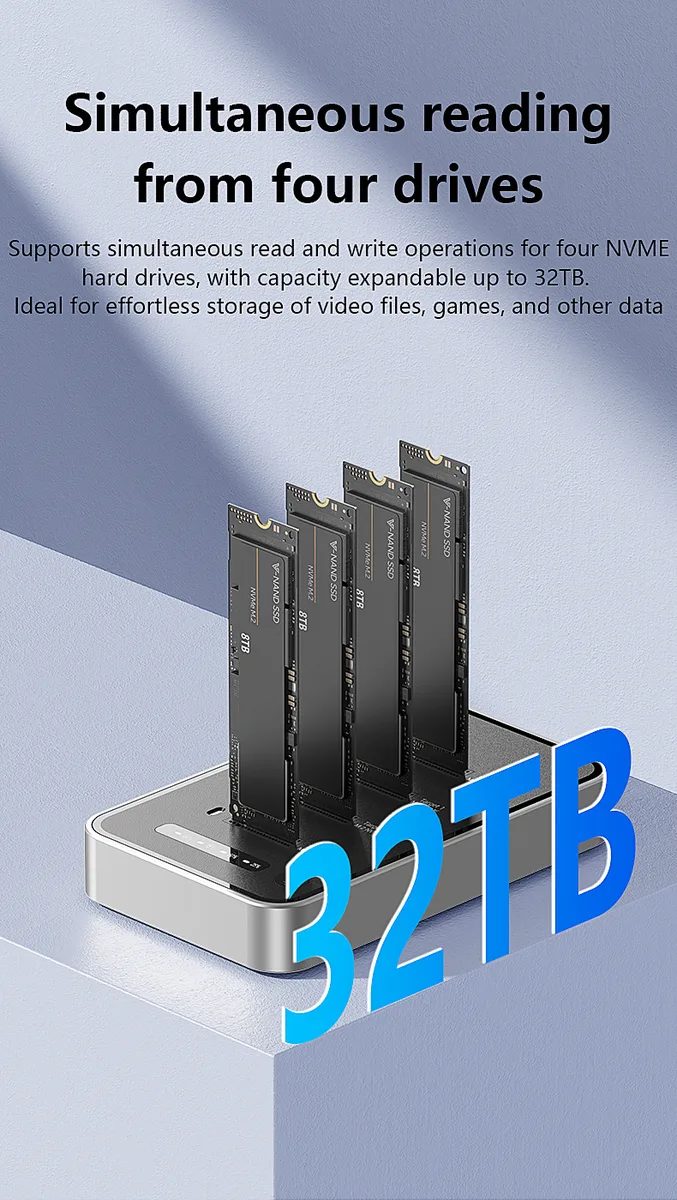

- Four bays hold up to 32TB total NVMe storage

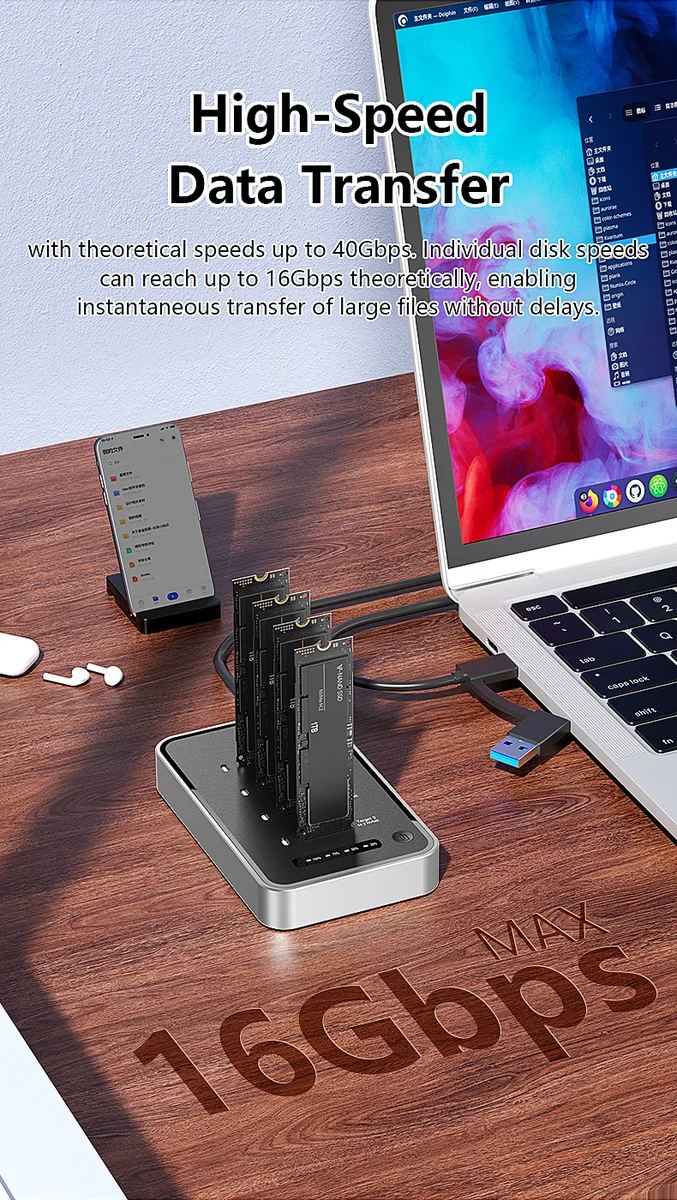

- USB4 Gen 4×4 and Thunderbolt 3 deliver 40Gbps peak throughput
- One-touch offline cloning copies one SSD to three targets
- Full aluminium alloy chassis provides passive cooling without fans
- Supports M.2 NVMe B+M-Key drives in 2230, 2242, 2260, 2280 and 22110 sizes
Four-bay NVMe enclosure
The Syba SY-TDB40179 is a USB4 40Gbps docking station that accepts up to four M.2 NVMe SSDs in 2230, 2242, 2260, 2280 or 22110 form factors. It is built for professionals who need portable, high-capacity storage without installing drives inside a chassis. The aluminium alloy housing acts as a passive heatsink for sustained operation. It is not suited for users who require SATA M.2 support or a single-bay form factor.
USB4 and Thunderbolt connectivity

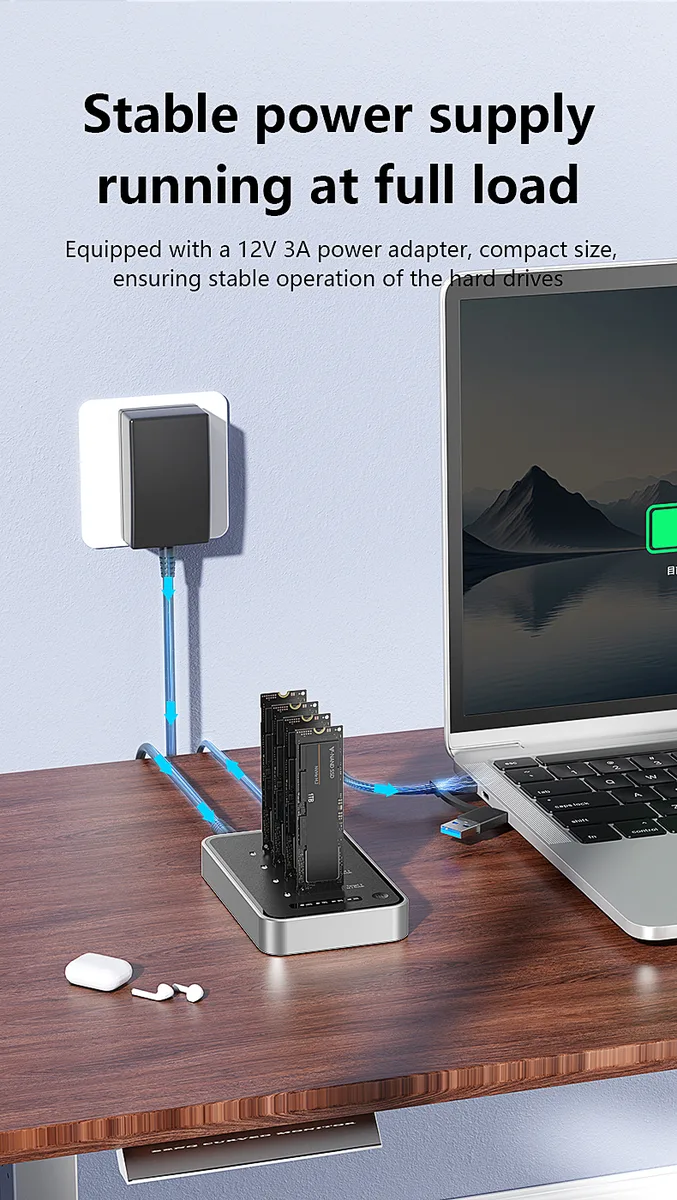

Each bay connects through a USB4 Gen 4x4 interface that also works with Thunderbolt 3, 4 and 5 host ports. A 12V 3A power adapter supplies the dock, freeing the host from providing bus power for four drives. The direct-insert design leaves the PCB exposed to airflow, so no active cooling is required. Builders who need internal RAID cards or 2.5-inch SATA bays will not use this device.
Offline cloning and thermal limits

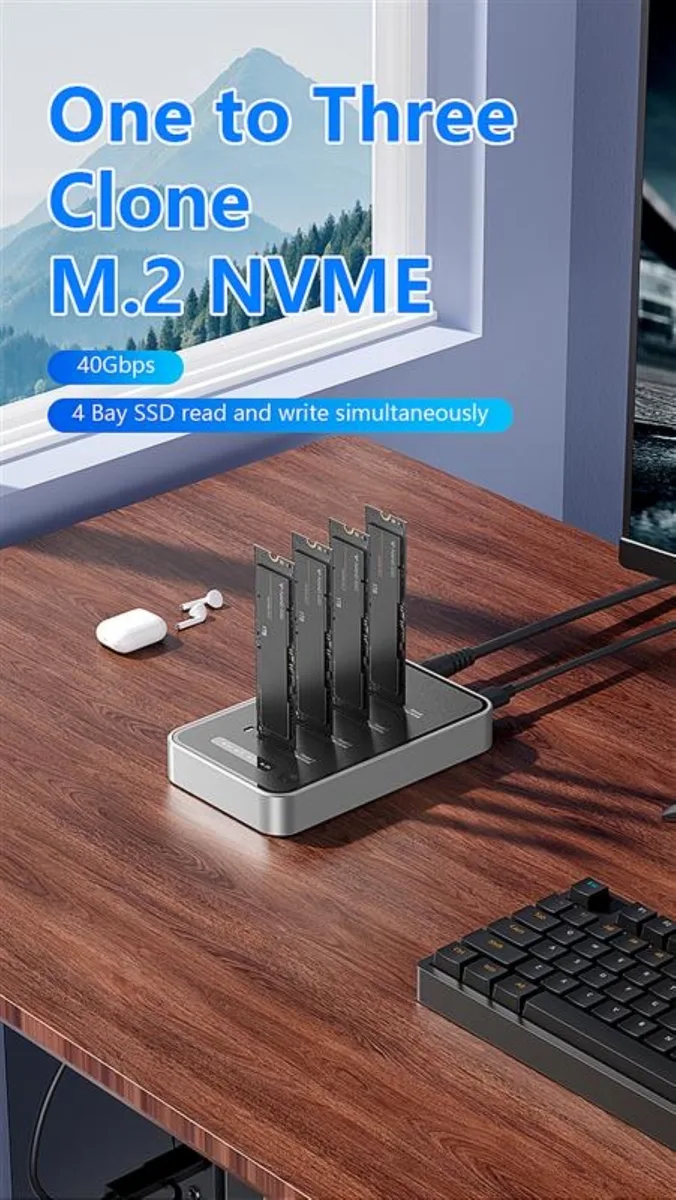

A hardware button starts a one-to-three offline clone without a host computer attached. The enclosure is rated for an operating range of 0°C to 108°C and storage from -40°C to 110°C. Combined capacity across all four slots can reach 32TB. Users who expect hardware RAID 0, 1 or 5 managed by the dock itself will not find that feature here.
Besonderheiten
- Four bays hold up to 32TB total NVMe storage
- USB4 Gen 4×4 and Thunderbolt 3 deliver 40Gbps peak throughput
- One-touch offline cloning copies one SSD to three targets
- Full aluminium alloy chassis provides passive cooling without fans
- Supports M.2 NVMe B+M-Key drives in 2230, 2242, 2260, 2280 and 22110 sizes
Technische Daten
| Brand | SYBA |
|---|---|
| Model | SY-TDB40179 |
| Color | Black |
| Material | Aluminum alloy |
| Thunderbolt 3 | Yes |
| Internal Interface | M.2 NVME B+M-Key |
| Number of Bay | 4 Bay |
| Versandgewicht | 0.52 kg |
| Paketgröße | 184 × 140 × 51 mm |
Fragen zu diesem Artikel
Will the aluminium case and passive airflow keep the four drives cool during continuous all-day operation?
The full aluminium alloy enclosure uses a direct-insert design that creates open airflow for passive cooling, and the supplier rates the operating temperature range from 0 °C to 108 °C.
Which drives must I already own to populate the four bays?
You need M.2 NVMe SSDs with M-Key or B+M-Key connectors in 2230, 2242, 2260, 2280 or 22110 form factors; SATA-based M.2 drives are not supported.
