ABS R1015-4545P rack server AMD EPYC 4545P 64GB DDR5 2x 2TB NVMe

1U Rack Server for General-Purpose Workloads

This 1U rackmount server is built around an AMD EPYC 4005 Series processor with 16 cores running at 3.00 GHz. It ships with 64GB of DDR5 UDIMM memory across four DIMM slots and two 2TB NVMe drives. The platform targets general-purpose server deployments that fit a single-socket Micro-ATX form factor.

Check Power, Memory and Expansion Before Ordering

The chassis includes a 450W redundant hot-swap power supply and a single PCIe 4.0 x8 riser card for add-in cards. Verify that your rack provides 26.8 inches of usable depth and that any expansion cards fit the x8 electrical limit. Memory can grow to 192GB using DDR5 UDIMMs, but the board has only four slots, so plan module sizes accordingly.

Steel Chassis with Front Drive Bays and Dual 1GbE

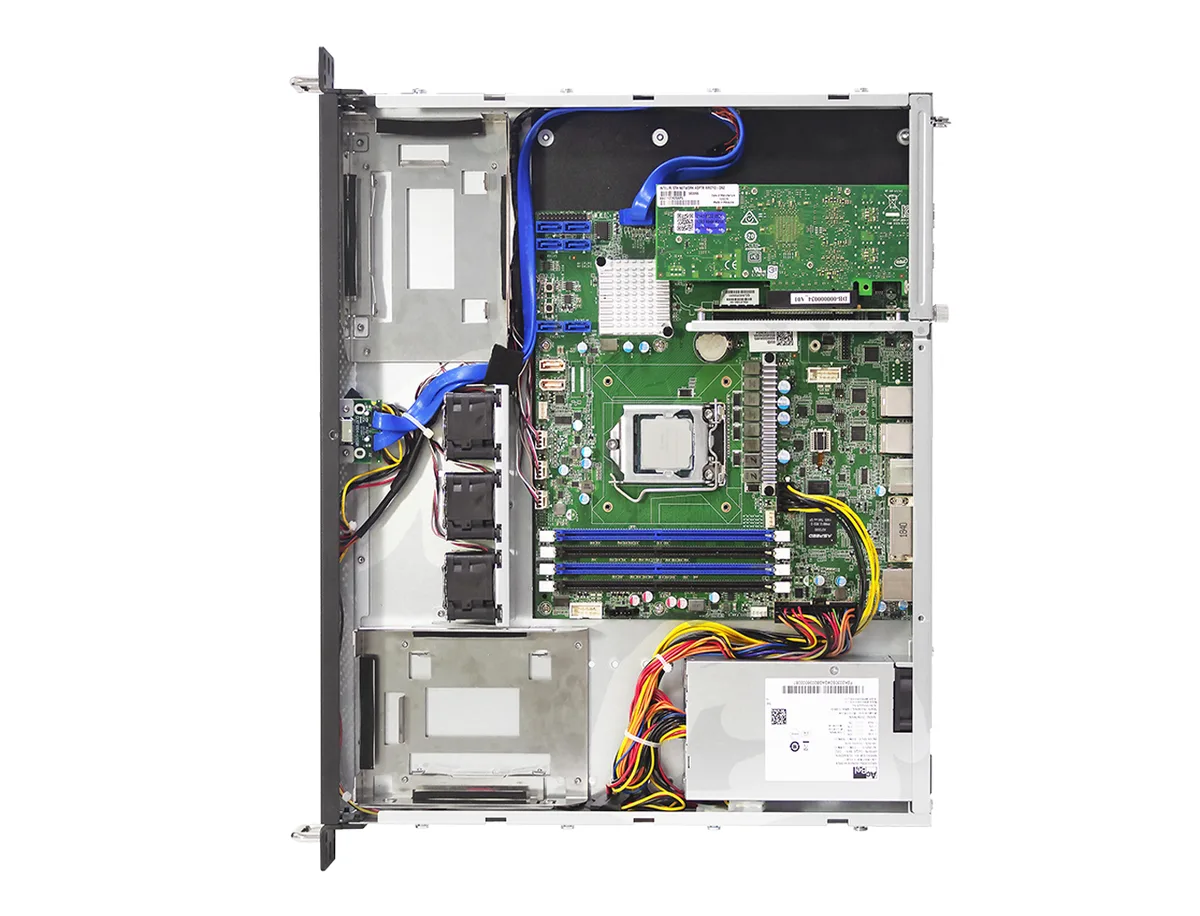

The 438 x 680 x 43.5 mm steel chassis holds four 3.5-inch and four 2.5-inch 9mm drive bays behind a lockable front bezel. Two RJ45 1GbE ports and IPMI remote management are integrated on the rear I/O. A 1U rail kit is included for standard square-hole racks, and the passive CPU heatsink keeps internal airflow straightforward.
