Compact high-voltage DC-DC converter module with metal enclosure and terminal connections

Analog Technologies

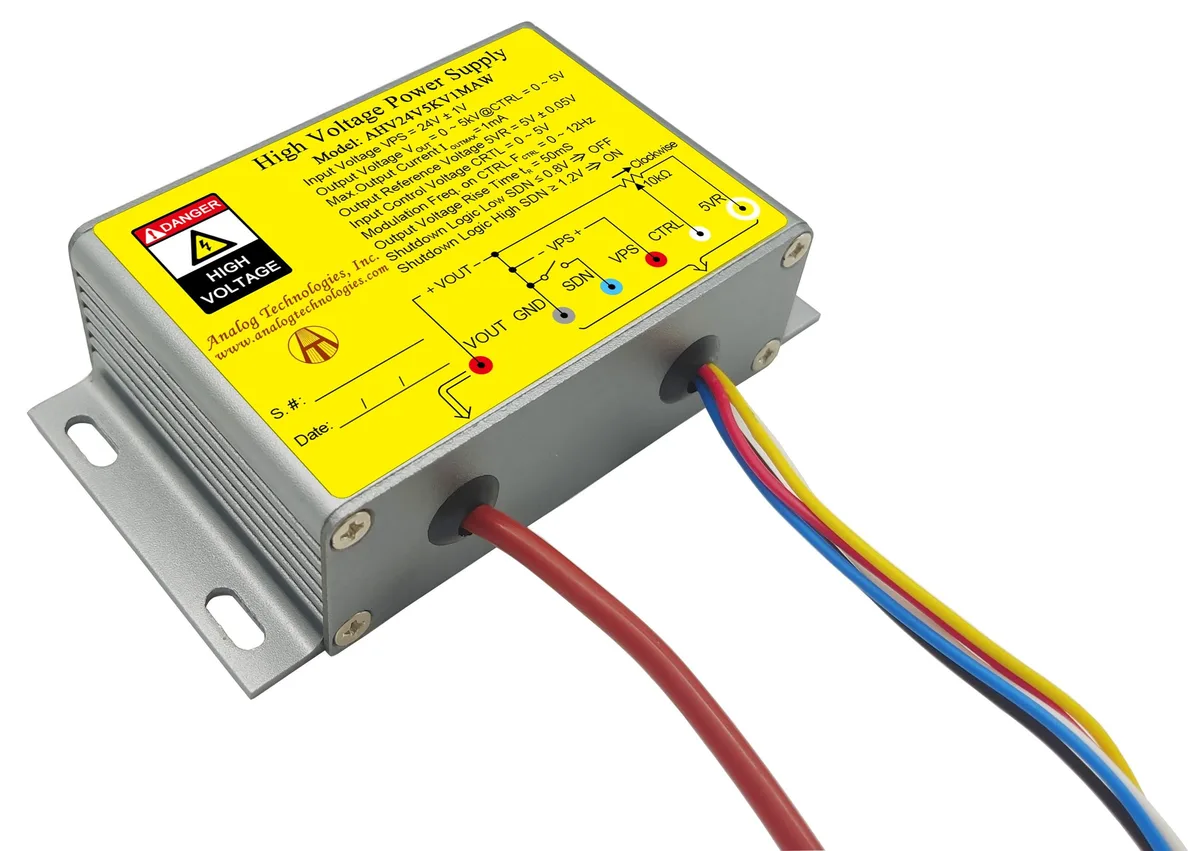

Analog Technologies AHV24VN5KV1MAW high voltage power supply 24V input 0 to -5kV output 1mA

SKU CH-V215-6JPVW

A high-voltage DC-DC converter delivering 0 to -5 kV at 1 mA from a 24 V supply with 0 to 5 V control and electronic shutdown

  • TypeHigh Voltage Power Supply

Options AHV24VN6KV1MAW

  • Compact 24 V input simplifies integration
  • 0 to -5 kV adjustable output suits diverse high-voltage needs
  • 1 mA maximum current delivers precise low-power control
  • 0 to 5 V control voltage enables full-span modulation
  • Electronic shutdown protects circuitry during faults

Compact High-Voltage DC-DC Module

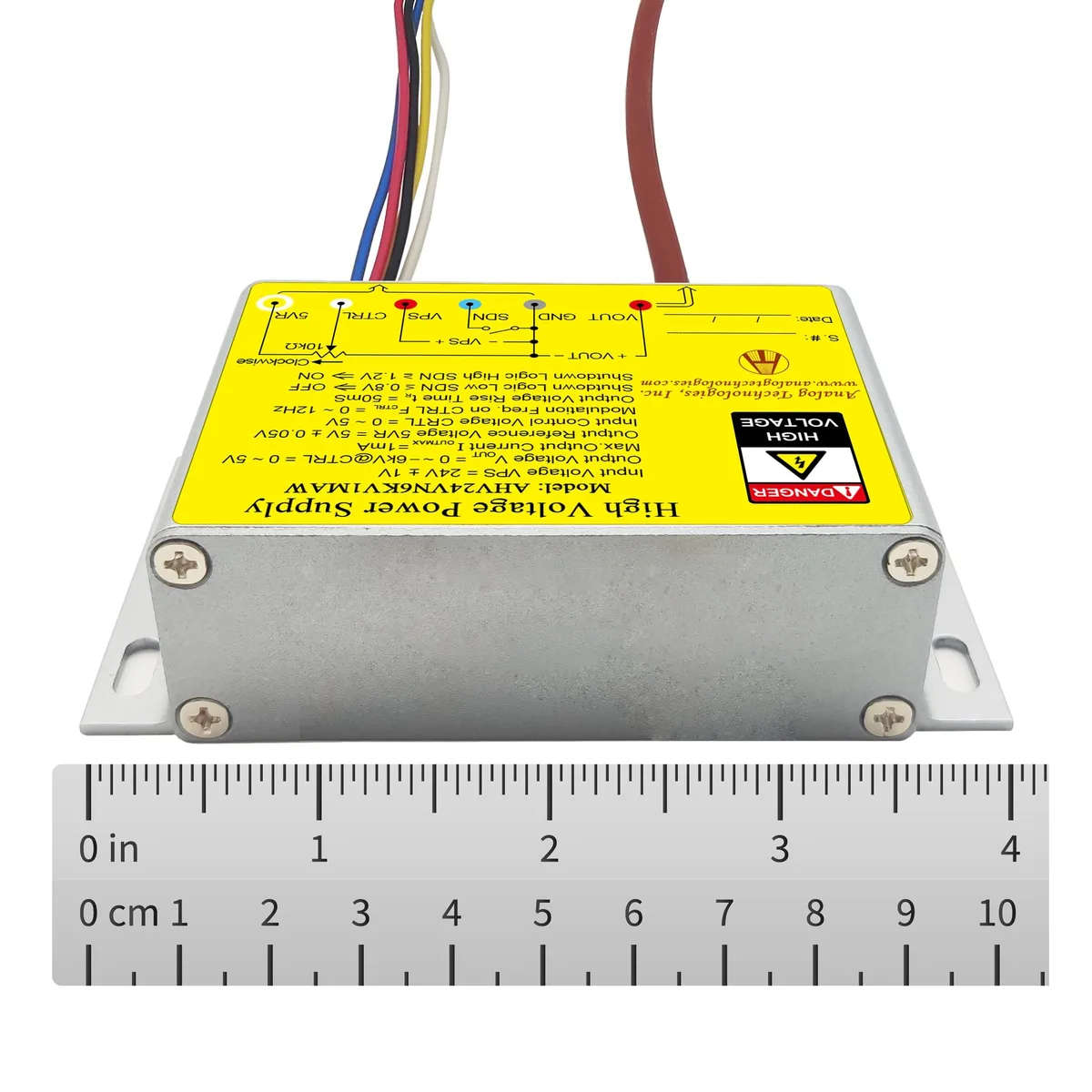

The Analog Technologies AHV24VN5KV1MAW converts a 24V DC input into an adjustable 0 to -5kV output at up to 1mA. It is built for engineers and OEMs who need a compact high-voltage source for scientific or industrial equipment.

Suited for precision instrumentation builds

This unit fits applications such as X-ray systems, spectral analysis, electrospinning, sputter coating and capillary electrophoresis where a stable, programmable negative rail is required. It is not for builders who need a positive high-voltage output, higher current capability or an AC-mains input stage.

Straightforward PCB-mount integration

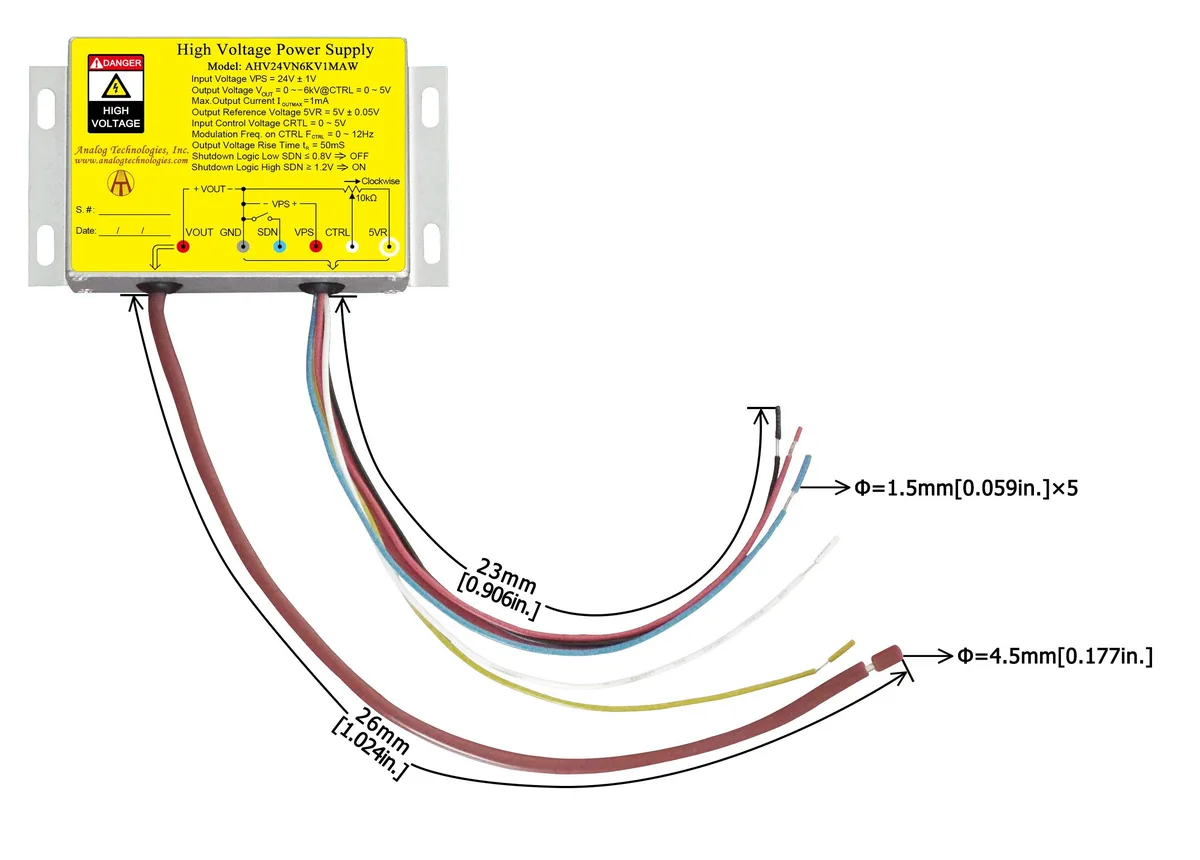

The module accepts a 24V supply drawing 40 to 300mA and a 0 to 5V control voltage for full-span output modulation. A 5V reference with ±0.05V tolerance and an electronic shutdown pin simplify system design. Ensure adequate insulation clearance for the -5kV output and verify that the control signal ground is referenced correctly to avoid regulation errors.

Points forts

  • Compact 24 V input simplifies integration
  • 0 to -5 kV adjustable output suits diverse high-voltage needs
  • 1 mA maximum current delivers precise low-power control
  • 0 to 5 V control voltage enables full-span modulation
  • Electronic shutdown protects circuitry during faults

Caractéristiques

TypeHigh Voltage Power Supply

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What input voltage and control signal must my system provide for the AHV24VN5KV1MAW to operate?

The module requires a 24 V ± 1 V DC source capable of 40 mA to 300 mA and a 0 to 5 V control voltage to set the 0 to -5 kV output.

Will the 5 V ± 0.05 V reference output on this supply drive the control inputs on my existing instrumentation?

Yes, the built-in 5 V reference can feed the 0 to 5 V control input directly or through a potentiometer, so older gear that expects a 5 V reference can use it without an extra source.

How can I verify the AHV24VN5KV1MAW is regulating correctly after installation?

Measure the reference pin to confirm 5 V ± 0.05 V, then apply a known control voltage and check that the high-voltage output tracks proportionally from 0 to -5 kV.
