Black tower UPS with LCD screen, six NEMA outlets, USB and data ports

APC

APC BR700G UPS 700VA 420W 120V 6 NEMA 5-15R

SKU CH-KGQM-FSZ51 MPN BR700G

A 700VA tower UPS with automatic voltage regulation, six NEMA 5-15R outlets and user-replaceable battery

  • International Version120V
  • Input Voltage Range88 - 143V
  • Input Frequency50/60 Hz +/- 3 Hz (auto sensing)
  • VA Rating700 VA
  • Watts420 Watts
  • Output Voltage120V

VA 700 VA / 420 W

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Keeps critical gear running during outages with 420 W battery backup
  • Automatic voltage regulation corrects 88 to 143 V input without using battery
  • Six NEMA 5-15R outlets split between battery backup and surge-only protection
  • User-replaceable RBC17 cartridge restores runtime in minutes
  • USB port plus RJ-45 and coax data-line protection guard connected devices

Desktop power protection

The APC BR700G is a 700 VA battery backup with 420 W output for desktop computers and networking gear. It provides six NEMA 5-15R outlets split between battery backup and surge-only protection. Automatic voltage regulation corrects input from 88 to 143 V without using the battery. A USB port enables management software on the connected PC.

Quiet line-interactive operation

In normal use the unit runs on utility power with AVR active, so the internal fan stays off and audible noise is minimal. Power draw equals the attached load plus a small charger overhead for the sealed lead-acid battery. Data-line protection covers gigabit Ethernet and coaxial lines against transient surges rated at 354 joules.

Limited runtime at full load

At 420 W the battery sustains output for three minutes, enough for an orderly shutdown. At half load the runtime extends to twelve minutes before the unit powers down. After a discharge the battery requires twelve hours to reach full charge. The hot-swappable RBC17 cartridge can be replaced without turning off connected equipment. The stepped approximated sine wave output suits most switch-mode power supplies but not sensitive motor loads.

Points forts

  • Keeps critical gear running during outages with 420 W battery backup
  • Automatic voltage regulation corrects 88 to 143 V input without using battery
  • Six NEMA 5-15R outlets split between battery backup and surge-only protection
  • User-replaceable RBC17 cartridge restores runtime in minutes
  • USB port plus RJ-45 and coax data-line protection guard connected devices

Caractéristiques

BrandAPC
ModelBR700G
International Version120V
Input Voltage Range88 - 143V
Input Frequency50/60 Hz +/- 3 Hz (auto sensing)
VA Rating700 VA
Watts420 Watts
Output Voltage120V
Output Frequency50/60 Hz +/- 3 Hz
Outlets6
Outlet Type3 x NEMA 5-15R (Battery Backup)
3 x NEMA 5-15R (Surge Protection)
Battery TypeSealed Lead Acid
Battery Run Time420W: 3m
Battery Recharge Time12 hour(s)
Battery ReplaceableRBC17
Interface PortUSB
Data Line ProtectionNetwork line - 10 / 100 / 1000 Base-T Ethernet (RJ-45 connector), Coaxial cable for CATV / SATV / modem / Audio-Video (coax connector)
Surge Energy Rating354 Joules

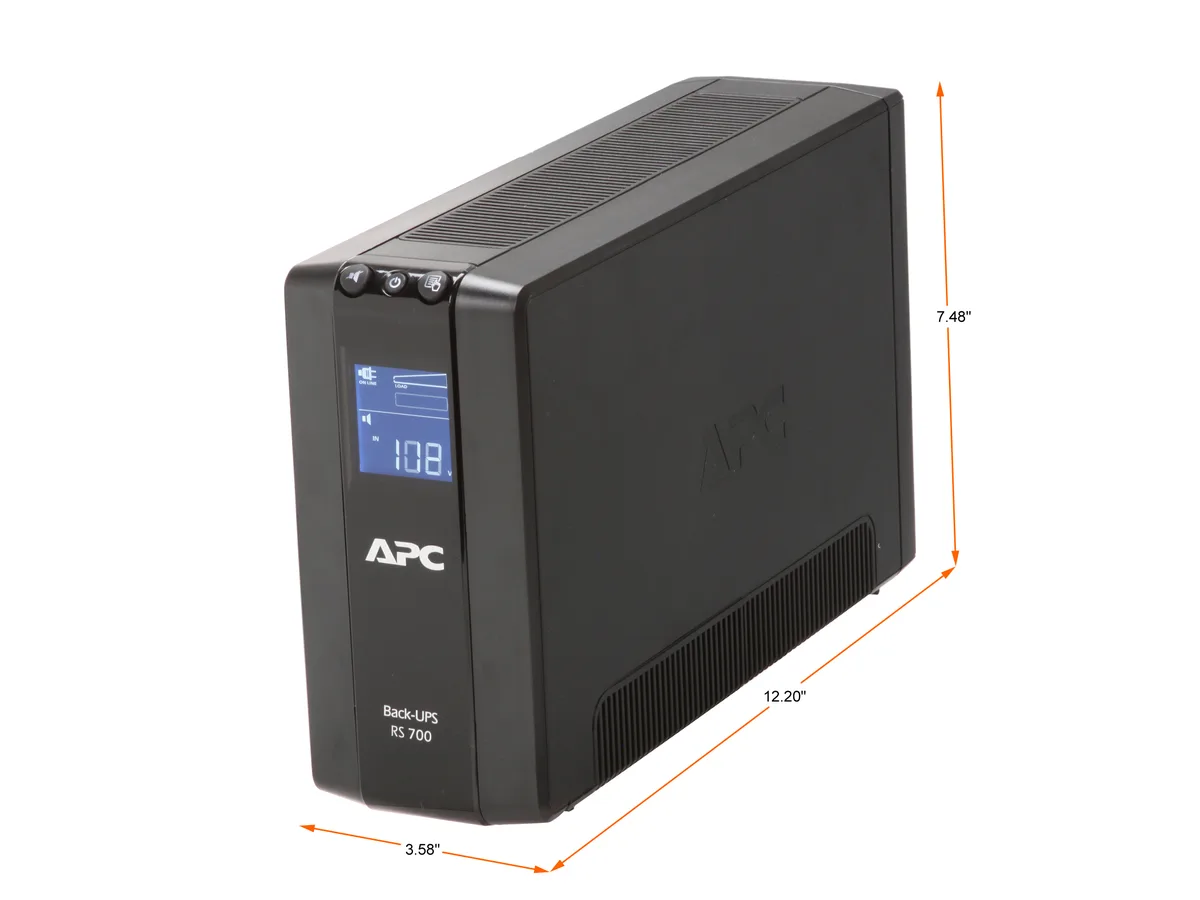

Dimensions7.48" x 3.58" x 12.20"
Weight15.73 lbs.
Poids d’expédition7.98 kg
Dimensions du colis442 × 249 × 138 mm

Autres versions de ce modèle

3 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How do I connect the USB interface on the BR700G to my computer for monitoring?

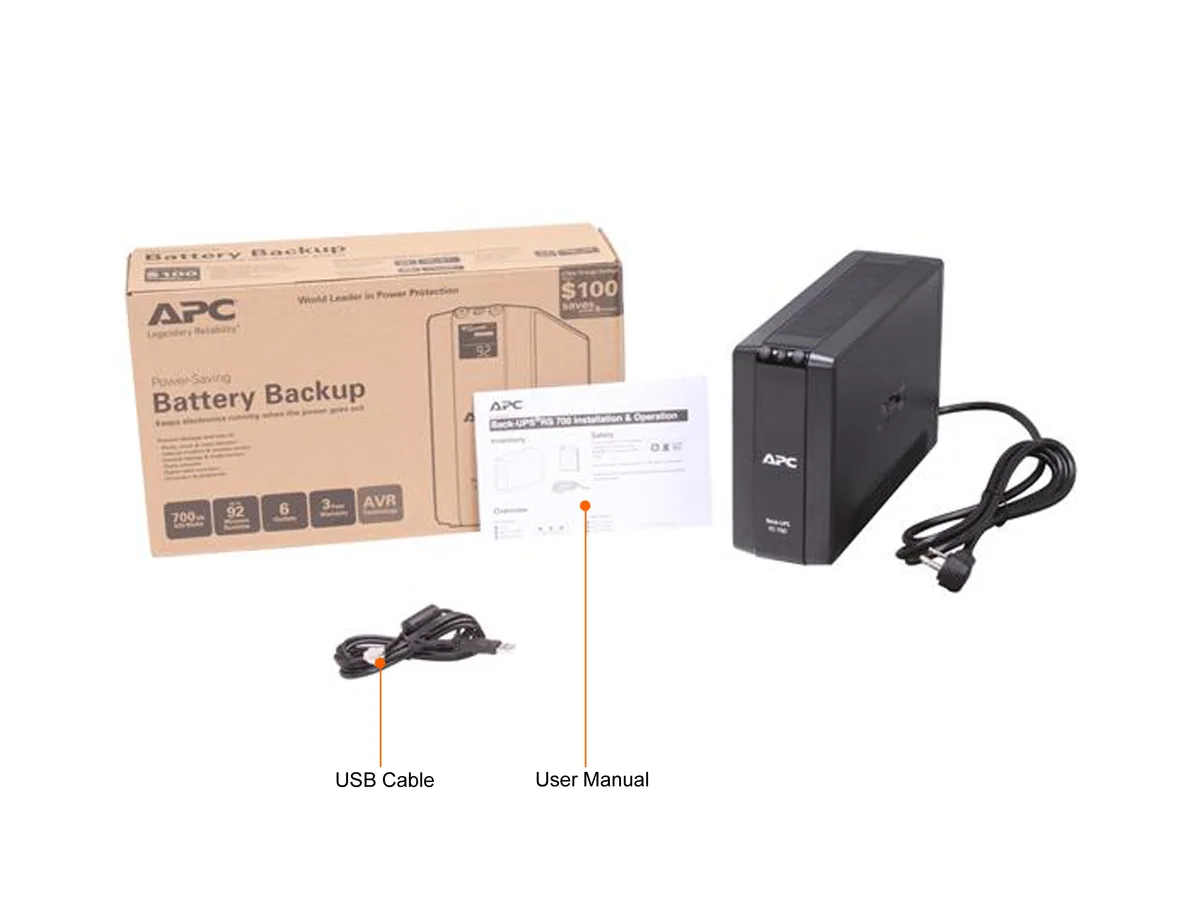

Plug the supplied USB cable into the UPS USB port and a free USB port on the computer, then install APC PowerChute software to enable automatic shutdown and status alerts.

Which replacement battery cartridge does the BR700G use and how often should I swap it?

The unit takes an RBC17 sealed lead-acid cartridge; expect to replace it every three to five years depending on discharge cycles and ambient temperature.

What happens if I keep the BR700G loaded at its full 420 watt rating during an outage?

At 420 watts the battery provides approximately three minutes of runtime before the UPS shuts down to protect the cells.
