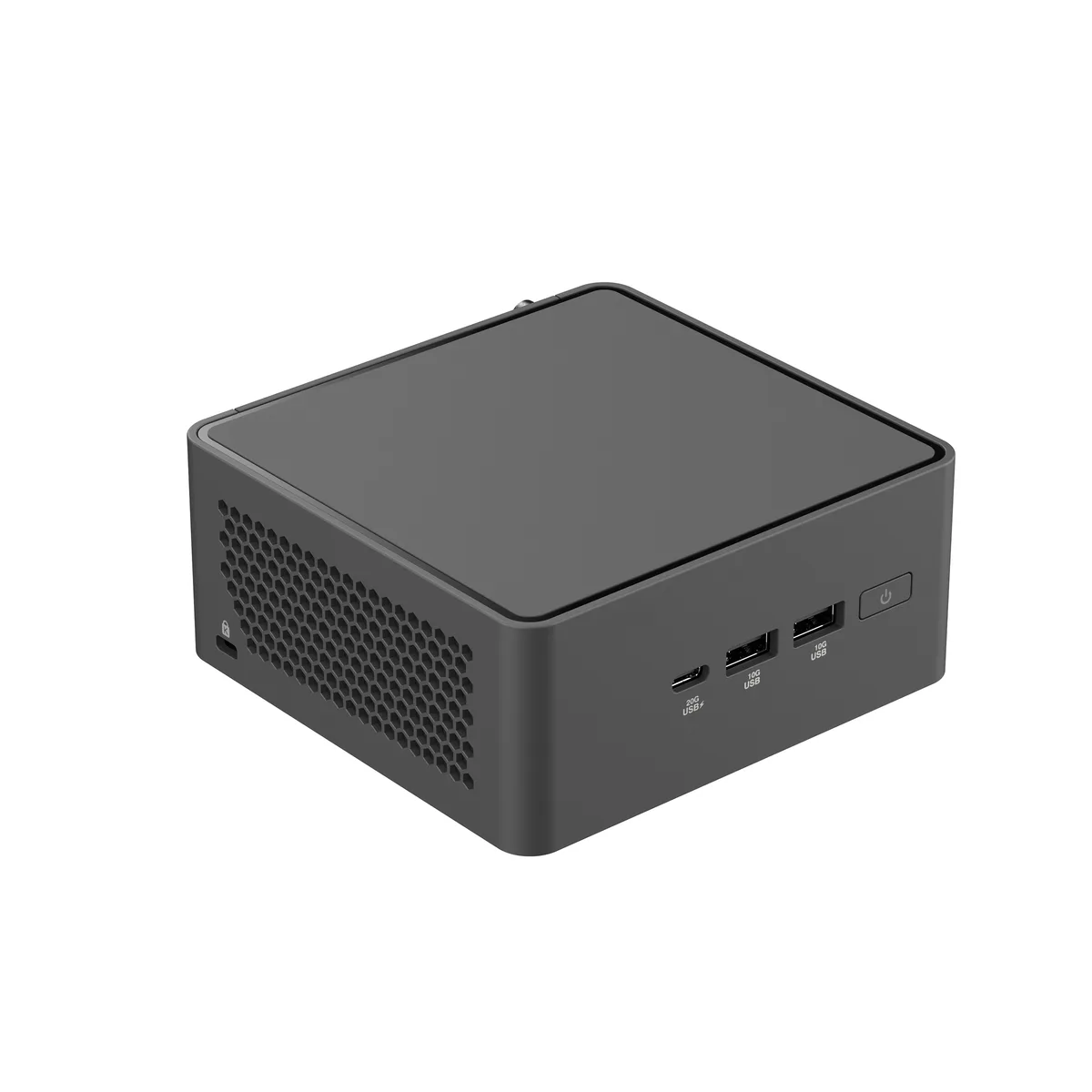

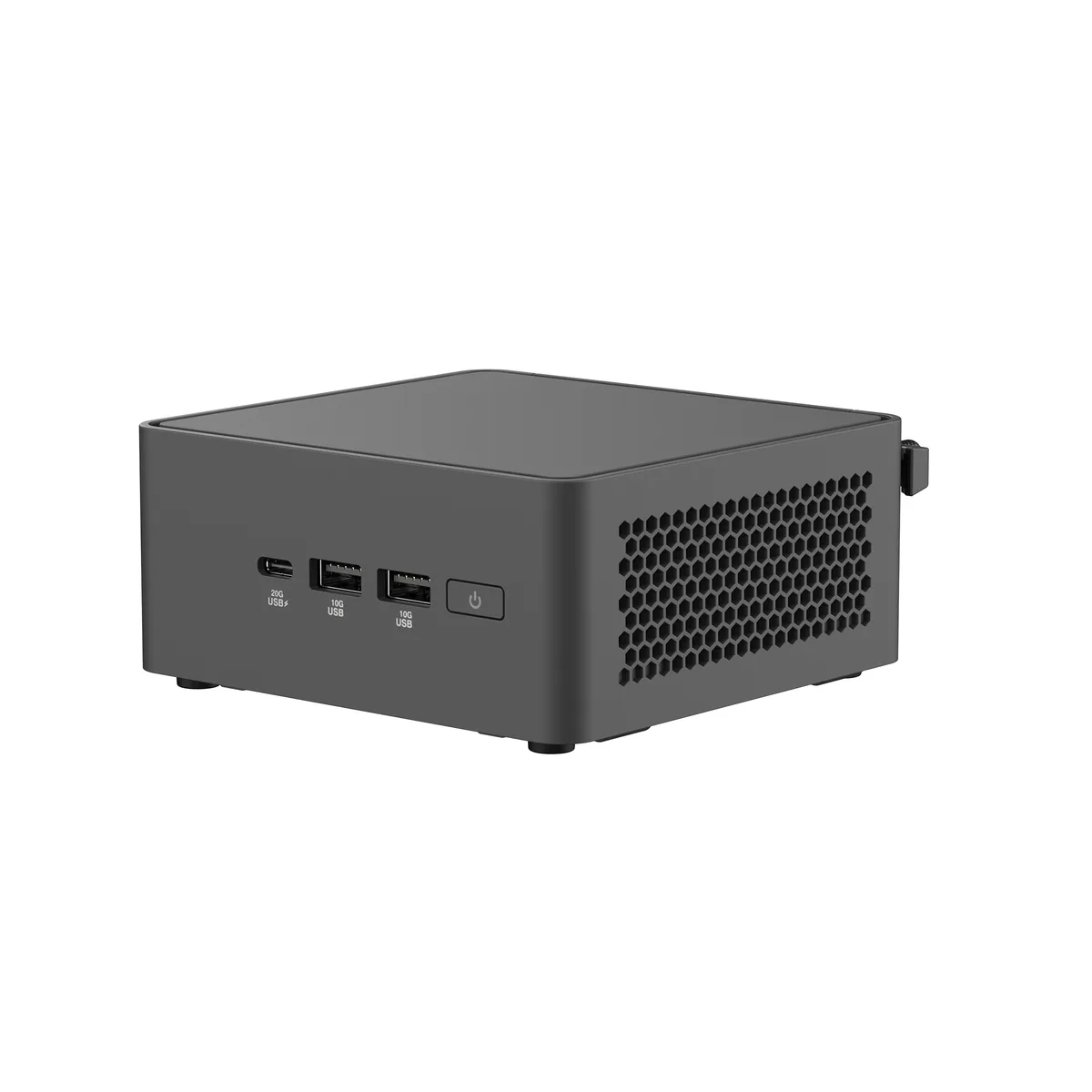

Tall black mini PC barebone with front USB-C and Type-A ports

ASUS

ASUS NUC 15 Pro Tall RNUC15CRHC70000U Core 7 240H barebone mini PC

SKU CH-XKHK-R7X9K MPN RNUC15CRHC70000U

Barebone mini PC with an Intel Core 7 240H processor, two DDR5 SO-DIMM slots supporting up to 96 GB, dual M.2 NVMe slots, 2.5 Gb Ethernet, Wi-Fi 7, Bluetooth 5.4 and Thunderbolt 4

  • ColorBlack
  • Form FactorTall
  • CPU TypeIntel Core 7 240H
  • Memory installedNo Memory
  • Memory slot2 x 262Pin SO-DIMM
  • Memory Type SupportedSO-DIMM DDR5-5600 MHz / CSO-DIMM DDR5-6400 MHz

CPU Type Intel Core 7 240H

Group Tall Kit

  • Intel Core 7 240H processor delivers responsive performance for demanding workloads
  • Dual SO-DIMM DDR5 slots support up to 96GB for multitasking headroom
  • Two M.2 slots enable fast NVMe storage in a compact tall chassis
  • Wi-Fi 7 and Bluetooth 5.4 provide low-latency wireless connectivity
  • Thunderbolt 4 and 2.5Gb Ethernet give versatile high-speed wired links

Tall barebone for Intel Core 7 240H

The ASUS NUC 15 Pro Tall RNUC15CRHC70000U is a barebone mini PC built around an Intel Core 7 240H processor. It arrives without memory or storage so integrators choose DDR5 SO-DIMM or CSO-DIMM modules up to 96 GB and two NVMe drives. The tall chassis accommodates dual M.2 slots and a 120 W power supply.

Dual M.2 slots shape storage options

One M.2 2280 slot and one M.2 2242 slot both run at PCIe Gen4x4, with the larger slot marked PCIe Gen 5 ready. Builders can pair a high-capacity system drive with a smaller cache or secondary volume without sharing bandwidth. No drives are included so the installer selects capacities and endurance ratings.

Thunderbolt 4 and 2.5 GbE set I/O limits

Two Thunderbolt 4 ports carry DisplayPort 2.1 and USB 3.2 Gen 2 traffic, capping external display throughput at 4K 60 Hz per HDMI 2.1 output. The single 2.5 GbE RJ45 port and Wi-Fi 7 radio share the Intel i226V controller, so aggregate wired-plus-wireless throughput cannot exceed 2.5 Gbps. Front USB 3.2 Gen 2x2 Type-C reaches 20 Gbps but lacks video alternate mode.

Points forts

  • Intel Core 7 240H processor delivers responsive performance for demanding workloads
  • Dual SO-DIMM DDR5 slots support up to 96GB for multitasking headroom
  • Two M.2 slots enable fast NVMe storage in a compact tall chassis
  • Wi-Fi 7 and Bluetooth 5.4 provide low-latency wireless connectivity
  • Thunderbolt 4 and 2.5Gb Ethernet give versatile high-speed wired links

Caractéristiques

BrandASUS
SeriesNUC 15 Pro
ModelRNUC15CRHC70000U
Part Number90AR00Q2-M001L0
ColorBlack
Form FactorTall
CPU TypeIntel Core 7 240H
Memory installedNo Memory
Memory slot2 x 262Pin SO-DIMM
Memory Type SupportedSO-DIMM DDR5-5600 MHz / CSO-DIMM DDR5-6400 MHz
Max Memory Supported96GB
Storage InstalledNo Hard Drive
M.2 Slot1 x M.2 2280 PCIe Gen4x4 NVMe SSD* slot
1 x M.2 2242 PCIe Gen4x4 NVMe SSD slot
*PCIe Gen 5 ready
Integrated GraphicsIntel Graphics
LANIntel i226V
Max LAN Speed2.5Gbps
Wireless LAN802.11be
WiFi GenerationWi-Fi 7
BluetoothBluetooth 5.4
Front USB1 x USB 3.2 Gen 2x2 Type-C
2 x USB 3.2 Gen 2 Type-A
HDMI2 x HDMI 2.1 (up to 4K@60Hz)
Thunderbolt2 x Thunderbolt 4 (with DisplayPort 2.1)
Rear USB1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
1 x USB 2.0 Type-A (5V/0.5A, 480Mbps)
RJ451x RJ45 (2.5Gb Ethernet)
Power Supply120W
Dimensions4.61" x 4.41" x 2.13"
Weight0.8 lb.
PackagingVESA Mount & Screws / AC Power Adapter/ Power Cord
Poids d’expédition1.25 kg
Dimensions du colis178 × 152 × 127 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Will the DDR5 SO-DIMM memory need replacement when I expand beyond the 96GB maximum?

The board supports up to 96GB across two 262-pin SO-DIMM slots; any upgrade stays within that limit, so the original modules only need replacement if they fail.

What caps sustained throughput on the M.2 2280 PCIe 4.0 x4 slot during long writes?

The slot runs at PCIe 4.0 x4 speeds, so the drive’s own thermal throttle point becomes the first bottleneck under continuous heavy writes.

How loud does the 120W power supply fan get when the Intel Core 7 240H runs all day?

The 120W supply powers the Core 7 240H and integrated graphics; fan speed ramps with total heat load, so sustained full-core work will raise audible airflow.
