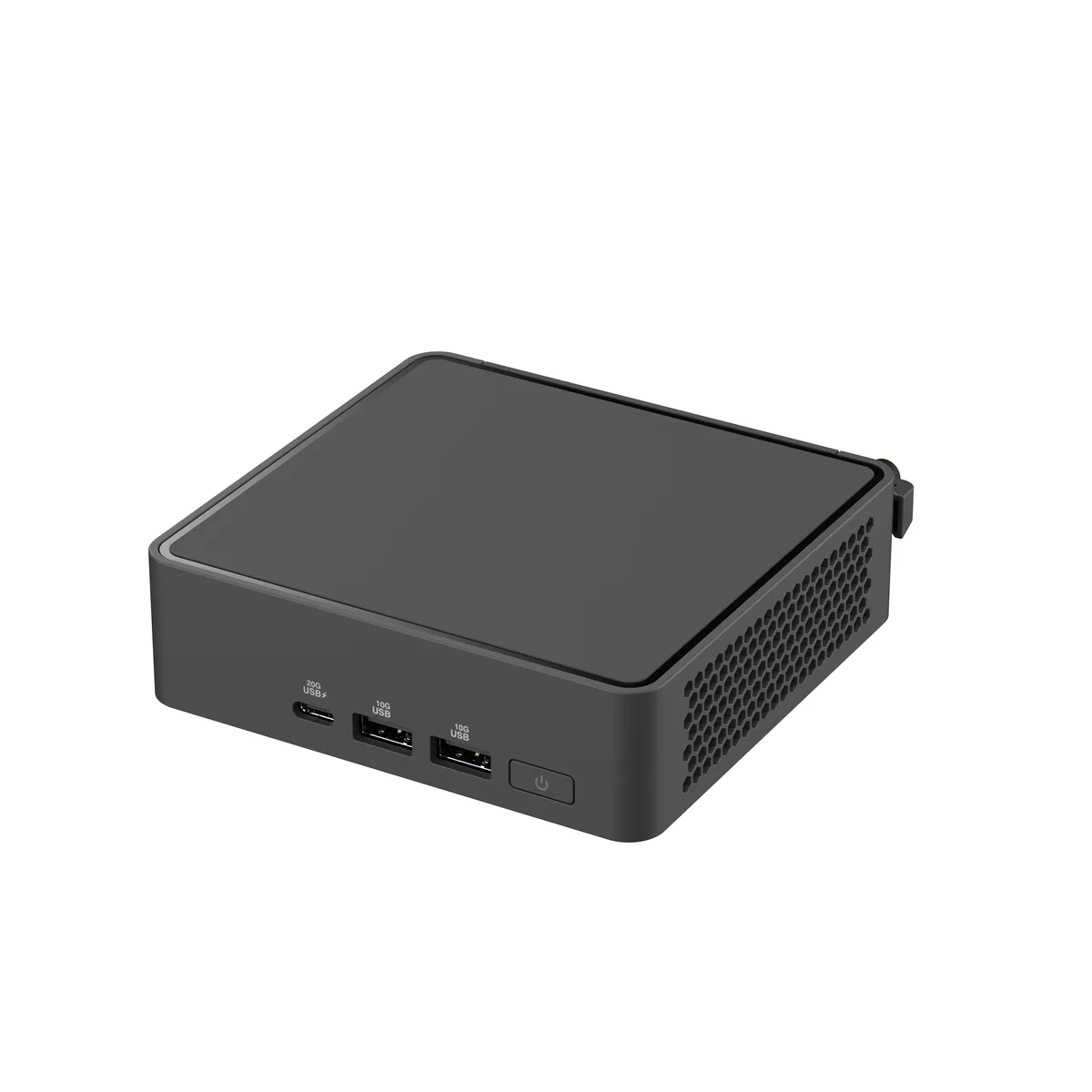

Small black rectangular mini PC with slim profile and front USB-C port

ASUS

ASUS RNUC15CRKC70000U NUC 15 Pro Slim barebone mini PC Core 7 240H DDR5 96GB max

SKU CH-PMEG-6Y3P3 MPN RNUC15CRKC70000U

Slim barebone mini PC with Intel Core 7 240H, dual DDR5 SO-DIMM slots supporting 96GB max, dual M.2 NVMe bays, 2.5Gb Ethernet, Wi-Fi 7 and Bluetooth 5.4

  • ColorBlack
  • Form FactorSlim
  • CPU TypeIntel Core 7 240H
  • Memory installedNo Memory
  • Memory slot2 x 262Pin SO-DIMM
  • Memory Type SupportedSO-DIMM DDR5-5600 MHz / CSO-DIMM DDR5-6400 MHz

CPU Type Intel Core 7 240H

Group Slim Kit

  • Intel Core 7 240H powers demanding workloads
  • DDR5 memory scales to 96GB across two slots
  • Dual M.2 slots accept 2280 and 2242 PCIe Gen4 NVMe drives
  • Wi-Fi 7 and Bluetooth 5.4 deliver fast wireless connectivity
  • 5Gb Ethernet plus Thunderbolt 4 and USB 3.2 Gen 2x2 expand I/O options

ASUS NUC 15 Pro Slim barebone

This slim mini-PC barebone kit is built around an Intel Core 7 240H processor and supports up to 96GB of DDR5 memory across two SO-DIMM slots. It targets system integrators and enthusiasts who want a compact foundation for a custom workstation or edge device. Memory and storage are not included.

Installation notes

Two 262-pin SO-DIMM slots accept DDR5-5600 or CSO-DIMM DDR5-6400 modules, while one M.2 2280 and one M.2 2242 slot take PCIe Gen4x4 NVMe drives. The 2280 slot is PCIe Gen 5 ready. A 120W power supply is included; the barebone chassis requires adding RAM and an SSD before first boot.

Interface limits

Thunderbolt 4 ports provide DisplayPort 2.1 and 40Gbps bandwidth, while HDMI 2.1 outputs drive 4K at 60Hz. The 2.5GbE LAN and Wi-Fi 7 wireless link share the same physical space, so peak throughput depends on local spectrum conditions. Bluetooth 5.4 handles peripherals within short range.

Points forts

  • Intel Core 7 240H powers demanding workloads
  • DDR5 memory scales to 96GB across two slots
  • Dual M.2 slots accept 2280 and 2242 PCIe Gen4 NVMe drives
  • Wi-Fi 7 and Bluetooth 5.4 deliver fast wireless connectivity
  • 5Gb Ethernet plus Thunderbolt 4 and USB 3.2 Gen 2x2 expand I/O options

Caractéristiques

BrandASUS
SeriesNUC 15 Pro
ModelRNUC15CRKC70000U
Part Number90AR00R2-M001Y0
ColorBlack
Form FactorSlim
CPU TypeIntel Core 7 240H
Memory installedNo Memory
Memory slot2 x 262Pin SO-DIMM
Memory Type SupportedSO-DIMM DDR5-5600 MHz / CSO-DIMM DDR5-6400 MHz
Max Memory Supported96GB
Storage InstalledNo Hard Drive
M.2 Slot1 x M.2 2280 PCIe Gen4x4 NVMe SSD* slot
1 x M.2 2242 PCIe Gen4x4 NVMe SSD slot
*PCIe Gen 5 ready
Integrated GraphicsIntel Graphics
LANIntel i226V
Max LAN Speed2.5Gbps
Wireless LAN802.11be
WiFi GenerationWi-Fi 7
BluetoothBluetooth 5.4
Front USB1 x USB 3.2 Gen 2x2 Type-C
2 x USB 3.2 Gen 2 Type-A
HDMI2 x HDMI 2.1 (up to 4K@60Hz)
Thunderbolt2 x Thunderbolt 4 (with DisplayPort 2.1)
Rear USB1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
1 x USB 2.0 Type-A (5V/0.5A, 480Mbps)
RJ451x RJ45 (2.5Gb Ethernet)
Power Supply120W
Dimensions4.61" x 4.41" x 1.45"
Weight0.79 lb.
PackagingVESA Mount & Screws / AC Power Adapter/ Power Cord
Poids d’expédition1.25 kg
Dimensions du colis178 × 152 × 127 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How do I verify the Intel Core 7 240H is running correctly after I install memory and storage?

Enter the BIOS on first boot to confirm the processor is detected, then run a stress test in your operating system to check temperatures and clock stability under load.

What components are included and which must be purchased separately for this barebone kit?

The unit ships with the 120W power supply and chassis only; you must add two DDR5 SO-DIMM modules up to 96GB total and one or two NVMe SSDs for the M.2 2280 and M.2 2242 slots.

Which DDR5 speed should I choose between 5600 MHz and 6400 MHz for the two SO-DIMM slots?

Both SO-DIMM DDR5-5600 and CSO-DIMM DDR5-6400 are supported; the 6400 MHz modules provide higher bandwidth if your workload benefits from faster memory throughput.
