Compact square mini PC with matte black finish and rounded edges

ASUS

ASUS NUC13ANKH5 Core i5-13420H 16GB 512GB barebone mini PC

SKU CH-5BCG-F45Y0 MPN NUC13ANKH5

A 13th Gen Intel Core i5 mini PC barebone with 16 GB DDR4, 512 GB NVMe, Wi-Fi 6E, 2.5 Gbps LAN and Thunderbolt 4 for quad 4K output

  • Form FactorSlim
  • CPU TypeIntel Core i5-13420H
  • CPU Cores8-Core (4P+4E)
  • Memory installedNo Memory
  • Memory slot2 x 260Pin SO-DIMM
  • Memory Type SupportedDDR4 3200

Option 16GB RAM/512GB SSD

  • 13th Gen Intel Core i5-13420H processor with 8 cores for responsive performance
  • Ultrasmall 4x4 form factor includes VESA mount for wall or behind-monitor placement
  • 5Gbps Intel Ethernet plus Wi-Fi 6E AX211 and Bluetooth for fast wired and wireless connectivity
  • Dual HDMI and dual Thunderbolt 4 Type-C ports support one 8K or four 4K displays at 60Hz
  • Qualified for 24/7 operation with Kensington lock and cable locking arm for physical security

ASUS NUC 13 Pro i5-13420H Barebone

The ASUS NUC 13 Pro NUC13ANKH5 is a slim barebone mini PC built around an 8-core 13th Gen Intel Core i5-13420H processor with integrated Intel UHD Graphics. It targets businesses and professionals who need a compact, VESA-mountable system for digital signage, kiosks or office productivity that can run continuously. Buyers who require discrete graphics performance or a pre-installed operating system should look elsewhere.

Included VESA mount and security hardware

The box supplies a VESA mounting bracket so the unit can be fixed behind a monitor or on a wall, plus a Kensington lock slot and a cable locking arm for physical security in public or shared environments. A US power cord is also provided. No memory modules, storage drives or operating system are included, so the integrator must source DDR4 SO-DIMMs and NVMe SSDs separately.

Thunderbolt 4 and 2.5GbE connectivity limits

Two Thunderbolt 4 Type-C ports deliver DisplayPort video and PCIe data, supporting one 8K or up to four 4K@60Hz displays, but total bandwidth is shared across all attached devices. The single 2.5Gbps Intel i226V Ethernet port and Wi-Fi 6E AX211 wireless link provide high-speed networking, yet real-world throughput will depend on cabling quality, switch capabilities and radio conditions.

Points forts

  • 13th Gen Intel Core i5-13420H processor with 8 cores for responsive performance
  • Ultrasmall 4x4 form factor includes VESA mount for wall or behind-monitor placement
  • 5Gbps Intel Ethernet plus Wi-Fi 6E AX211 and Bluetooth for fast wired and wireless connectivity
  • Dual HDMI and dual Thunderbolt 4 Type-C ports support one 8K or four 4K displays at 60Hz
  • Qualified for 24/7 operation with Kensington lock and cable locking arm for physical security

Caractéristiques

BrandASUS
SeriesNUC 13 Pro
ModelNUC13ANKH5
Form FactorSlim
CPU TypeIntel Core i5-13420H
CPU Cores8-Core (4P+4E)
Memory installedNo Memory
Memory slot2 x 260Pin SO-DIMM
Memory Type SupportedDDR4 3200
Max Memory Supported64GB
Dual Channel Memory SupportedYes
Storage InstalledNo Hard Drive
M.2 Slot1 x M.2 2280 PCIe Gen4x4 NVMe SSD Slot (key M)
1 x M.2 2242 PCIe Gen3 NVMe SSD Slot (key B)
Integrated GraphicsIntel UHD Graphics
Onboard AudioRealtek ALC269
Channel2 Channel
LANIntel i226V
Max LAN Speed2.5Gbps
Wireless LANIntel Wi-Fi 6E AX211 (Gig+), 2x2
WiFi GenerationWi-Fi 6E
BluetoothBluetooth 5.3
2.5" Internal Bays1 x 2.5-inch SATA 6Gb/s support for HDD (supports up to 4TB)

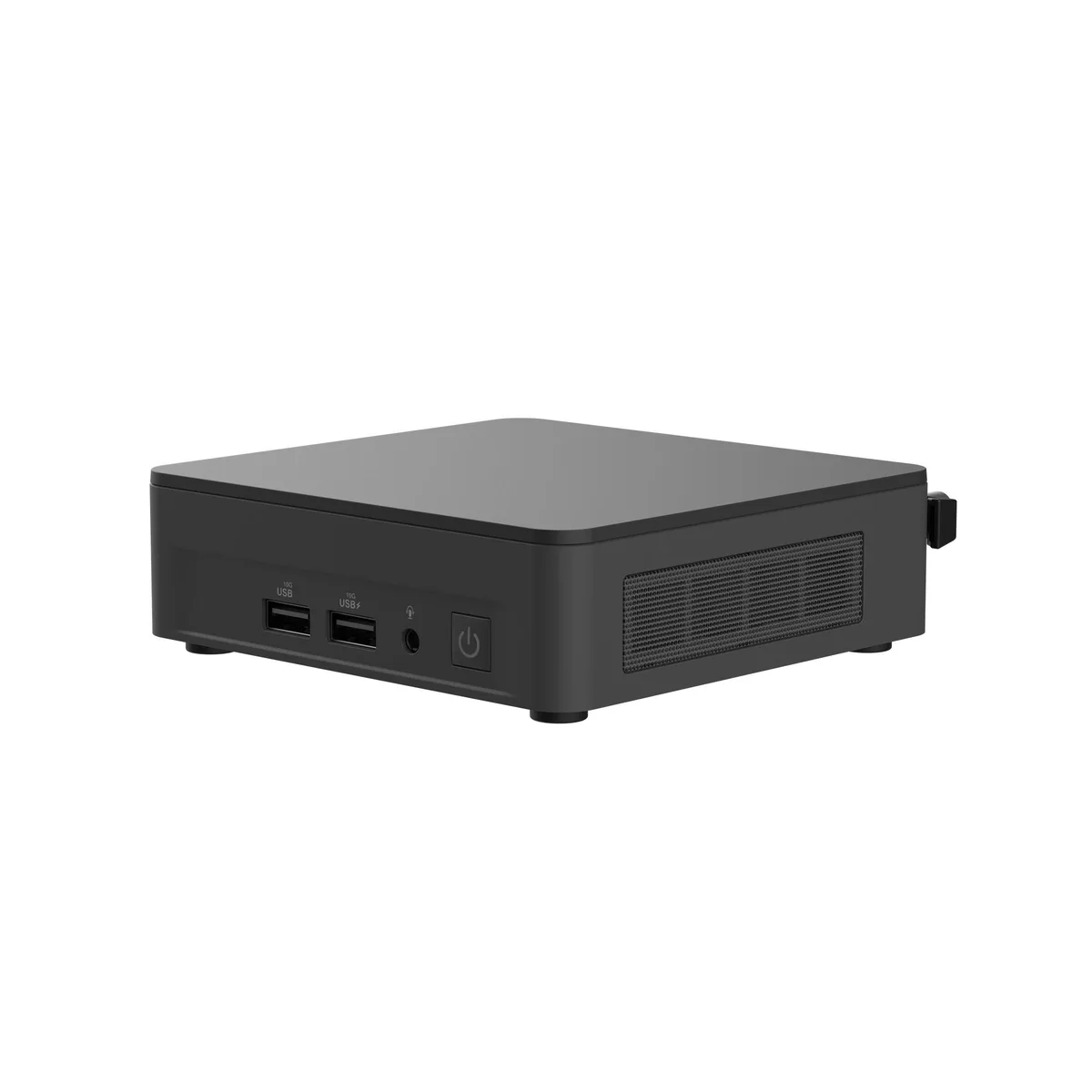

Front USB1 x USB 3.2 Gen2 Type-A (with BC1.2 5V/0.9A, 10Gbps)
1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
Front Audio Ports1 x 3.5mm Audio Jack (Line out/Mic in/Headphone out)

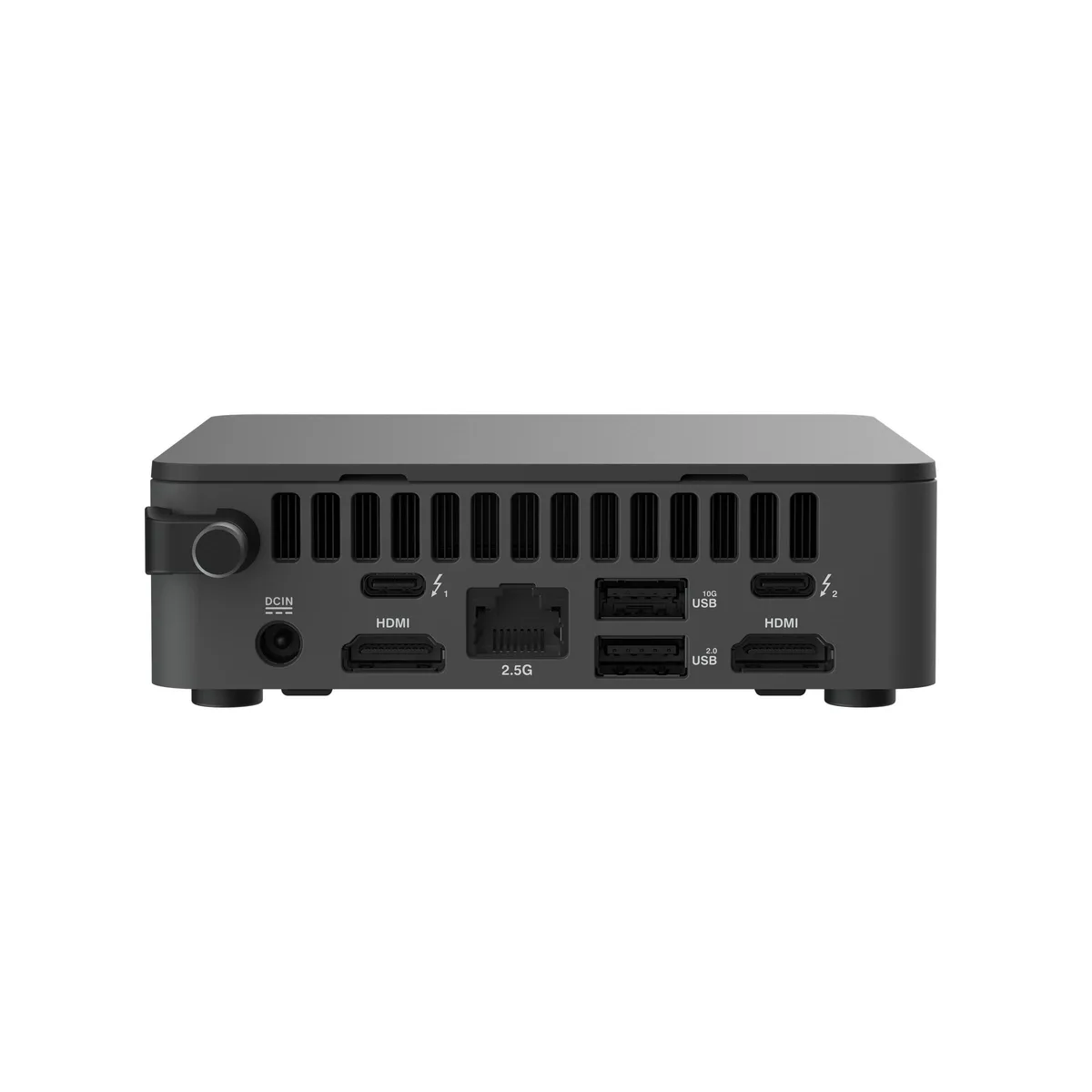

HDMI2 x HDMI 2.1 (with TMDS, up to 4K@60Hz)
Thunderbolt2 x Thunderbolt 4 (with DP1.4 / 5V/3A, 40Gbps)
Rear USB1 x USB 3.2 Gen2 Type-A (5V/0.9A, 10Gbps)
1 x USB 2.0 Type-A (5V/0.5A, 480Mbps)
RJ451 x Intel 2.5G LAN (RJ45)
Other Rear Ports1 x Kensington Lock Slot
1 x Cable Locking Arm
1 x DC-in
Power Supply120W Power Adapter
Dimensions4.61" x 4.41" x 2.13"
Weight1.3 lbs
PackagingVESA Mount & Screws / AC Power Adapter / Power Cord, US Cord for USA

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How do I upgrade the memory on the NUC13ANKH5 and what is the maximum capacity?

The board has two 260-pin SO-DIMM slots supporting DDR4 3200 in dual-channel mode. Maximum supported capacity is 64 GB.

What thermal limit appears first when the Core i5-13420H runs at full load continuously?

The 8-core processor will hit its thermal throttle point before the 2.5 Gbps Ethernet or Wi-Fi 6E AX211 interfaces reach any bandwidth ceiling.

How loud and hot does the slim chassis get during 24/7 operation?

Qualified for 24/7 operation, the compact 4x4 form factor uses an integrated cooling solution designed for sustained loads with the included VESA mount allowing optimal airflow positioning.
