ATX motherboard with silver heatsinks and bundled Core Ultra 5 245K CPU

ASUS

ASUS ProArt Z890-CREATOR WIFI Intel motherboard with Core Ultra 5 245K

SKU CH-A0B3-M5DWE

LGA 1851 motherboard paired with a 24-core Core Ultra 5 245K, 256 GB DDR5 support, dual Thunderbolt 5, 10 Gb and 2.5 Gb Ethernet, Wi-Fi 7, five M.2 slots and 16+2+1+2 power stages

  • CPU Socket TypeLGA 1851
  • ChipsetIntel Z890
  • Number of Memory Slots4x288pin (DDR5)
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel
  • Memory Feature4 x DIMM slots, max. 192GB, DDR5 Support up to 8600+MT/s (OC

Model ProArt Z890-CREATOR WIFI

+CPU +Ultra 5 245K

  • Supports demanding AI workloads with 16+2+1+2 power stages
  • Dual Thunderbolt 5 ports plus Thunderbolt 4 for 80 Gbps bandwidth
  • 10 Gb and 2.5 Gb Ethernet plus Wi-Fi 7 for fast networking
  • Five M.2 slots including one PCIe 5.0 and four PCIe 4.0
  • 24 MB L3 and 26 MB L2 cache on 125 W CPU

Z890 Creator board with Core Ultra 5 245K

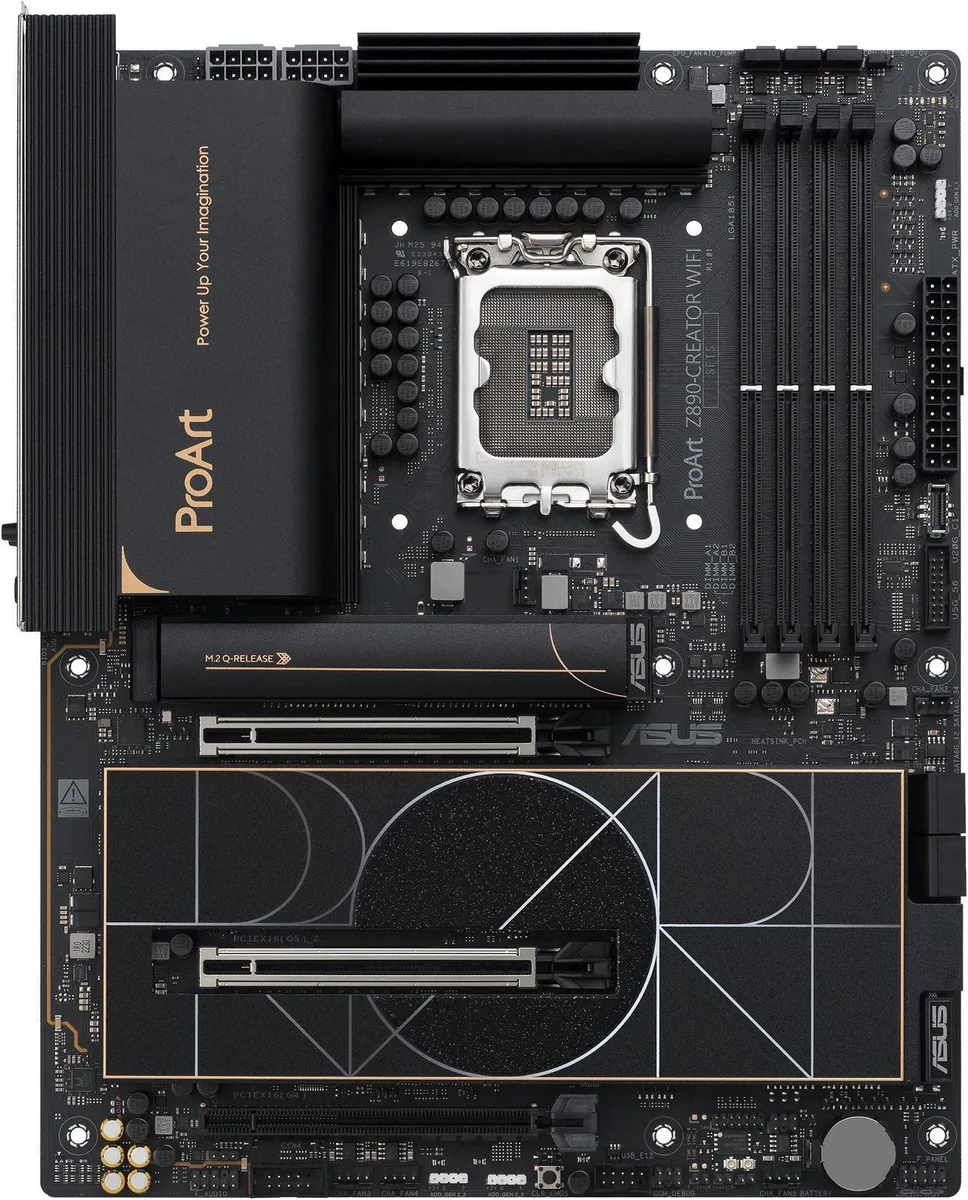

The ASUS ProArt Z890-CREATOR WIFI motherboard arrives paired with an Intel Core Ultra 5 245K processor in an LGA 1851 socket. The board uses the Z890 chipset and delivers 16+2+1+2 teamed power stages with ProCool II connectors. Four DDR5 slots support up to 192 GB at 8600 MT/s over dual-channel architecture.

Built for creative workstations.

Dual Thunderbolt 5 ports plus one Thunderbolt 4 port give 80 Gbps bandwidth for external storage and displays. Ten-gigabit and 2.5-gigabit Ethernet combine with Wi-Fi 7 and Bluetooth 5.4 for fast network flexibility. Five M.2 slots (one PCIe 5.0, four PCIe 4.0) and four SATA 6 Gb/s ports cover high-capacity project libraries. Gamers needing maximum single-thread frequency may prefer a different platform.

Thunderbolt 5 decides the fit

Two USB Type-C ports running Thunderbolt 5 provide the headline 80 Gbps connection speed for daisy-chained RAID arrays or 8K monitors. If your workflow relies on that bandwidth, this bundle matches it; if you only need USB 10 Gbps or Thunderbolt 3, a less expensive board will suffice.

Points forts

  • Supports demanding AI workloads with 16+2+1+2 power stages
  • Dual Thunderbolt 5 ports plus Thunderbolt 4 for 80 Gbps bandwidth
  • 10 Gb and 2.5 Gb Ethernet plus Wi-Fi 7 for fast networking
  • Five M.2 slots including one PCIe 5.0 and four PCIe 4.0
  • 24 MB L3 and 26 MB L2 cache on 125 W CPU

Caractéristiques

BrandASUS
ModelProArt Z890-CREATOR WIFI+Ultra 5 245K
Part NumberProArt Z890-CREATOR WIFI+Ultra 5 245K
CPU Socket TypeLGA 1851
ChipsetIntel Z890
Number of Memory Slots4x288pin (DDR5)
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Feature4 x DIMM slots, max. 192GB, DDR5
Support up to 8600+MT/s (OC), Non-ECC, Un-buffered and Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III (AEMP III)
DIMM Fit
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
PCI Express 5.0 x16Intel Core Ultra Processors (Series 2)
2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)
PCI Express 4.0 x16Intel Z890 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Intel Core Ultra Processors (Series 2) *
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel Z890 Chipset
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes)
M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)**
** M.2_5 slot shares bandwidth with PCIe 4.0 x16 slot. When M.2_5 slot is operating, PCIe 4.0 x16 slot will be disabled.
SATA RAID* Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.
Audio ChipsetRealtek ALC1220P
Audio ChannelsRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Gold-plated audio jacks
- Premium audio capacitors
- Dedicated audio PCB layers
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1
Max LAN Speed1 x Marvell AQtion 10Gb Ethernet
1 x Intel 2.5Gb Ethernet
ASUS LANGuard
Wireless LAN2x2 Wi-Fi 7 (802.11be)
BluetoothBluetooth 5.4
Back I/O Ports2 x Thunderbolt 5 USB Type-C ports
1 x Thunderbolt 4 USB Type-C port
6 x USB 10Gbps ports (6 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x DisplayPort (Input only)
1 x HDMI port
1 x Wi-Fi module
1 x Marvell AQtion 10Gb Ethernet port
1 x Intel 2.5Gb Ethernet port
2 x Gold-plated audio jacks
1 x BIOS FlashBack button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Storage Related
5 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Clear CMOS button
1 x COM Port header
1 x CPU Over voltage jumper
1 x Chassis Intrusion header
1 x Front Panel Audio header (F_AUDIO)
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 with AI Cooling II
- Power Saving
ASUS Driver Hub
ASUS GlideX
ASUS CPU-Z
CreatonFirst
MyASUS
ProArt Creator Hub
TurboV Core
Thunderbolt Share
USB Wattage Watcher
Adobe Creative Cloud (Free Trial)
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
MemTest86
NPU Boost
IT Management software supported
- ASUS Control Center Express(ACCE)
Windows 11Windows 11 (22H2 & later)
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
FeaturesASUS 5X PROTECTION III // ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Connector
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Box headers
- Clear CMOS button
- CPU Socket
Package Contents1x Intel Core Ultra 5 245K CPU
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Q-connector
2 x M.2 Q-Latch packages
2 x M.2 rubber packages
1 x ProArt leather bag
Documentation
1 x ACC Express activation key card
1 x Quick start guide

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Will my DDR5 modules run at their rated speed on this board?

The board supports DDR5 up to 8600 MT/s when overclocked and works with XMP profiles; install up to four CUDIMM or unbuffered DIMMs for a maximum of 192 GB in dual-channel mode.

Can I use a PCIe 5.0 graphics card and still have room for fast storage?

Yes, the CPU provides two PCIe 5.0 x16 slots that run at x16 or x8/x8, and the chipset adds one PCIe 4.0 x16 slot at x4 plus four M.2 slots — one from the CPU at PCIe 5.0 x4 and three from the chipset at PCIe 4.0 x4.

What do I need to connect a Thunderbolt 5 display and 10 Gb Ethernet at the same time?

The rear I/O already includes two Thunderbolt 5 Type-C ports, one Thunderbolt 4 Type-C port, a Marvell 10 Gb Ethernet port and an Intel 2.5 Gb Ethernet port, so no extra cards are required.
