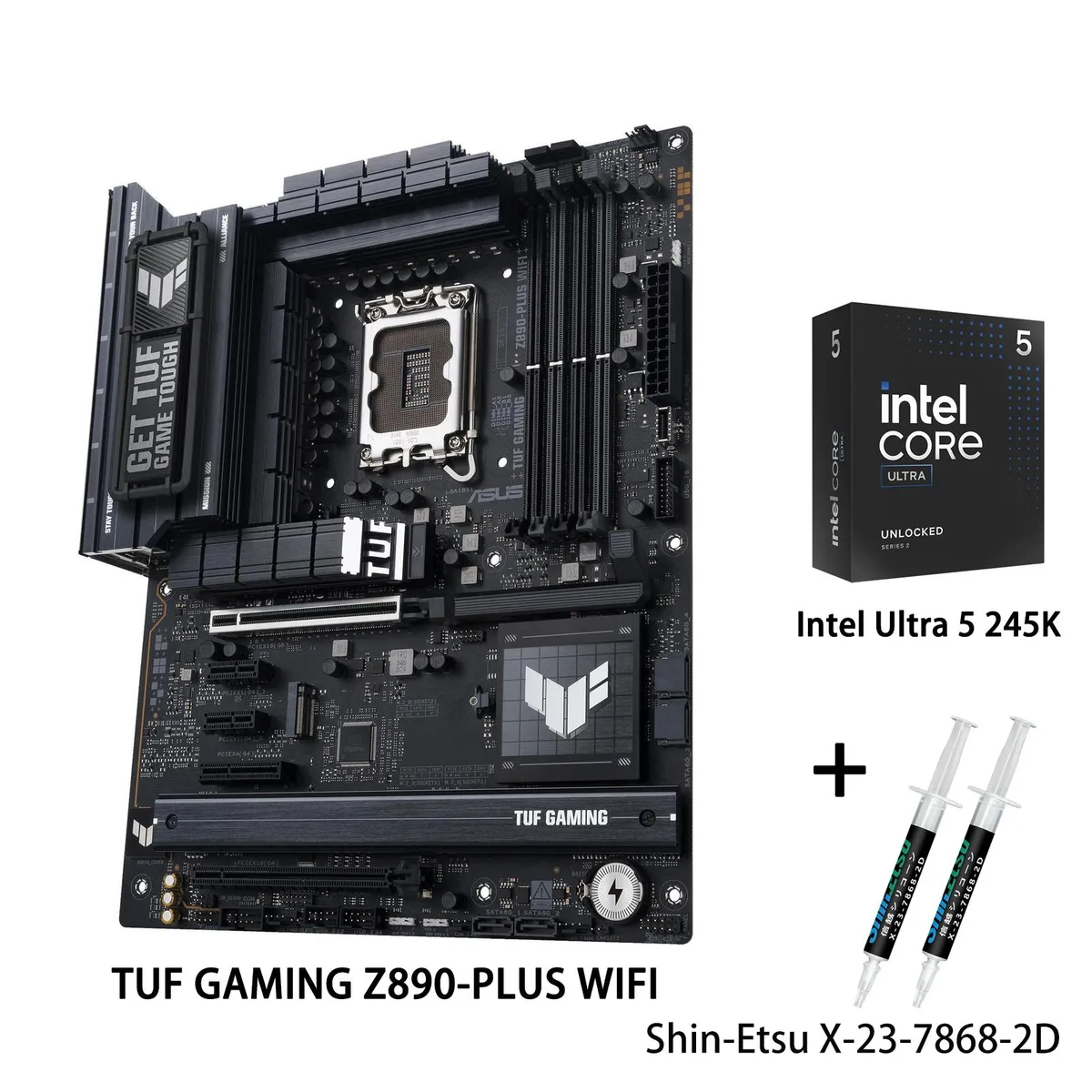

ATX motherboard in grey and black with large VRM heatsinks, CPU installed, boxed together

ASUS

ASUS TUF GAMING Z890-PLUS WIFI Intel motherboard & Core Ultra 5 245K CPU Combo

SKU CH-VKCN-22Z9V

A Z890 ATX motherboard paired with a Core Ultra 5 245K processor, delivering 16+1+2+1 80A power stages, DDR5 up to 9066 MT/s, PCIe 5.0 and 4.0 slots, four M.2 sockets, Thunderbolt 4.

  • CPU Socket TypeLGA 1851
  • ChipsetIntel Z890
  • Number of Memory Slots4x288pin (DDR5)
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel
  • Memory FeatureSupport up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked

Model TUF GAMING Z890-PLUS WIFI

+CPU +Ultra 5 245K

  • Ready for advanced AI workloads with Intel Core Ultra 5 245K processor
  • Robust 16+1+2+1 80A DrMOS power stages deliver stable CPU power
  • Optimised thermal design with large VRM heatsinks and M.2 cooling
  • High-speed connectivity via Thunderbolt 4 USB Type-C and Wi-Fi 7
  • DDR5 memory support up to 9066 MT/s across four 288-pin slots

Ready for Advanced AI PCs

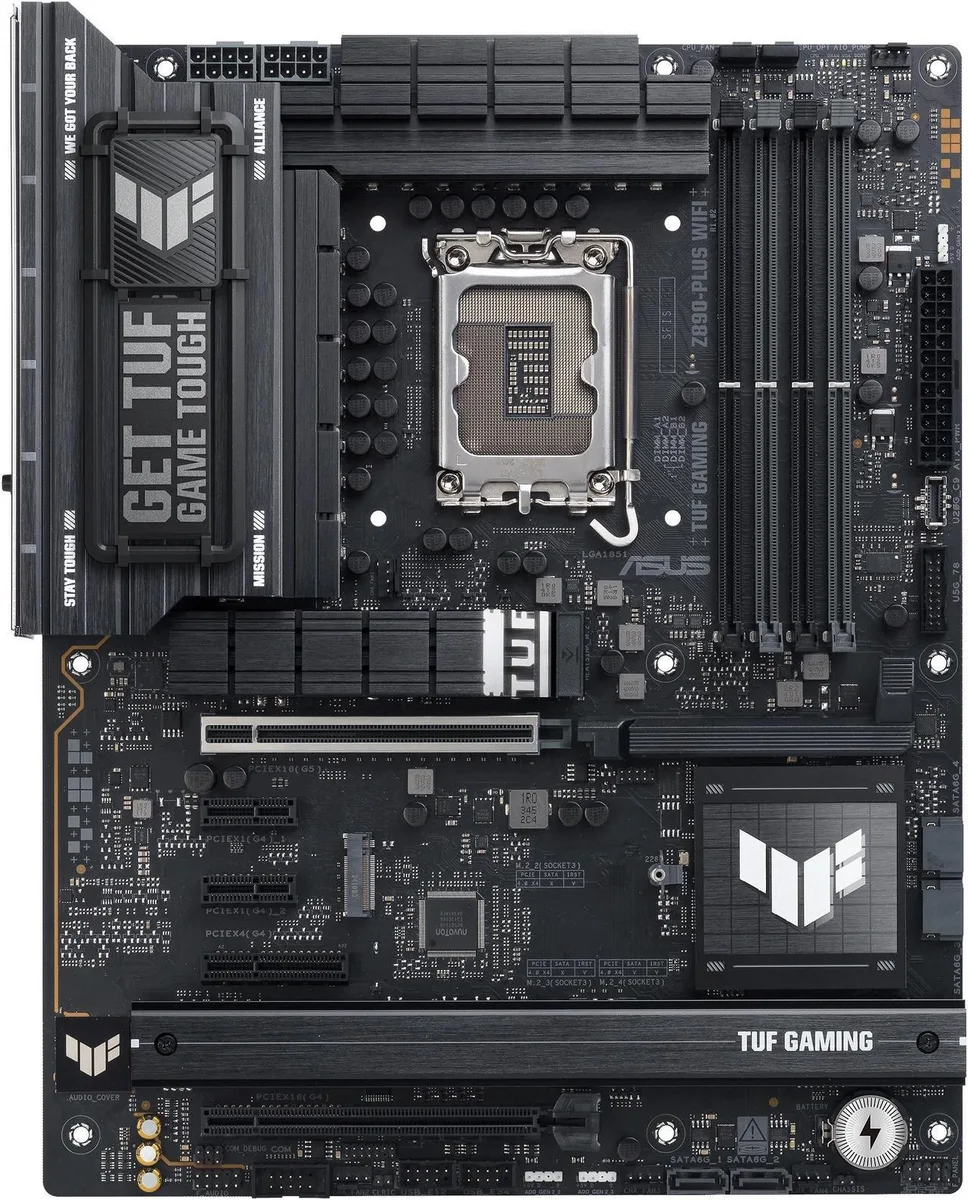

This combo pairs an ASUS TUF GAMING Z890-PLUS WIFI motherboard with an Intel Core Ultra 5 245K processor. The board uses the LGA 1851 socket and Intel Z890 chipset to support Core Ultra Series 2 CPUs. It targets builders who want a platform prepared for demanding AI workloads and high-speed connectivity.

PCIe 5.0 and DDR5 limits

The board provides one PCIe 5.0 x16 slot and one PCIe 4.0 x16 slot for graphics or add-in cards. Memory tops out at 256 GB across four DDR5 slots with dual-channel architecture and XMP support. Storage includes one PCIe 5.0 M.2 slot and three PCIe 4.0 M.2 slots, plus four SATA 6 Gb/s ports. Networking reaches 2.5 Gbps wired and Wi-Fi 7 wireless.

Robust power and thermal design

The 16+1+2+1 80 A DrMOS power stages, ProCool connectors, eight-layer PCB, alloy chokes and durable capacitors deliver stable power for the 125 W CPU. Large VRM heatsinks, dedicated M.2 and PCH heatsinks, and hybrid fan headers managed by Fan Xpert 4 with AI Cooling II keep temperatures in check. Connectivity adds a Thunderbolt 4 USB Type-C port, a front-panel USB 20 Gbps Type-C port and a Thunderbolt (USB4) header.

Points forts

  • Ready for advanced AI workloads with Intel Core Ultra 5 245K processor
  • Robust 16+1+2+1 80A DrMOS power stages deliver stable CPU power
  • Optimised thermal design with large VRM heatsinks and M.2 cooling
  • High-speed connectivity via Thunderbolt 4 USB Type-C and Wi-Fi 7
  • DDR5 memory support up to 9066 MT/s across four 288-pin slots

Caractéristiques

BrandASUS
ModelTUF GAMING Z890-PLUS WIFI+Ultra 5 245K
CPU Socket TypeLGA 1851
ChipsetIntel Z890
Number of Memory Slots4x288pin (DDR5)
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory FeatureSupport up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express 4.0 x161 x PCI Express 4.0 x16
Serial ATA (SATA)4 x SATA 6Gb/s
Audio Channels7.1 Channels
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 802.11 be
Windows 11Supported
Form FactorATX

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Which CPU is included in this combo?

The bundle contains the Intel Core Ultra 5 245K processor with 24MB L3 cache and 26MB L2 cache, built on a 3nm process with a 125W base power.

What memory speeds can I expect once the system is running?

The board supports DDR5 up to 9066 MT/s when overclocked via XMP or ASUS Enhanced Memory Profile II across four slots in dual-channel mode.

What does the Thunderbolt 4 Type-C port actually cap in practice?

The rear Thunderbolt 4 Type-C port delivers up to 20Gbps bandwidth for data and display, while a Thunderbolt USB4 header is also available for front-panel expansion.
