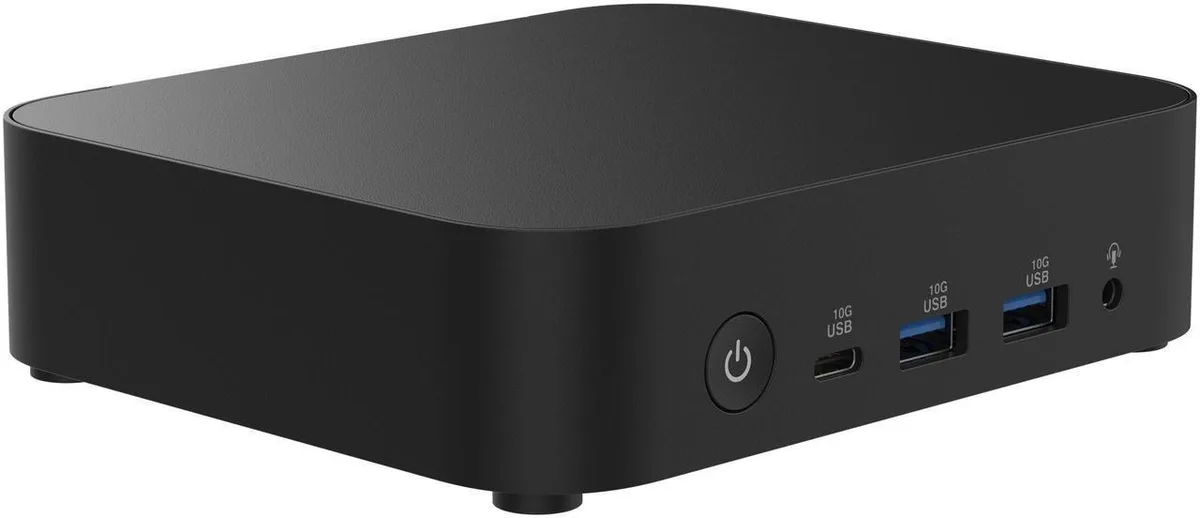

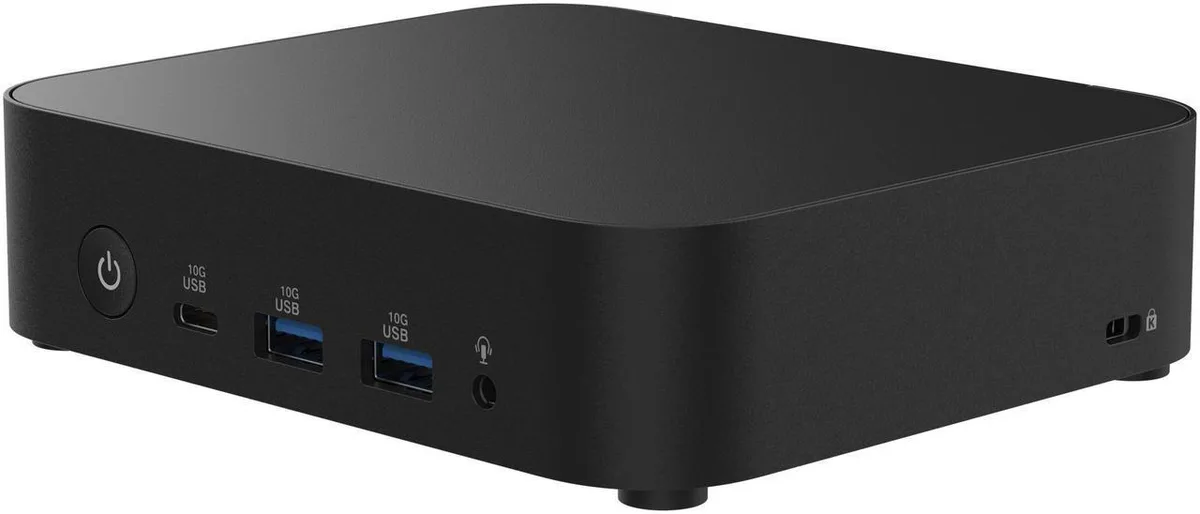

Small square black mini PC barebone with front ports and VESA mount holes

ASUS

ASUS RNUC14MNK1500000 barebone mini PC Intel N150

SKU CH-QV77-A8H97 MPN RNUC14MNK1500000

A compact barebone mini PC with an Intel N150 processor supporting DDR5 memory up to 16 GB, triple-display output via DisplayPort, HDMI and USB-C, a single M.2 slot for NVMe or SATA storage.

  • CPU TypeIntel N150 Processor 4 Cores / 4 Threads 3.60 GHz 6W TDP, 6
  • Memory installedNo Memory
  • Memory slot1 x 262Pin SO-DIMM
  • Memory Type SupportedDDR5 4800
  • Max Memory Supported16GB
  • Dual Channel Memory SupportedNo

Group 16GB RAM / 256GB SSD

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Intel N150 quad-core processor runs at 3.60 GHz with 6 MB cache
  • Single DDR5-4800 SO-DIMM slot supports up to 16 GB memory
  • M.2 2280 slot accepts PCIe 3.0 x4 or SATA SSDs from 128 GB to 4 TB
  • Triple display output via DisplayPort 1.4, HDMI and USB Type-C up to 4096×2160@60 Hz
  • 5 GbE LAN, Wi-Fi 6E AX211 and Bluetooth 5.3 for fast wired and wireless connectivity

ASUS NUC 14 Essential Intel N150 barebone

This barebone mini PC targets users who need a compact, low-power system for office work, digital signage or light home use. It ships without memory or storage so you choose the exact capacity required. The Intel N150 processor delivers four cores at up to 3.60 GHz with a 6 W TDP. Buyers who want a ready-to-run unit out of the box should look elsewhere.

Thermal performance and 6 W power envelope

The 6 W TDP keeps heat output low and allows quiet operation in small spaces. Integrated Intel UHD Graphics with 32 execution units at 1.25 GHz handles 4K output at 60 Hz across three displays. No discrete GPU is present so gaming or heavy 3D workloads are not practical. Fan noise stays minimal during typical productivity tasks.

Build integration: VESA mount

The 5.31 x 4.53 x 1.42 inch chassis includes a VESA bracket for monitor-back mounting. One 262-pin SO-DIMM slot accepts a single DDR5-4800 module up to 16 GB; dual-channel operation is not supported. One M.2 2280/2242 slot takes PCIe 3.0 x4 NVMe or SATA drives from 128 GB to 4 TB. Connectivity covers 2.5 GbE LAN, Wi-Fi 6E AX211 and Bluetooth 5.3. Builders needing a second memory slot or additional M.2 bays must choose a different platform.

Points forts

  • Intel N150 quad-core processor runs at 3.60 GHz with 6 MB cache
  • Single DDR5-4800 SO-DIMM slot supports up to 16 GB memory
  • M.2 2280 slot accepts PCIe 3.0 x4 or SATA SSDs from 128 GB to 4 TB
  • Triple display output via DisplayPort 1.4, HDMI and USB Type-C up to 4096×2160@60 Hz
  • 5 GbE LAN, Wi-Fi 6E AX211 and Bluetooth 5.3 for fast wired and wireless connectivity

Caractéristiques

BrandASUS
SeriesASUS NUC 14 Essential
ModelRNUC14MNK1500000
CPU TypeIntel N150 Processor 4 Cores / 4 Threads 3.60 GHz 6W TDP, 6 MB Intel Smart Cache
Memory installedNo Memory
Memory slot1 x 262Pin SO-DIMM
Memory Type SupportedDDR5 4800
Max Memory Supported16GB
Dual Channel Memory SupportedNo
Storage InstalledNo Hard Drive
M.2 Slot1 x M.2 2280/2242 PCIe Gen3x4 NVMe or SATA SSD (empty)
(M.2 SSD / supports 128GB ~ 4TB)
Discrete Graphic CardIntel UHD
Integrated GraphicsIntel Graphics
1.25 GHz
32 Execution Units
DisplayPort 1.4 Max Resolution: 4096x2160@60Hz
HDMI Max Resolution: 4096x2160@60Hz
Supports Triple Displays
Onboard AudioIntegrated
Channel7.1 Channel
LAN1 x Realtek RTL8125BG-CG (2.5 GbE)
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 6E AX211 (Gig+)
WiFi GenerationWi-Fi 6E
BluetoothBluetooth 5.3
Front USB1 x USB 3.2 Gen2 Type-C
2 x USB 3.2 Gen2 Type-A
Front Audio Ports1 x 3.5mm Headset Jack
HDMI1 x HDMI 2.1 (TMDS)
DisplayPort1 x DisplayPort 1.4
Rear USB1 x USB 3.2 Gen2 Type-C ?? DP 1.4
2 x USB 3.2 Gen 2 Type-A
1 x USB 2.0 Type-A
RJ451 x RJ45 LAN
Power Supply19V DC-IN
65W 19V AC-DC Adapter
Dimensions135 x 115 x 36mm
5.31" x 4.53" x 1.42" (in inches)
Weight2.05 lbs
PackagingVESA Screws / AC Power Adapter / Power Cord

Autres versions de ce modèle

2 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How do I install memory in the single SO-DIMM slot, and what mistake should I avoid?

Open the chassis, insert one DDR5-4800 SO-DIMM up to 16 GB into the 262-pin slot, and secure it; the common mistake is buying a second module because dual-channel is not supported.

What maintenance or replacement will the storage need later?

The M.2 2280/2242 slot accepts a PCIe 3.0 x4 NVMe or SATA SSD from 128 GB to 4 TB; plan to add or upgrade that drive when you need more capacity.

What limit appears first under sustained load with the 6 W TDP processor?

The Intel N150's 6 W TDP and passive thermal design mean clock speeds will throttle first during prolonged heavy workloads.
