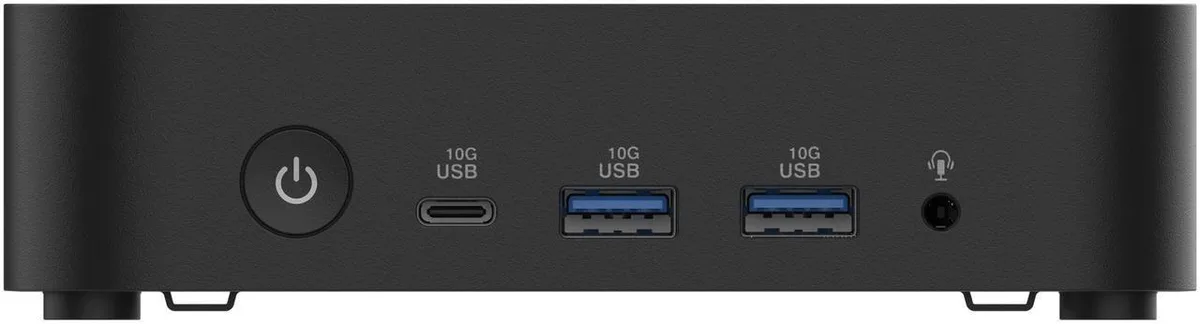

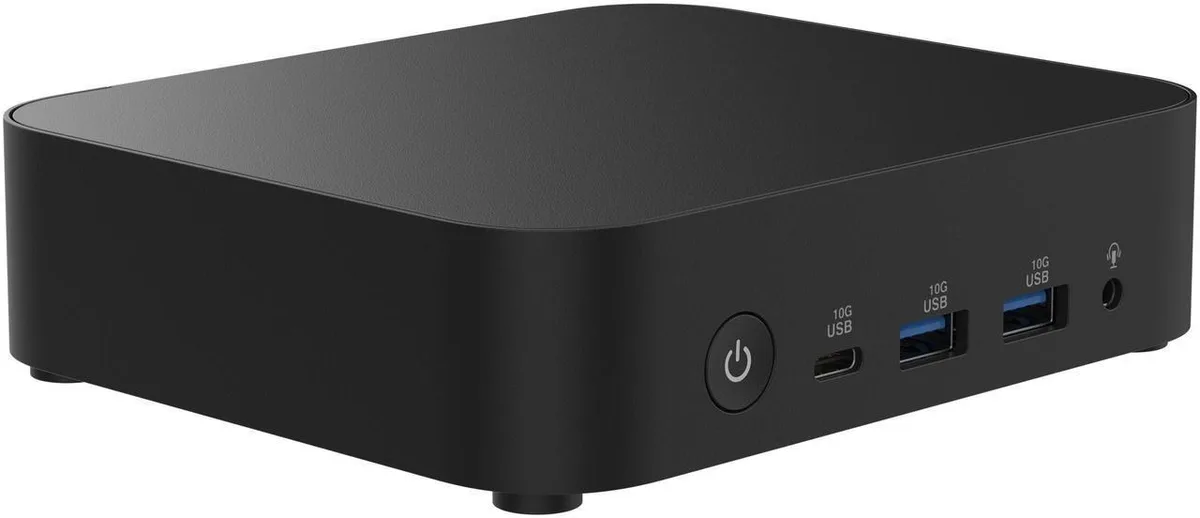

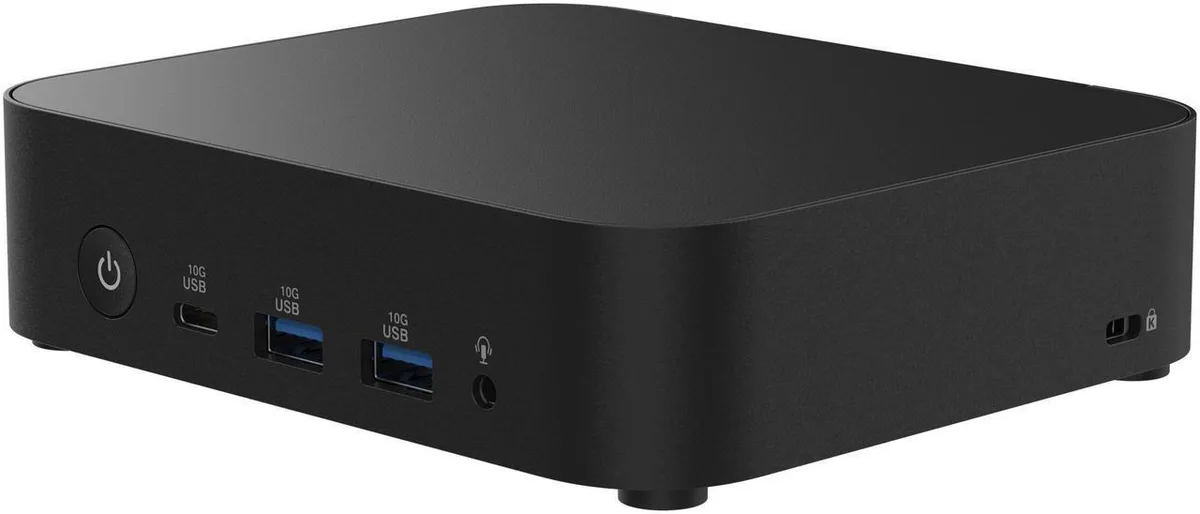

Small square mini PC in dark finish with VESA mount visible

ASUS

ASUS RNUC14MNK1500000 barebone mini PC Intel N150 512GB

SKU CH-S0Y9-TCNHT MPN RNUC14MNK1500000

Barebone mini PC with an Intel N150 processor supporting DDR5 memory up to 16 GB, a single M.2 slot for NVMe or SATA storage, triple-display output, 2.5 GbE LAN, Wi-Fi 6E and Bluetooth 5.3

  • CPU TypeIntel N150 Processor 4 Cores / 4 Threads 3.60 GHz 6W TDP, 6
  • Memory installedNo Memory
  • Memory slot1 x 262Pin SO-DIMM
  • Memory Type SupportedDDR5 4800
  • Max Memory Supported16GB
  • Dual Channel Memory SupportedNo

Group 16G RAN / 512G SSD

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Intel N150 processor with 4 cores at 3.60 GHz for efficient everyday computing
  • Supports up to 16 GB DDR5-4800 memory in a single SO-DIMM slot
  • Triple 4K display output via DisplayPort, HDMI and USB Type-C
  • M.2 2280 slot accepts PCIe 3.0 x4 NVMe or SATA SSDs from 128 GB to 4 TB
  • 5 GbE LAN, Wi-Fi 6E and Bluetooth 5.3 in a 5.31 x 4.53 x 1.42 inch chassis

Essential N150 barebone for compact builds

The ASUS NUC 14 Essential RNUC14MNK1500000 is a barebone mini PC built around the Intel N150 processor with four cores and four threads at 3.60 GHz. It targets system integrators and home users who want a 5.31 x 4.53 x 1.42 inch platform for office work, digital signage or light media playback. The chassis includes a VESA mount so it can disappear behind a display. No memory or storage is installed, leaving the final specification entirely to the builder.

Upgrade path from older NUCs or entry desktops

The N150 delivers 6 W TDP performance with 6 MB Smart Cache and Intel UHD graphics running at 1.25 GHz with 32 execution units. Builders moving from a dual-core Celeron or an earlier NUC kit gain triple-display support over DisplayPort 1.4, HDMI and USB Type-C, each capable of 4096 x 2160 at 60 Hz. The jump is worth it when a fanless-adjacent thermal envelope and 2.5 GbE wired networking are required without stepping up to a higher-power CPU.

Build requirements and expansion headroom

A single 262-pin SO-DIMM slot accepts DDR5-4800 up to 16 GB in single-channel mode, and one M.2 2280/2242 slot takes a PCIe 3.0 x4 NVMe or SATA drive from 128 GB to 4 TB. Wireless connectivity uses Wi-Fi 6E AX211 with Bluetooth 5.3, while audio outputs 7.1 channels through the integrated codec. The barebone ships without RAM or SSD, so the installer must supply both to complete a working system.

Points forts

  • Intel N150 processor with 4 cores at 3.60 GHz for efficient everyday computing
  • Supports up to 16 GB DDR5-4800 memory in a single SO-DIMM slot
  • Triple 4K display output via DisplayPort, HDMI and USB Type-C
  • M.2 2280 slot accepts PCIe 3.0 x4 NVMe or SATA SSDs from 128 GB to 4 TB
  • 5 GbE LAN, Wi-Fi 6E and Bluetooth 5.3 in a 5.31 x 4.53 x 1.42 inch chassis

Caractéristiques

BrandASUS
SeriesASUS NUC 14 Essential
ModelRNUC14MNK1500000
CPU TypeIntel N150 Processor 4 Cores / 4 Threads 3.60 GHz 6W TDP, 6 MB Intel Smart Cache
Memory installedNo Memory
Memory slot1 x 262Pin SO-DIMM
Memory Type SupportedDDR5 4800
Max Memory Supported16GB
Dual Channel Memory SupportedNo
Storage InstalledNo Hard Drive
M.2 Slot1 x M.2 2280/2242 PCIe Gen3x4 NVMe or SATA SSD (empty)
(M.2 SSD / supports 128GB ~ 4TB)
Discrete Graphic CardIntel UHD
Integrated GraphicsIntel Graphics
1.25 GHz
32 Execution Units
DisplayPort 1.4 Max Resolution: 4096x2160@60Hz
HDMI Max Resolution: 4096x2160@60Hz
Supports Triple Displays
Onboard AudioIntegrated
Channel7.1 Channel
LAN1 x Realtek RTL8125BG-CG (2.5 GbE)
Max LAN Speed2.5Gbps
Wireless LANWi-Fi 6E AX211 (Gig+)
WiFi GenerationWi-Fi 6E
BluetoothBluetooth 5.3
Front USB1 x USB 3.2 Gen2 Type-C
2 x USB 3.2 Gen2 Type-A
Front Audio Ports1 x 3.5mm Headset Jack
HDMI1 x HDMI 2.1 (TMDS)
DisplayPort1 x DisplayPort 1.4
Rear USB1 x USB 3.2 Gen2 Type-C ?? DP 1.4
2 x USB 3.2 Gen 2 Type-A
1 x USB 2.0 Type-A
RJ451 x RJ45 LAN
Power Supply19V DC-IN
65W 19V AC-DC Adapter
Dimensions135 x 115 x 36mm
5.31" x 4.53" x 1.42" (in inches)
Weight2.05 lbs
PackagingVESA Screws / AC Power Adapter / Power Cord

Autres versions de ce modèle

2 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What size SO-DIMM slot does the RNUC14MNK1500000 have for DDR5 memory?

It has one 262-pin SO-DIMM slot that accepts DDR5-4800 modules up to 16 GB in a single stick; dual-channel is not supported.

Which screw or standoff positions do I use when fitting an M.2 2280 drive in this barebone?

The M.2 2280/2242 slot supports PCIe 3.0 x4 NVMe or SATA SSDs; use the 2280 standoff already on the board and secure the drive with the supplied M2 screw.

Will the pre-installed Wi-Fi 6E AX211 module need a firmware update or replacement down the line?

The AX211 is soldered to the board and supports Wi-Fi 6E and Bluetooth 5.3; driver updates come through Windows Update, no hardware swap is required.
