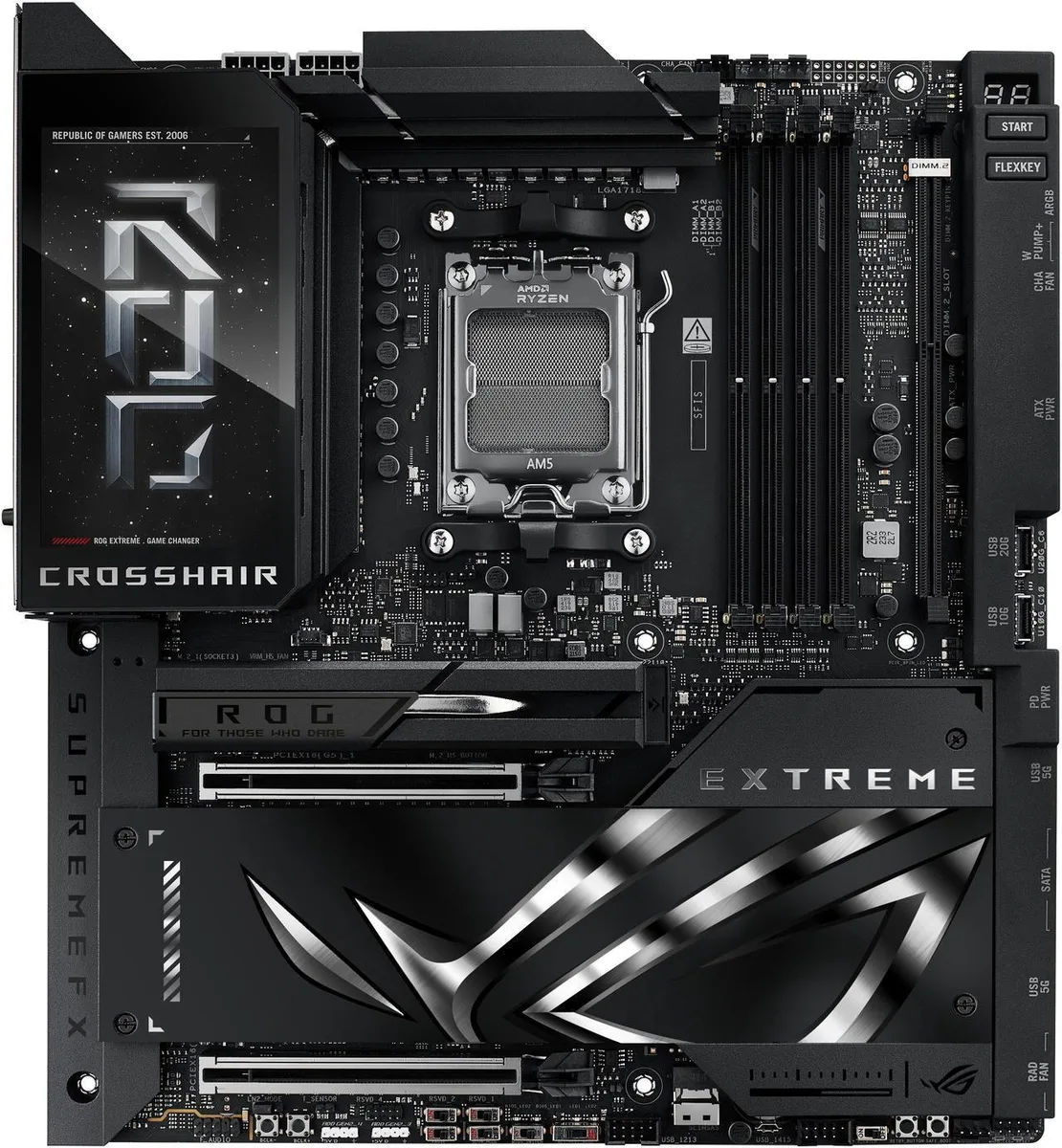

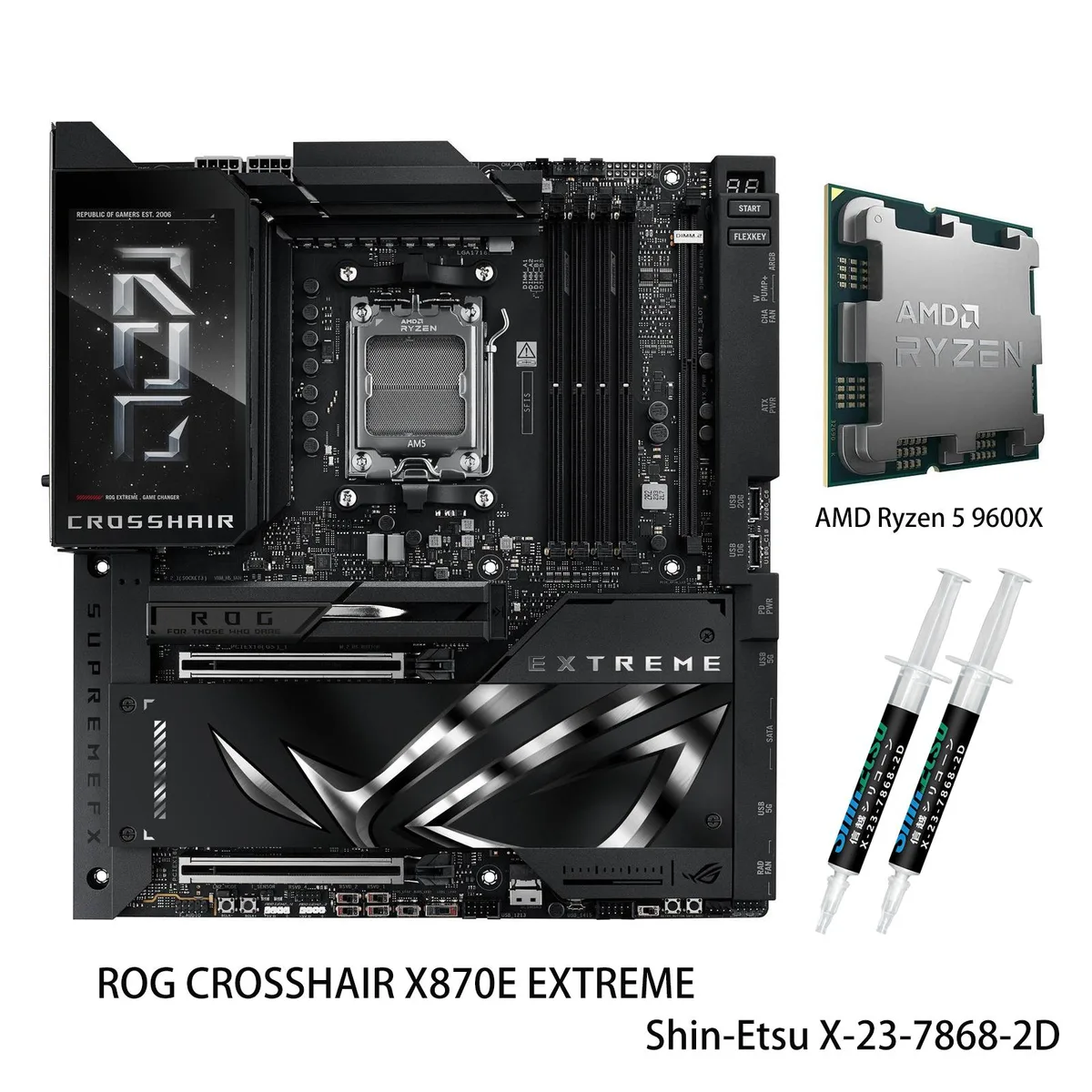

Large E-ATX motherboard with black heatsinks, integrated I/O shield and a five-inch LCD panel, plus a boxed Ryzen 5 9600X processor

ASUS

ASUS ROG CROSSHAIR X870E EXTREME+ AMD motherboard with Ryzen 5 9600X

SKU CH-B06X-Q1NYX

E-ATX motherboard and Ryzen 5 9600X combo with 20+2+2 power stages, DDR5, PCIe 5.0, 5x M.2, 5G and 10G LAN, Wi-Fi 7, USB4 Type-C and a 5" LCD

  • CPU Socket TypeAM5
  • CPU TypeSupports up to 8200+MT/s(OC) with Ryzen 9000 Series Processo
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel

model ROG CROSSHAIR X870E EXTREME

+CPU +Ryzen 5 9600X

  • Ready for advanced AI workloads with powerful connectivity
  • 20+2+2 power stages rated at 110A each for stable overclocking
  • Massive heatsinks with dual U-shaped heatpipes and a 3D VC M.2 cooler
  • Three PCIe 5.0 M.2 slots plus two PCIe 4.0 slots via Q-DIMM.2
  • AMD Ryzen 5 9600X CPU included, honoured at CES 2025

Ready for Advanced AI PCs

This motherboard and CPU combo pairs the ASUS ROG CROSSHAIR X870E EXTREME board with an AMD Ryzen 5 9600X processor. The AM5 socket supports Ryzen 9000, 8000 and 7000 series chips. It is built for enthusiasts who want a high-end platform for gaming and demanding AI workloads.

20+2+2 power stages and PCIe 5.0

The board delivers 20+2+2 power stages rated at 110A each, fed by ProCool II connectors. Four DDR5 slots accept up to 256GB in dual-channel mode with AEMP and NitroPath DRAM technology. Two PCIe 5.0 x16 slots with Q-Release Slim support x16 or x8/x8 configurations. Three onboard PCIe 5.0 M.2 slots and two PCIe 4.0 M.2 slots via Q-DIMM.2 provide extensive high-speed storage. Connectivity includes 5G and 10G LAN, Wi-Fi 7 and USB4 Type-C.

Enthusiasts needing maximum connectivity

This combo suits builders who want AI overclocking, AI cooling and AI networking features plus a 5-inch LCD dashboard. Users planning a compact ITX build or who only need basic I/O should consider a smaller, less feature-dense board.

Points forts

  • Ready for advanced AI workloads with powerful connectivity
  • 20+2+2 power stages rated at 110A each for stable overclocking
  • Massive heatsinks with dual U-shaped heatpipes and a 3D VC M.2 cooler
  • Three PCIe 5.0 M.2 slots plus two PCIe 4.0 slots via Q-DIMM.2
  • AMD Ryzen 5 9600X CPU included, honoured at CES 2025

Caractéristiques

BrandASUS
SeriesROG
ModelROG CROSSHAIR X870E EXTREME+(R5 9600X)
CPU Socket TypeAM5
CPU TypeSupports up to
8200+MT/s(OC) with Ryzen 9000 Series Processors
8600+MT/s(OC) with Ryzen 8000 Series Processors
8000+MT/s(OC) with Ryzen 7000 Series Processors
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedNon-ECC
Memory FeatureASUS Enhanced Memory Profile (AEMP)
NitroPath DRAM Technology
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors*
2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***)
** When you use both PCIEX16(G5)_1 and PCIEX16(G5)_2, PCIEX16(G5)_1 and PCIEX16(G5)_2 will run x8.
***When M.2_3 is enabled, PCIEX16(G5)_1 will run x8, and PCIEX16(G5)_2 will run x4.
**** When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16(G5)_2 will be disabled.
PCI Express 4.0 x16AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors*
2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16(G5)_1 & total bandwidth for x8, PCIEx16(G5)_2 will be disabled)
AMD Ryzen 8500 & 8300 Series Desktop Processors*
2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16(G5)_1 & total bandwidth for x4, PCIEx16(G5)_2 will be disabled)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)*
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (Not supports)
AMD X870E Chipset
DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (su
SATA RAID0/1/5/10
Audio ChannelsAudio Features
- SupremeFX Shielding Technology
- ESS ES9219 QUAD DAC
- LED-illuminated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
LAN Chipset1 x Realtek 5Gb Ethernet
Second LAN Chipset1 x Marvell AQtion 10Gb Ethernet
Max LAN Speed10Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports2 x USB4 (40Gbps) ports (2 x USB Type-C)
10 x USB 10Gbps ports (8 x Type-A + 2 x USB Type-C)
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 5Gb Ethernet port
1 x Marvell AQtion 10Gb Ethernet port
2 x LED-illuminated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 10Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
2 x 4-pin Radiator Fan headers
2 x W_PUMP+ headers
1 x VRM Heatsink Fan header
Miscellaneous
1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers
2 x Addressable Gen 2 header
1 x Alteration PCIe mode switch
2 x BCLK button
1 x BIOS Switch
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x LN2 Mode jumper
12 x ProbeIt Measurement Points
1 x ReTry button
2 x RSVD switchs
1 x RSVD header
1 x Safe Boot button
1 x Slow Mode switch
1 x Start button
1 x 10-1 pin Sy
Form FactorExtended ATX
Dimensions (W x L)12.0" x 10.9"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
1 x 8-pin PCIe Power connector
BIOS Feature2 x 256 Mb Flash ROM, UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
- Internet Security (1-year full version)
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (1 year full version)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- HWiNFO
- Power Saving
- LCD Display
ASUS AI Advisor
ASUS DriverHub
Turbo Vcore
ASUS GlideX
USB Wattage Watcher
WinRAR (40 Days Free Trial)
Adobe Creative Cloud (Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey
Windows 11Supported
FeaturesExtreme OC Kit
- FlexKey button
- LN2 Mode
- ProbeIt
- ReTry button
- Safe boot button
- Start button
- Slow Mode
Extreme Engine Digi+
- 10K Black Metallic Capacitors
- MicroFine Alloy Choke
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-Connector
- Q-Dashboard
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
- Q-DIMM.2
ASUS Thermal Solution
- Fan bracket
- M.2 heatsink backplate
- M.2 heatsink
- Metal backplate
- VRM heatsink design
- 3D VC M.2 Heatsink
ASUS EZ DIY
- Backpla

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

At what DDR5 speed does the board cap out when I push the Ryzen 5 9600X memory controller?

The board supports DDR5 up to 8200 MT/s overclocked with Ryzen 9000 series processors, which includes the included Ryzen 5 9600X.

How hot and loud does the VRM area get when the 20+2+2 110 A power stages run all day?

Massive heatsinks fused to the I/O cover, twin U-shaped heatpipes and high-conductivity pads move heat away from the 20+2+2 110 A stages, while AI Cooling II adjusts fan curves to keep noise low under sustained load.

Which DDR5 kits do I need to have on hand before this combo will post?

Four 288-pin DDR5 modules are required; the board runs dual-channel up to 256 GB and supports ASUS Enhanced Memory Profile and NitroPath DRAM Technology for easier tuning.
