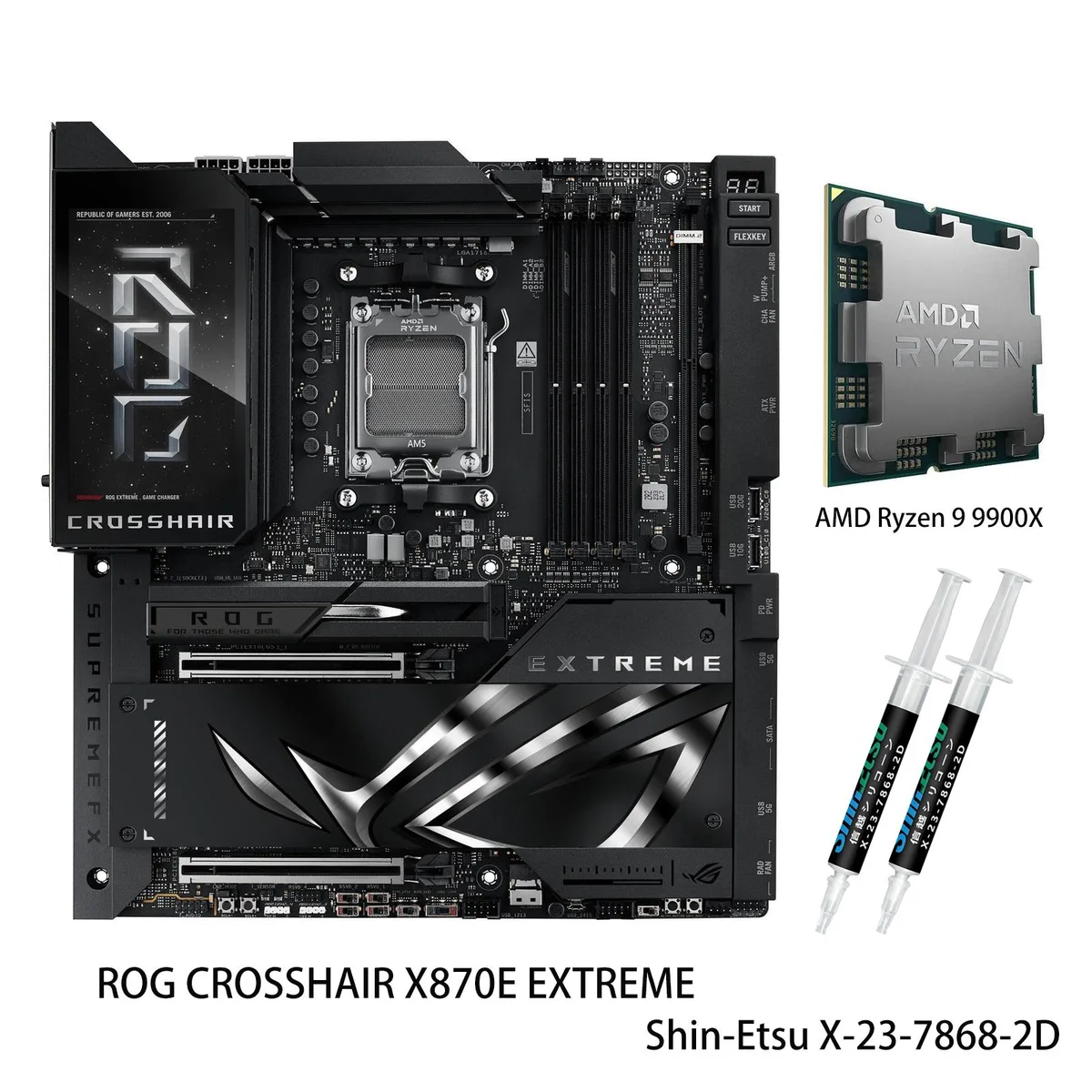

ASUS ROG Crosshair X870E Extreme motherboard with Ryzen 9 9900X CPU installed, dark finish with large heatsinks and 5 inch LCD display

ASUS

ASUS ROG CROSSHAIR X870E EXTREME+ AMD motherboard with Ryzen 9 9900X

SKU CH-3Q74-WG9YD

E-ATX AMD motherboard with 20+2+2 power stages, 256 GB DDR5, five M.2 slots, 5G and 10G LAN, Wi-Fi 7, USB4 and a 5-inch LCD, bundled with a 12-core 24-thread Ryzen 9 9900X CPU

  • CPU Socket TypeAM5
  • CPU TypeSupports up to 8200+MT/s(OC) with Ryzen 9000 Series Processo
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel

model ROG CROSSHAIR X870E EXTREME

+CPU +Ryzen 9 9900X

  • Ready for advanced AI workloads with high-speed connectivity
  • 12 cores and 24 threads at up to 5.6 GHz boost
  • 20+2+2 power stages rated at 110 A each
  • Three PCIe 5.0 M.2 slots plus two PCIe 4.0 M.2 slots
  • Dual 5 Gb and 10 Gb Ethernet with Wi-Fi 7

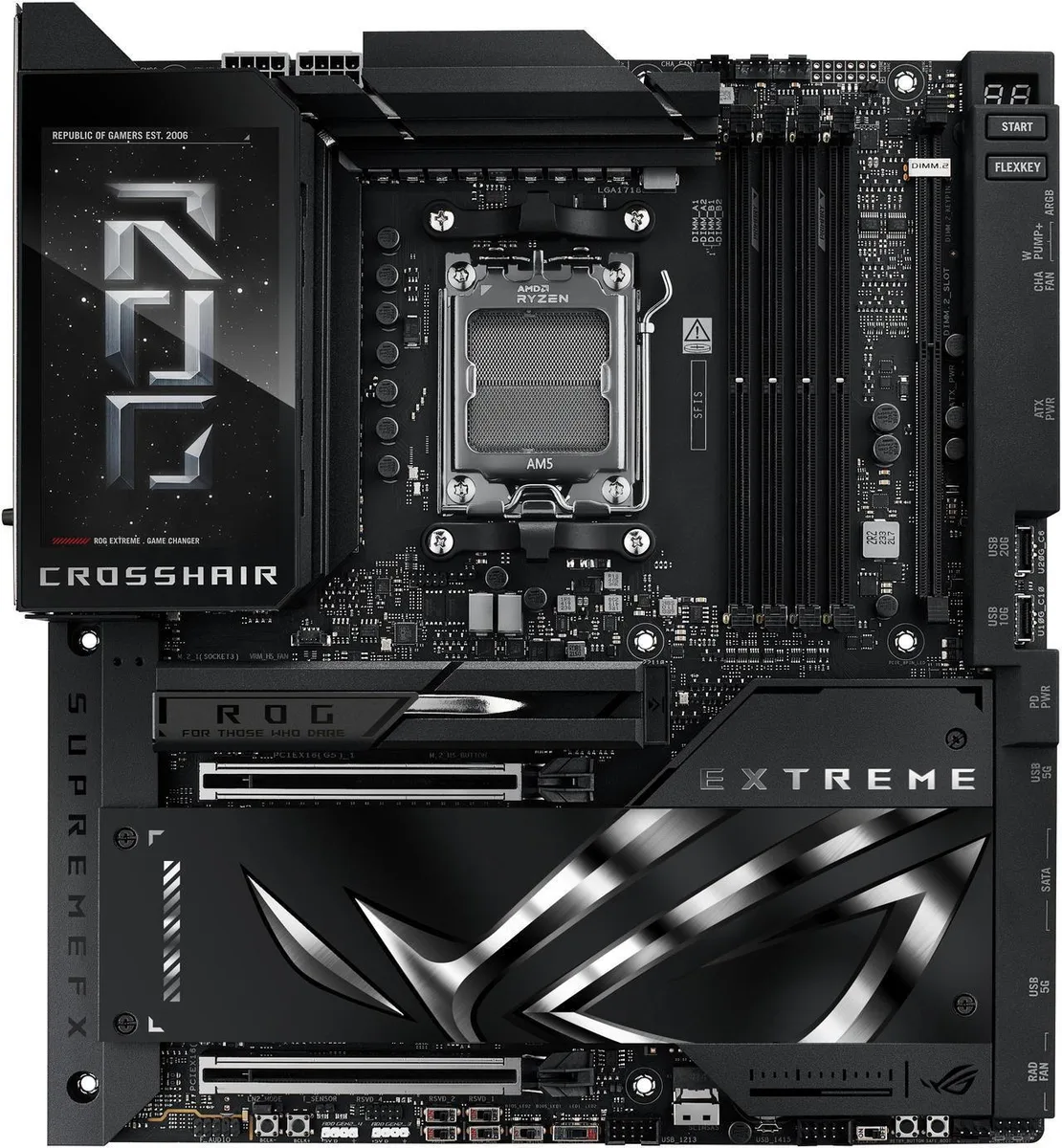

ASUS ROG X870E EXTREME+ with Ryzen 9 9900X combo

This product bundles an ASUS ROG CROSSHAIR X870E EXTREME+ motherboard with an AMD Ryzen 9 9900X processor. The board uses the AMD X870E chipset and AM5 socket. The CPU delivers 12 cores and 24 threads based on Zen 5 architecture with a 5.6 GHz max boost. It targets builders who want a matched high-end platform for advanced AI computing and heavy multitasking.

Suits enthusiasts building AI workstations

The combination provides 20+2+2 power stages rated at 110A, PCIe 5.0 support for graphics and storage, 10Gbps and 5Gbps Ethernet, Wi-Fi 7 and USB4 Type-C. Builders needing only mainstream performance or a smaller form factor should consider a less feature-dense board and a lower-tier processor.

256GB DDR5 limit across four 288-pin slots

The motherboard supports up to 256GB of DDR5 memory in a dual-channel configuration with AEMP and NitroPath DRAM Technology. This capacity ceiling determines whether the platform can handle the largest datasets and simulation workloads without paging to storage.

Points forts

  • Ready for advanced AI workloads with high-speed connectivity
  • 12 cores and 24 threads at up to 5.6 GHz boost
  • 20+2+2 power stages rated at 110 A each
  • Three PCIe 5.0 M.2 slots plus two PCIe 4.0 M.2 slots
  • Dual 5 Gb and 10 Gb Ethernet with Wi-Fi 7

Caractéristiques

BrandASUS
SeriesROG
ModelROG CROSSHAIR X870E EXTREME+(R9 9900X)
CPU Socket TypeAM5
CPU TypeSupports up to
8200+MT/s(OC) with Ryzen 9000 Series Processors
8600+MT/s(OC) with Ryzen 8000 Series Processors
8000+MT/s(OC) with Ryzen 7000 Series Processors
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedNon-ECC
Memory FeatureASUS Enhanced Memory Profile (AEMP)
NitroPath DRAM Technology
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors*
2 x PCIe 5.0 x16 slots with Q-Release Slim (supports x16 or x8/x8** or x8/x4/x4 modes***)
** When you use both PCIEX16(G5)_1 and PCIEX16(G5)_2, PCIEX16(G5)_1 and PCIEX16(G5)_2 will run x8.
***When M.2_3 is enabled, PCIEX16(G5)_1 will run x8, and PCIEX16(G5)_2 will run x4.
**** When M.2_2 and M.2_3 are enabled simultaneously, PCIEX16(G5)_2 will be disabled.
PCI Express 4.0 x16AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors*
2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16(G5)_1 & total bandwidth for x8, PCIEx16(G5)_2 will be disabled)
AMD Ryzen 8500 & 8300 Series Desktop Processors*
2 x PCIe 4.0 x16 slots with Q-Release Slim (only supports PCIEx16(G5)_1 & total bandwidth for x4, PCIEx16(G5)_2 will be disabled)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)*
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)**
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (Not supports)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (Not supports)
AMD X870E Chipset
DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (su
SATA RAID0/1/5/10
Audio ChannelsAudio Features
- SupremeFX Shielding Technology
- ESS ES9219 QUAD DAC
- LED-illuminated audio jacks
- Rear optical S/PDIF out port
- Premium audio capacitors
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
** The LINE OUT port on the rear panel does not support spatial audio. If you wish to use spatial audio, make sure to connect your audio output device to the audio jack on the front panel of your chassis or use a USB interface audio device.
LAN Chipset1 x Realtek 5Gb Ethernet
Second LAN Chipset1 x Marvell AQtion 10Gb Ethernet
Max LAN Speed10Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports2 x USB4 (40Gbps) ports (2 x USB Type-C)
10 x USB 10Gbps ports (8 x Type-A + 2 x USB Type-C)
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 5Gb Ethernet port
1 x Marvell AQtion 10Gb Ethernet port
2 x LED-illuminated audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 10Gbps connector (supports USB Type-C)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
2 x 4-pin Chassis Fan headers
2 x 4-pin Radiator Fan headers
2 x W_PUMP+ headers
1 x VRM Heatsink Fan header
Miscellaneous
1 x 6-pin ARGB Gen 2 header to support 2 x ARGB Gen 2 headers
2 x Addressable Gen 2 header
1 x Alteration PCIe mode switch
2 x BCLK button
1 x BIOS Switch
1 x FlexKey button
1 x Front Panel Audio header (F_AUDIO)
1 x LN2 Mode jumper
12 x ProbeIt Measurement Points
1 x ReTry button
2 x RSVD switchs
1 x RSVD header
1 x Safe Boot button
1 x Slow Mode switch
1 x Start button
1 x 10-1 pin Sy
Form FactorExtended ATX
Dimensions (W x L)12.0" x 10.9"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
1 x 8-pin PCIe Power connector
BIOS Feature2 x 256 Mb Flash ROM, UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
- Internet Security (1-year full version)
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (1 year full version)
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
- HWiNFO
- Power Saving
- LCD Display
ASUS AI Advisor
ASUS DriverHub
Turbo Vcore
ASUS GlideX
USB Wattage Watcher
WinRAR (40 Days Free Trial)
Adobe Creative Cloud (Free Trial)
UEFI BIOS
AI Overclocking Guide
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey
Windows 11Supported
FeaturesExtreme OC Kit
- FlexKey button
- LN2 Mode
- ProbeIt
- ReTry button
- Safe boot button
- Start button
- Slow Mode
Extreme Engine Digi+
- 10K Black Metallic Capacitors
- MicroFine Alloy Choke
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- M.2 Q-Slide
- Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Code
- Q-Connector
- Q-Dashboard
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
- Q-DIMM.2
ASUS Thermal Solution
- Fan bracket
- M.2 heatsink backplate
- M.2 heatsink
- Metal backplate
- VRM heatsink design
- 3D VC M.2 Heatsink
ASUS EZ DIY
- Backpla

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Will the 5.6 GHz boost clock hold under an all-core load without manual tuning?

The board includes AI Overclocking, Dynamic OC Switcher and Core Flex, which adjust voltage and frequency automatically based on real-time telemetry.

Can I run four DDR5 modules at 8200 MT/s with the Ryzen 9 9900X installed?

The memory controller is rated for 8200+ MT/s OC with Ryzen 9000 series; four-slot stability at that speed depends on the specific kit and cooling.

Does the 3D VC heatsink cover every PCIe 5.0 M.2 slot or only the primary one?

The 3D vapor-chamber heatsink is fitted to one PCIe 5.0 M.2 slot; the other two PCIe 5.0 slots use separate substantial heatsinks.
