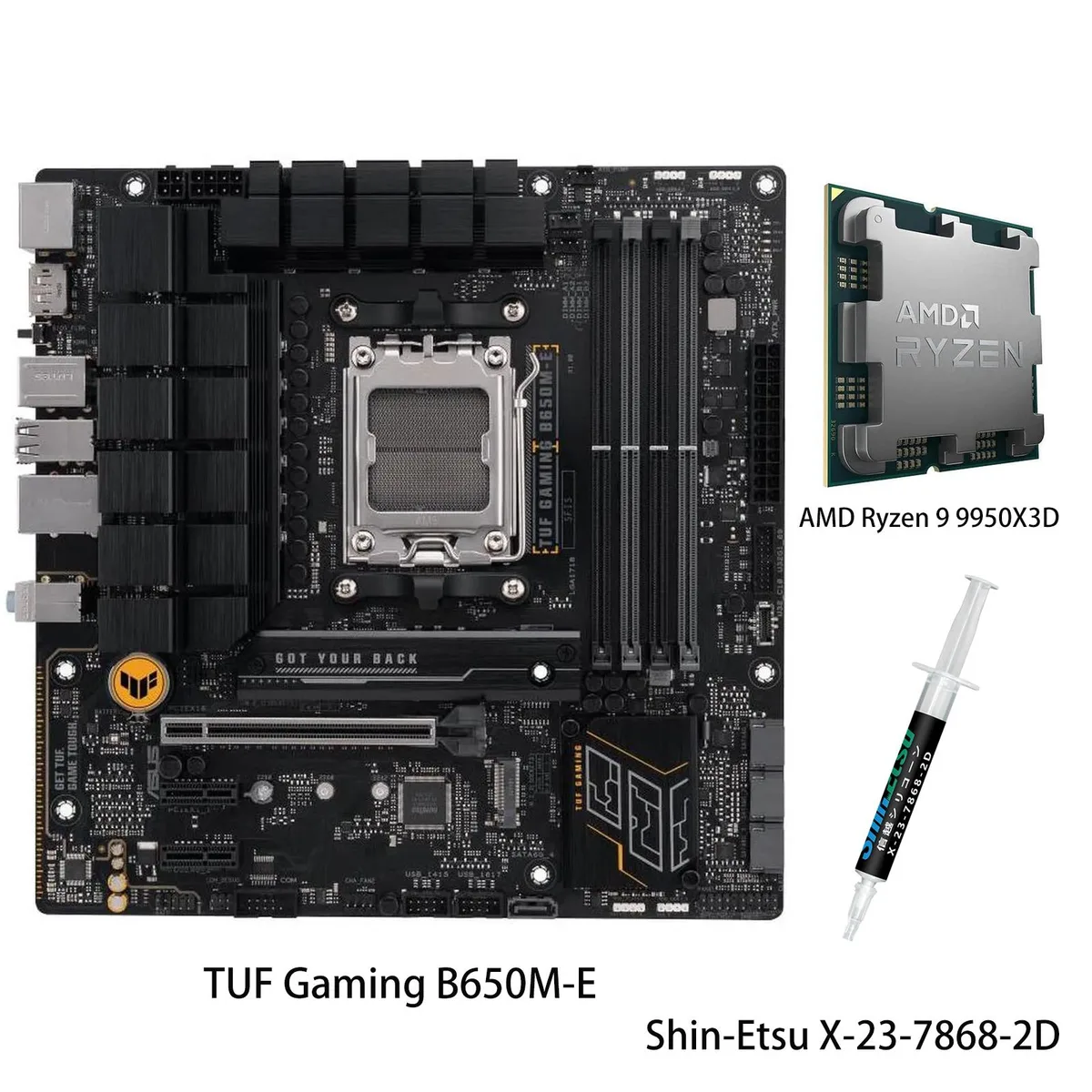

Micro-ATX motherboard with pre-mounted I/O shield, M.2 heatsinks and RGB lighting plus boxed Ryzen 9 9950X3D CPU

ASUS

ASUS TUF Gaming B650M-E + Ryzen 9 9950X3D Combo AMD Motherboard

SKU CH-4P7H-MBDX8

Combines a B650 micro-ATX board with DDR5 support up to 192 GB, PCIe 5.0 M.2, 2.5 Gb Ethernet and AI noise cancellation with a 16-core Ryzen 9 9950X3D CPU featuring 128 MB L3 cache and Radeon graphics

  • CPU Socket TypeAM5

Motherboard TUF Gaming B650M-E

CPU + R9 9950X3D

  • Ready for next-gen builds with AMD AM5 socket and DDR5 support up to 192GB
  • Ultra-fast storage via PCIe 5.0 M.2 slots and four SATA 6Gb/s ports
  • Comprehensive connectivity including USB 3.2 Gen 2 Type-A and Type-C plus front-panel USB-C header
  • Superior cooling with dedicated M.2 heatsinks and extensive fan headers for thermal control
  • Powerful Ryzen 9 9950X3D CPU with 128MB L3 cache, 16MB L2 cache and integrated Radeon graphics

Ready-to-build AM5 platform

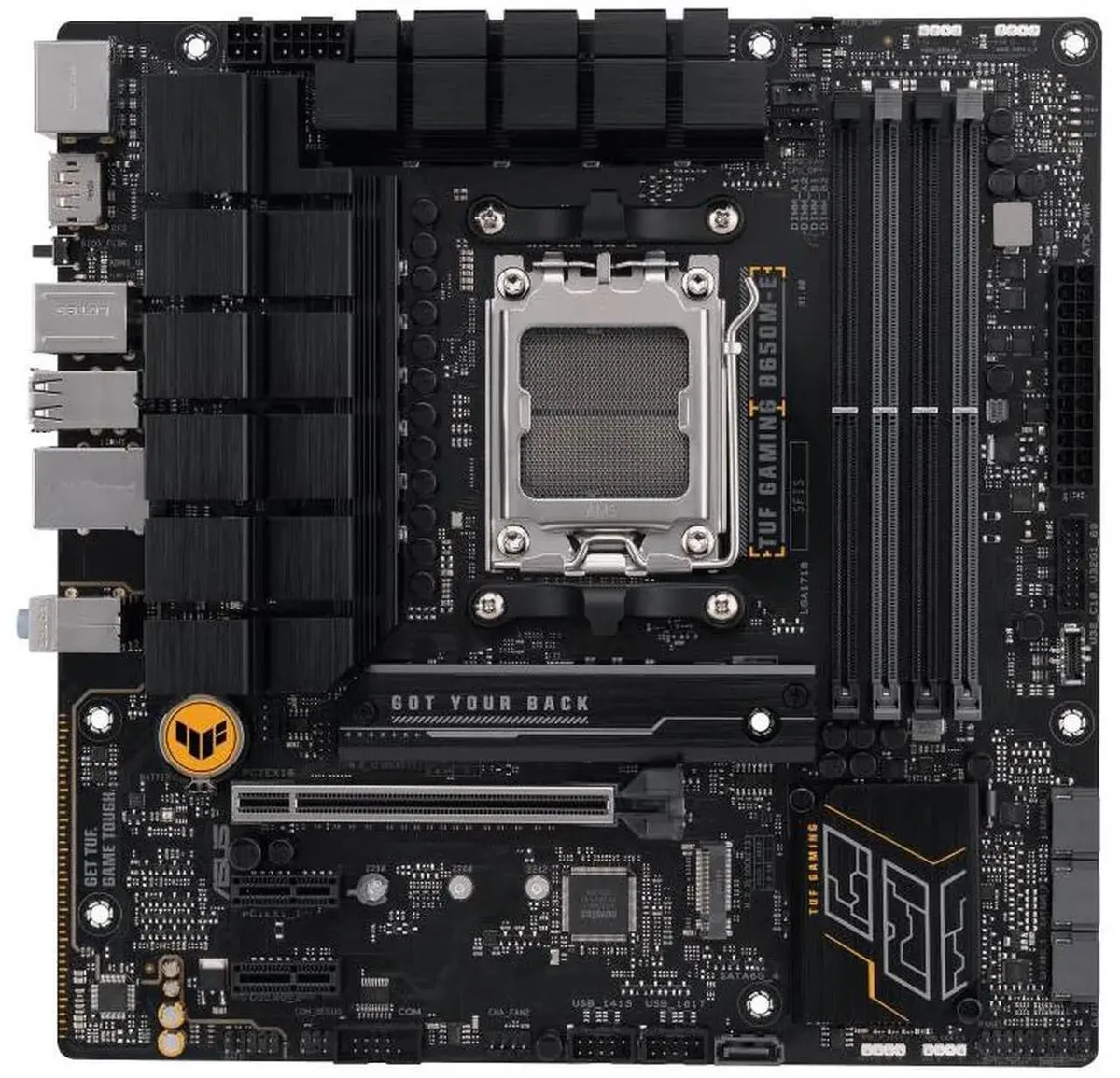

This combo pairs the ASUS TUF Gaming B650M-E motherboard with the AMD Ryzen 9 9950X3D processor for an AM5 system that ships fully matched. The board provides four DDR5 slots supporting up to 192GB of memory with AMD EXPO profiles. Storage options include PCIe 5.0 M.2 slots and four SATA 6Gb/s ports. Rear I/O delivers USB 3.2 Gen 2 Type-A and Type-C, plus a front-panel USB-C header. A pre-mounted I/O shield, BIOS FlashBack button and Q-Latch simplify assembly.

Thermals and power in daily use

The 170W Zen 5 CPU runs alongside dedicated M.2 heatsinks and extensive fan headers that keep component temperatures steady during typical workloads. Two-Way AI Noise Cancelation cleans microphone and incoming audio without adding acoustic load. Power delivery is tuned for the socket’s 170W baseline, so the VRM area remains composed when the 16-core processor handles background tasks, office apps or light content creation.

Sustained load behaviour

Under prolonged multi-threaded pressure the 128MB L3 cache and 16MB L2 cache help the 16 cores maintain throughput while the board’s cooling layout disperses heat across the VRM and M.2 zones. Comprehensive fan headers allow curve tuning so airflow scales with demand rather than spiking. Integrated Radeon graphics provide a display output if a discrete GPU is absent or fails, keeping the system usable during extended compute runs.

Points forts

  • Ready for next-gen builds with AMD AM5 socket and DDR5 support up to 192GB
  • Ultra-fast storage via PCIe 5.0 M.2 slots and four SATA 6Gb/s ports
  • Comprehensive connectivity including USB 3.2 Gen 2 Type-A and Type-C plus front-panel USB-C header
  • Superior cooling with dedicated M.2 heatsinks and extensive fan headers for thermal control
  • Powerful Ryzen 9 9950X3D CPU with 128MB L3 cache, 16MB L2 cache and integrated Radeon graphics

Caractéristiques

BrandASUS
ModelTUF Gaming B650M-E+R9 9950X3D
CPU Socket TypeAM5

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How do I install the CPU into the AM5 socket without bending pins?

Align the gold triangle on the Ryzen 9 9950X3D with the socket corner, lower it gently without force, then secure the retention arm. The motherboard ships with a pre-mounted I/O shield so you can skip that step.

Will the M.2 heatsinks need to be removed for SSD upgrades later?

The dedicated M.2 heatsinks use a Q-Latch mechanism for tool-free removal. Lift the latch, swap the NVMe drive, then snap the latch back down. No screws or thermal pad replacement is required unless the pad is damaged.

At what power draw does the CPU hit its thermal ceiling under sustained load?

The Ryzen 9 9950X3D is rated at 170W TDP. Under continuous all-core workloads the package power will approach that figure first, so a cooler rated for at least 170W dissipation is needed to avoid throttling.
