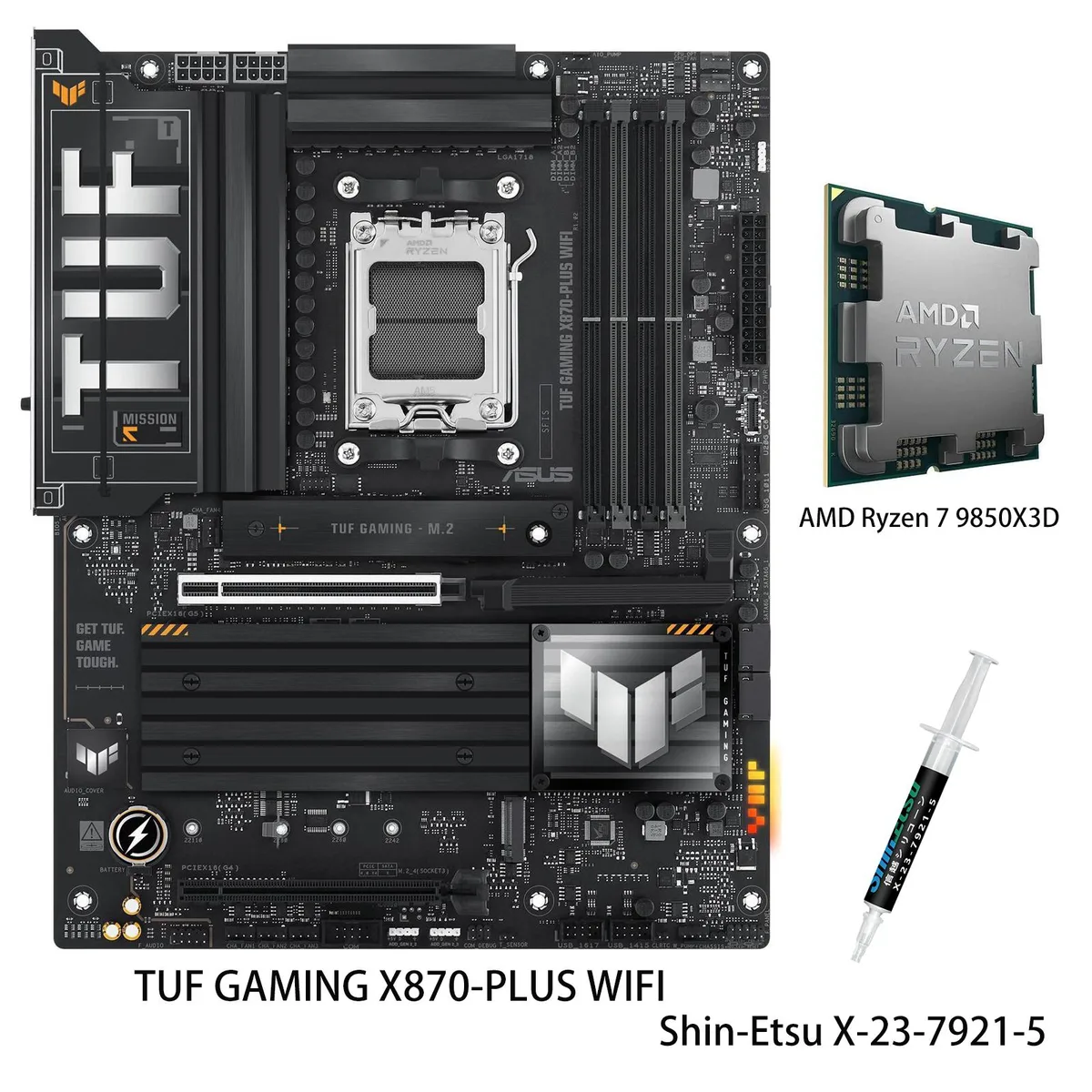

ATX motherboard with large grey heatsinks and AM5 CPU installed

ASUS

ASUS TUF GAMING X870-PLUS WIFI AM5 ATX AMD Motherboard & Ryzen 7 9850X3D CPU Combo

SKU CH-V5MR-T4XAS

Combo pairs an AM5 ATX board with a Ryzen 7 9850X3D CPU, offering DDR5 4400 support to 256GB, 16+2+1 80A power stages, dual PCIe 5.0 and dual PCIe 4.0 M.2 slots, WiFi 7, 2.5Gb LAN.

  • ChipsetAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 4400
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel
  • ECC SupportedYes

model TUF GAMING X870-PLUS WIFI

+CPU + Ryzen 7 9850X3D

  • Ready for advanced AI workloads with X870 chipset and Ryzen 7 9850X3D CPU
  • Stable power delivery via 16+2+1 80A SPS stages and 8-layer PCB
  • Simplified tuning using AI Overclocking AI Cooling II and AEMP profiles
  • High-speed storage from two PCIe 5.0 M.2 slots plus two PCIe 4.0 M.2 slots
  • Ultrafast connectivity with WiFi 7 2.5Gb LAN dual USB4 40Gbps and front USB 20Gbps 30W PD

Combo platform for Ryzen 9000 and 7000

The bundle pairs an ASUS TUF GAMING X870-PLUS WIFI motherboard with an AMD Ryzen 7 9850X3D processor. The board uses the AMD X870 chipset and AM5 socket, supporting Ryzen 9000, 8000 and 7000 series CPUs. Four DDR5 slots accept up to 256 GB of memory at 4400 MT/s with EXPO and AEMP profiles. The 8-core, 16-thread CPU reaches 5.6 GHz and uses second-generation 3D V-Cache for lower latency in games.

16+2+1 80A power stages on 8-layer PCB

ProCool connectors, alloy chokes and durable capacitors deliver stable current to the CPU. Two PCIe 5.0 M.2 slots and two PCIe 4.0 M.2 slots all carry large heatsinks. Rear I/O includes dual USB4 40 Gbps Type-C ports, three USB 10 Gbps Type-A ports, four USB 5 Gbps Type-A ports, one USB 2.0 port, HDMI, Realtek 2.5 Gb Ethernet, Wi-Fi 7 and 7.1-channel audio via Realtek ALC1220P. Front-panel headers add a USB 20 Gbps Type-C connector with 30 W power delivery, plus multiple fan and addressable Gen 2 headers.

Replaces older AM4 or early AM5 builds

The jump is worthwhile when you need PCIe 5.0 graphics and storage bandwidth, DDR5 capacity up to 256 GB, and the gaming latency gains of 3D V-Cache on Zen 5. Wi-Fi 7 and dual USB4 40 Gbps ports modernise peripheral and network connectivity. The robust 80 A power design and AI Overclocking, AI Cooling II and PBO Enhancement tools simplify pushing the platform further.

Points forts

  • Ready for advanced AI workloads with X870 chipset and Ryzen 7 9850X3D CPU
  • Stable power delivery via 16+2+1 80A SPS stages and 8-layer PCB
  • Simplified tuning using AI Overclocking AI Cooling II and AEMP profiles
  • High-speed storage from two PCIe 5.0 M.2 slots plus two PCIe 4.0 M.2 slots
  • Ultrafast connectivity with WiFi 7 2.5Gb LAN dual USB4 40Gbps and front USB 20Gbps 30W PD

Caractéristiques

BrandASUS
ModelTUF GAMING X870-PLUS WIFI+R7 9850X3D
ChipsetAMD X870
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4400
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedYes
Buffer SupportedUn-buffered
Memory FeatureDual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
PCI Express 4.0 x16AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
M.2AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)**
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot not support
AMD X870 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)***
** The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs.
*** The PCIEX16(G4) shares bandwidth with M.2_4.
SATA RAID* AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Funciton is only supportted by AMD Ryzen 9000 series CPU.
Audio ChipsetRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192
Audio Channels7.1 Channels
Back I/O Ports2 x USB4 (40Gbps) (2 x USB Type-C)
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
1 x USB 2.0 port (1 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD Fast-charge )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
1 x W_PUMP+ header
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin System Panel header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
Windows 11Supported
FeaturesASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with SPS)
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Front Panel USB 20Gbps with PD Fast Charge Support
- Support: u
Package Contents1 x AMD Ryzen 7 9850X3D CPU
1 x Shin-Etsu X-23-7921-5 (1.8g)
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
2 x M.2 rubber packages
1 x Screw package for M.2 SSD
1 x TUF GAMING sticker
Documentation
1 x TUF certification card
1 x Quick start guide

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What PCIe standard does the primary M.2 slot use and what speed does it cap at?

The M.2_1 slot runs on PCIe 5.0 x4, so the drive tops out at PCIe 5.0 speeds.

What clearance do the M.2 heatsinks need above the board?

The board includes massive heatsinks on the two PCIe 5.0 M.2 slots and two PCIe 4.0 slots, so allow enough vertical space in the case for those covers.

How is the CPU installed and which step is often missed?

Drop the Ryzen 7 9850X3D into the AM5 socket, align the triangle markers, lower the retention arm, then apply thermal paste and mount the cooler — forgetting to remove the socket cover is the common slip.
