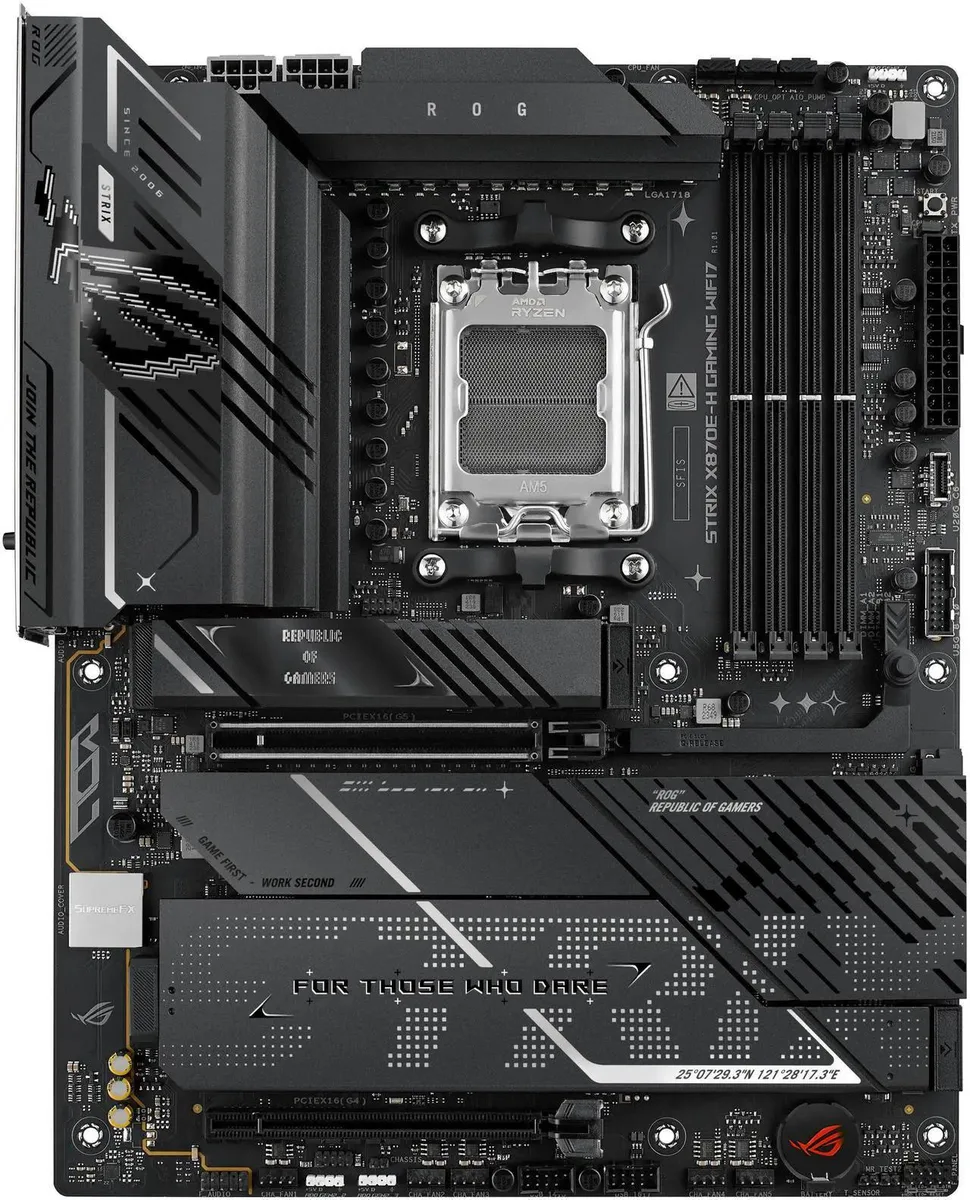

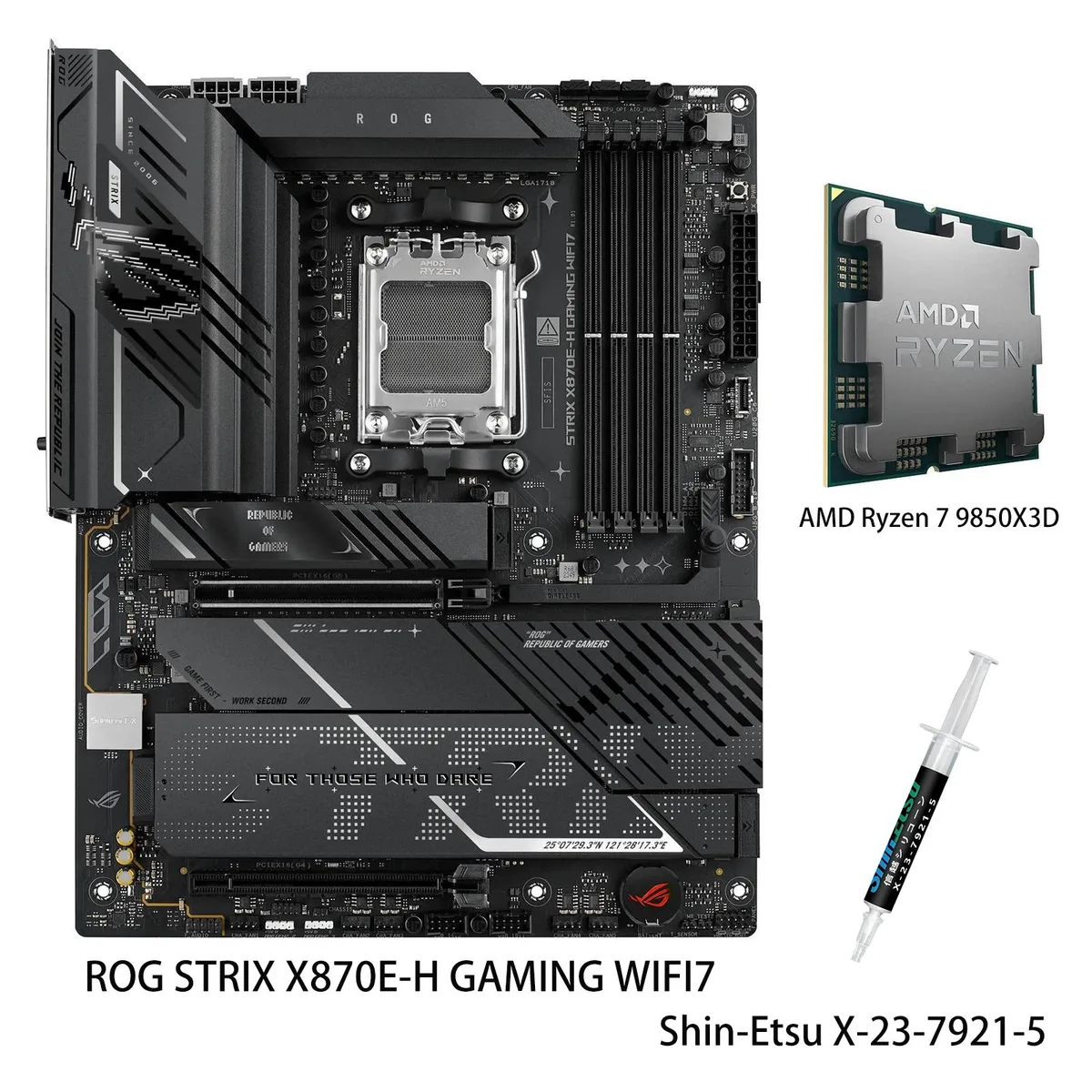

ATX motherboard with large heatsinks, integrated I/O cover, AM5 socket and Ryzen 7 9850X3D CPU installed

ASUS

ASUS ROG STRIX X870E-H GAMING WIFI7 + Ryzen 7 9850X3D AMD motherboard combo

SKU CH-6P13-57FVG

AM5 motherboard and CPU bundle with 16+2+1 power stages, four DDR5 slots, WiFi 7, 5Gb Ethernet, two PCIe 5.0 M.2 slots and a 9850X3D processor

  • CPU Socket TypeAM5
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupports up to 8000+MT/s(OC) with Ryzen
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel

model ROG STRIX X870E-H GAMING WIFI7

+CPU + Ryzen 7 9850X3D

  • AM5 socket readies the board for Ryzen 9000, 8000 and 7000 series CPUs
  • 16+2+1 power stages rated at 80A each deliver stable multi-core performance
  • AI Advisor, AI Cache Boost, AI Networking II and AEMP simplify setup and improve performance
  • Two PCIe 5.0 and two PCIe 4.0 M.2 slots with substantial cooling support fast storage
  • WiFi 7 and Realtek 5Gb Ethernet provide high-speed wired and wireless networking

Combo contents

This bundle pairs the ASUS ROG STRIX X870E-H GAMING WIFI7 motherboard with the AMD Ryzen 7 9850X3D processor. The board uses the AMD X870E chipset and AM5 socket while the CPU delivers 8 cores and 16 threads on Zen 5 architecture with 2nd-gen 3D V-Cache technology for lower latency in games.

Before ordering

Verify that your chassis accepts a 12.0 by 9.6 inch ATX board and that your power supply includes dual 8-pin ProCool II connectors for the 16+2+1 power stage design rated at 80A per stage. Ensure your DDR5 kit matches the 288-pin layout and that your cooler mounting matches the AM5 socket pattern.

Bundled advantages

The motherboard supplies two PCIe 5.0 M.2 slots and two PCIe 4.0 M.2 slots, each with dedicated cooling, plus WiFi 7 and Realtek 5Gb Ethernet for high-speed networking. Onboard AI Advisor, AI Cache Boost, AI Networking II and AEMP firmware features simplify memory tuning and network optimisation. Back I/O includes two USB4 40Gbps Type-C ports, four USB 10Gbps ports and six USB 5Gbps ports.

Points forts

  • AM5 socket readies the board for Ryzen 9000, 8000 and 7000 series CPUs
  • 16+2+1 power stages rated at 80A each deliver stable multi-core performance
  • AI Advisor, AI Cache Boost, AI Networking II and AEMP simplify setup and improve performance
  • Two PCIe 5.0 and two PCIe 4.0 M.2 slots with substantial cooling support fast storage
  • WiFi 7 and Realtek 5Gb Ethernet provide high-speed wired and wireless networking

Caractéristiques

BrandASUS
SeriesROG STRIX
ModelROG STRIX X870E-H GAMING WIFI7+R7 9850X3D
Part NumberROG STRIX X870E-H GAMING WIFI7+R7 9850X3D
CPU Socket TypeAM5
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports up to 8000+MT/s(OC) with Ryzen
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedNon-ECC
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD X870E Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
SATA RAIDAMD RAIDXpert2 Technology
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
Audio Channels7.1 Channels
Max LAN Speed5Gbps
Back I/O Ports2 x USB4 (40Gbps) ports(2 x USB Type-C)
4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C with up to 30W PD/PPS Fast-charge)
6 x USB 5Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 5Gb Ethernet
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front Panel System header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
ASUS AI Advisor
ASUS DriverHub
- AIDA64 Extreme (60 days free trial)
- HWiNFO
ASUS GlideX
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (Free Trial)**
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
AI Cache Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey
Windows 11Supported
FeaturesExtreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
-Addressable RGB Gen 2 headers
Package Contents1 x AMD Ryzen 7 9850X3D CPU
1 x Shin-Etsu X-23-7921-5 (1.8g)
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
4 x M.2 rubber
Documentation
1 x Quick start guide

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Does the combo box include the CPU cooler and DDR5 memory, or must they be bought separately?

The package contains the ROG STRIX X870E-H GAMING WIFI7 motherboard and the Ryzen 7 9850X3D processor. A CPU cooler and DDR5 modules are not included and must be purchased separately.

The board has two PCIe 5.0 M.2 slots and two PCIe 4.0 M.2 slots — which should I use for the OS drive?

Install the operating system on one of the two PCIe 5.0 M.2 slots to take full advantage of the higher bandwidth; the PCIe 4.0 slots are ideal for secondary storage.

What does the 5.6 GHz maximum boost clock mean for actual gaming performance with the 3D V-Cache?

The 5.6 GHz boost combined with 2nd-gen 3D V-Cache on the 8-core 16-thread Zen 5 CPU reduces latency and raises frame rates in cache-sensitive titles.
