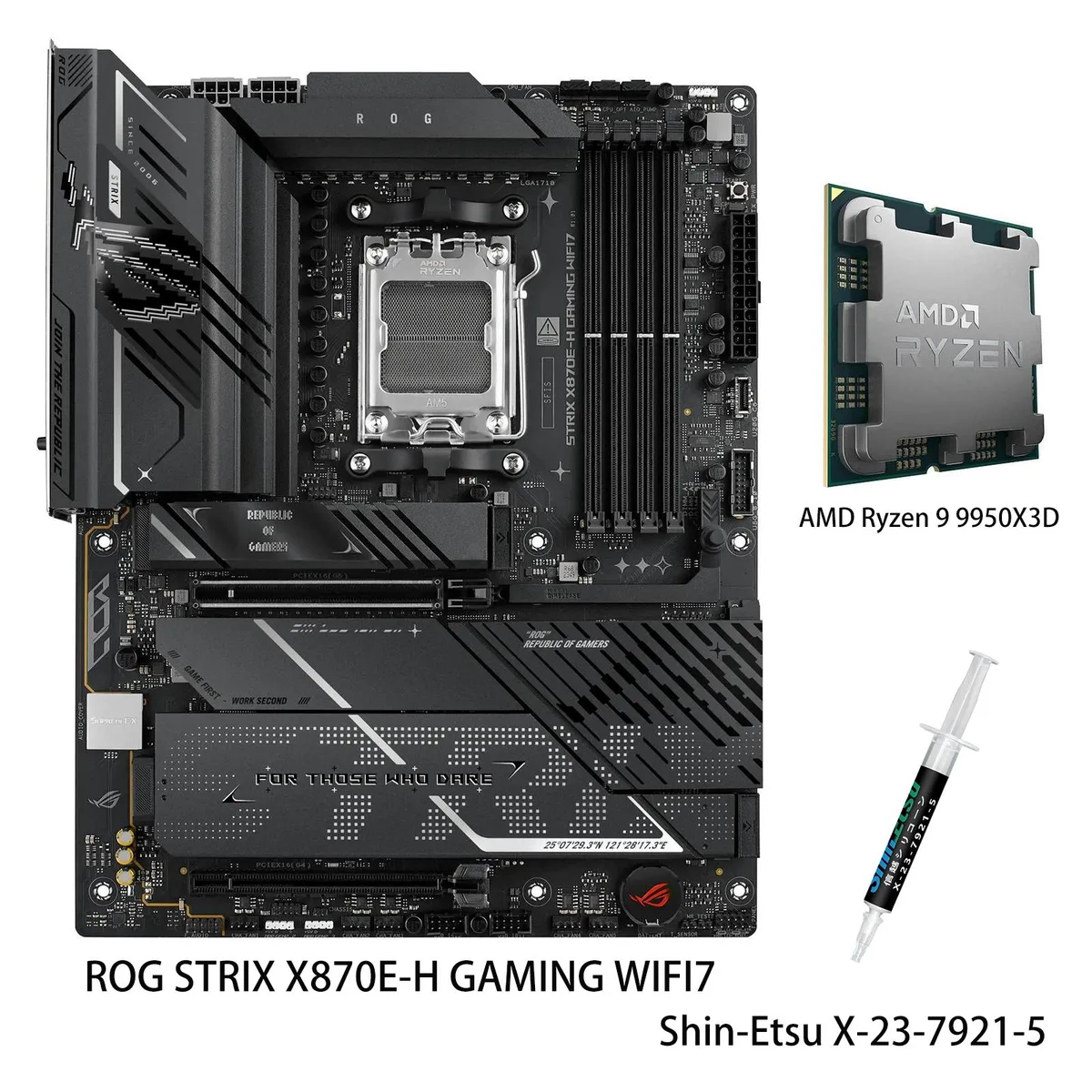

Black ATX motherboard with silver heatsinks and installed CPU

ASUS

ASUS ROG STRIX X870E-H GAMING WIFI7 + Ryzen 9 9950X3D CPU Combo AMD motherboard

SKU CH-PWTS-EC035

Pairs an AMD X870E ATX motherboard with a 16-core Ryzen 9 9950X3D, delivering 128 MB L3 cache, DDR5 support up to 8000 MT/s, dual PCIe 5.0 M.2 slots, WiFi 7 and 5 Gbps Ethernet

  • CPU Socket TypeAM5
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupports up to 8000+MT/s(OC) with Ryzen
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel

model ROG STRIX X870E-H GAMING WIFI7

+CPU + Ryzen 9 9950X3D

  • Ready for AI workloads with power and connectivity for demanding applications
  • 16+2+1 power stages rated 80A each with dual ProCool II connectors
  • Massive heatsinks, integrated I/O cover and high-conductivity thermal pad
  • Two PCIe 5.0 and two PCIe 4.0 M.2 slots with substantial cooling
  • WiFi 7 and Realtek 5Gb Ethernet for high-performance networking

Combo for AI and gaming workloads

The bundle pairs an AMD X870E ATX motherboard with a Ryzen 9 9950X3D processor built on TSMC 4nm FinFET Granite Ridge Zen 5 architecture. The 170W CPU delivers 128MB L3 cache and 16MB L2 cache alongside integrated Radeon Graphics. The board supports Ryzen 7000, 8000 and 9000 series processors in the AM5 socket.

Memory and storage headroom

Four DDR5 slots accept up to 256GB running at 8000+ MT/s when overclocked in dual-channel mode. Two onboard PCIe 5.0 M.2 slots and two PCIe 4.0 M.2 slots provide high-speed storage expansion, all equipped with substantial cooling solutions. The primary PCIe 5.0 x16 slot runs at x16 mode with Ryzen 9000 and 7000 series CPUs.

AI tools and connectivity upgrades

ASUS-exclusive AI Advisor, AI Cache Boost, AI Networking II and AEMP simplify setup and improve performance. Onboard WiFi 7 (802.11be) and Realtek 5Gb Ethernet handle high-throughput networking. Rear I/O includes two USB4 40Gbps Type-C ports, four USB 10Gbps ports, six USB 5Gbps ports, two USB 2.0 ports and HDMI.

Points forts

  • Ready for AI workloads with power and connectivity for demanding applications
  • 16+2+1 power stages rated 80A each with dual ProCool II connectors
  • Massive heatsinks, integrated I/O cover and high-conductivity thermal pad
  • Two PCIe 5.0 and two PCIe 4.0 M.2 slots with substantial cooling
  • WiFi 7 and Realtek 5Gb Ethernet for high-performance networking

Caractéristiques

BrandASUS
SeriesROG STRIX
ModelROG STRIX X870E-H GAMING WIFI7+R9 9950X3D
Part NumberROG STRIX X870E-H GAMING WIFI7+R9 9950X3D
CPU Socket TypeAM5
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports up to 8000+MT/s(OC) with Ryzen
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedNon-ECC
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD X870E Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
SATA RAIDAMD RAIDXpert2 Technology
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
Audio Channels7.1 Channels
Max LAN Speed5Gbps
Back I/O Ports2 x USB4 (40Gbps) ports(2 x USB Type-C)
4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C with up to 30W PD/PPS Fast-charge)
6 x USB 5Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 5Gb Ethernet
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front Panel System header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
ASUS AI Advisor
ASUS DriverHub
- AIDA64 Extreme (60 days free trial)
- HWiNFO
ASUS GlideX
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (Free Trial)**
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
AI Cache Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey
Windows 11Supported
FeaturesExtreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
-Addressable RGB Gen 2 headers
Package Contents1 x AMD Ryzen 9 9950X3D CPU
1 x Shin-Etsu X-23-7921-5 (1.8g)
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
4 x M.2 rubber
Documentation
1 x Quick start guide

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Will the included Ryzen 9 9950X3D fit my existing AM5 cooler?

Yes, the CPU uses the AM5 socket so any AM5-compatible cooler will mount correctly.

How many M.2 drives can I install without adding a PCIe card?

The board provides four onboard M.2 slots, two running at PCIe 5.0 and two at PCIe 4.0, each with dedicated heatsinks.

What memory speed can I expect with the bundled processor?

The motherboard supports DDR5 up to 8000+ MT/s when overclocked with Ryzen 9000 series CPUs.
