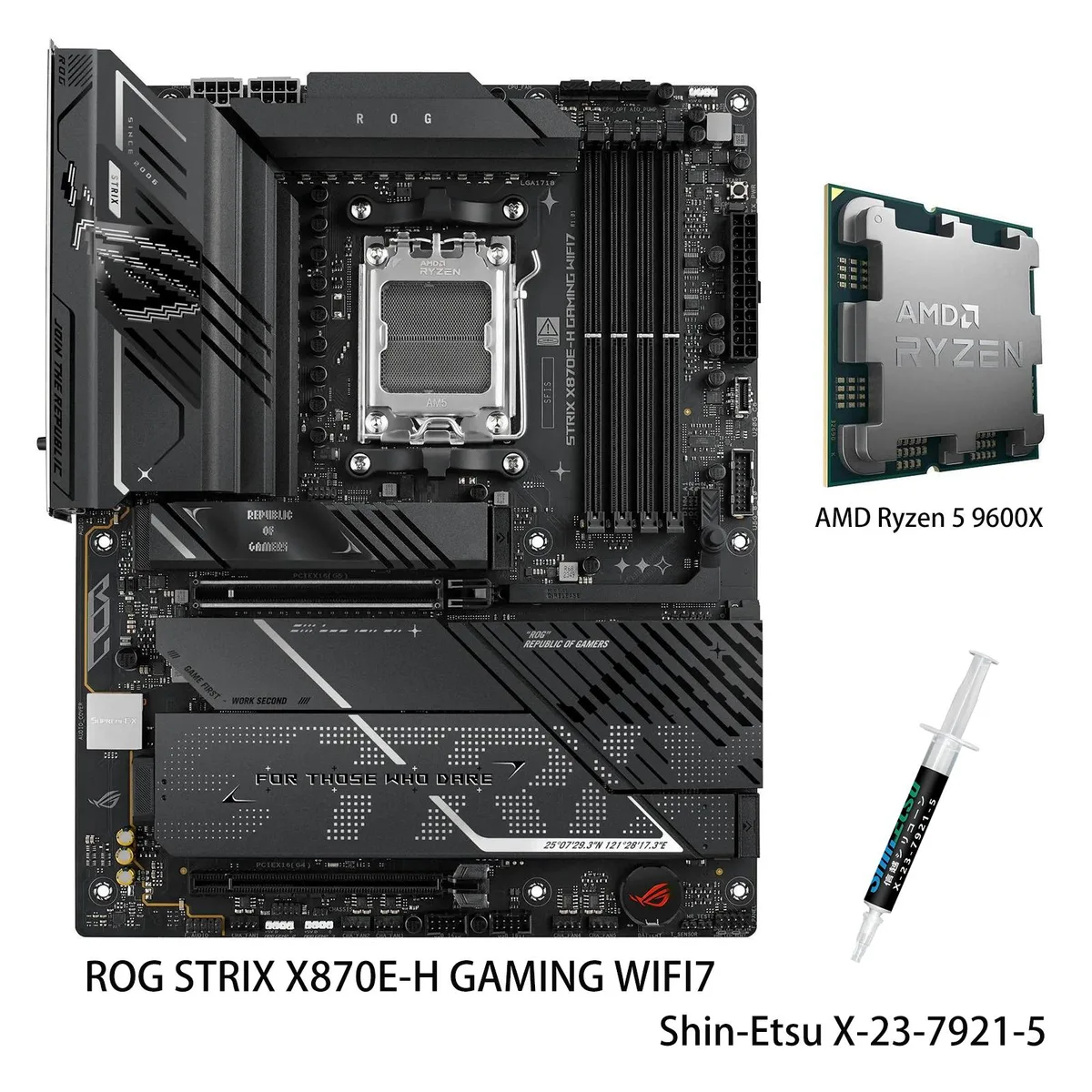

Black ATX motherboard with silver heatsinks and CPU installed

ASUS

ASUS ROG STRIX X870E-H GAMING WIFI7+R5 9600X AMD motherboard & CPU combo

SKU CH-CDFC-ZVG3Q

ATX AM5 board with 16+2+1 80A power stages, four DDR5 slots up to 256GB, two PCIe 5.0 and two PCIe 4.0 M.2 slots, WiFi 7, 5Gb Ethernet, 40Gbps USB4 and bundled Ryzen 5 9600X

  • CPU Socket TypeAM5
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupports up to 8000+MT/s(OC) with Ryzen
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel

model ROG STRIX X870E-H GAMING WIFI7

+CPU + Ryzen 5 9600X

  • Ready for AMD Ryzen 9000, 8000 and 7000 series desktop processors with AM5 socket
  • Robust 16+2+1 power solution rated for 80A per stage with dual ProCool II connectors
  • Intelligent control via ASUS-exclusive AI Advisor, AI Cache Boost, AI Networking II and AEMP
  • Optimized thermal design with massive heatsinks, integrated I/O cover and high-conductivity thermal pad
  • Latest M.2 support: two PCIe 5.0 and two PCIe 4.0 slots, all with substantial cooling solutions

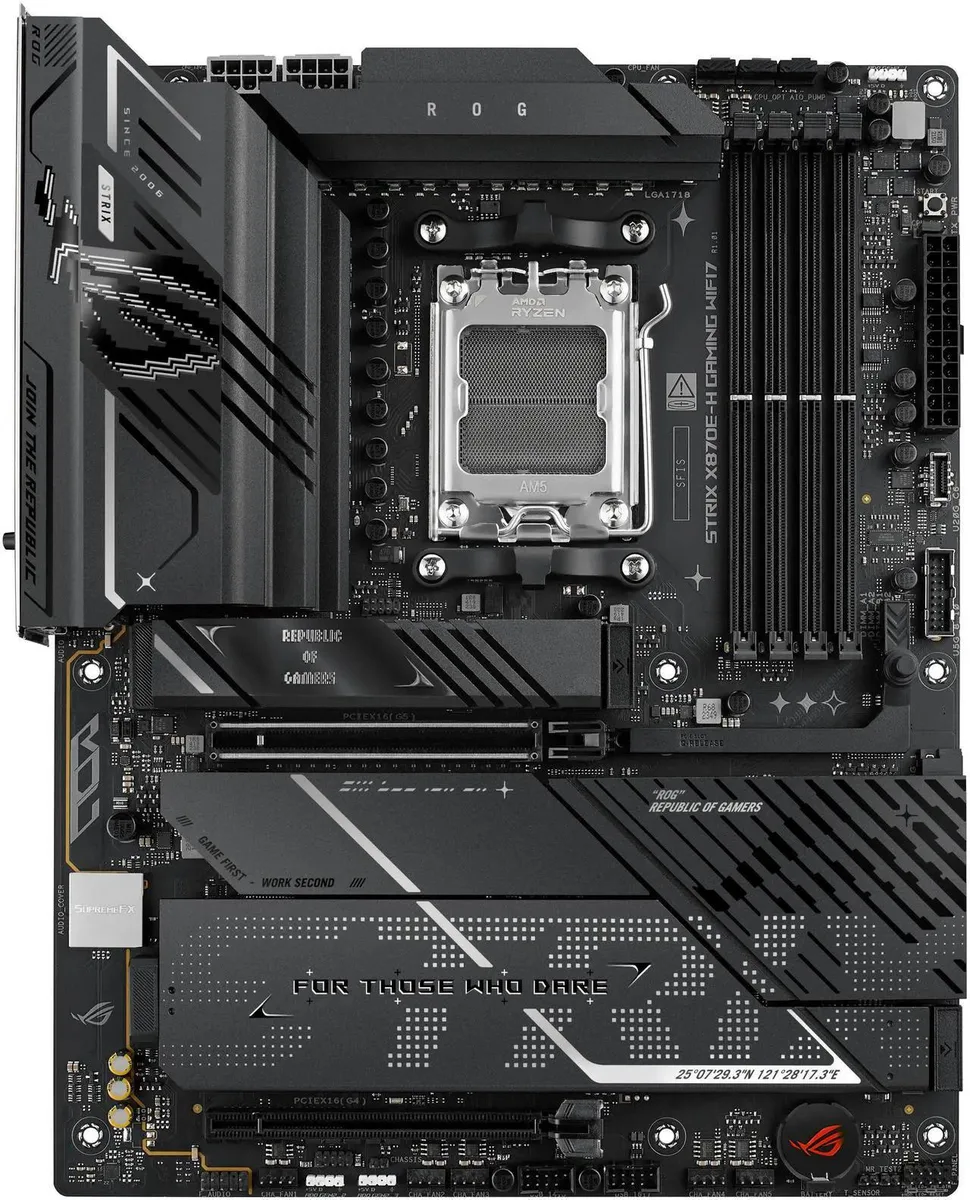

ROG STRIX X870E-H GAMING WIFI7 & Ryzen 5 9600X Combo

This bundle pairs an ASUS ROG STRIX X870E-H GAMING WIFI7 motherboard with an AMD Ryzen 5 9600X processor. The board uses the AMD X870E chipset and AM5 socket. It supports DDR5 memory up to 8000+ MT/s and a maximum capacity of 256 GB. The CPU delivers 6 cores and 12 threads based on the Zen 5 architecture.

Gamers and AI workload builders

The combination suits enthusiasts who want high frame rates in popular titles and a platform ready for advanced AI applications. It also fits builders planning to use Ryzen 9000, 8000 or 7000 series chips. Users needing ECC memory or a smaller form factor should look at other options.

WiFi 7, 5 Gb Ethernet and USB4 change connectivity

Onboard WiFi 7 (802.11be) and Realtek 5 Gb Ethernet provide fast, low-latency networking. Two USB4 ports at 40 Gbps and a USB Type-C port with 30 W PD/PPS charging simplify peripheral and device connections. Four M.2 slots, two PCIe 5.0 and two PCIe 4.0, all with substantial cooling, accelerate storage expansion.

Points forts

  • Ready for AMD Ryzen 9000, 8000 and 7000 series desktop processors with AM5 socket
  • Robust 16+2+1 power solution rated for 80A per stage with dual ProCool II connectors
  • Intelligent control via ASUS-exclusive AI Advisor, AI Cache Boost, AI Networking II and AEMP
  • Optimized thermal design with massive heatsinks, integrated I/O cover and high-conductivity thermal pad
  • Latest M.2 support: two PCIe 5.0 and two PCIe 4.0 slots, all with substantial cooling solutions

Caractéristiques

BrandASUS
SeriesROG STRIX
ModelROG STRIX X870E-H GAMING WIFI7+R5 9600X
Part NumberROG STRIX X870E-H GAMING WIFI7+R5 9600X
CPU Socket TypeAM5
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports up to 8000+MT/s(OC) with Ryzen
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedNon-ECC
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD X870E Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
SATA RAIDAMD RAIDXpert2 Technology
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
Audio Channels7.1 Channels
Max LAN Speed5Gbps
Back I/O Ports2 x USB4 (40Gbps) ports(2 x USB Type-C)
4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C with up to 30W PD/PPS Fast-charge)
6 x USB 5Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 5Gb Ethernet
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front Panel System header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
ASUS AI Advisor
ASUS DriverHub
- AIDA64 Extreme (60 days free trial)
- HWiNFO
ASUS GlideX
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (Free Trial)**
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
AI Cache Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey
Windows 11Supported
FeaturesExtreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
-Addressable RGB Gen 2 headers
Package Contents1 x AMD Ryzen 5 9600X CPU
1 x Shin-Etsu X-23-7921-5 (1.8g)
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
4 x M.2 rubber
Documentation
1 x Quick start guide

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What DDR5 memory kit do I need to install before this motherboard and Ryzen 5 9600X will post?

You need a DDR5 kit up to 256 GB total across the four 288-pin slots; the board runs dual-channel and supports speeds up to 8000+ MT/s when overclocked with Ryzen 9000 series processors.

Will my existing PCIe 4.0 graphics card run at full speed in the primary slot when paired with the Ryzen 5 9600X?

Yes, the Ryzen 9000 series CPU provides a PCIe 5.0 x16 slot that also operates at PCIe 4.0 x16, so a PCIe 4.0 graphics card will run at its native bandwidth.

How can I confirm WiFi 7 is active after I build the system?

In Windows Device Manager the wireless adapter will show as Wi-Fi 7 (802.11be); a router or phone set to 6 GHz will also list the new connection on that band.
