White ATX motherboard with teal accents, bundled Ryzen 5 9600X CPU, Miku edition box

ASUS

ASUS ROG STRIX X870E-H S MIKU AMD motherboard & Ryzen 5 9600X CPU Combo GAMING WIFI7 HATSUNE

SKU CH-7S3Y-ZVTHH

A motherboard and CPU combo with an AMD X870E chipset, DDR5 memory support up to 256GB, dual USB4 ports, Wi-Fi 7 connectivity and a six-core Ryzen 5 9600X processor

  • CPU Socket TypeAM5
  • CPU TypeAMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Deskt
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupports up to 8000+MT/s(OC)
  • Maximum Memory Supported256GB

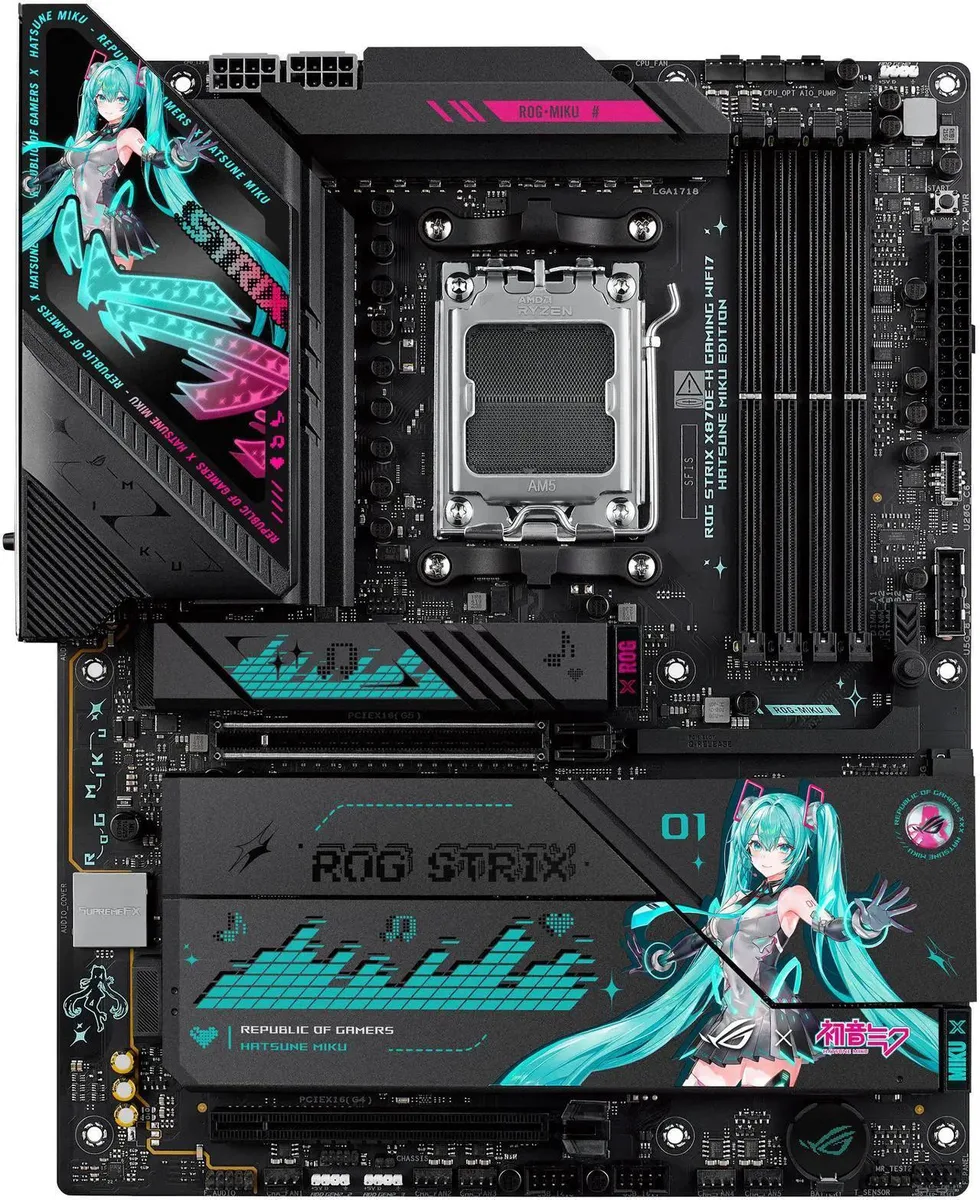

model ROG STRIX X870E-H S MIKU

+CPU + Ryzen 5 9600X

  • Ready for AMD Ryzen 9000, 8000 and 7000 series processors with AM5 socket
  • 16+2+1 power stages rated 80A each with dual ProCool II connectors
  • AI Advisor, AI Cache Boost, AI Cooling II and AI Networking II simplify setup
  • Two PCIe 5.0 and two PCIe 4.0 M.2 slots with substantial cooling solutions
  • Dual USB4 Type-C ports plus USB 20Gbps front-panel and USB 10Gbps rear with PD 3.0 30W

ROG STRIX X870E-H S MIKU Combo

This bundle pairs the ROG STRIX X870E-H S MIKU motherboard with a Ryzen 5 9600X processor. The board uses the AMD X870E chipset and an AM5 socket that accepts Ryzen 9000, 8000 and 7000 series CPUs. It targets gamers and creators who want a themed platform with strong connectivity for demanding AI workloads.

Installation notes and common issues

The motherboard follows standard ATX mounting and uses dual ProCool II power connectors for the 16+2+1 power stage array rated at 80A per stage. Builders should seat the four DDR5 modules firmly until the latches click and verify that the massive heatsinks do not interfere with tall memory heatspreaders. The CPU drops into the AM5 socket without force; bending a pin on the processor is the most frequent mistake.

Practical limits of DDR5 and PCIe 5.0

The board supports DDR5 up to 8000+ MT/s OC across four 288-pin slots with a 256 GB maximum in dual-channel mode. Two M.2 slots run at PCIe 5.0 x4 and two at PCIe 4.0 x4, all equipped with substantial heatsinks. The primary PCIe 5.0 x16 slot operates at x16 with Ryzen 9000 and 7000 chips but drops to x8 or x4 with Ryzen 8000 series processors.

Points forts

  • Ready for AMD Ryzen 9000, 8000 and 7000 series processors with AM5 socket
  • 16+2+1 power stages rated 80A each with dual ProCool II connectors
  • AI Advisor, AI Cache Boost, AI Cooling II and AI Networking II simplify setup
  • Two PCIe 5.0 and two PCIe 4.0 M.2 slots with substantial cooling solutions
  • Dual USB4 Type-C ports plus USB 20Gbps front-panel and USB 10Gbps rear with PD 3.0 30W

Caractéristiques

BrandASUS
SeriesROG STRIX
ModelROG STRIX X870E-H S MIKU+R5 9600X
Part NumberROG STRIX X870E-H S MIKU+R5 9600X
CPU Socket TypeAM5
CPU TypeAMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports up to 8000+MT/s(OC)
Maximum Memory Supported256GB
Channel SupportedDual Channel
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
PCI Express 4.0 x161 x PCIe 4.0 x16 slot (supports x4 mode)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)*
AMD Ryzen 8000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
M.2_2 slot (Key M), type 2280/22110 (Not supports)**
AMD X870E Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
* M.2_2 shares bandwidth with PCIEX16(G5). When M.2_2 is occu
SATA RAIDAMD RAIDXpert2 Technology*
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
Audio ChipsetRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
Audio Channels7.1 Channels
Max LAN Speed5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports2 x USB4 (40Gbps) ports(2 x USB Type-C)
4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C with up to 30W PD/PPS Fast-charge)
6 x USB 5Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 5Gb Ethernet
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front Panel System header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
ASUS AI Advisor
ASUS DriverHub
- AIDA64 Extreme (60 days free trial)
- HWiNFO
ASUS GlideX
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
AI Cache Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey
Windows 11Supported
FeaturesExtreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
-Addressable RGB Gen 2 headers

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How do I confirm the AI Advisor and AI Cooling II features are active after building with the ROG STRIX X870E-H S MIKU?

Open the Armoury Crate dashboard; the AI Advisor panel shows real-time optimisation status while AI Cooling II displays a fan-speed curve that reacts to CPU temperature changes within seconds of load.

What comes in the ROG STRIX X870E-H S MIKU plus Ryzen 5 9600X combo box and what must I buy separately?

The bundle includes the motherboard, the 6-core 12-thread Ryzen 5 9600X processor, I/O shield, SATA cables, M.2 screws and Wi-Fi antennas; you still need DDR5 memory, an AM5 cooler, graphics card, storage drives and an ATX power supply.

Which M.2 slot should I populate first for a PCIe 5.0 drive on this board?

Use the M.2_1 slot — it supports PCIe 5.0 x4 mode with Ryzen 9000 and 7000 series CPUs and has a dedicated heatsink for sustained throughput.
