White ATX motherboard with teal accents, CPU installed, large heatsinks and integrated I/O cover

ASUS

ASUS ROG STRIX X870E-H S MIKU AMD motherboard with Ryzen 7 9800X3D

SKU CH-YQS9-TFFV1

A motherboard and CPU bundle pairing an X870E ATX board with a Ryzen 7 9800X3D processor, featuring DDR5 support up to 8000+ MT/s, dual USB4 ports, Wi-Fi 7.

  • CPU Socket TypeAM5
  • CPU TypeAMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Deskt
  • ChipsetAMD X870E
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardSupports up to 8000+MT/s(OC)
  • Maximum Memory Supported256GB

model ROG STRIX X870E-H S MIKU

+CPU + Ryzen 7 9800X3D

  • AM5 socket supports Ryzen 9000, 8000 and 7000 series processors
  • 16+2+1 power stages rated 80A with dual ProCool II connectors
  • Two PCIe 5.0 and two PCIe 4.0 M.2 slots with heatsinks
  • Dual USB4 Type-C ports plus USB 20Gbps front-panel connector
  • Wi-Fi 7 and 5Gbps LAN for high-speed connectivity

ROG STRIX X870E-H S MIKU Combo

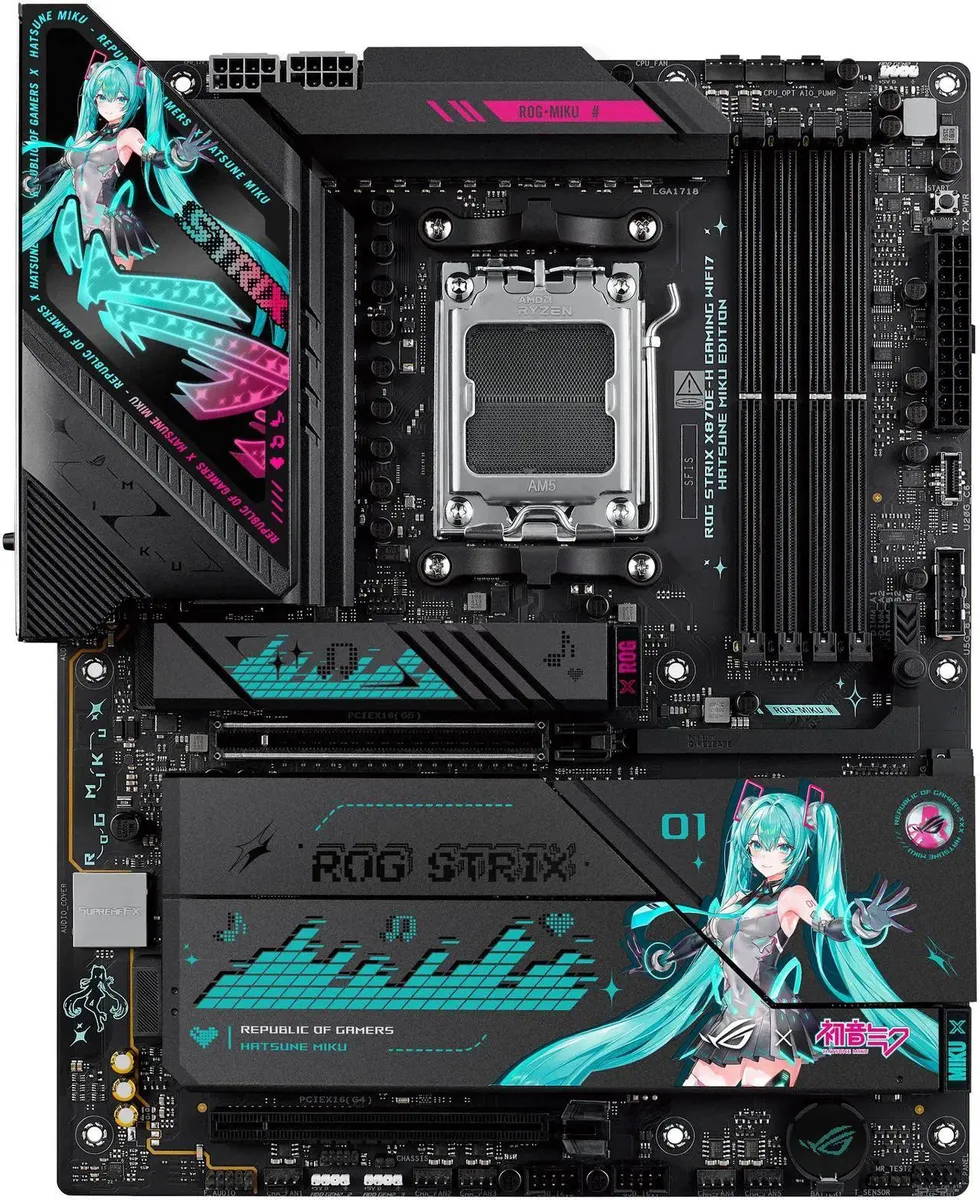

This bundle pairs an AMD X870E ATX motherboard with a Ryzen 7 9800X3D processor. The board uses an AM5 socket and supports Ryzen 9000, 8000 and 7000 series CPUs. It provides four DDR5 slots for up to 256GB of memory and includes Wi-Fi 802.11 be connectivity. The edition features a Hatsune Miku theme for builders who want a coordinated look.

Who this suits and who should look elsewhere

Enthusiasts building a high-end gaming or AI workstation will benefit from the robust 16+2+1 power design rated at 80A per stage and dual ProCool II connectors. The dual PCIe 5.0 M.2 slots and dual USB4 Type-C ports give fast storage and peripheral options. Users on a tighter budget or those needing a smaller form factor should consider a different board.

What the bundled accessories and software change

ASUS AI Advisor, AI Cache Boost, AI Cooling II, AI Networking II and AEMP simplify setup and can improve performance without manual tuning. The massive heatsinks with integrated I/O cover and high-conductivity thermal pads keep the power delivery and M.2 drives cool under load. The Realtek ALC1220P codec with 7.1 channels and an internal amplifier enhances headphone and speaker audio quality.

Points forts

  • AM5 socket supports Ryzen 9000, 8000 and 7000 series processors
  • 16+2+1 power stages rated 80A with dual ProCool II connectors
  • Two PCIe 5.0 and two PCIe 4.0 M.2 slots with heatsinks
  • Dual USB4 Type-C ports plus USB 20Gbps front-panel connector
  • Wi-Fi 7 and 5Gbps LAN for high-speed connectivity

Caractéristiques

BrandASUS
SeriesROG STRIX
ModelROG STRIX X870E-H S MIKU+R7 9800X3D
Part NumberROG STRIX X870E-H S MIKU+R7 9800X3D
CPU Socket TypeAM5
CPU TypeAMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
ChipsetAMD X870E
Number of Memory Slots4x288pin (DDR5)
Memory StandardSupports up to 8000+MT/s(OC)
Maximum Memory Supported256GB
Channel SupportedDual Channel
PCI Express 5.0 x16AMD Ryzen 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
PCI Express 4.0 x161 x PCIe 4.0 x16 slot (supports x4 mode)
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)*
AMD Ryzen 8000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
M.2_2 slot (Key M), type 2280/22110 (Not supports)**
AMD X870E Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
* M.2_2 shares bandwidth with PCIEX16(G5). When M.2_2 is occu
SATA RAIDAMD RAIDXpert2 Technology*
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
Audio ChipsetRealtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- SupremeFX Shielding Technology
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover
Audio Channels7.1 Channels
Max LAN Speed5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports2 x USB4 (40Gbps) ports(2 x USB Type-C)
4 x USB 10Gbps ports (3 x Type-A + 1 x USB Type-C with up to 30W PD/PPS Fast-charge)
6 x USB 5Gbps ports (6 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 5Gb Ethernet
2 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
Onboard USB1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other ConnectorsFan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Chassis Intrusion header
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x Start button
1 x 10-1 pin Front Panel System header
1 x Thermal Sensor header
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connector
BIOS Feature256 Mb Flash ROM, UEFI AMI BIOS
SoftwareROG Exclusive Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- GameFirst
ASUS AI Advisor
ASUS DriverHub
- AIDA64 Extreme (60 days free trial)
- HWiNFO
ASUS GlideX
USB Wattage Watcher
TurboV Core
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
AI Overclocking Guide
AI Cache Boost
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
FlexKey
Windows 11Supported
FeaturesExtreme Engine Digi+
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Release
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
-Addressable RGB Gen 2 headers

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What DDR5 memory speed and capacity does the ROG STRIX X870E-H S MIKU support for the Ryzen 7 9800X3D?

The board has four 288-pin DDR5 slots running dual-channel. It supports up to 8000+ MT/s when overclocked and a maximum of 256 GB total capacity.

Will my existing PCIe 4.0 graphics card and SATA SSDs work at full speed on the X870E chipset with this CPU?

Yes. The Ryzen 7 9800X3D drives one PCIe 5.0 x16 slot and one PCIe 5.0 M.2 slot, while the chipset provides a PCIe 4.0 x16 slot at x4 mode, a second PCIe 5.0 M.2 slot, two PCIe 4.0 M.2 slots and four SATA 6 Gb/s ports for legacy drives.

How can I confirm the Wi-Fi 7 and 5 Gbps LAN are active after building the system?

In Windows Device Manager check for a Wi-Fi 802.11 be adapter and a 5 Gbps Ethernet controller. The ROG STRIX X870E-H S MIKU rear I/O includes dual USB4 Type-C ports and a USB 10 Gbps Type-C port with PD 3.0 up to 30 W for quick peripheral verification.
