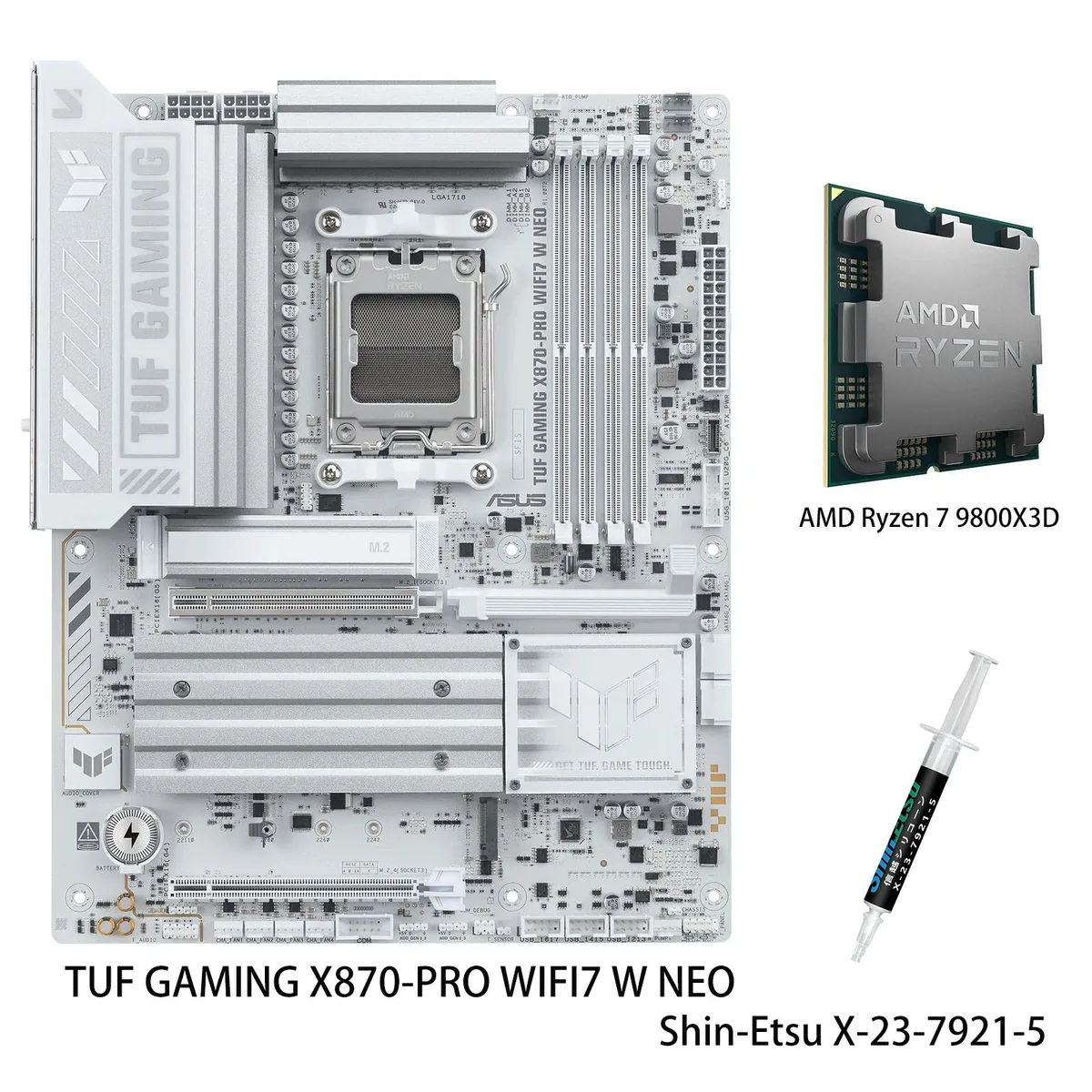

ASUS TUF Gaming X870 motherboard and Ryzen 7 9800X3D CPU in ATX form factor

ASUS

ASUS TUF GAMING X870-PRO WIFI7 W NEO AMD motherboard & Ryzen 7 9800X3D CPU combo

SKU CH-7DHK-M9EYB

A motherboard and CPU combo pairing the X870 chipset with a Ryzen 7 9800X3D, offering 16+2+1 power stages, four M.2 slots with PCIe 5.0 and 4.0, DDR5 support up to 256GB, WiFi7 and 5Gb Ethernet

  • ChipsetAMD X870
  • South BridgeAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel
  • Memory Performance ProfileAMD EXPO / Intel XMP / ASUS AEMP

model TUF GAMING X870-PRO WIFI7 W NEO

+CPU + Ryzen 7 9800X3D

  • Motherboard and CPU paired for immediate build
  • 16+2+1 80 A power stages deliver stable current
  • Four M.2 slots with PCIe 5.0 and 4.0 support
  • WiFi7 and 5 Gb Ethernet for fast networking
  • Ryzen 7 9800X3D 8-core 5.2 GHz boost with 96 MB L3 cache

AM5 motherboard and Ryzen 7 9800X3D combo

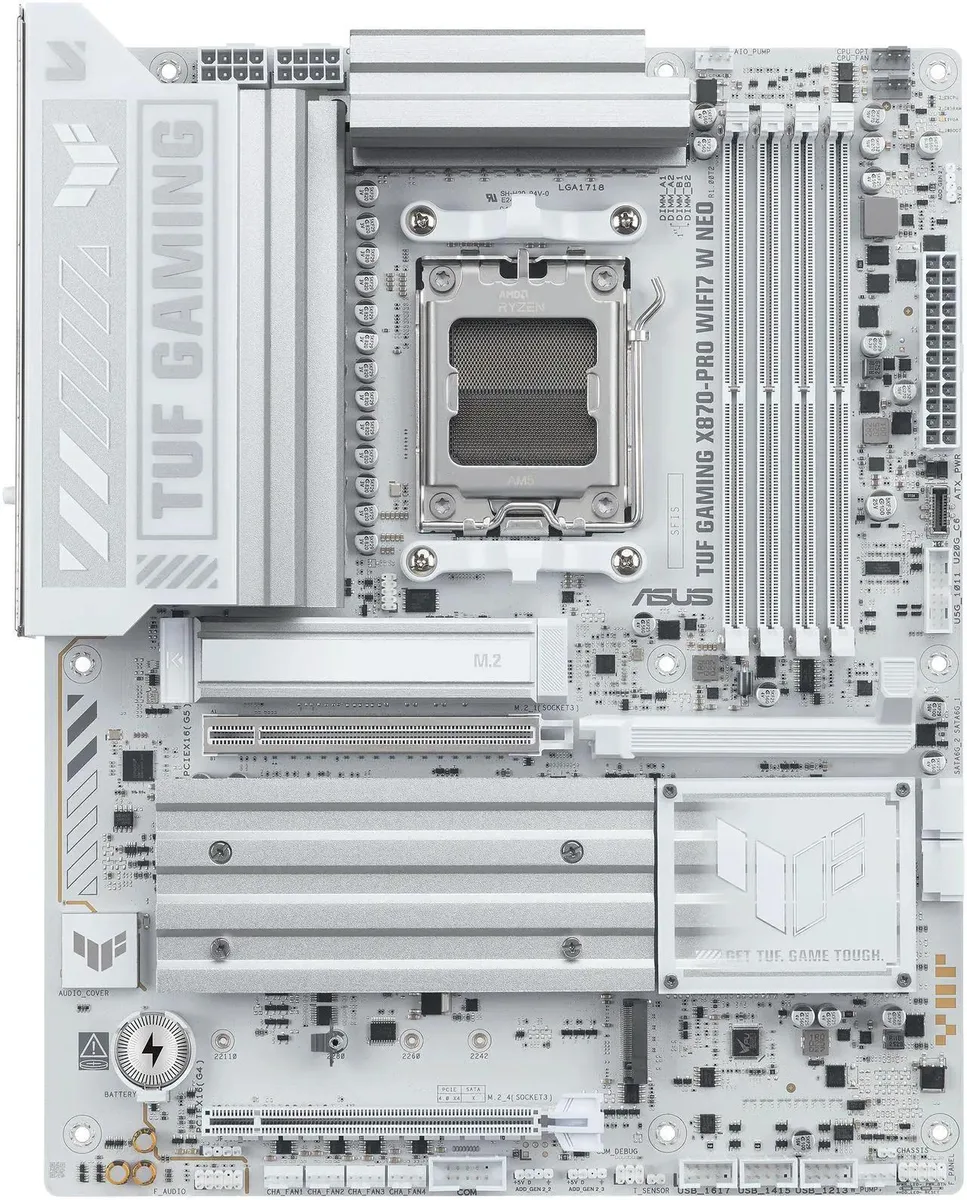

This bundle pairs an ASUS TUF GAMING X870-PRO WIFI7 W NEO board with the AMD Ryzen 7 9800X3D processor. The CPU delivers 8 cores and 16 threads on Zen 5 architecture with a 5.2 GHz max boost and 96 MB L3 cache. The board uses the AMD X870 chipset and supports Ryzen 9000, 8000 and 7000 series chips. It targets gamers and creators building a high-performance AM5 system.

Check AM5 cooler clearance

Verify that your CPU cooler fits the AM5 socket mounting pattern and does not block the four 288-pin DDR5 slots. The board supports up to 256 GB of unbuffered DDR5 with AMD EXPO, Intel XMP and ASUS AEMP profiles, and ECC memory is supported. Ensure your power supply provides the 8+8 pin ProCool connectors required for the 16+2+1 80 A power stage design. Confirm case space for the ATX form factor and the 64 MB BIOS chip.

8-layer PCB with Q-Release M.2 and USB4 at 40 Gbps

The motherboard uses an 8-layer PCB with 16+2+1 80 A power stages for stable delivery. Four M.2 slots support PCIe 5.0 x4 and 4.0 x4, and the Q-Release mechanism simplifies drive swaps. Rear I/O includes USB4 at 40 Gbps, a 20 Gbps USB-C port with 30 W power delivery, WiFi7 and 5 Gb Ethernet. Realtek ALC1220P drives 7.1 channel audio. BIOS FlashBack and Q-Antenna aid DIY assembly and maintenance.

Points forts

  • Motherboard and CPU paired for immediate build
  • 16+2+1 80 A power stages deliver stable current
  • Four M.2 slots with PCIe 5.0 and 4.0 support
  • WiFi7 and 5 Gb Ethernet for fast networking
  • Ryzen 7 9800X3D 8-core 5.2 GHz boost with 96 MB L3 cache

Caractéristiques

BrandASUS
ModelTUF GAMING X870-PRO WIFI7 W NEO+R7 9800X3D
ChipsetAMD X870
South BridgeAMD X870
Number of Memory Slots4x288pin (DDR5)
Maximum Memory Supported256GB
Channel SupportedDual Channel
Memory Performance ProfileAMD EXPO / Intel XMP / ASUS AEMP
ECC SupportedYes
Buffer SupportedUn-buffered
PCI Express 5.0 x161 x PCI Express 5.0 x16
PCI Express 4.0 x162 x PCI Express 4.0 x16
PCI Express x162 x PCI Express x16
PCI Express x41 x PCI Express x4
Serial ATA (SATA)2 x SATA 6Gb/s
M.24 x M.2 (Support PCIe 5.0 x4 & PCIe 4.0 x4)
SATA RAID0/1/5/10
Onboard Video ChipsetDepends on AMD Ryzen Series Processor with Integrated Graphics
Audio ChipsetRealtek ALC1220P
Audio Channels7.1 Channels
LAN ChipsetRealtek 5Gb
Max LAN Speed5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothYes
Back I/O Ports2 x USB4 (40Gbps) Type-C, 3 x USB 10Gbps Type-A, 4 x USB 5Gbps Type-A, 1 x USB 2.0 Type-A, 1 x HDMI, 1 x Wi-Fi module, 1 x Realtek 5Gb Ethernet port, 3 x Audio jacks, 1 x BIOS FlashBack button, 1 x Clear CMOS button
COM1
Video PortsHDMI + 2 x USB Type-C
HDMI1 x HDMI port
RJ451 x RJ45
USB 3.13 x USB 3.1
USB 3.06 x USB 3.0
USB 1.1/2.01 x USB 2.0
USB Type-C2 x USB Type-C port, with USB4 (40Gbps) support
S/PDIF OutYes
Audio Ports3 Ports
Onboard USB1 x USB Type-C header, with USB 3.2 Gen 2x2 + 1 x USB 3.2 Gen 1 header + 3 x USB 2.0 headers
Form FactorATX
LED LightingRGB
Dimensions (W x L)12 inch x 9.6 inch
Power Pin24 Pin
Windows 11Supported

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Does the combo include the CPU cooler or do I need to buy one separately?

The bundle supplies the motherboard and the Ryzen 7 9800X3D processor only; a compatible AM5 cooler must be purchased separately.

Should I choose the 9800X3D or a different Ryzen CPU for this board?

The package is fixed with the 8‑core 9800X3D running up to 5.2 GHz with 96 MB L3 cache, so no alternative CPU selection is offered.

What real‑world benefit does the 5.2 GHz max boost give in games?

The 5.2 GHz peak clock combined with second‑gen 3D V‑Cache lowers latency, letting the 8‑core chip sustain higher frame rates in CPU‑bound titles.
