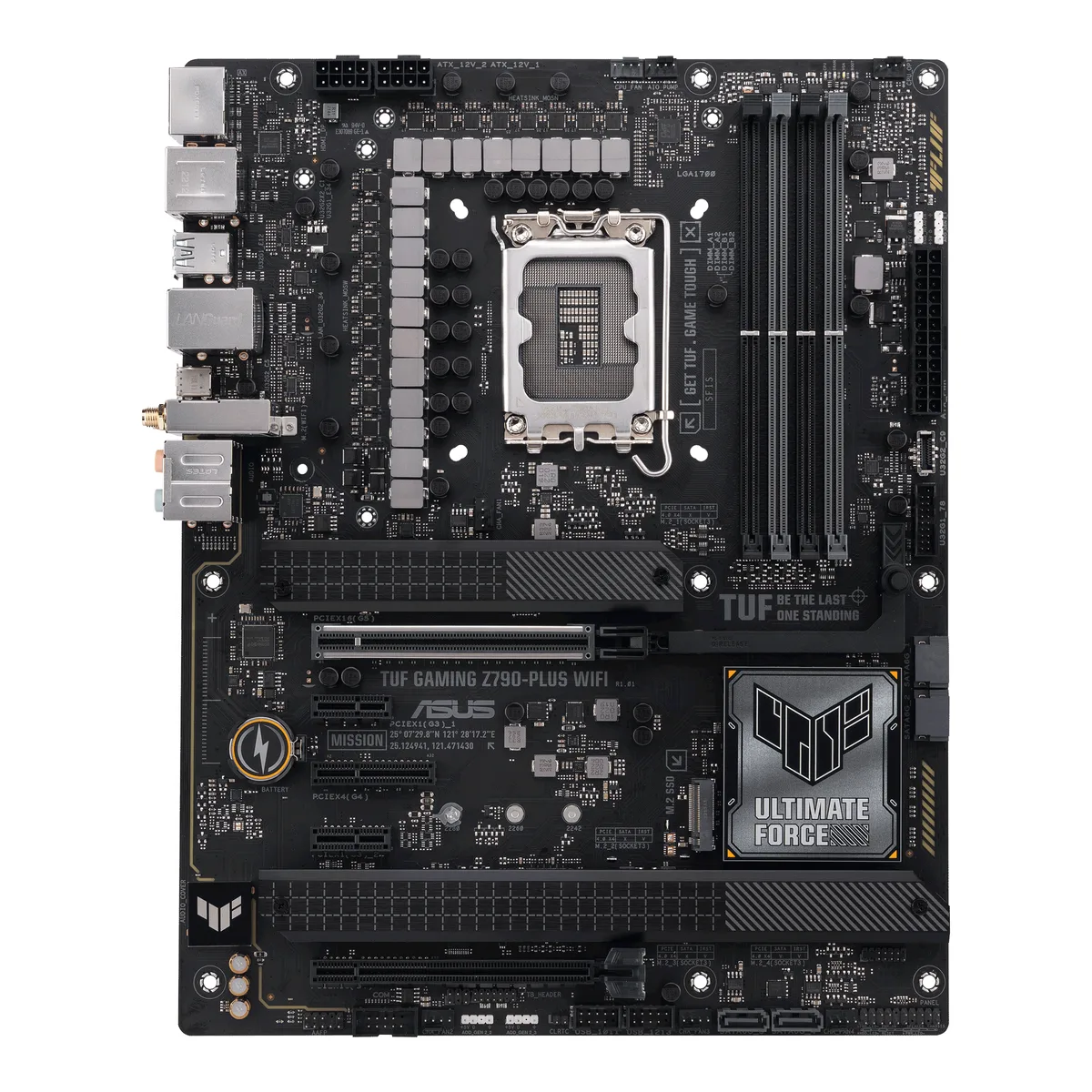

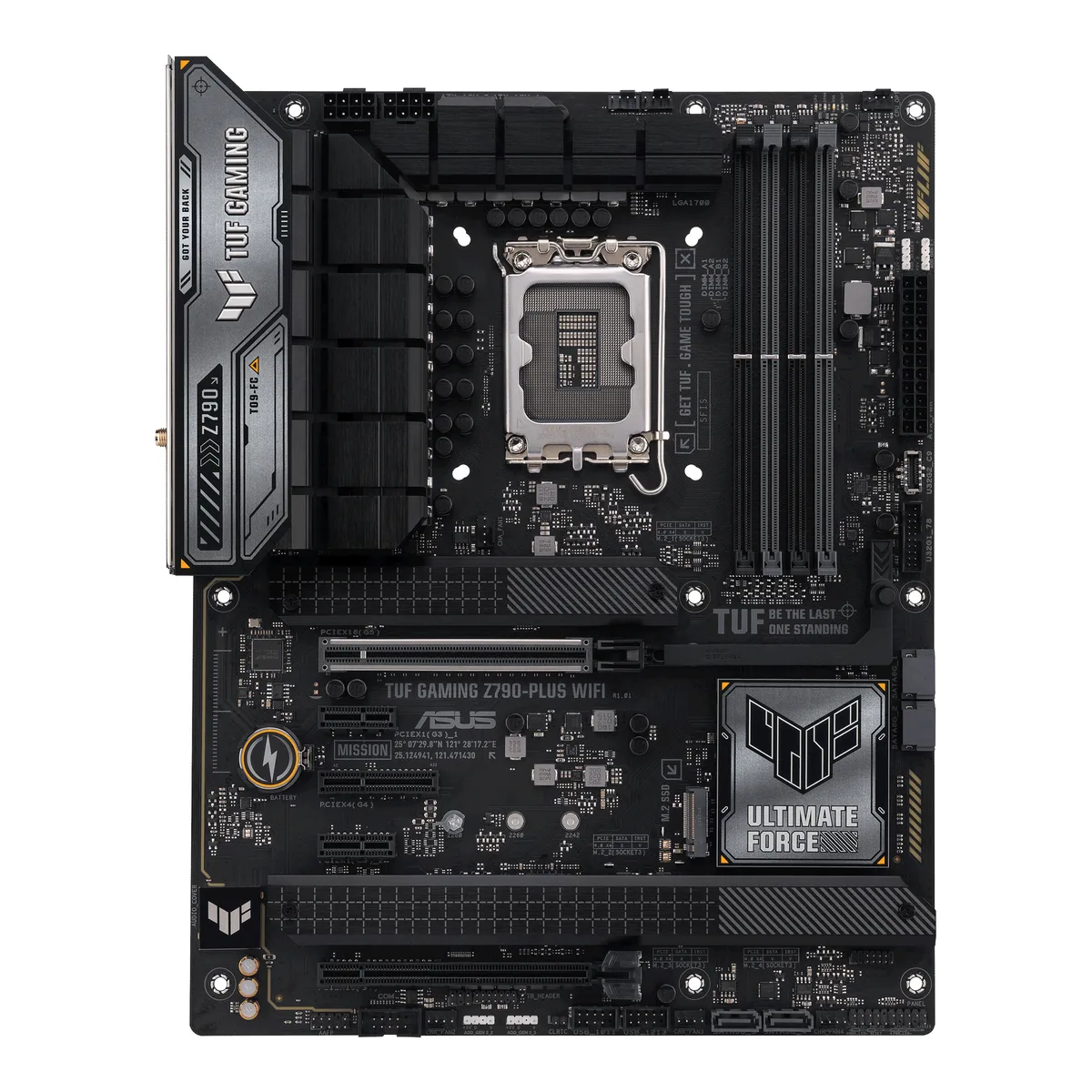

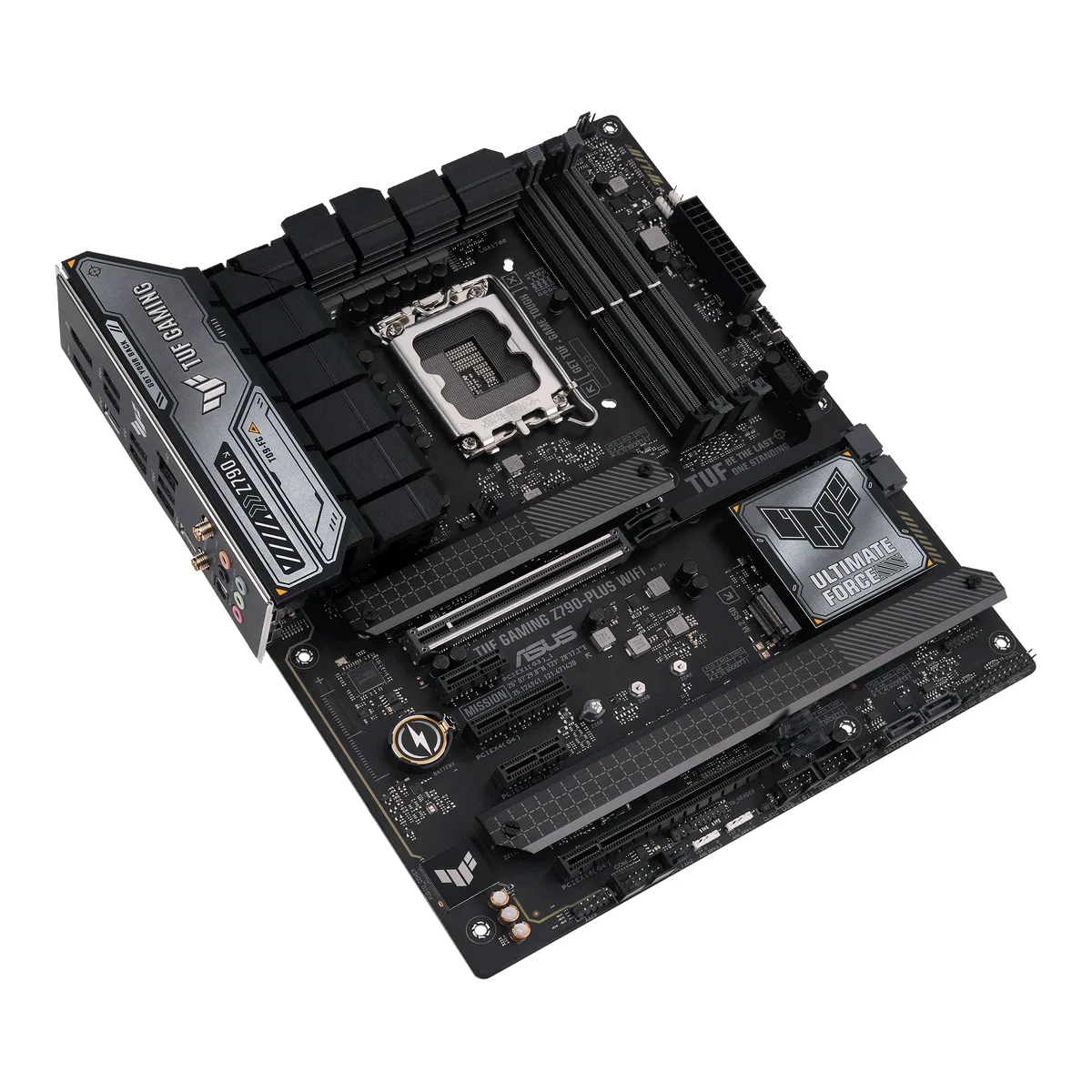

ATX motherboard in grey and black with heatshields and WiFi antennas

ASUS

ASUS TUF GAMING Z790-PLUS WIFI 6E Intel motherboard

SKU CH-XW1A-F2TEZ MPN TUF GAMING Z790-PLUS WIFI 6E

LGA 1700 ATX board with Z790 chipset, DDR5 up to 7200 OC, PCIe 5.0, four M.2 slots, 2.5 Gb LAN and WiFi 6 AX201

  • CPU Socket TypeLGA 1700
  • CPU TypeIntel® Socket LGA1700 for 14th & 13th Gen Intel® Core™ & 12t
  • ChipsetIntel Z790
  • Number of Memory Slots4x288pin (DDR5)
  • Memory StandardDDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/
  • Maximum Memory Supported192GB

Option TUF GAMING Z790-PLUS WIFI 6E

  • Supports 14th, 13th and 12th Gen Intel Core CPUs on LGA 1700 socket
  • 16+1 DrMOS power stages with ProCool sockets and military-grade TUF components
  • WiFi 6 AX201 and Intel I225-V 2.5Gb LAN with TUF LANGuard
  • Four M.2 slots plus front USB 3.2 Gen 2 Type-C and Thunderbolt 4 header
  • SafeDIMM, PCIe 5.0 SafeSlot, Q-LED and M.2 Q-Latch simplify the build

LGA 1700 socket for Intel Core 12th 13th 14th Gen

The ASUS TUF GAMING Z790-PLUS WIFI 6E is an ATX motherboard built on the Intel Z790 chipset for LGA 1700 processors. It supports 12th 13th and 14th Gen Intel Core Pentium Gold and Celeron CPUs with a 16+1 DrMOS power stage design and ProCool sockets. Four DDR5 slots accept up to 192GB of memory and Intel XMP 3.0 profiles. The board targets gamers and builders who want a durable platform with PCIe 5.0 graphics support and extensive M.2 storage options.

Upgrade path from Z790 DDR5 platforms

Moving to this board makes sense when you need the full Z790 feature set including four M.2 slots with PCIe 4.0 x4 modes on the top two and SATA RAID 0 1 5 10 support. The 16+1 DrMOS VRM and military-grade TUF components provide headroom for high-core-count 14th Gen CPUs that lesser Z790 boards may throttle. If your current Z790 board already has 2.5Gb LAN WiFi 6E and Thunderbolt 4 headers the gains are narrower.

PCIe 5.0 x16 and 4.0 M.2 bandwidth limits

The primary PCIe 5.0 x16 slot runs at 5.0 speeds only with 12th 13th or 14th Gen CPUs; older chips fall back to 4.0. M.2_1 and M.2_2 connect through the CPU and Z790 chipset respectively both capping at PCIe 4.0 x4 so the fastest consumer NVMe drives hit their ceiling here. Thunderbolt 4 and USB 3.2 Gen 2x2 headers share chipset bandwidth so simultaneous peak throughput on every port is not guaranteed.

Points forts

  • Supports 14th, 13th and 12th Gen Intel Core CPUs on LGA 1700 socket
  • 16+1 DrMOS power stages with ProCool sockets and military-grade TUF components
  • WiFi 6 AX201 and Intel I225-V 2.5Gb LAN with TUF LANGuard
  • Four M.2 slots plus front USB 3.2 Gen 2 Type-C and Thunderbolt 4 header
  • SafeDIMM, PCIe 5.0 SafeSlot, Q-LED and M.2 Q-Latch simplify the build

Caractéristiques

BrandASUS
SeriesTUF
ModelTUF GAMING Z790-PLUS WIFI
Part Number90MB1D80-M0AAY0
CPU Socket TypeLGA 1700
CPU TypeIntel® Socket LGA1700 for 14th & 13th Gen Intel® Core™ & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.
ChipsetIntel Z790
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Maximum Memory Supported192GB
Channel SupportedDual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support under the Support tab or visit https://www.asus.com/support/
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Memory Performance ProfileIntel XMP 3.0
PCI Express 5.0 x16Intel® 14th, 13th & 12th Gen Processors*
1 x PCIe 5.0 x16 slot
PCI Express 4.0 x161 x PCIe 4.0 x16 slot (supports x4 mode)
PCI Express x11 x PCIe 4.0 x4 slot
2 x PCIe 3.0 x1 slots
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Serial ATA (SATA)4 x SATA 6Gb/s
M.2Intel® 14th, 13th & 12th Gen Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
Intel® Z790 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
SATA RAIDIntel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
Audio ChannelsRealtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback*
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio Cover
* Due to limitations in HDA bandwidth, 32-B
Max LAN Speed1 x Intel® 2.5Gb Ethernet
TUF LANGuard
Wireless LANWi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band*
Bluetooth® v5.3**
* WiFi 6E 6GHz regulatory may vary between countries.
** The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications

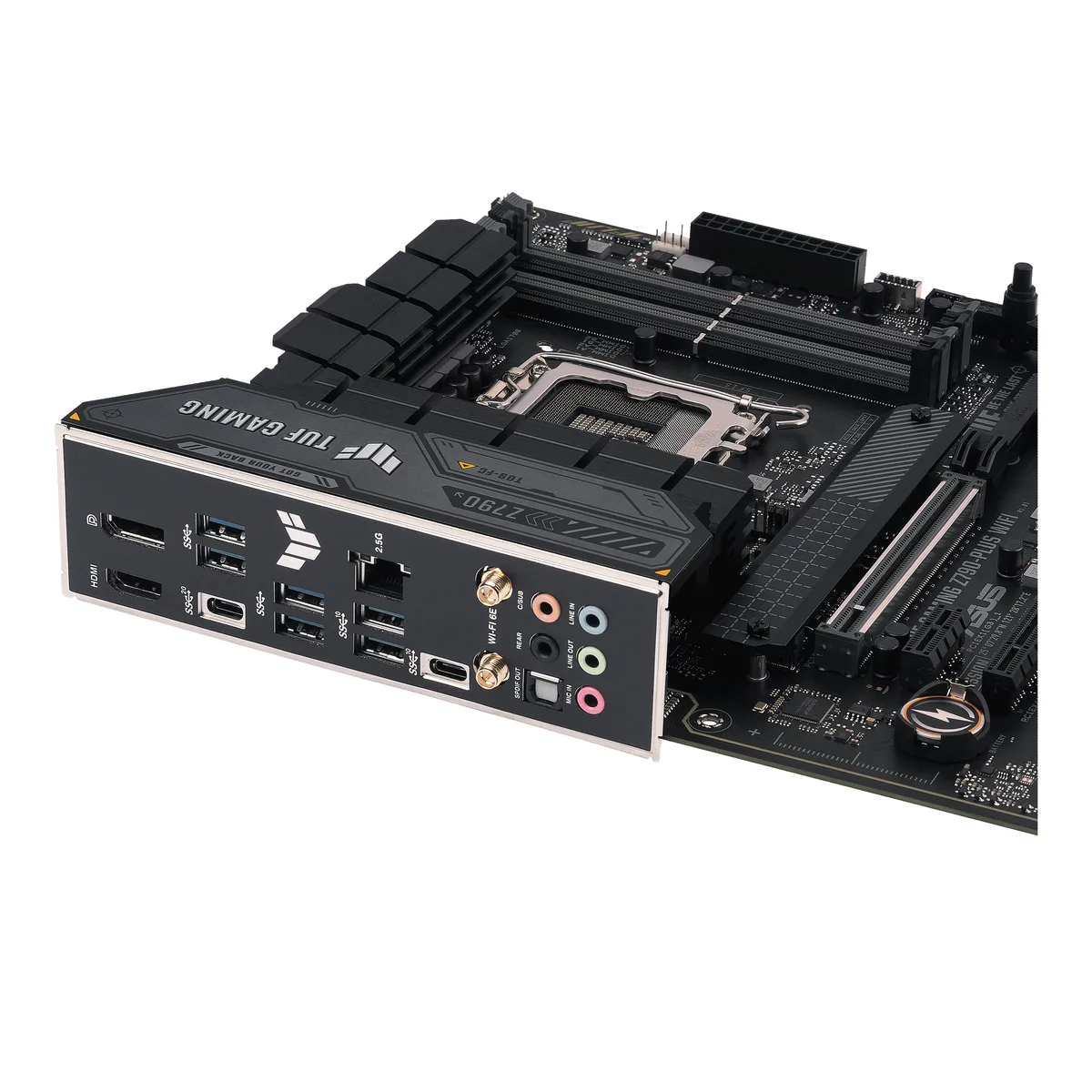

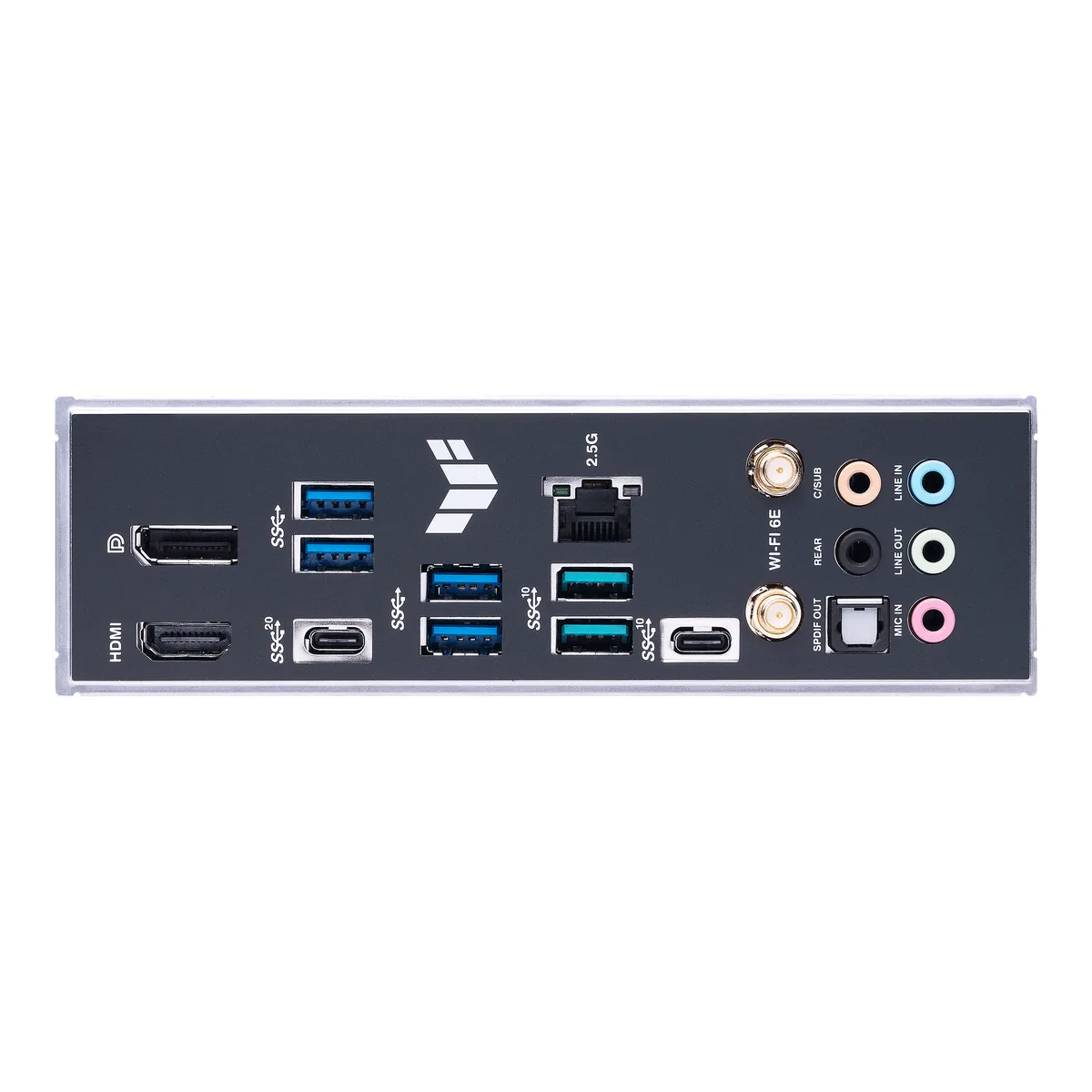

Back I/O Ports1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI® port
1 x Wi-Fi Module
1 x Intel® 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
Other ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
1 x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1
Windows 11Windows® 11, Windows® 10 64-bit
Form FactorATX
Dimensions (W x L)12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
FeaturesASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- Safeslot
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- CPU Socket lever protector
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
AURA Sync
- Aura RGB header
- Addressable Gen 2 headers
Poids d’expédition1.97 kg
Dimensions du colis356 × 272 × 70 mm

Autres versions de ce modèle

2 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What ATX case and CPU cooler clearances does the Z790-PLUS WIFI 6E need?

The board follows standard ATX dimensions with an LGA 1700 socket; ensure the case supports ATX and the cooler fits the 1700 mounting holes and does not overhang the 16+1 DrMOS heatsinks.

Which BIOS update step is often missed when installing a 14th Gen Intel Core processor on this motherboard?

A BIOS update may be required for 14th Gen CPUs; flash the latest firmware via USB BIOS FlashBack before first boot, otherwise the system will not post.

Which replaceable components on the TUF GAMING Z790-PLUS WIFI 6E should be monitored for long-term reliability?

The 16+1 DrMOS power stages and TUF-grade capacitors handle sustained loads; keep VRM heatsinks dust-free and verify fan headers spin under load to extend component life.
